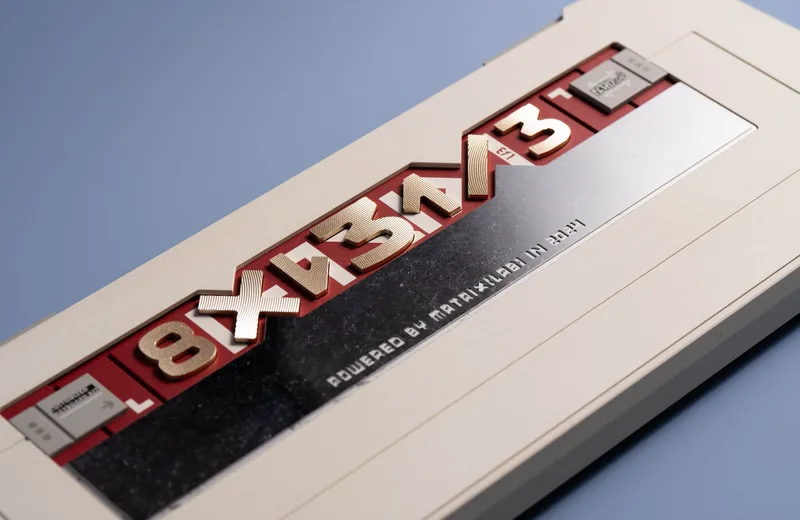

MATRIX 8XV 3 ⅓
KeyboardMatrix · Matrix · 2024
Details
GB
- period: Mar 16 - Mar 18, 2024
- All orders will be fulfilled before 1st August
Price:
- $550 (The price of each vendor may vary slightly)
Vendor:
- NA: Novelkeys
- OCE: Daily Clack
- China HongKong/ Macao/ Taiwan: Matrix Lab
- KR: Swagkeys
- EU: Oblotzky Industries
- GB: Prototypist
- SEA: iLumkb
(If you order from Novelkeys, all items included in your order will be shipped directly to you from Matrix lab.)
Kit Includes
- Keyboard x1

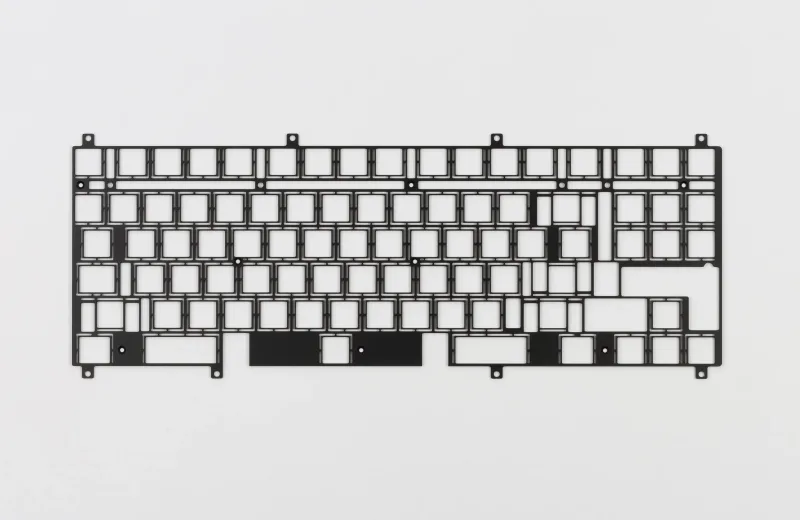

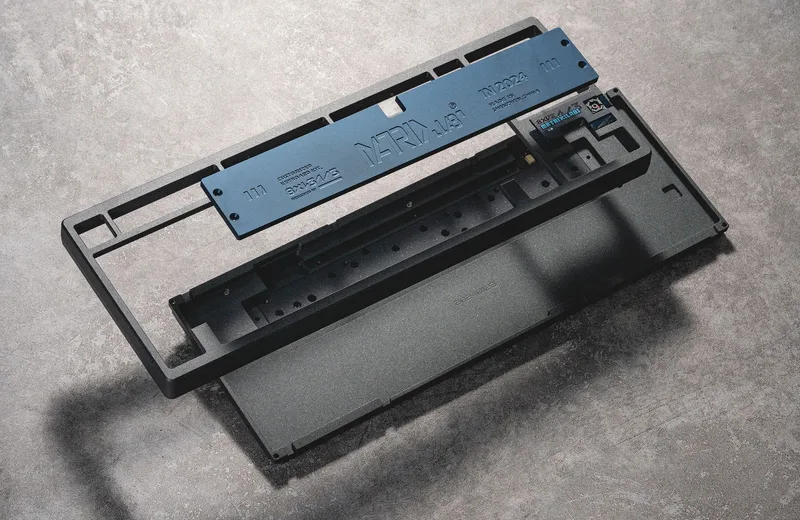

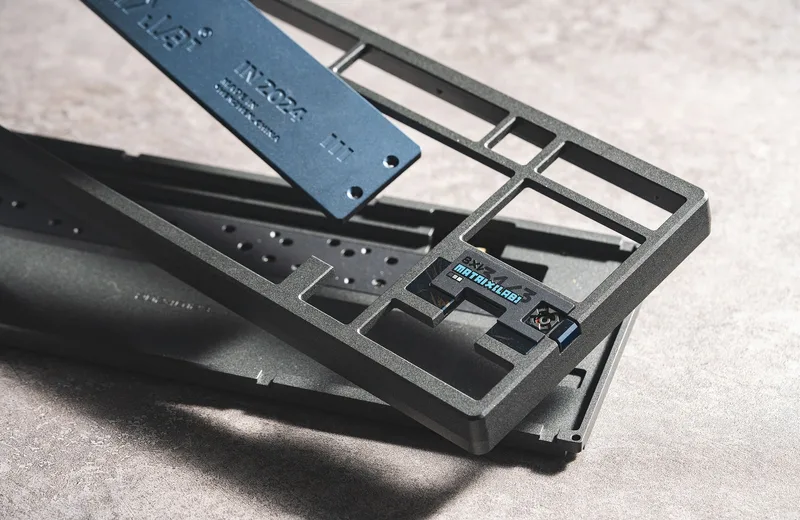

- Alu Plate x1 (Choose between flex cut and non flex cut)
- Hot-Swap PCB x1
- Poron Plate Foam x1
- IXPE PCB Foam x1
- Case Foam x1
- Screws
- Wires

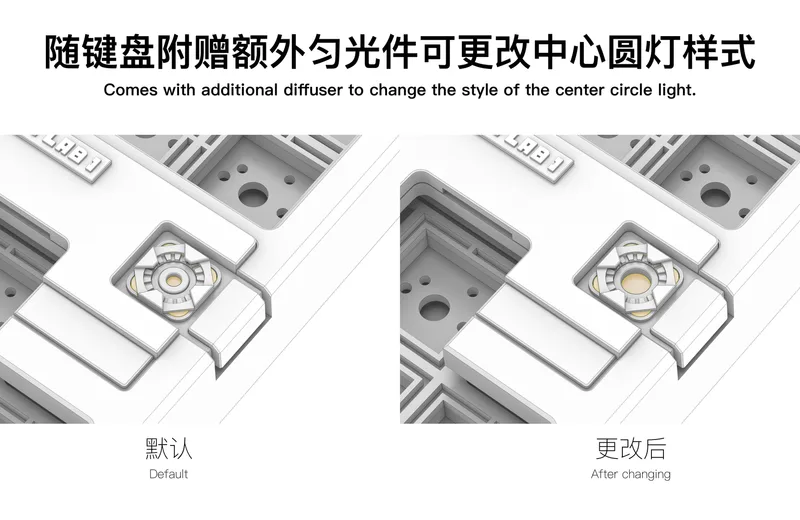

- Extra Front Center Light Diffuser x1

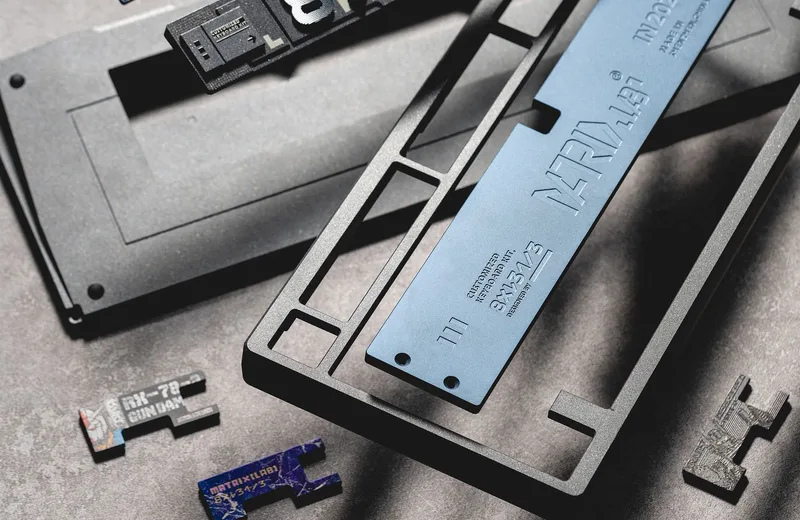

- Extra Front Replaceable Accent Cover x1

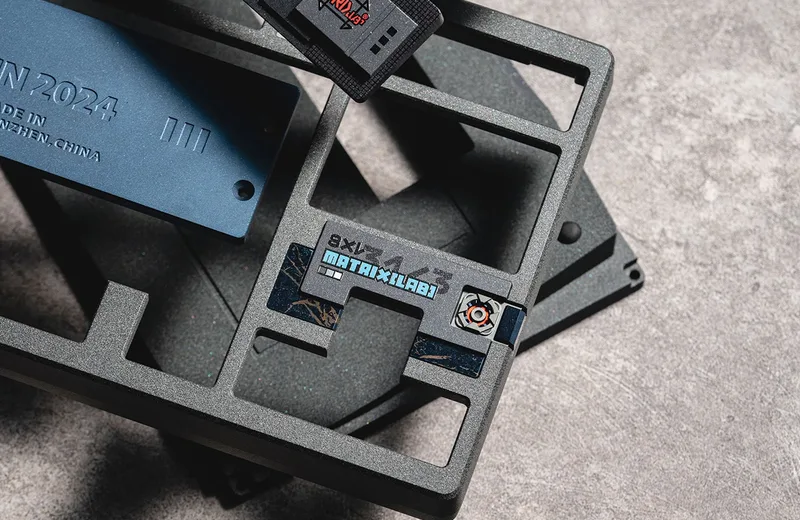

*All colored parts are made of stainless steel.

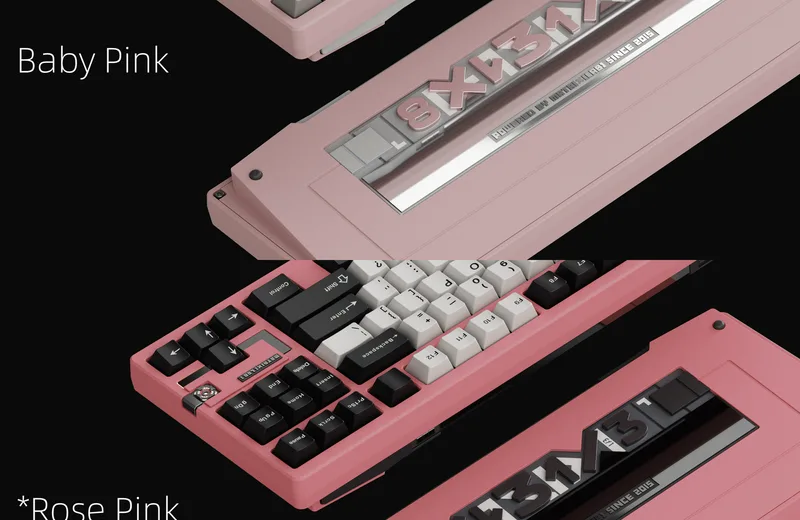

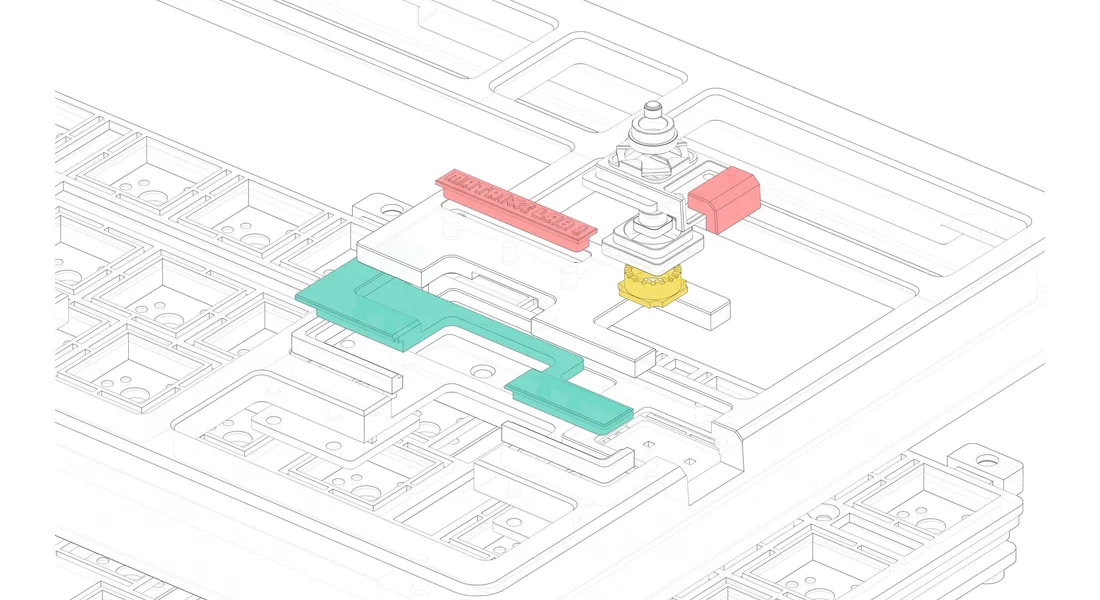

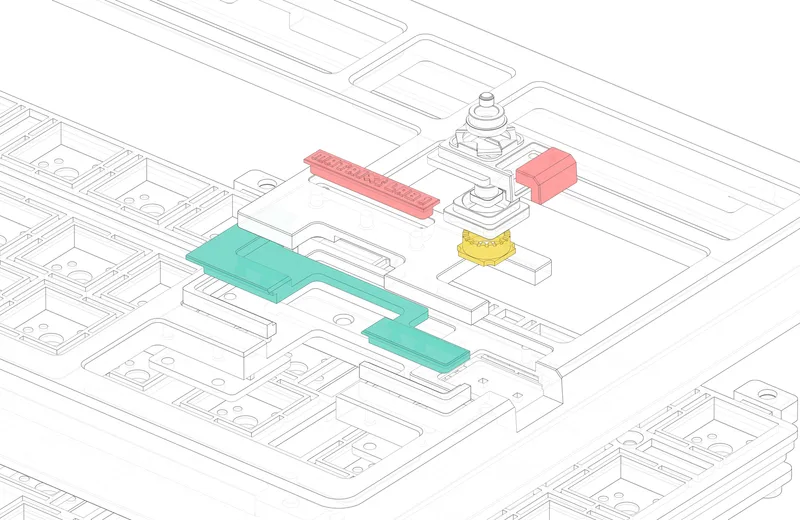

| COLOR | SURFACE TREATMENT | |
|---|---|---|

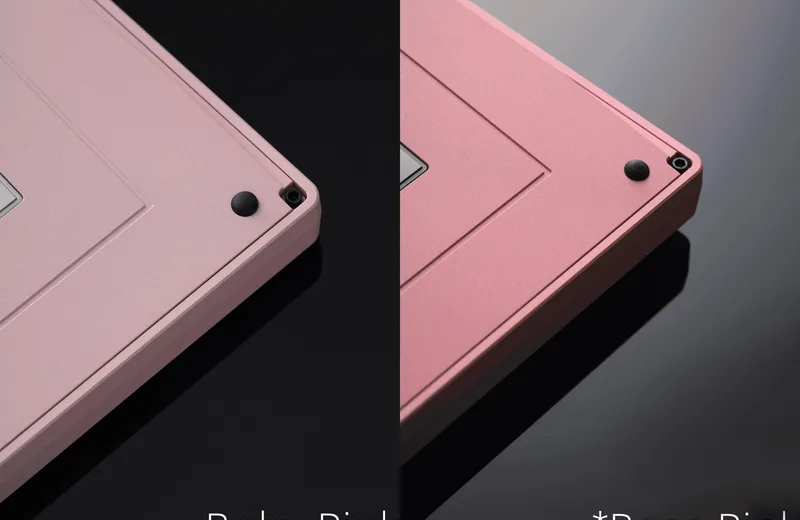

| Red Part | Meteorite Grey- Blue McFlurry- Silver Linen- Silver Grey Blue- Silver Baby Pink- Silver Rose Pink- Black Black Flash- Black Olive- Black Sunflower Yellow- Black Red- Black | Mirror PVD |

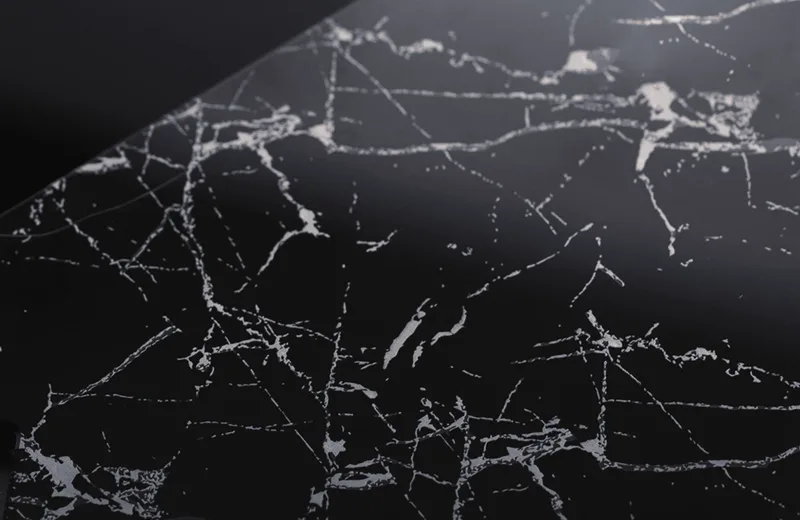

| Cyan Part | Meteorite Grey- Blue McFlurry- Silver Linen- Silver Grey Blue- Silver Baby Pink- Silver Rose Pink- Black Black Flash- Black Olive- Black Sunflower Yellow- Black Red- Black | Optional mirror PVD or marble pattern PVD |
| Yellow Part | Silver for all colors | Mirror PVD |
| Purple Part | Meteorite Grey- Blue McFlurry- Silver Linen- Silver Grey Blue- Silver Baby Pink- Silver Rose Pink- Black Black Flash- Black Olive- Black Sunflower Yellow- Black Red- Black | Matte PVD |

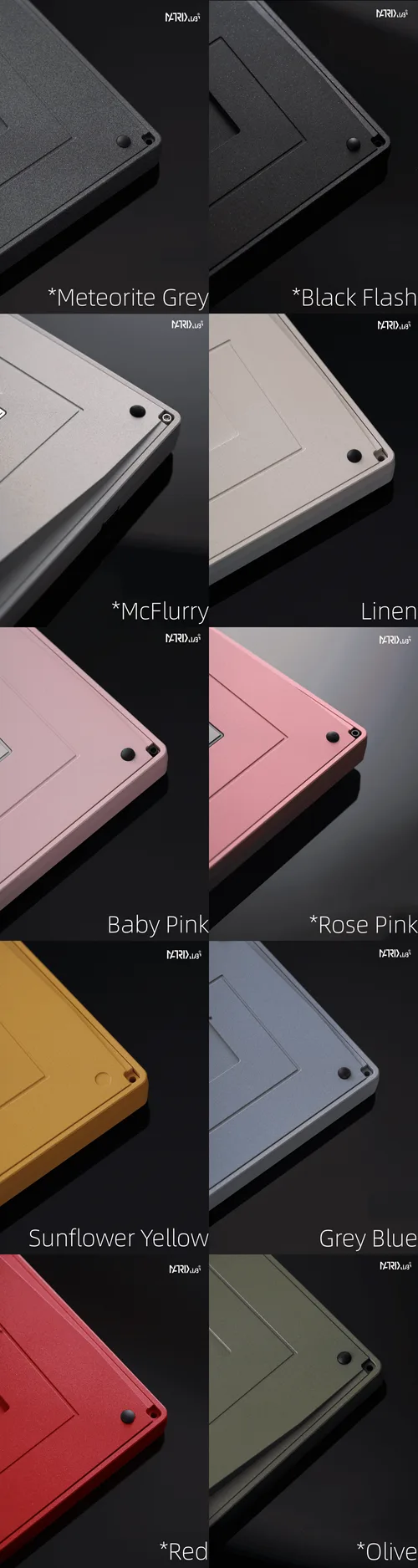

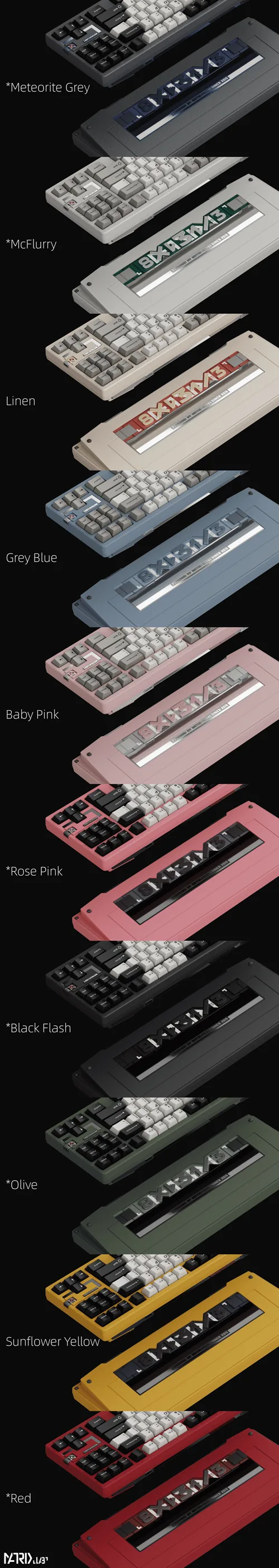

| Body Color | Color finishing |
|---|---|
 |  |
 |  |  |
Basic information:
- Front height: 20mm
- Angle: 6
- Weight: 2.39kg after build with keycaps
- Length: 363mm, Width: 140mm

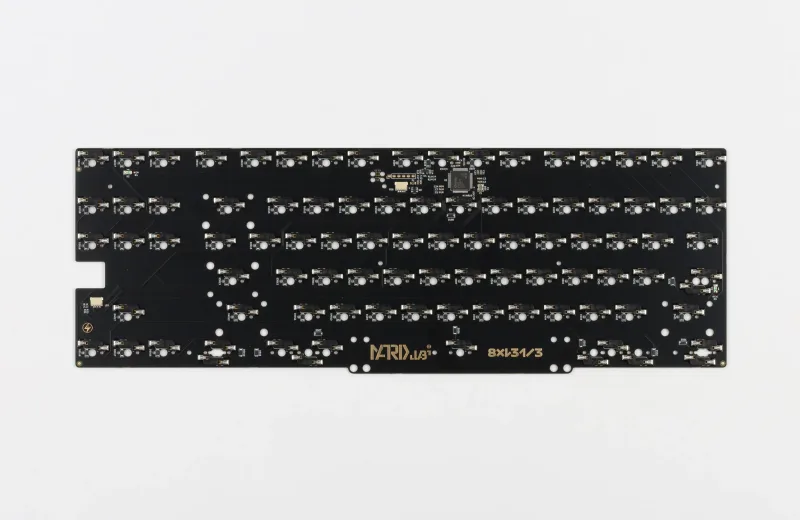

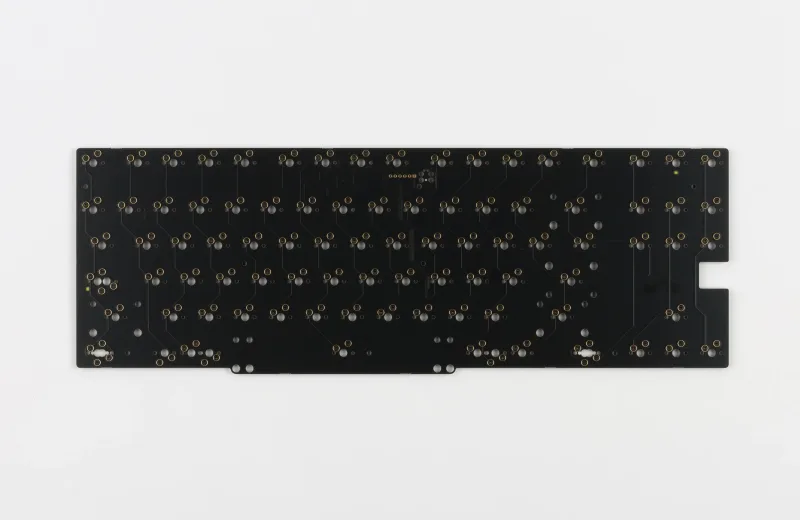

PCB:
- 1.2mm; No flex cut; No RGB backlight; Caps Lock and Scroll Lock have indicator lights
- High speed MCU, supports up to 8K Hz polling rate;
- The type-c data port positions can be swapped between left and right side;

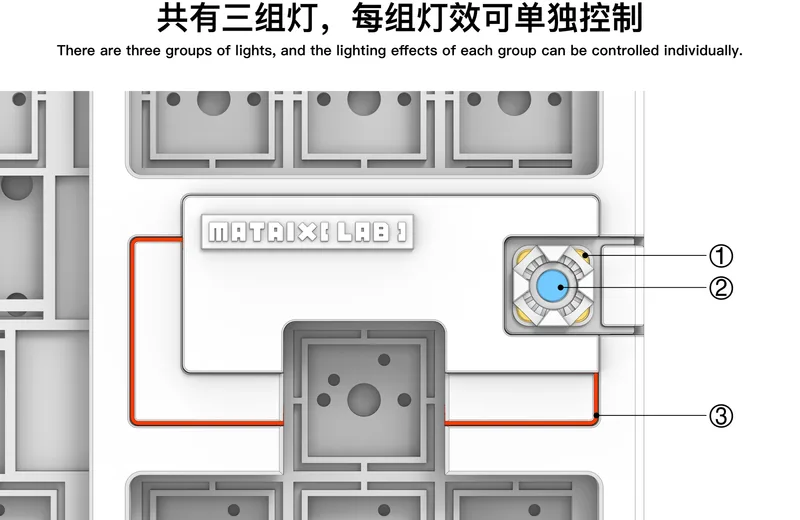

- Supports two types of the front center led ring;
Mount:
- Supports top mount only and will offers two types films to achieve different typing feels;
Other:

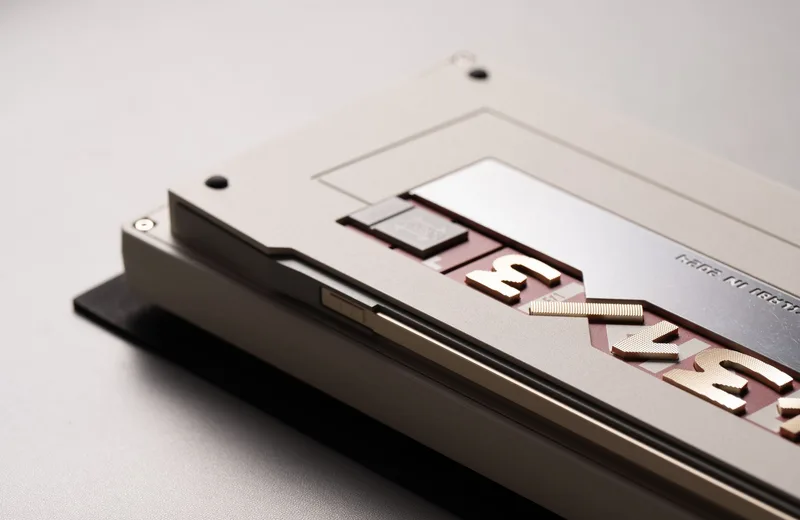

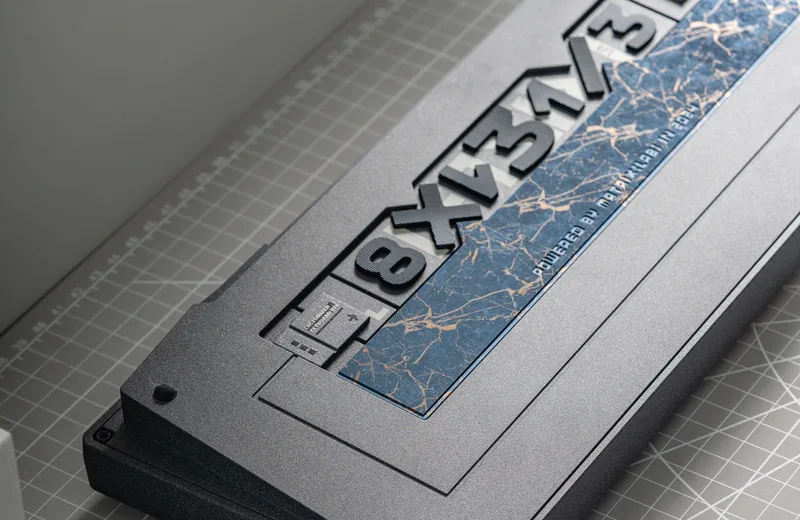

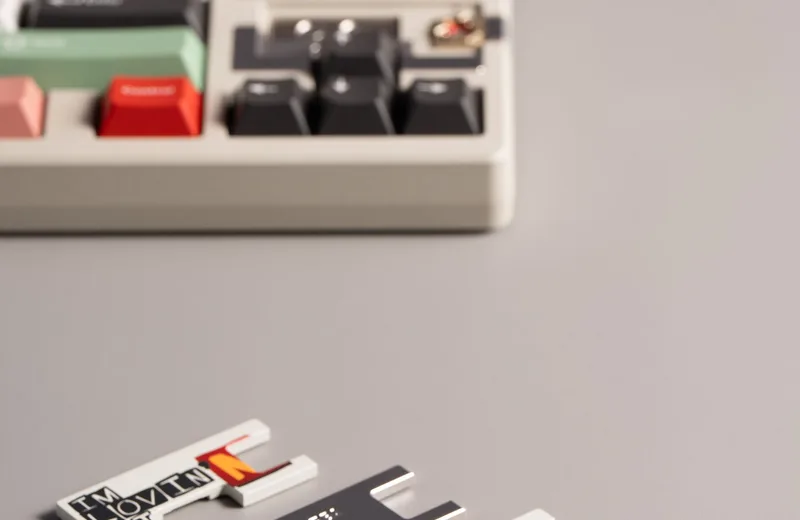

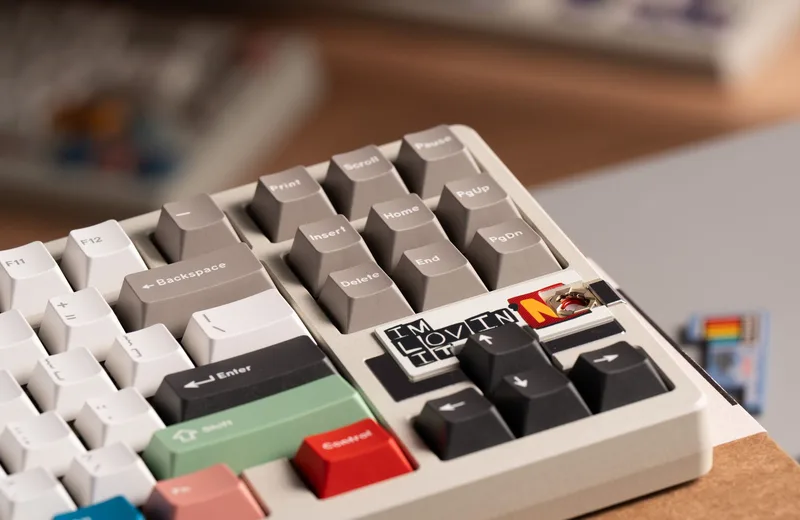

- Front replaceable accent cover;

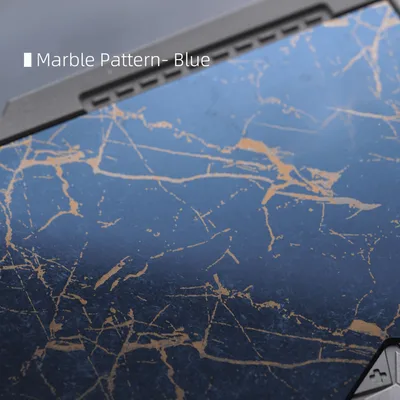

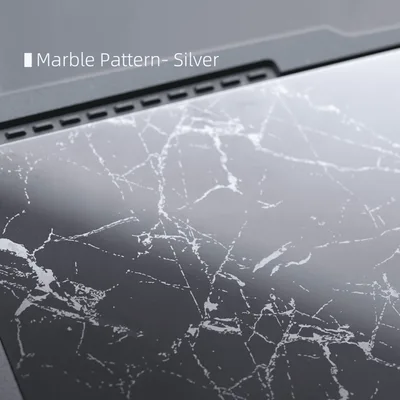

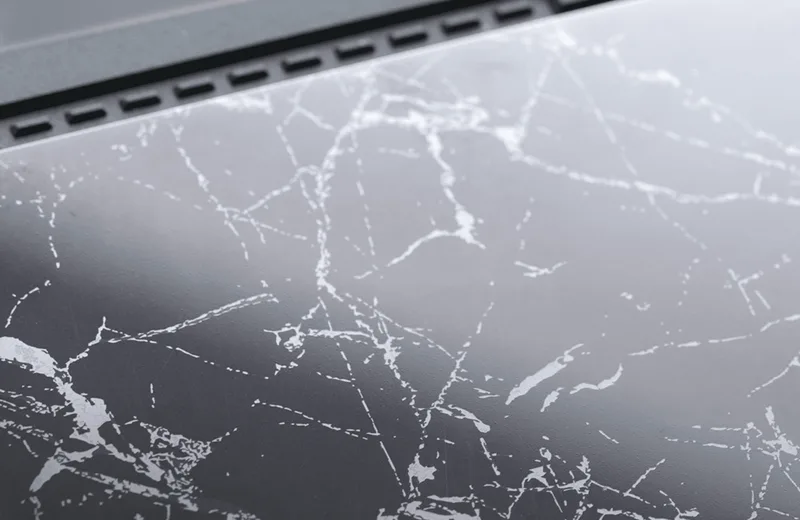

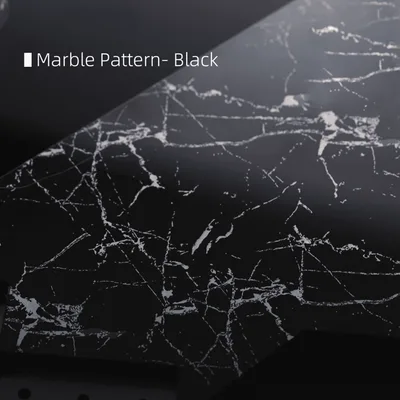

- Some stainless steel parts can be optionally treated with mirror PVD and marble pattern PVD;
- Offers both normal plate and flex cut plate;
- Each kit comes with an extra front replaceable accent cover with UV printing content (different color from the case);
