Cloud Nine

GB

• period: May 3, 2024 - 18.05.2024

• Delivery time: Q4 2024. Shipping out by air after QC

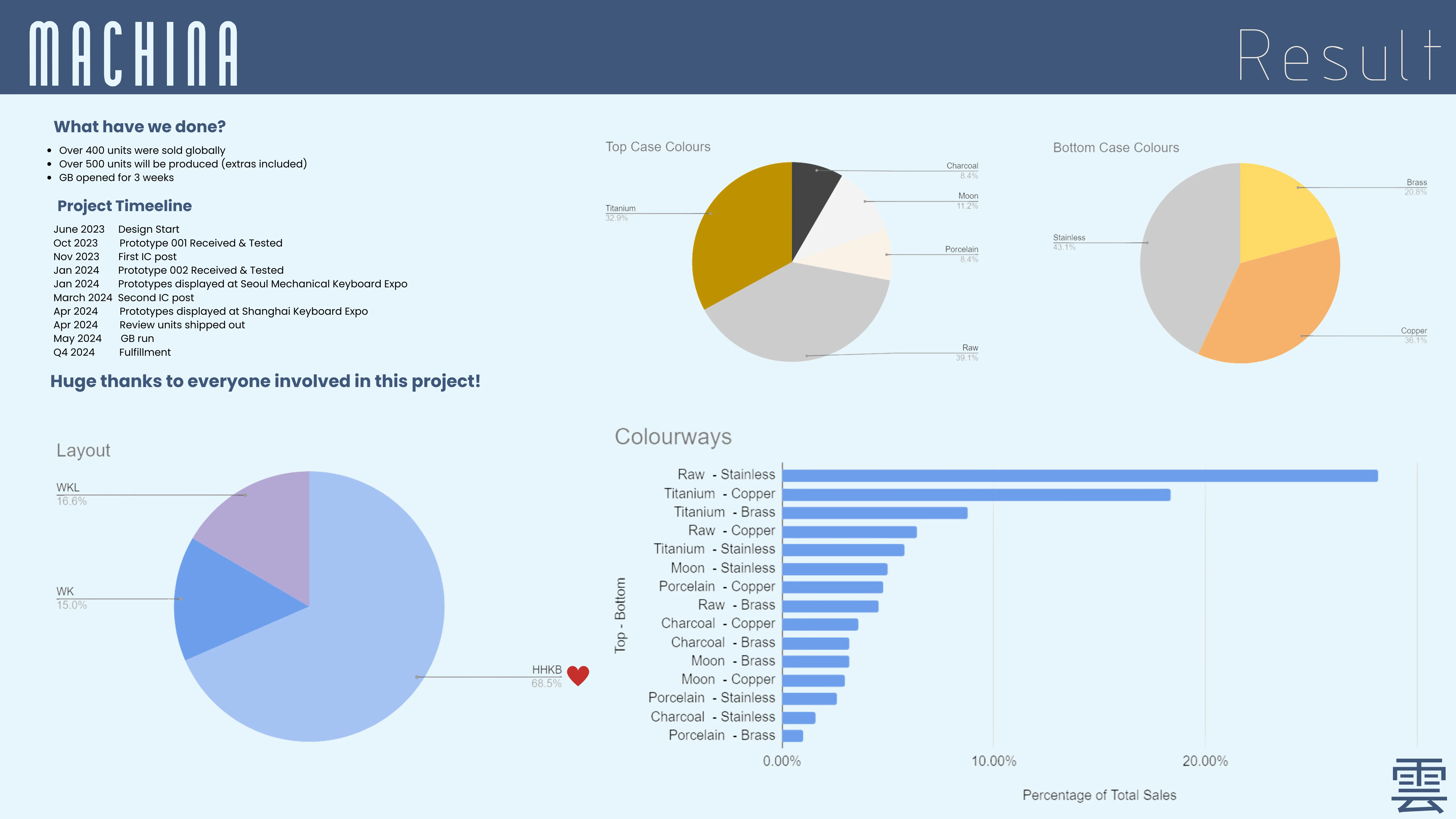

color breakdown

Vendor

• AU & Rest of the world: www.machina.mx
• South Korea: Geonworks https://geon.works/

SPEC

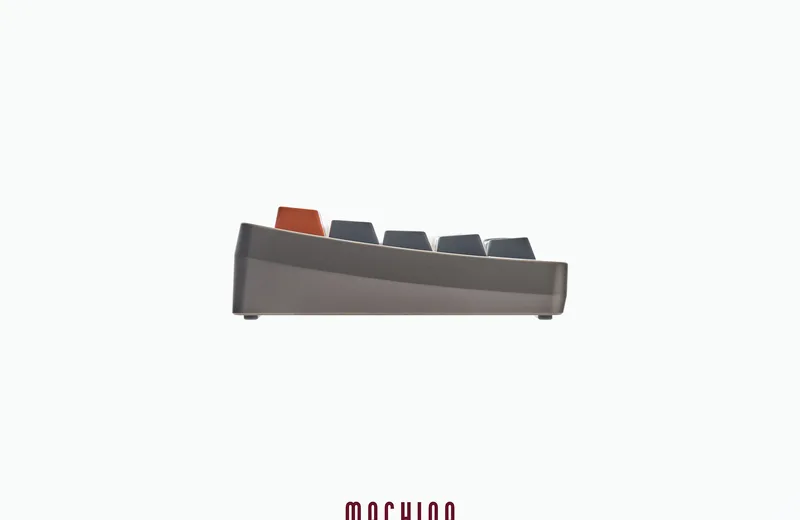

• Typing angle 7.0°
• Front height: 18mm
• Weight : around 2.5 kg built
• Mounting style: Silicon pin/ Tadpole ( 70A as default, 4 hardness options)
• Screwless exterior design (detachable silicon feet)

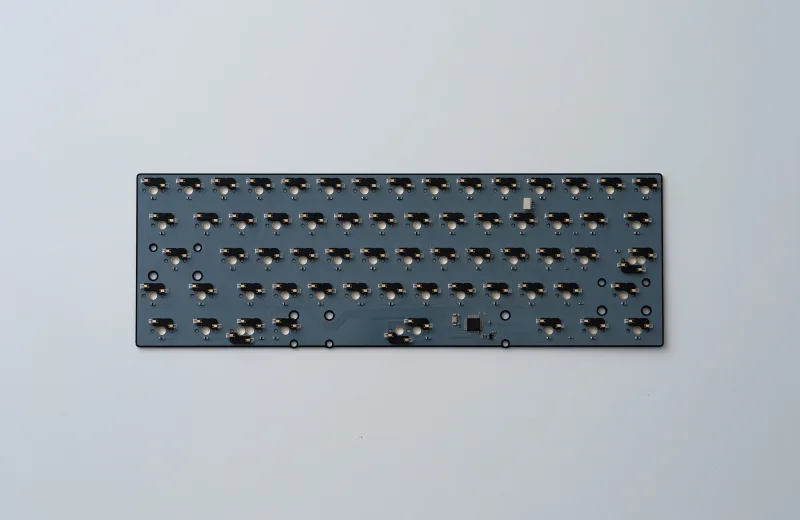

• PCB: Inhouse design with USB-C daughterboard - configurable with QMK/VIA
• MX hotswap, MX solder, EC available
• A matching carrying case included
• Anodised/ E-coated aluminium top case

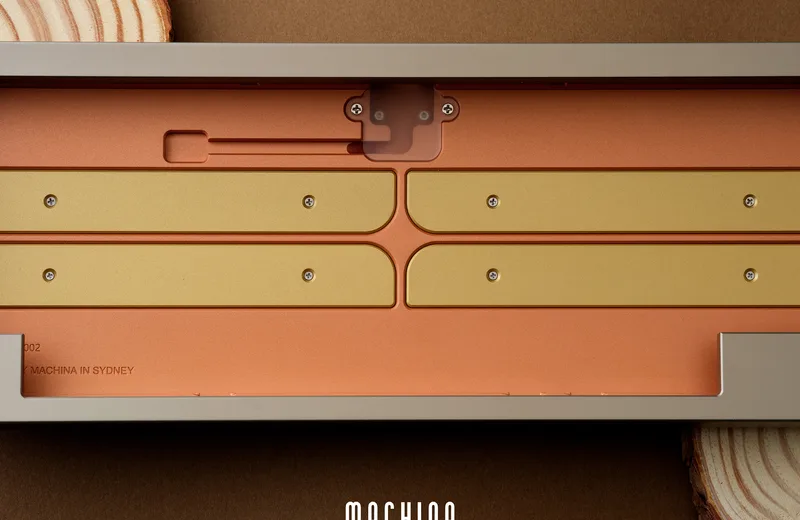

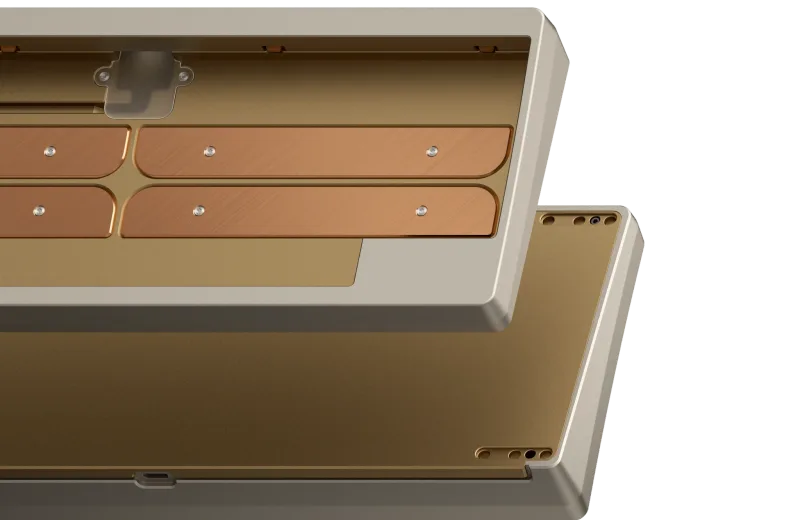

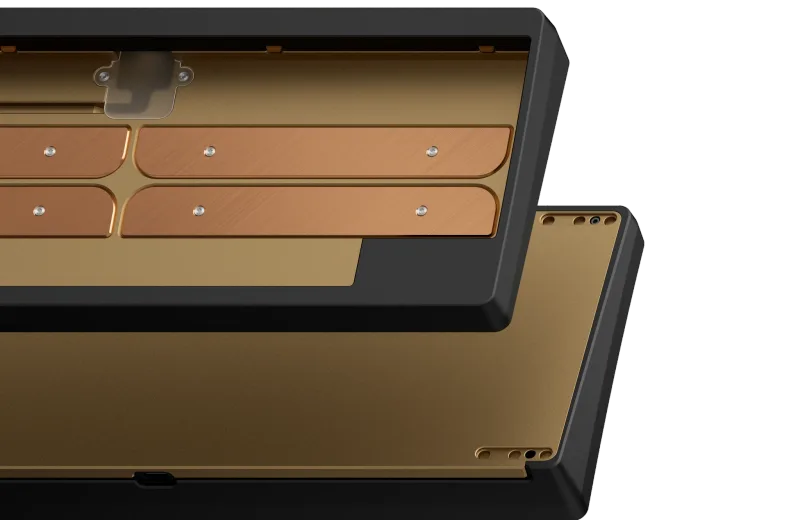

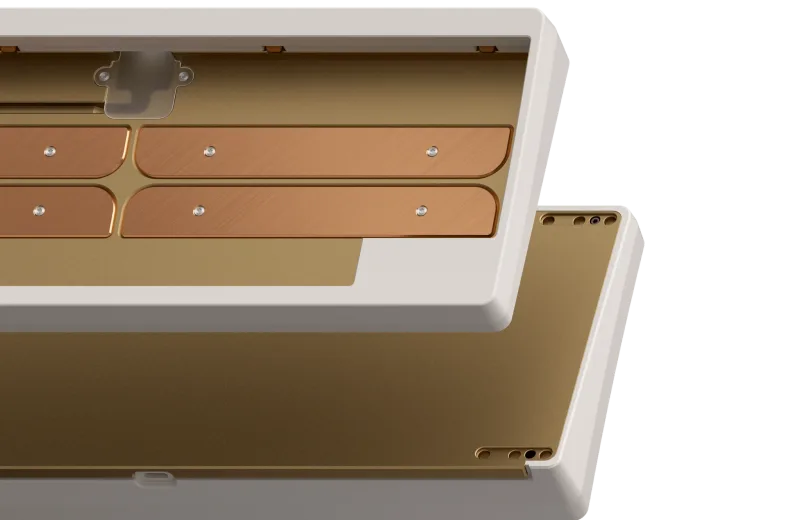

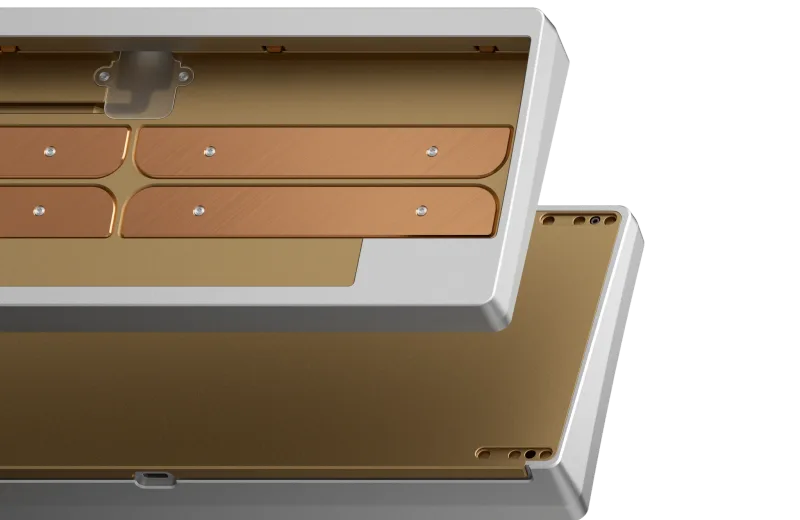

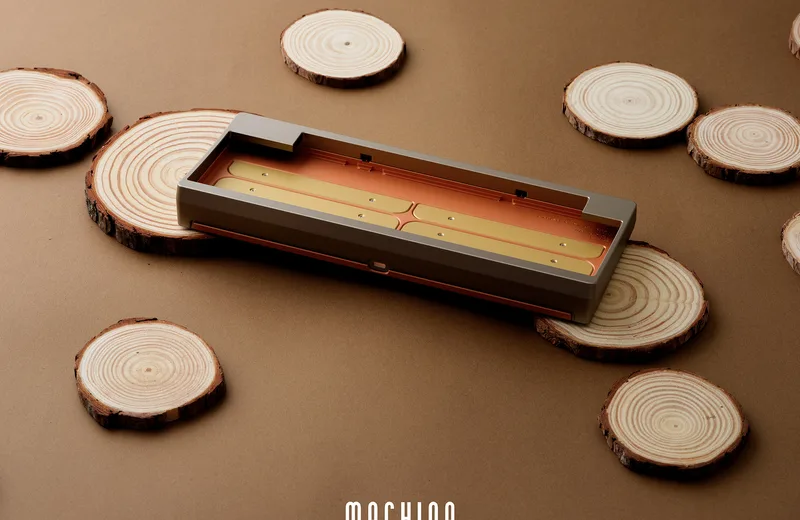

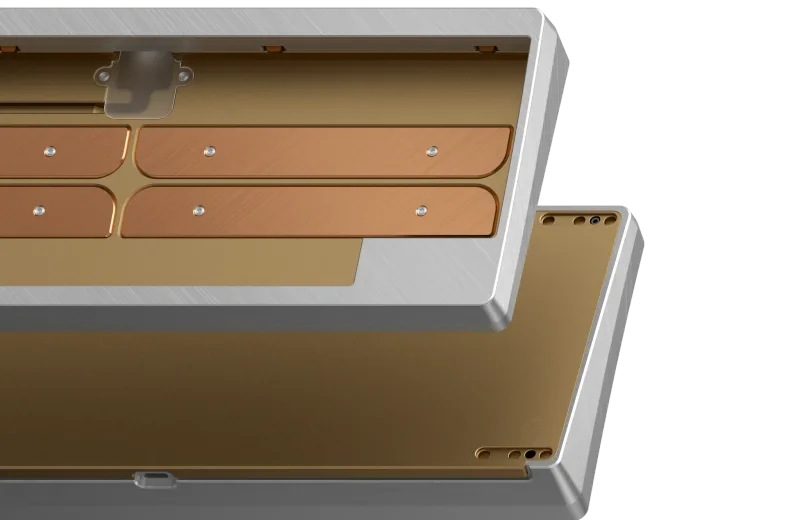

• Brass bottom case with 4 internal copper weights ( nano clear coat )

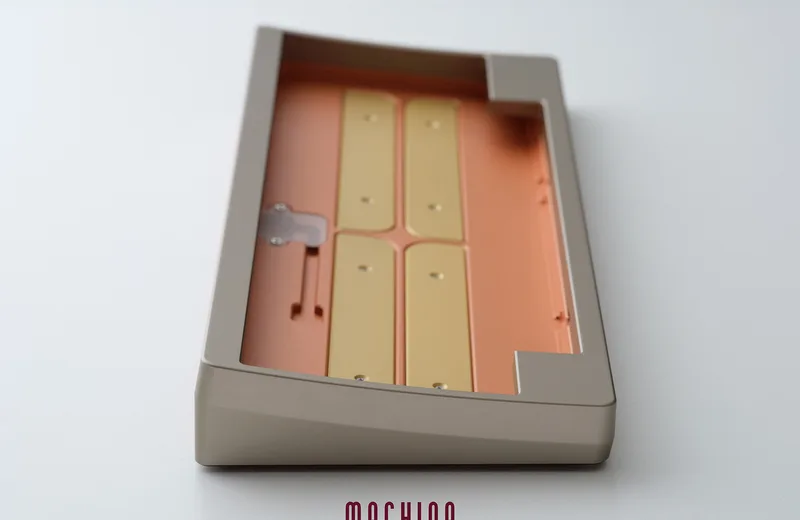

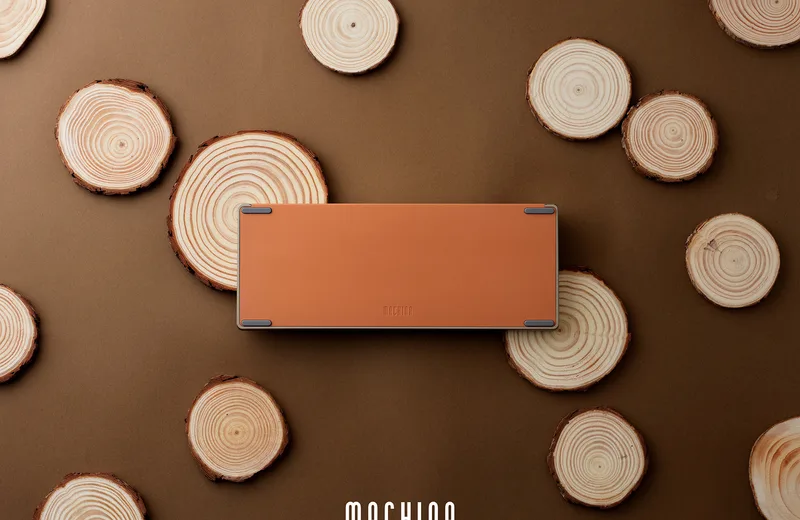

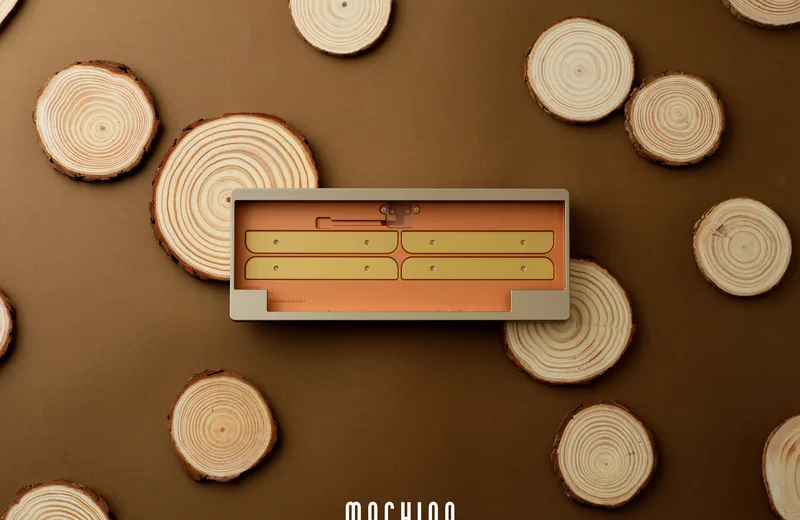

• Copper bottom case with 4 internal brass weights ( nano clear coat )

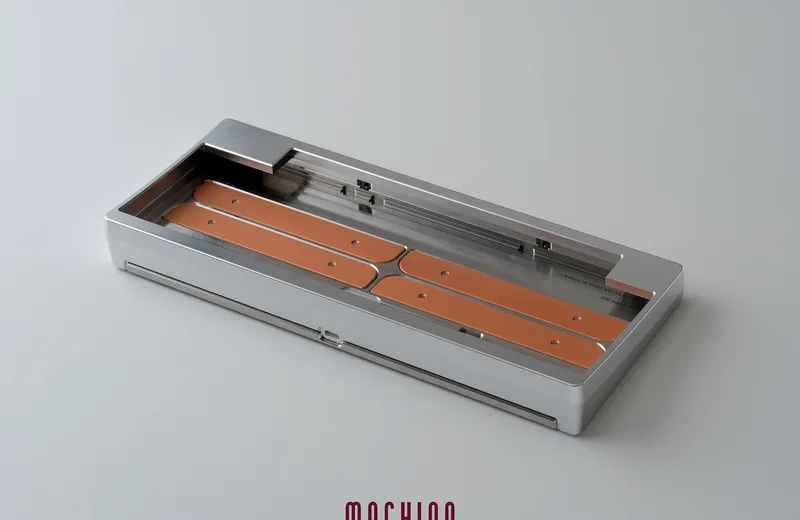

• Stainless steel bottom case with 4 internal copper weights ( unfinished/raw stainless steel & nano clear coated weights )
• Manufacturer: Hongtu (HT)

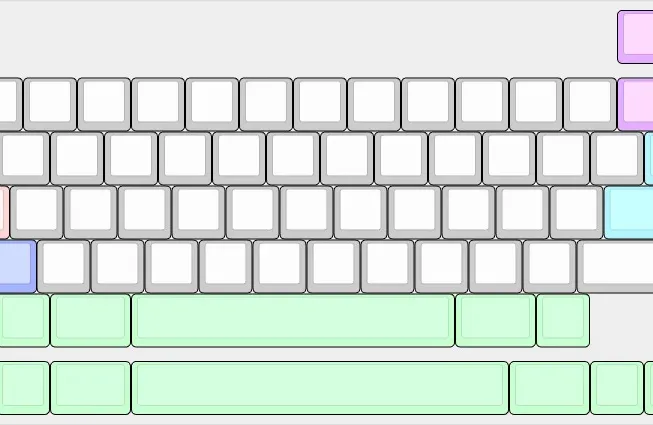

Layout

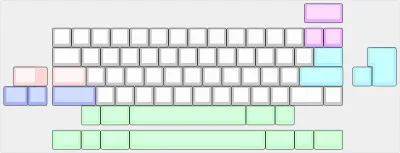

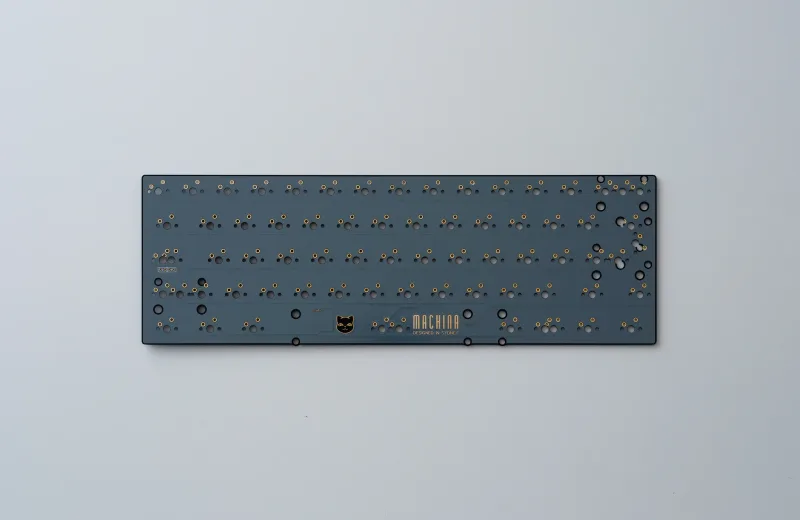

Solder PCB

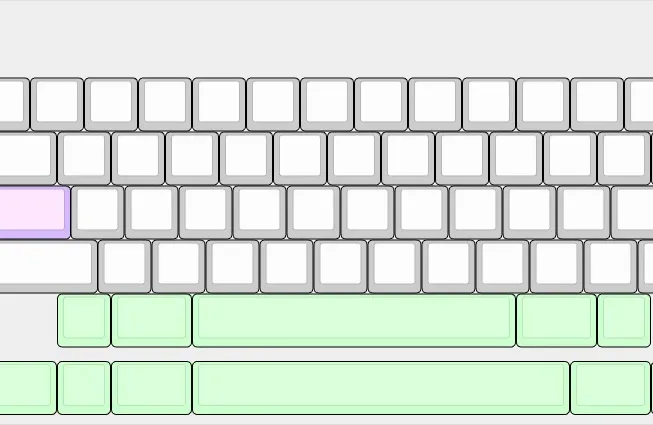

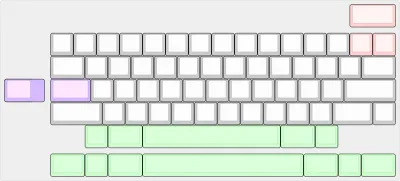

Hotswap PCB

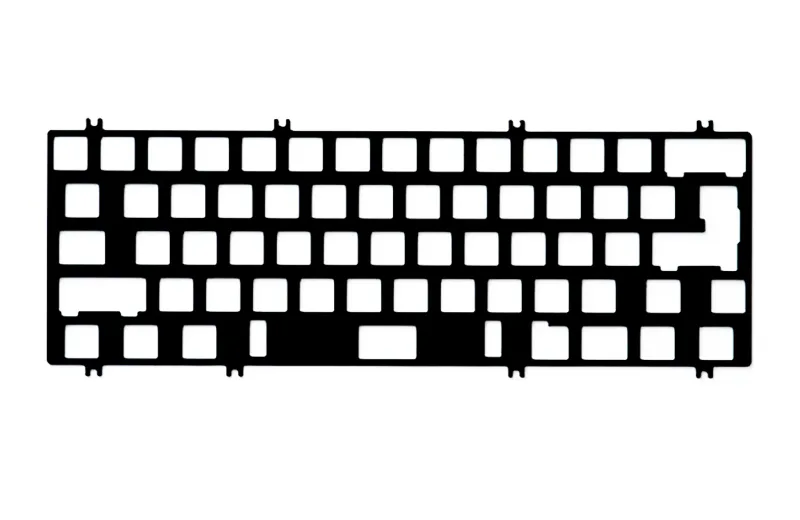

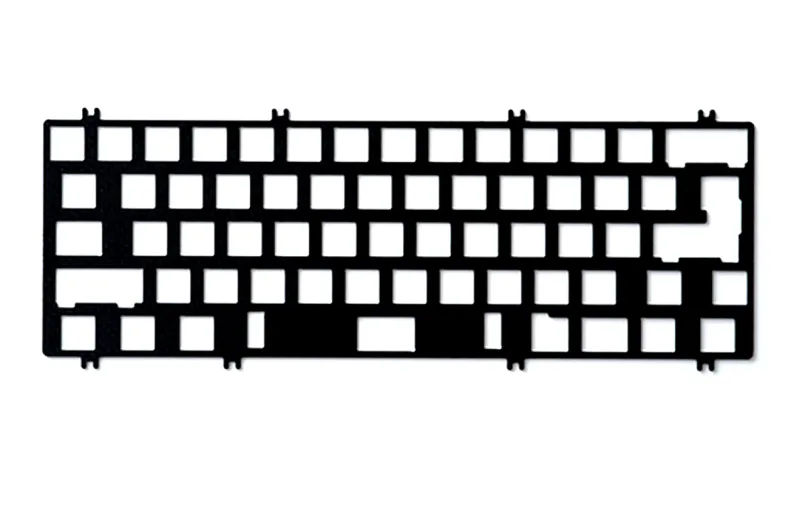

• VIA MX json, MX plate file
• VIA EC json, EC plate file

TOP CASE COLOURS

• Anodised Colours
  • Moon / Silver
  • Charcoal / Black
  • Titanium
  • Raw (clear anodised)
• E-Coat Colours
  • Porcelain / Beige

ABOUT RAW KEYBOARD

• Raw Cloudnine has been clear anodised, which can prevent oxidation.
• Raw products are aluminium products that have not been surface-treated (no sandblasting or polishing), and may have CNC marks and small scratches.

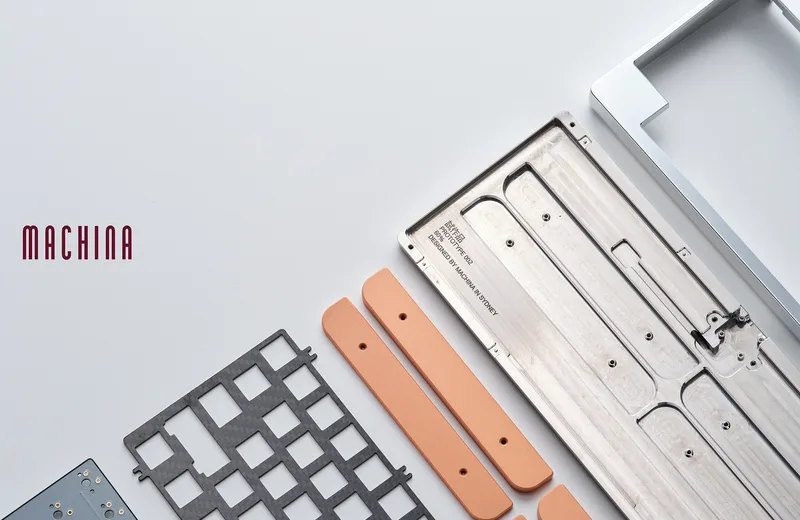

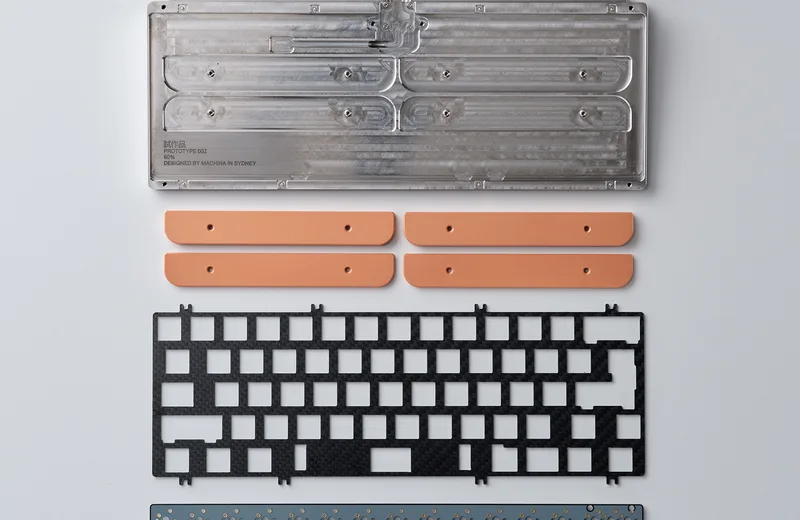

CONTENT

• 1 x Top Case
• 1 x Bottom Case
• 4 x Copper/ Brass Internal Weights

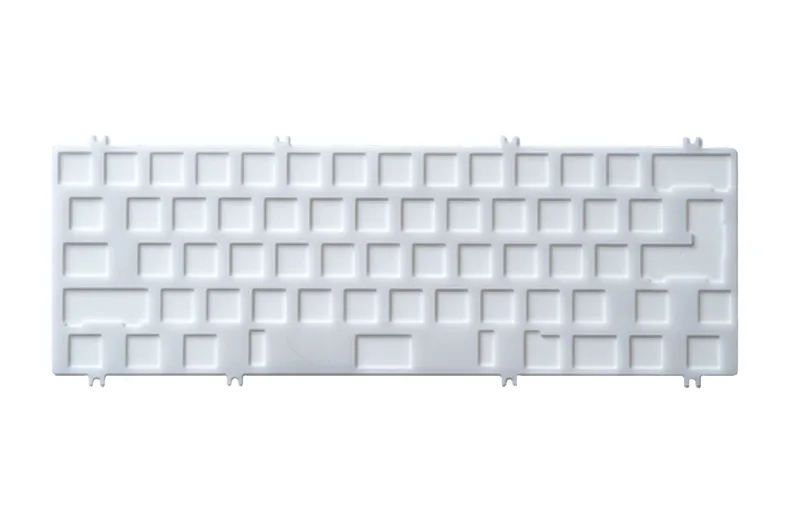

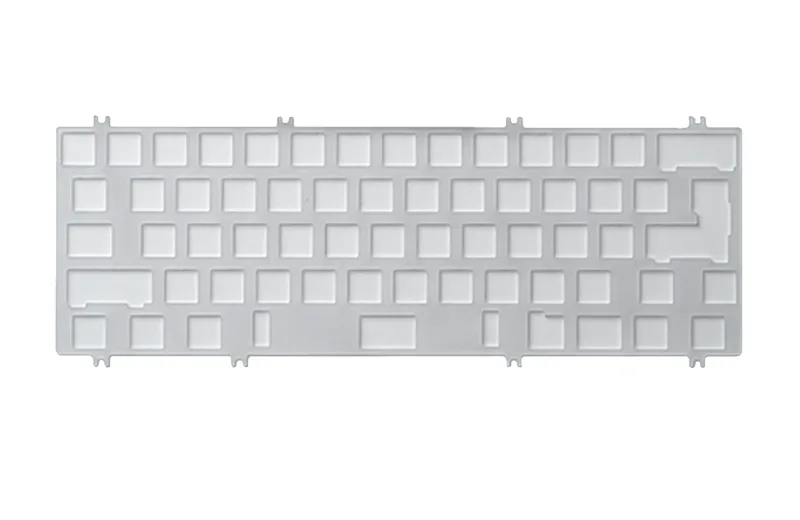

• 1 x MX Aluminum Plate
• 1 x 4 Custom Moulded Machina Feet (Grey)

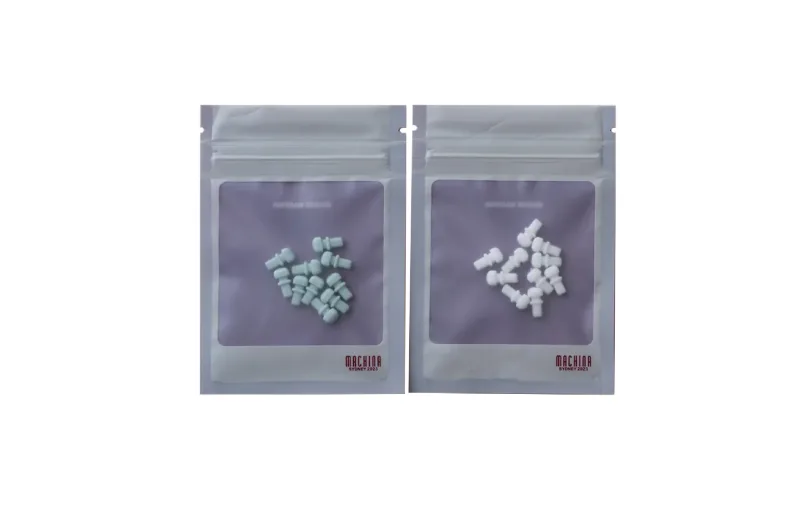

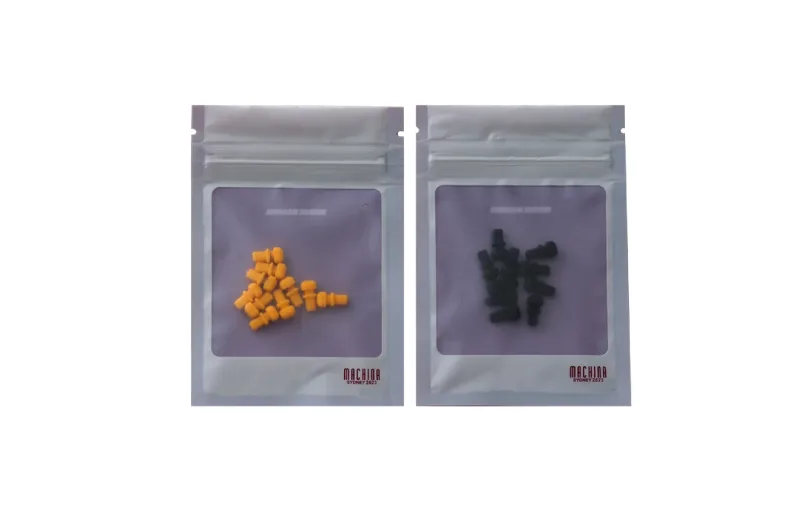

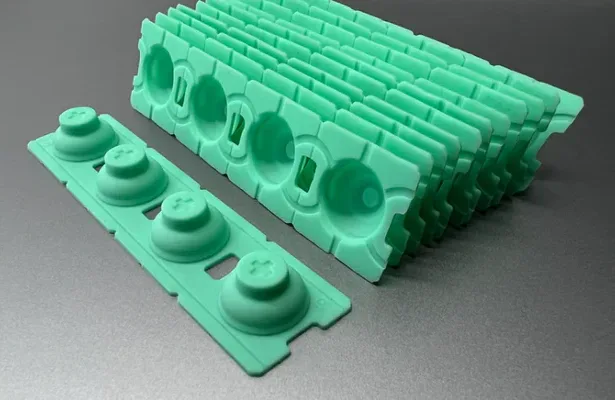

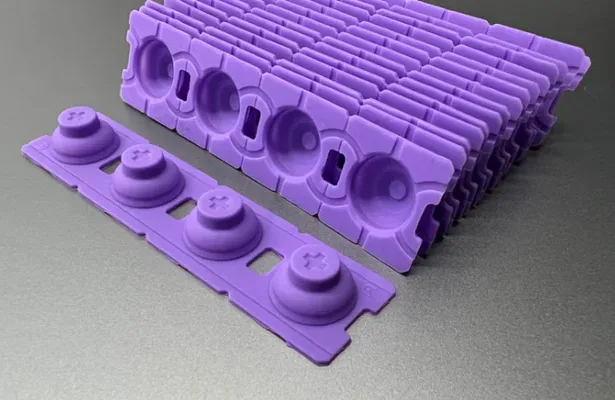

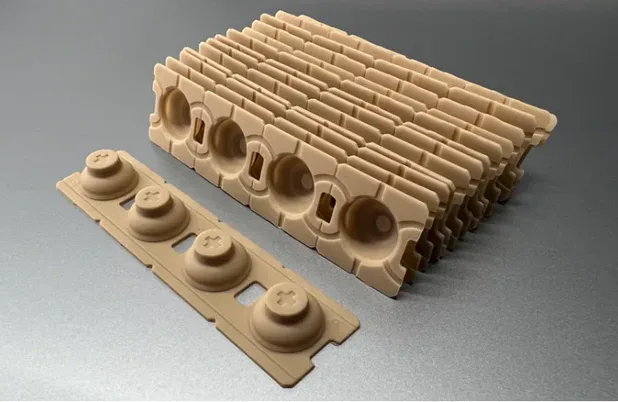

• 10 x Custom Moulded Machina Tadpole (70A)
• 1 x PC Daughterboard Cover
• 1 x Daughterboard with JST Connection Cable
• 1 x Compatible Screwdriver
• 1 x Customised force break kit
• 1 x Carry Case
• 2 x 6u Wire (MX only)

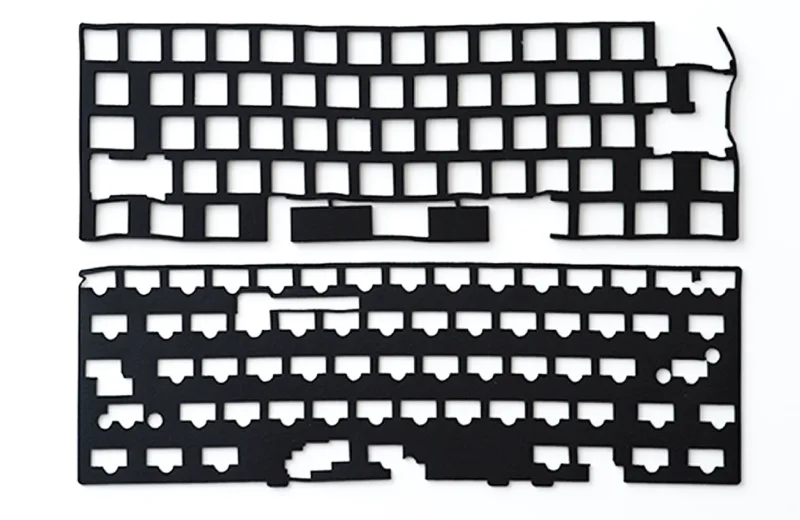

• Foam is not included in the kit. ** 6u EC wire is included in Desky bundle, you need to purchase the bundle separately.
