TENET 60+10%

Keyboardoy2r of Metakey · 2022

Details

flippable keyboard (no QMK - anna pro software instead)

More pictures on zfrontier

Sales

  • format: unlimited gb
    • Standard Editions: Unlimited Groupbuy
    • Founders Edition (FE): FCFS (40 units in total)
      • 20 units in Obsidian Colorway and
      • 20 units in Shadow Colorway
  • period: 06/20/2022 20:00 EST - 06/25/2022 23:59 EST
  • ETA: Q1 2023 TENET Shipping Estimate

Pricing

  • Full-aluminum Anodized Colorways: $425 (Soldered) / $433 (Hotswap)
  • Full-aluminum Electrophoresis Colorways: $449 (Soldered) / $457 (Hotswap)
  • Sandblasted Brass Weight Anodized Colorways: $507 (Soldered) / $515 (Hotswap)
  • Sandblasted Brass Weight Electrophoresis Colorways: $532 (Soldered) / $540 (Hotswap)
  • Founders Edition (FE): $714 (Soldered) / $722 (Hotswap)

Alex build stream

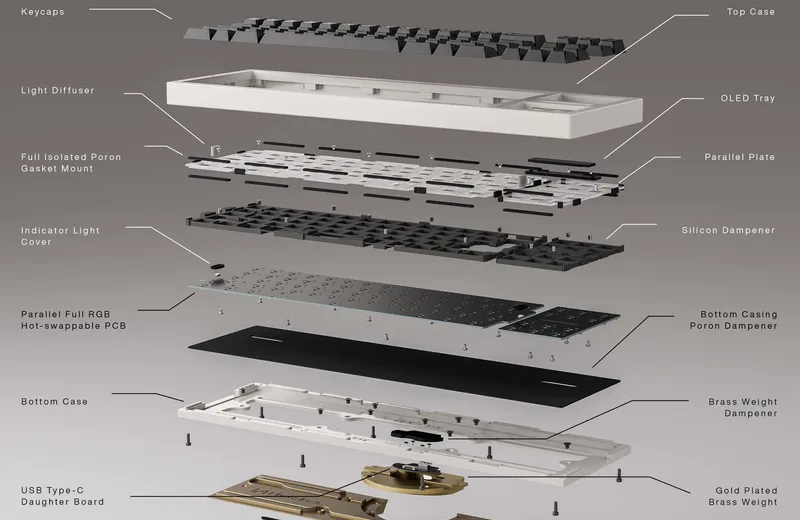

Keyboard Spec

  • Dimensions: 374 x 115 x 30mm
  • Materials:

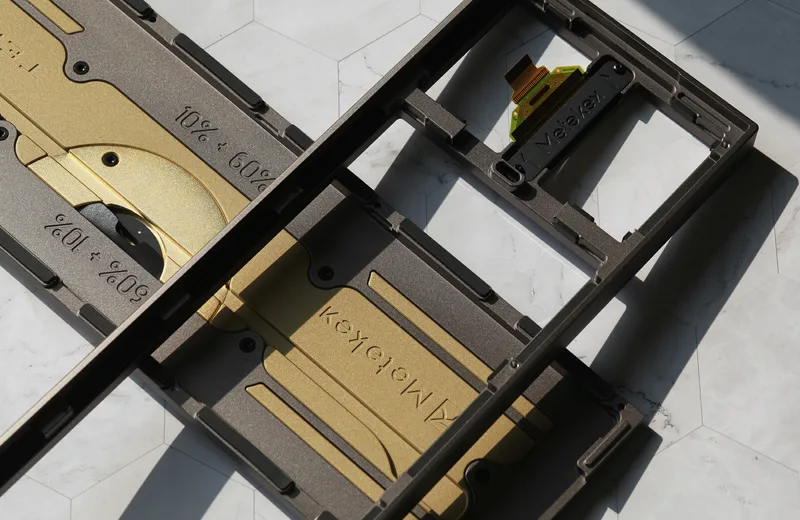

    • ╚ Full-aluminum: Aluminum Case and Weights

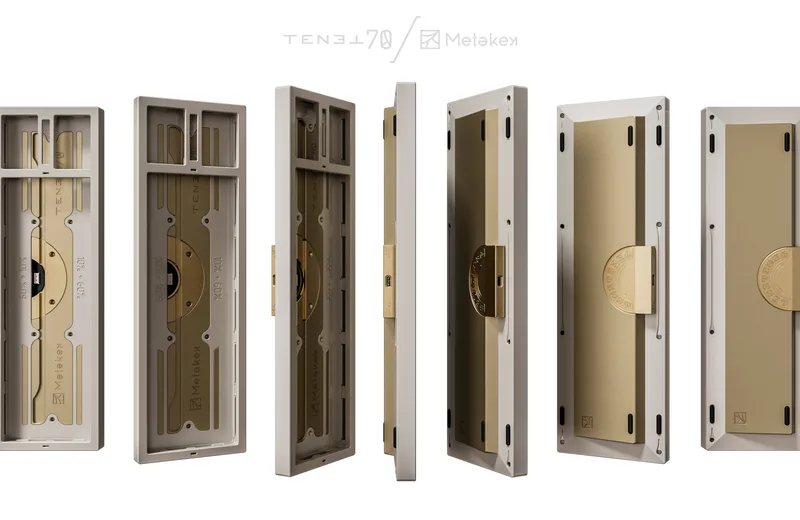

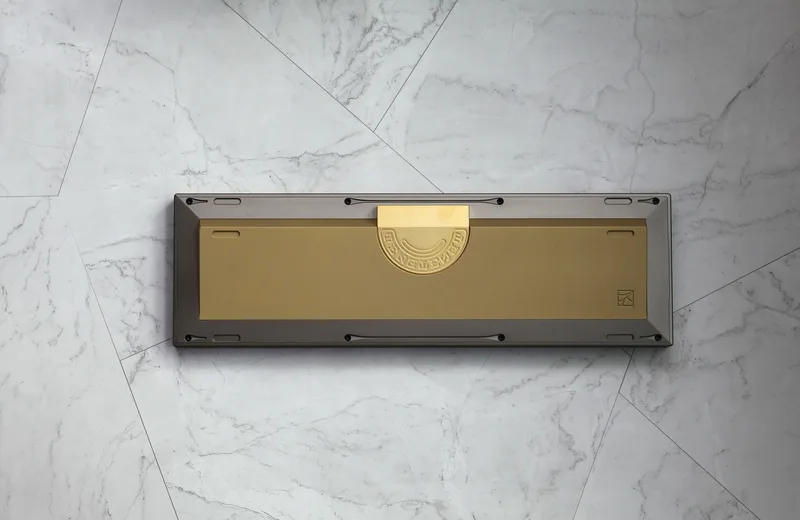

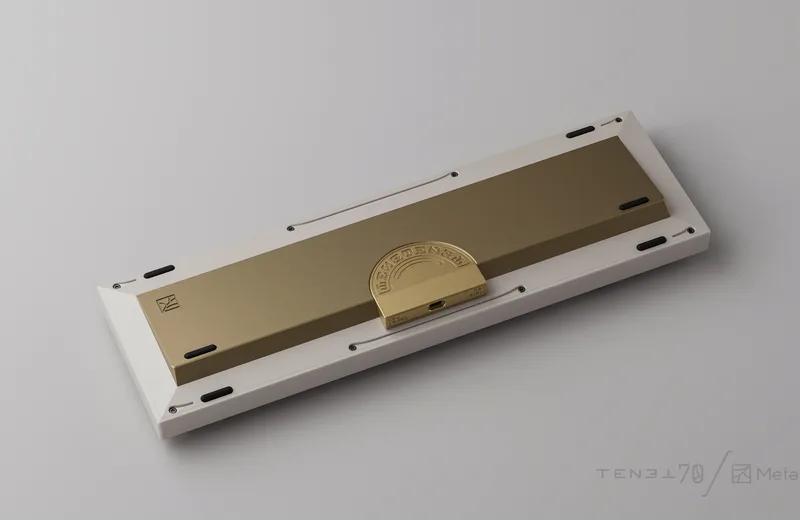

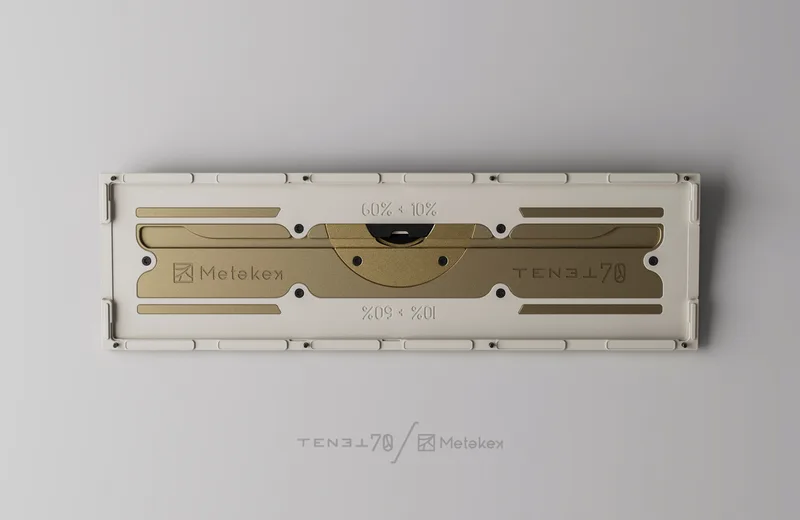

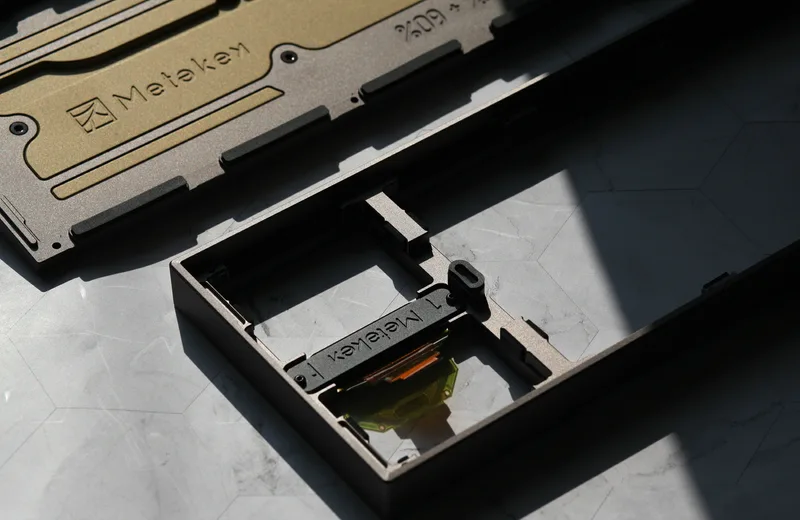

    • ╚ Aluminum Case + Brass Weight: Aluminum case with Sandblasted Brass main Bottom Weight, Sandblasted Gold-plated Brass Outlet Weight

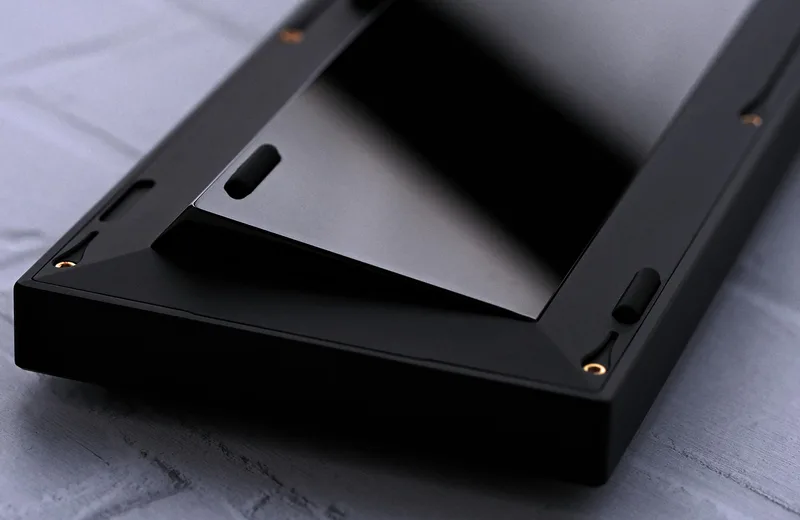

    • ╚ Founders Edition: High-gloss Chamfered Edge with Double-anodizing with PVD Mirror Brass Bottom and Outlet Weight

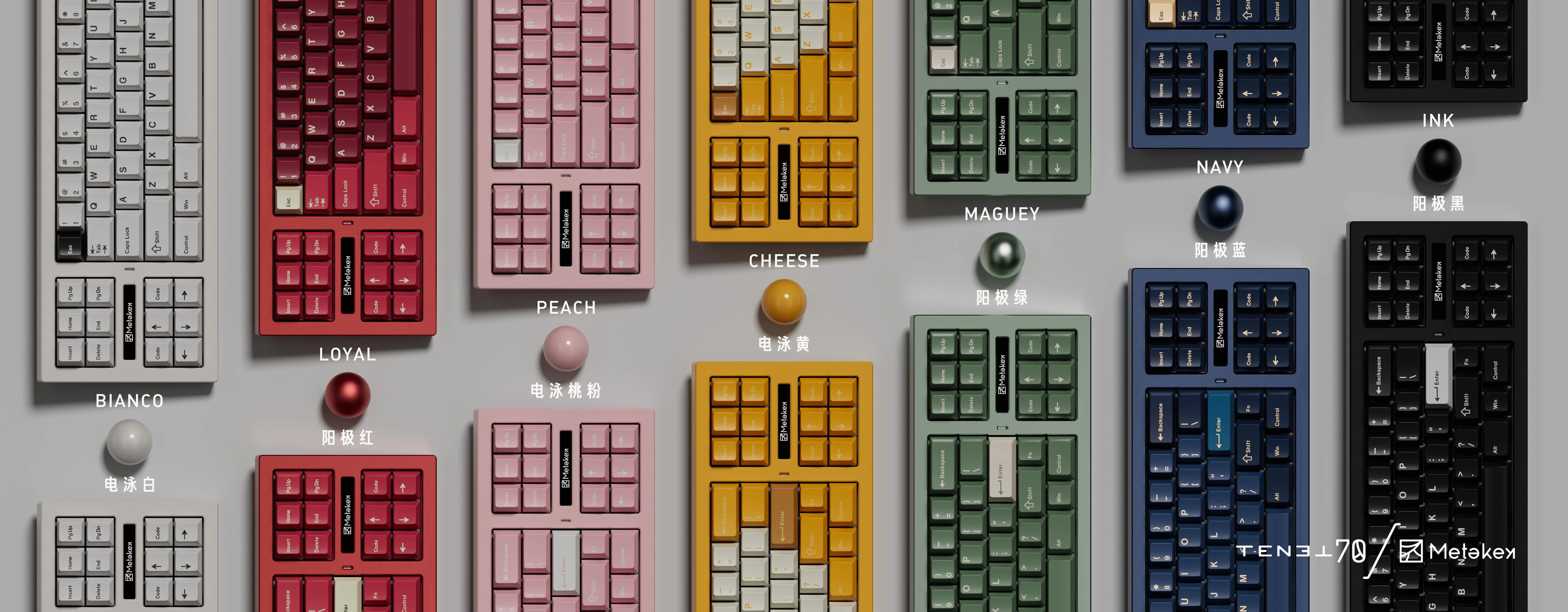

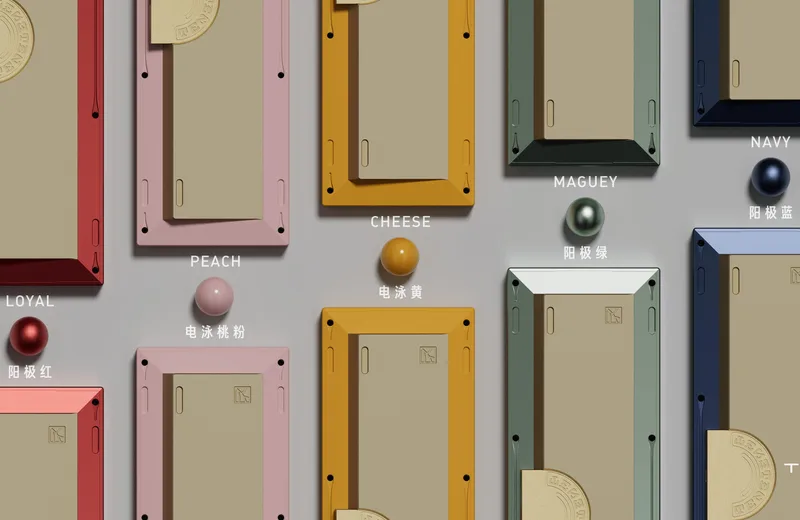

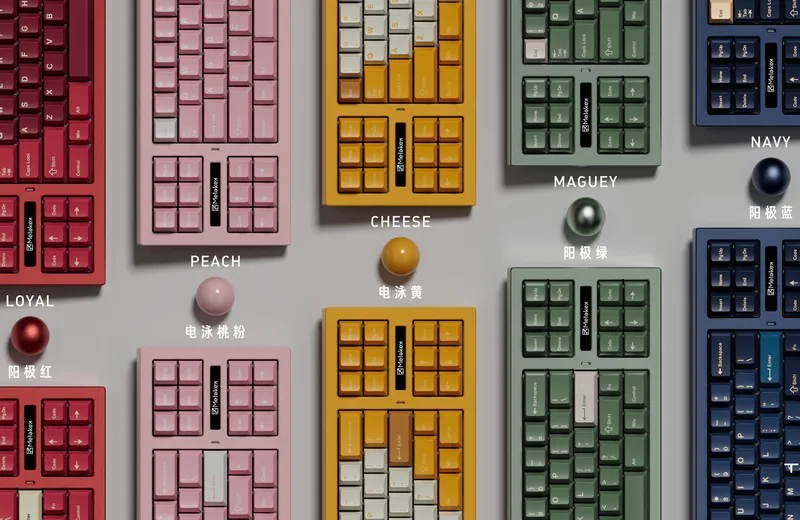

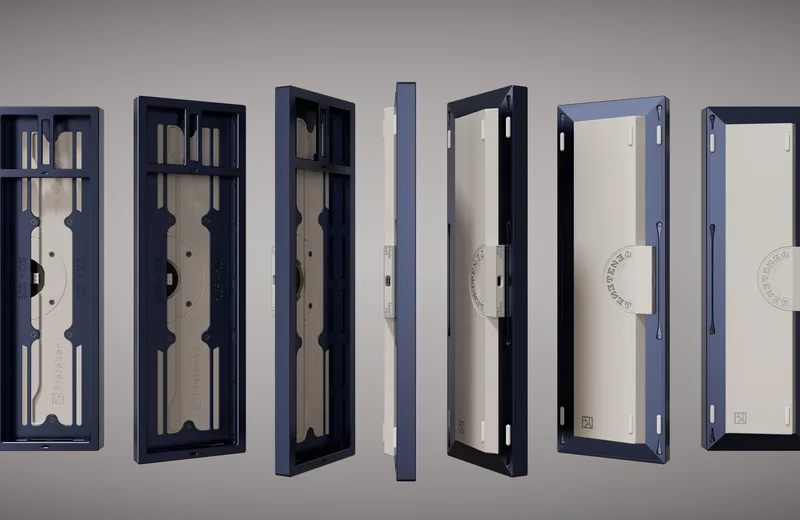

  • Colorways:

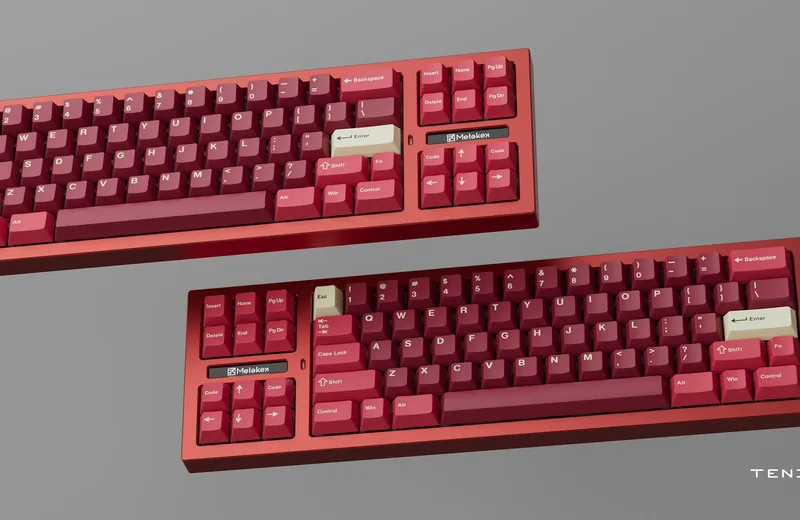

    • ╚ Anodized: Black, Navy, Green, Red
    • ╚ Electrophoresis: White, Yellow, Pink

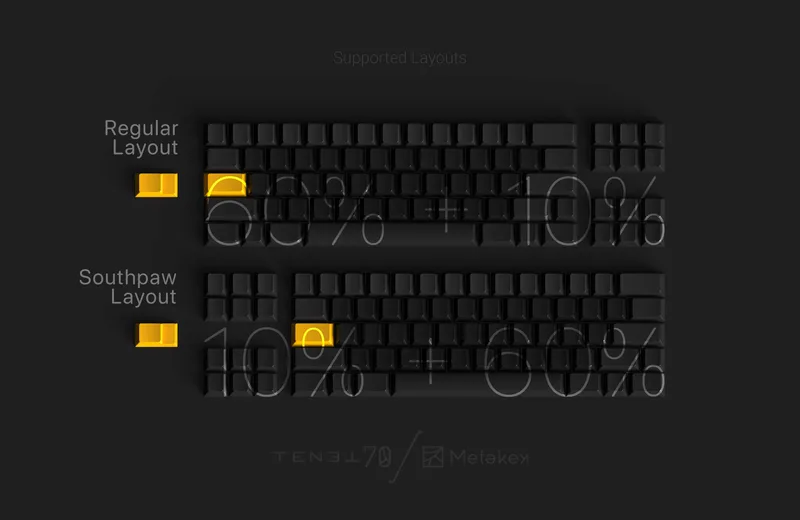

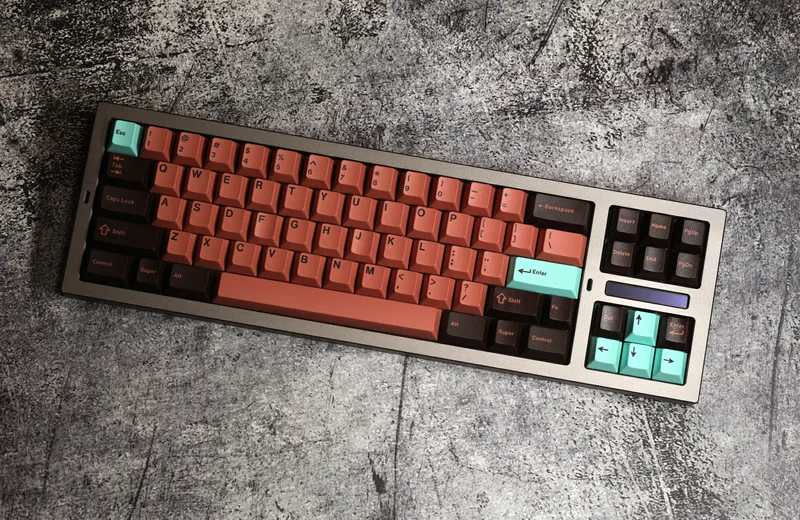

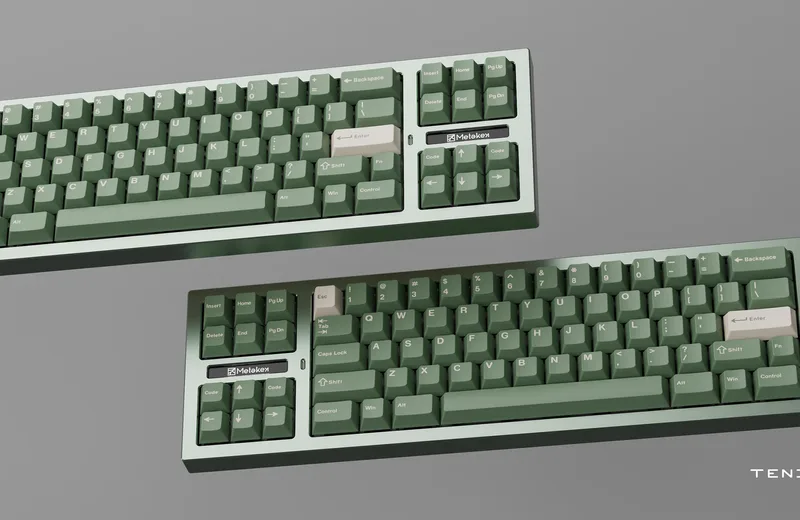

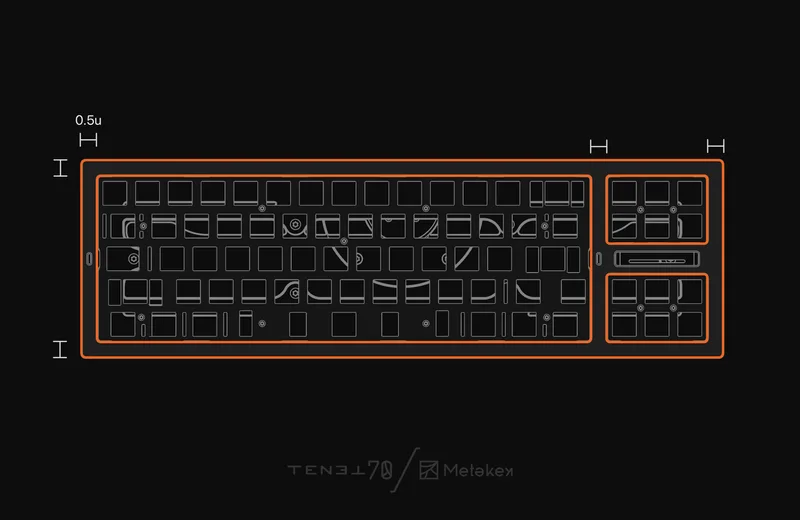

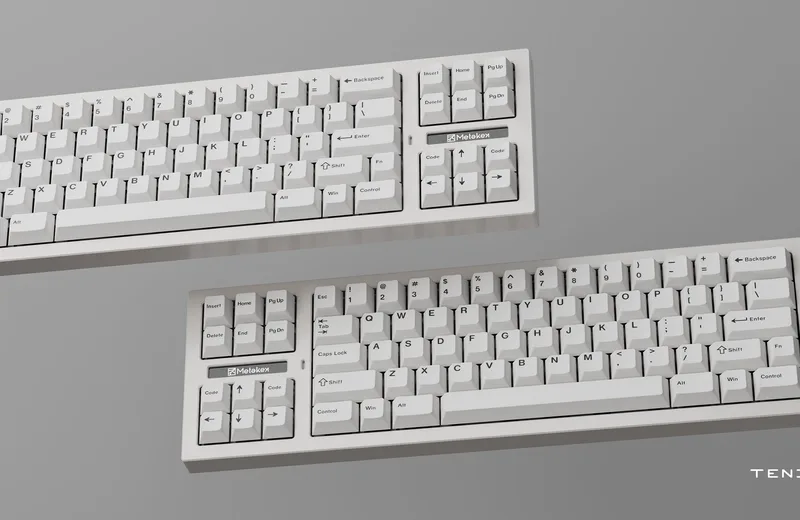

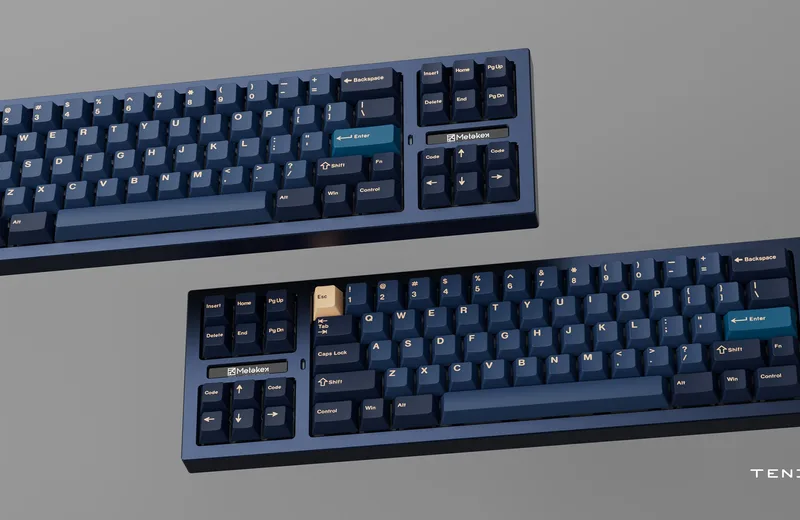

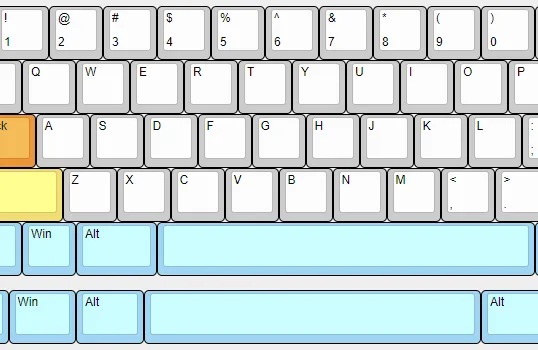

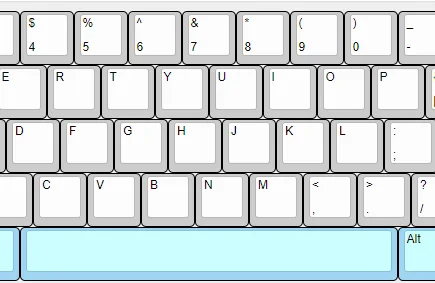

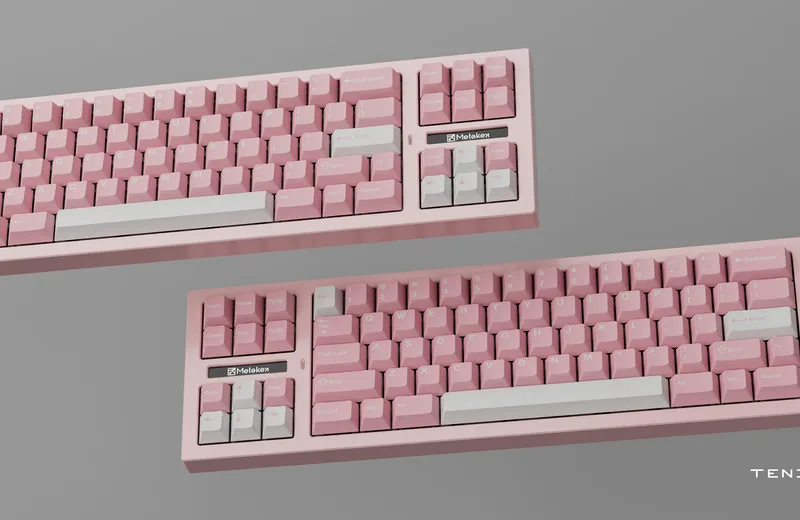

  • Transformable Layout: Regular FRL-TKL or Southpaw (FRL, no keypad, extra function keys on both sides of the arrow keys)

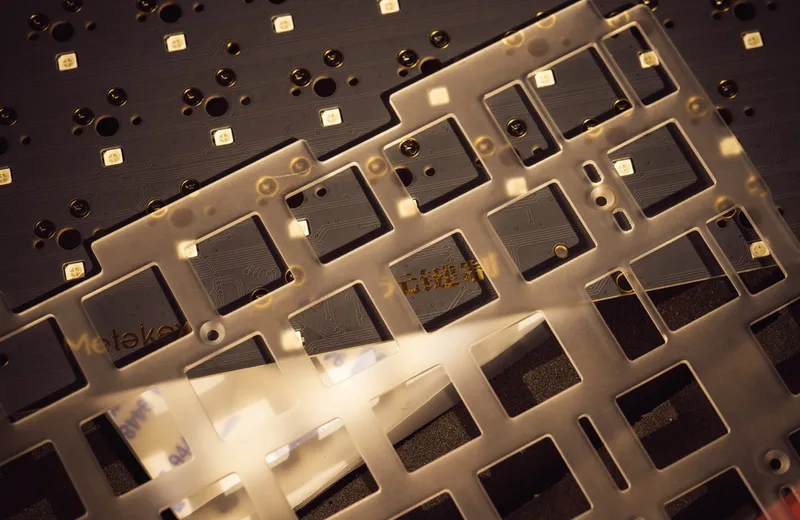

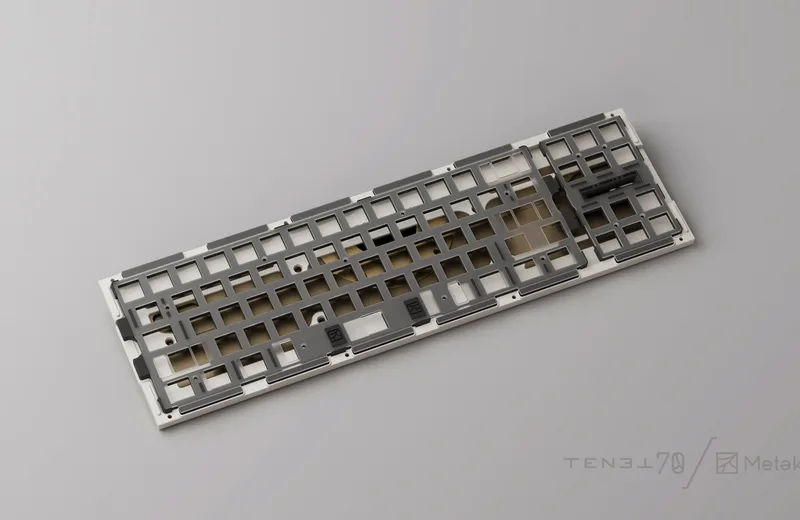

  • Plate material: PC/FR4/Alu/Brass
  • Mount: Isolated Gasket Mount

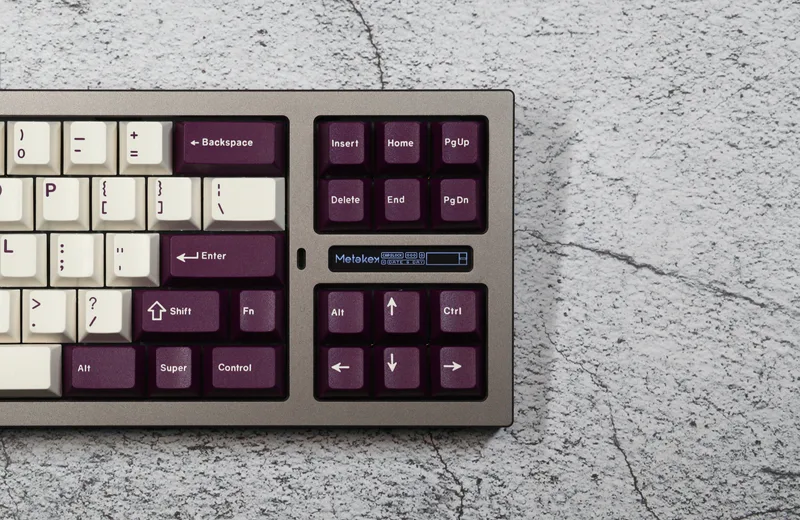

  • Multifunctional OLED Screen: 7 screen mode (see “PCB Software and OLED Interface” in Metakey TENET Interest Check for detail)

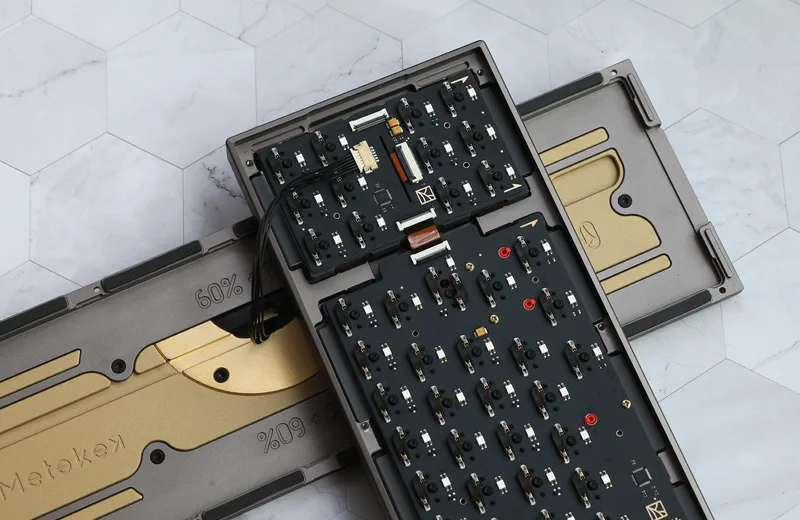

  • PCB:
    • ╚ Integrated Dual PCB - main and func&direction region
    • ╚ Hotswap with per-key RGB underglow

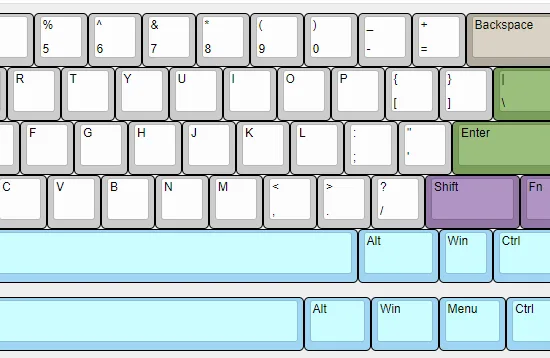

    • ╚ Soldered with ISO, Split Backspace, WKL row and Split Shift Support

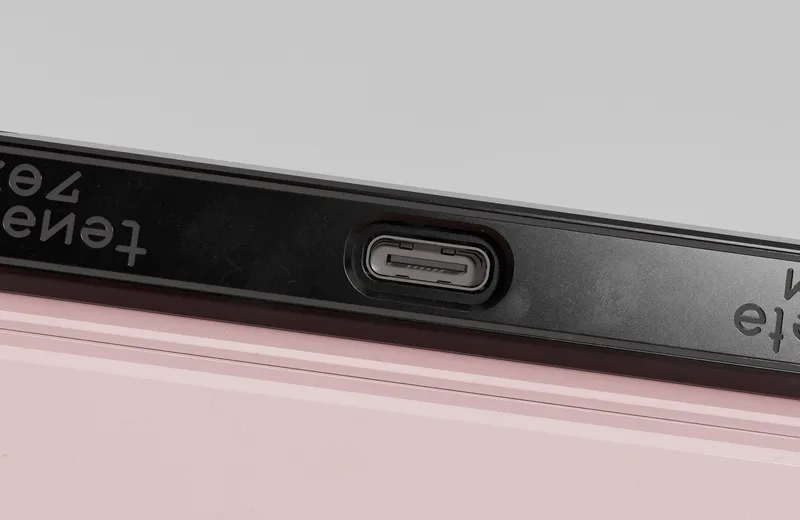

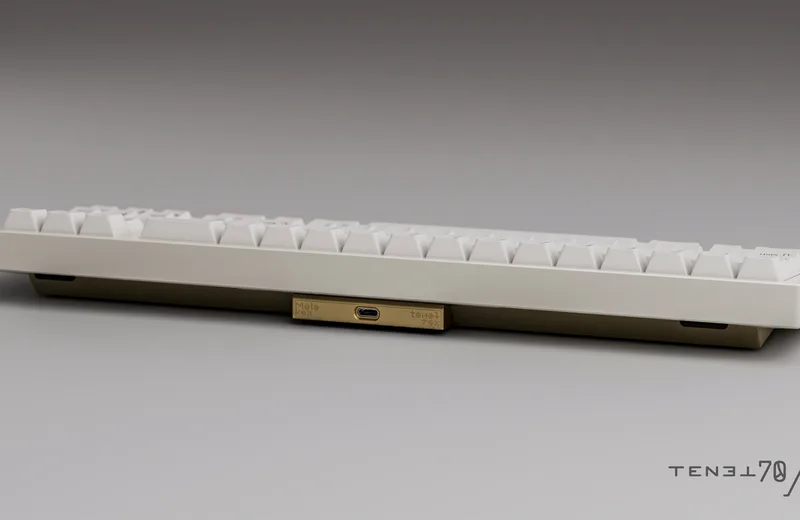

    • ╚ Custom USB-C daughterboard
  • PCB and OLED Screen Software: HEXCORE ObinsKit
  • Typing angle: 8°

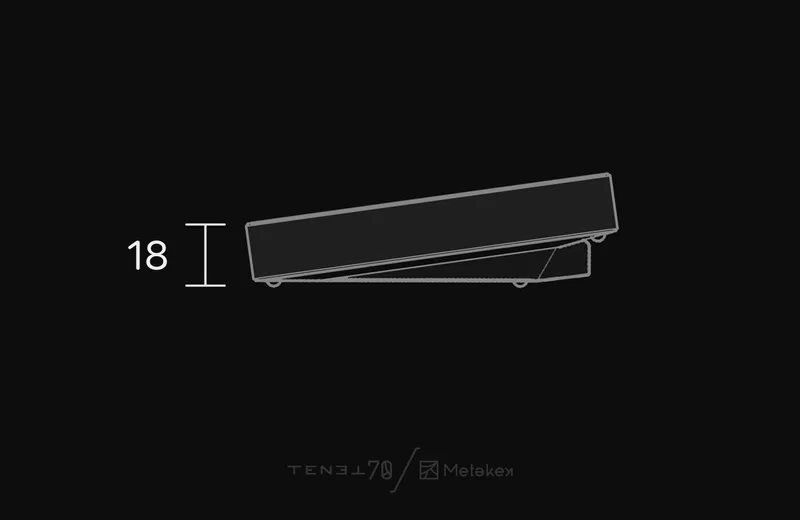

  • Front height: 18mm

Customizable Options

Plate Options

  • Black Polycarbonate (PC)
  • Aluminum
  • FR4

PCB Options

  • Soldered
  • Hotswap

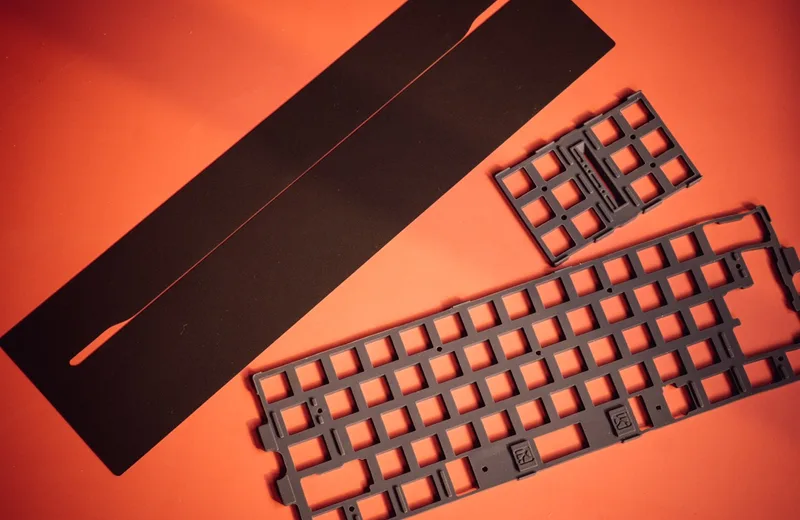

Mid-layer (Plate Foam) Options

  • Under-switch PE (IXPE) Foam included
  • Silicone
  • PORON® LE-20

Add-ons / Extras

  • PCB: $71 (Soldered) / $79 (Hotswap)

    • ╚ 1 x 60% PCB of your choice
    • ╚ 1 x 10% PCB of your choice
    • ╚ 1 x TENET Custom Type-C Daughterboard
    • ╚ 1 x Long JST Cable
    • ╚ 1 x Short JST Cable
    • ╚ 1 x FPC Ribbon Cable

  • OLED + CNC Backplate: $30

    • ╚ 1 x OLED Screen
    • ╚ 1 x CNC Backplate with Metakey Logo

  • Aluminum Plate: $38

  • Black PC Plate: $33

  • FR4: $31

  • Brass: $68

  • Mid-layer/Plate Foam: $20 (Silicon) / $15 (PORON® LE-20)

    • ╚ 1 x Mid-layer/Plate Foam of your choice
    • ╚ 1 x Under-switch IXPE Foam

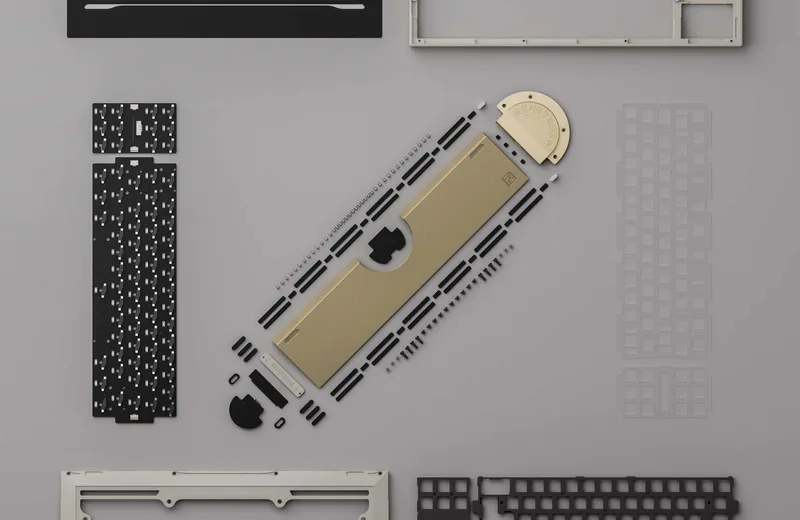

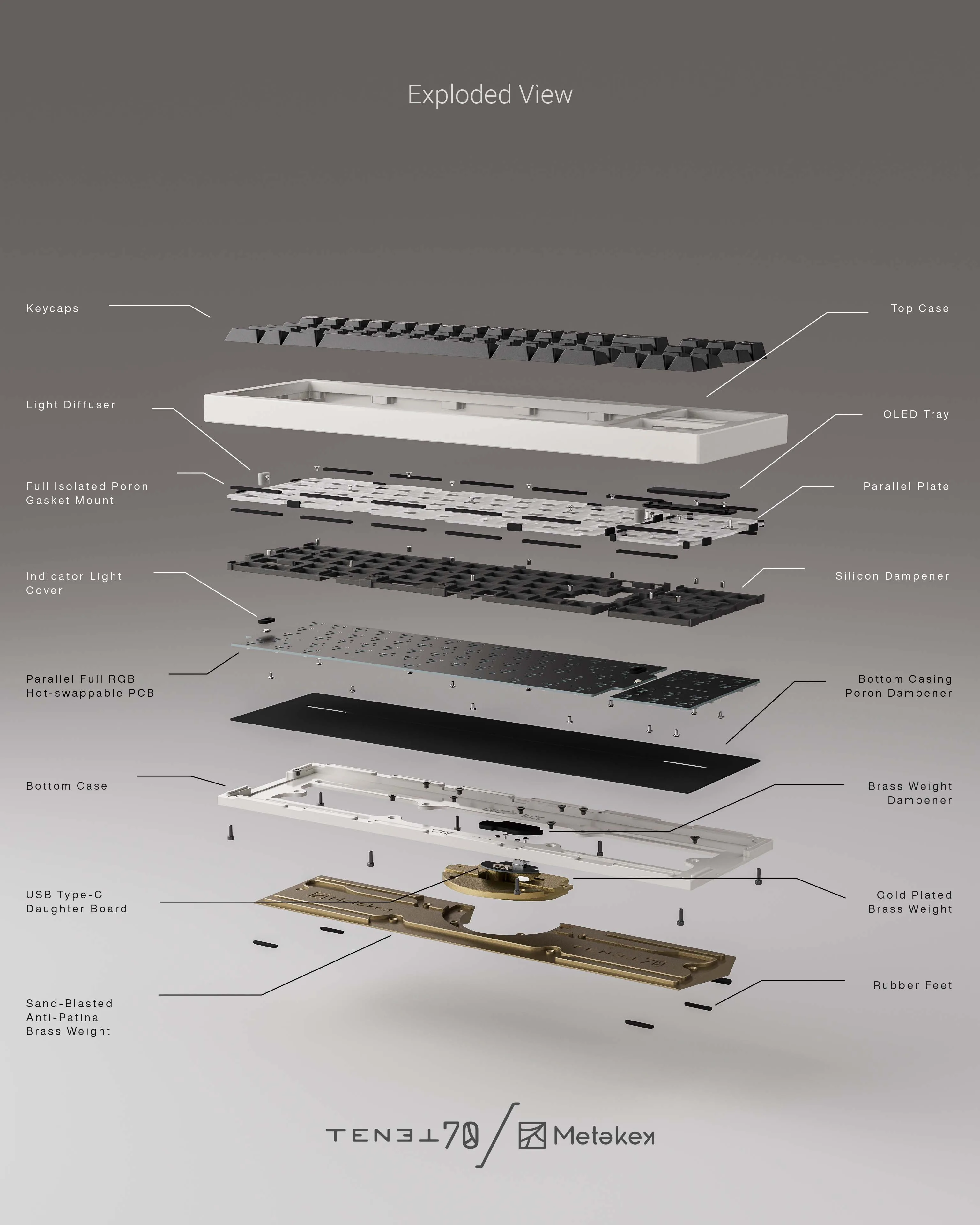

What's Included

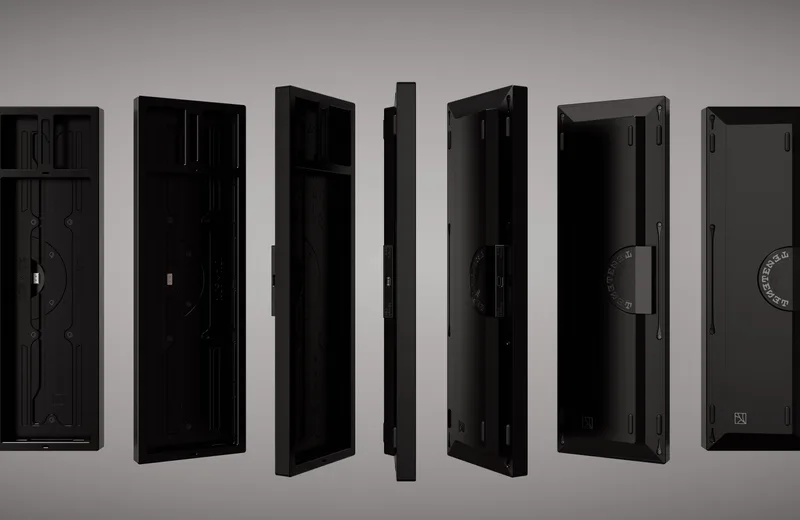

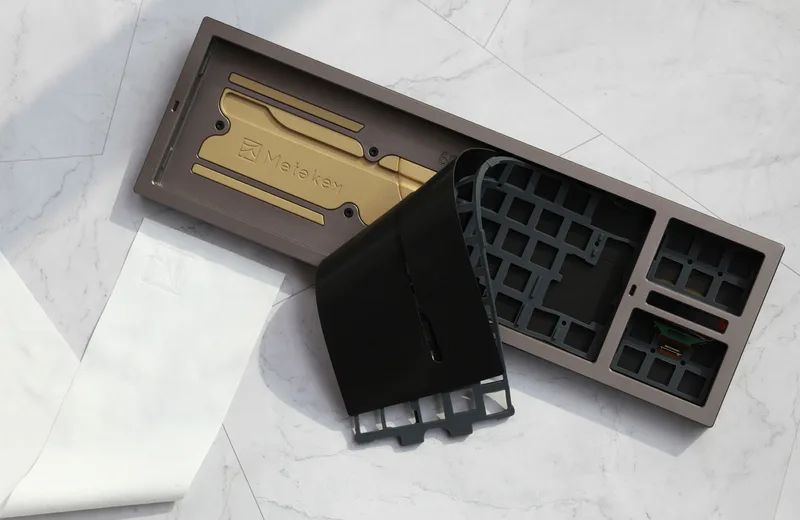

  • Aluminum Case
  • Main Bottom Weight + Outlet Weight (Alu/Sandblasted+Gold Plated/PVD Mirror)
  • OLED Screen
  • CNC Screen Backplate
  • 60% + 10% PCB (Hotswap/Soldered)
  • 60% + 10% Plate (PC/FR4/Alu)
  • TENET Custom Type-C Daughterboard
  • Mid-layer (Silicone/PORON LE-20)
  • Under-switch IXPE Foam
  • 1 Set of Custom Foam Gaskets
  • 1 Set of PCB-Restrict Foam Stickers
  • Case Foam
  • Long JST Cable
  • Short JST Cable
  • FPC Ribbon Cable
  • 1 Set of PCB Shims
  • 1 Set of Rubber Feet
  • 4 x LED Diffuser
  • Carbon-fiber ESD Safe Tweezer
  • Set of screws and tools
  • Carrying Case
