NESON 700E

KeyboardNESON · 2022

Details

It's FRL-TKL or 70% keyboard.

Detail

  • Price: $470 (Regular) / $535 (collaboration units)
  • Form Factor: 70% FRL-TKL with WK/HHKB
  • Typing angle: 9°
  • Front height: 19.3mm
  • PCB: 1.2mm solderable (does not support hot-swap), Type-C with daughter board. PCB supports QMK and VIA, designed and manufactured by Astro

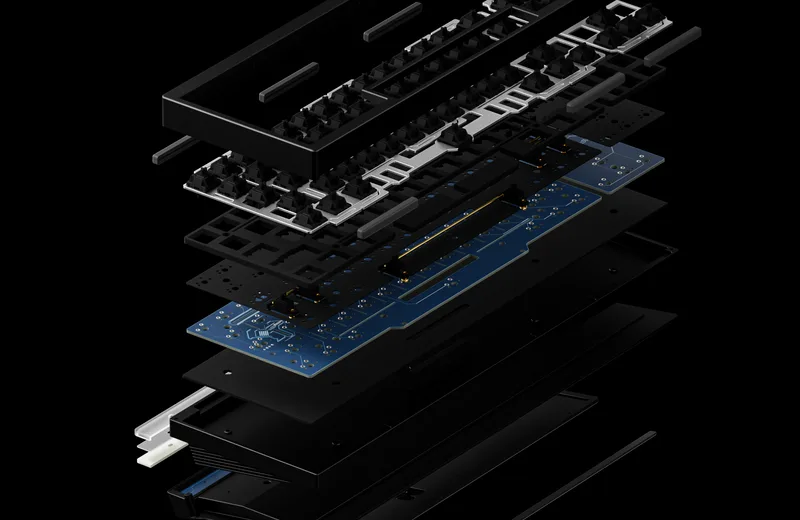

  • Mounting: Gasket mount (Aluminum plate with extra leaf spring design)
  • Plate: Default plate option is Aluminum, and optional PC plate

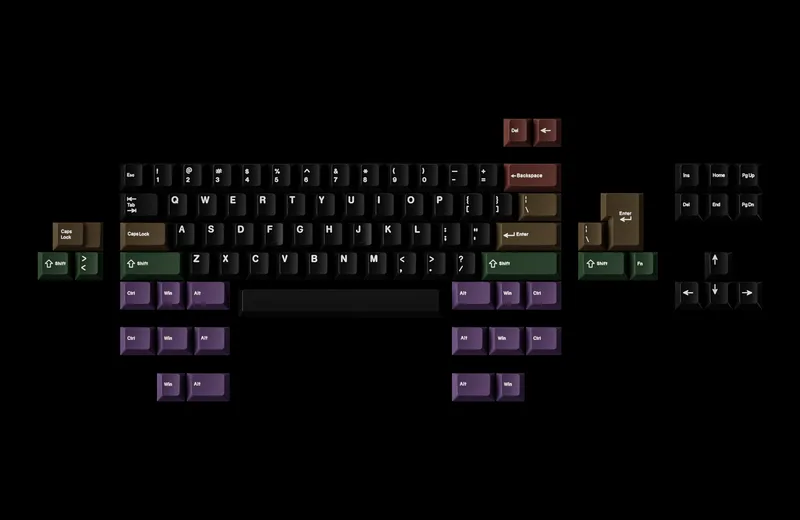

  • PCB Layouts: ANSI and ISO (Plate sold separately) with WK/HHKB, split Backspace, split right shift

WHAT‘S IN THE PACKAGE

  • Keyboard Kit (Top/Middle/Bottom Case, Plate, PVD Badge, Weight) x 1
  • 1.2MM PCB and daughter board x 1
  • 0.5MM PE Foam x 1
  • 3.5MM PORON plate foam x 1
  • C shaped gasket x 10
  • 1.5MM PORON bottom case foam x 1
  • LED Diffuser x 1
  • LED Reflector x 1
  • Stabilizer Shims x 10
  • USB Type C Cable x 1
  • Bumpons x 2
  • Instruction x 1

COLORWAYS

  • Electroplating black badge
  • Anodized black middle frame
  • Anodized dark gray bottom case
  • Anodized silver internal weight
  • Anodized black external weight
  • Black
    • Anodized black top case
  • Silver
    • Anodized silver top case
  • Wine Red
    • Anodized wine red top case
  • THE 700E SERIES × RELIC
    • We collaborated with Jae, the designer of Domikey Relic. We will be featuring a Relic
    • themed 700E with Cream colorway:
    • Logo of the internal weight piece to the Relic logo.
    • Upgraded Electroplating black copper external weight.
    • Quantities: 20
    • Layout: WK

Updates

Ref

2022/08/30

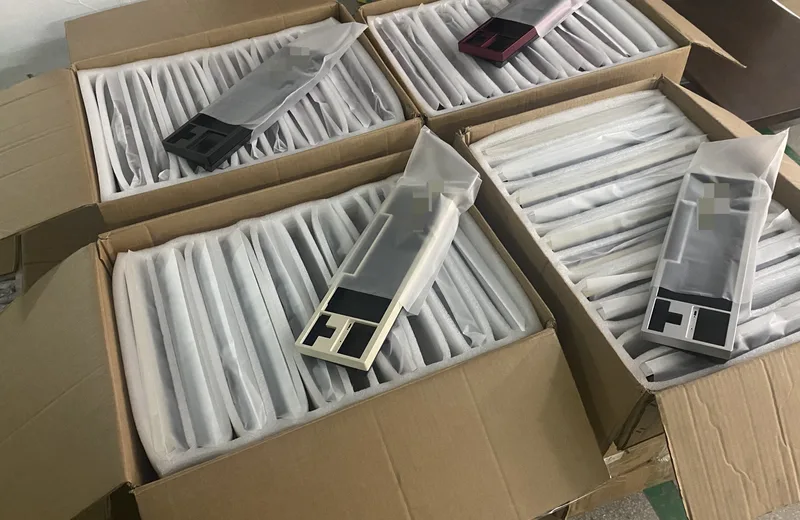

  • PVD weights are arriving. All PVD Brass Copper weight will be upgraded to PVD Stainless Steel to improve production yield rate and ensure on time fulfillment

Groupbuy Info:

  • Quantities: 150 regular units + 20 special collaboration units
  • Price: $470 / $535 (collaboration units)
  • Shipping: 3KG for Alu Weight and 4KG for Copper Weight, Shipping Estimate: https://b4ex8obcab.larksuite.com/sheets/shtus3hG2uMPxD1Z1pb9pNJq6Ne (finalizing, may slightly adjust)
  • Estimate Fulfillment Timeframe: Q4 2022
  • Sale Format: Raffle
  • Raffle Signup Time: Wed June, 8th, 2022 00:00 EST - Sat June, 11th, 2022 12:00 EST
  • Raffle Collection Method: Google Form (we choose it to provide a longer signup period and make sure everyone can join)
  • How Raffle will be executed:
    1. Absolutely no duplicated raffle entries (we will review every entry).
    2. After remove duplicate entries, we will run random selection programmatically. We standby the fairness and integrity of random selection.
  • Where to find Raffle Form: Google Form Link will be updated here at Signup Start Time. We will do our best to notify everyone.
  • If I am selected, where to make purchase: we will have 700e available on our Store with $999. Raffle winners will be emailed with their unique discount code to purchase it at correct price.
