BOCC

Keyboardhottrout · 2019

Details

Sales:

  • format: gb
  • period: 7th September 00:00 GMT+8 to 3rd October 00:00 GMT+8, 2019
    • The Vickrey Auction form will be live on 5th September 22:00 GMT+8 to 6th September 22:00 GMT+8 (24 hours)
  • ETA: 11/29/21

Pricing

  • 300USD + Shipping

Vendors

  • thicthock
    • BOCC (Alu & PC / extras) sales on

BOCC SE sales will be held through a Vickrey Auction.

  • Extras such as plates (PC, Brass - sand blast, CF, Aluminium) and PCB (non-hot swappable and hot swappable) will be available when the GB starts.

Sidebar weight customization

This will be implemented in both version, we are looking to expand this service on extras as well. This option will have extra cost.

Supports WKL

  • 1.5 / 1 / 1.5 / 7 / 1.5
  • Supports ISO & split left shift (Hot-swappable PCB - no)
  • Supports Split Backspace

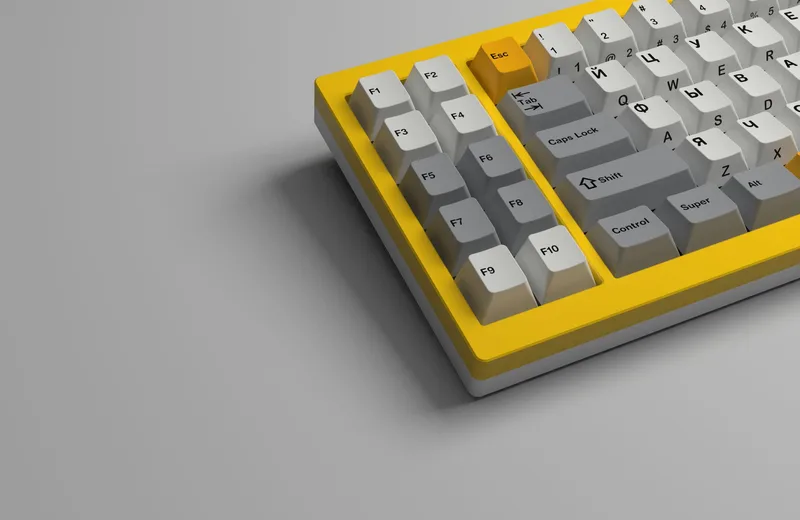

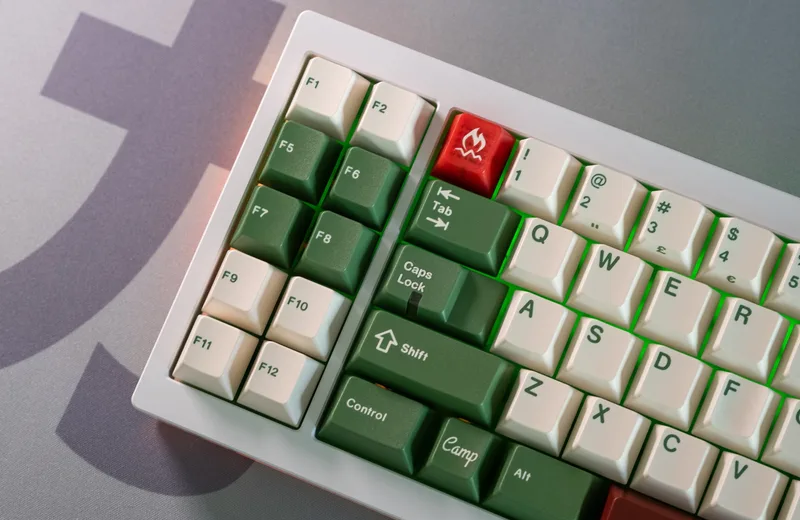

BOCC is an embodiment of utility and aesthetics. This unique layout not only serves properly on a daily use basis, but also is a great layout to display the beauty of our beloved keysets in a unique form.

The design philosophy of this board is inspired by the first carrier of this unique layout - Kmac Mini. The robust utility it offers and the aesthetic of the whole board is pure joy to look at. We hope not only to bring back this layout to our beloved community, but also we would like to try something new this time - a non-traditional mounting system.

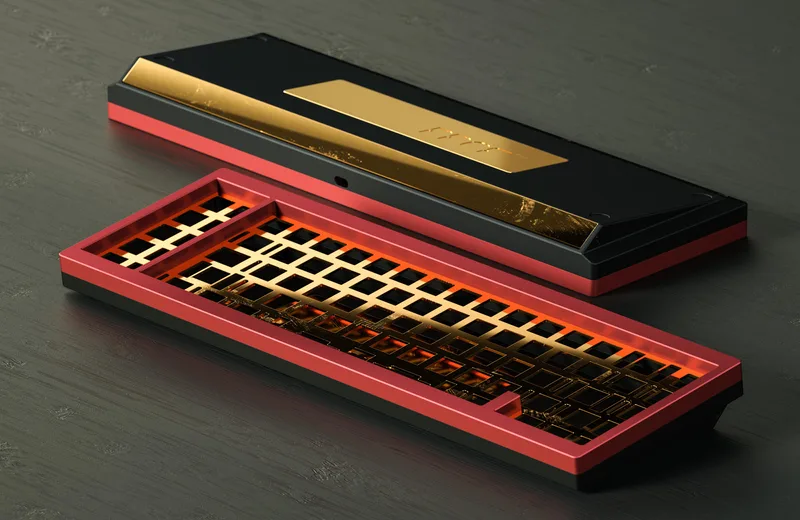

Traditional top mounting system requires the screws to lock in the plate from the bottom case to the top case, while having the PCB suspended in between when it is fully assembled. We hope to alleviate, if not eradicate the reverbs that the suspension of the PCB would cause, thus, the mounting system we proposed will be having the PCB screwed and locked in to the bottom case, while the plate will be screwed in and locked in place on the top case.Another thought we put into this design is that we hope that whoever appreciate hot-swappable PCB could easily change the plate by unscrewing it off the top case and swap it to another material to experience different typing feel. Last but not the least, user can enjoy the plateless set up on this mounting system as well.

Specification of the board:

Aluminium Version

  • Unlimited
  • 7 Degree
  • 6063 Aluminum
  • PVD Brass weight
  • Aluminium plate
  • Sidebar weight (PVD Brass)
  • Non-hot swappable Backlit RGB PCB - QMK compatible (ISO supported)
  • USB-C Port
  • Double Lock Mechanism

Color options:

  • Anodization
    • Red
    • Pale Turquoise
    • Pink
    • Black
  • Electrophoresis
    • White
    • Yellow

You are able to choose their favourite color combination. You can only match color that is under the same coloring category - eg. Yellow cannot match with Black, Baby Blue cannot match with White. We will be using the latest electrophoresis technology; the finish will be more durable in terms of scratch resistance and wear resistance.

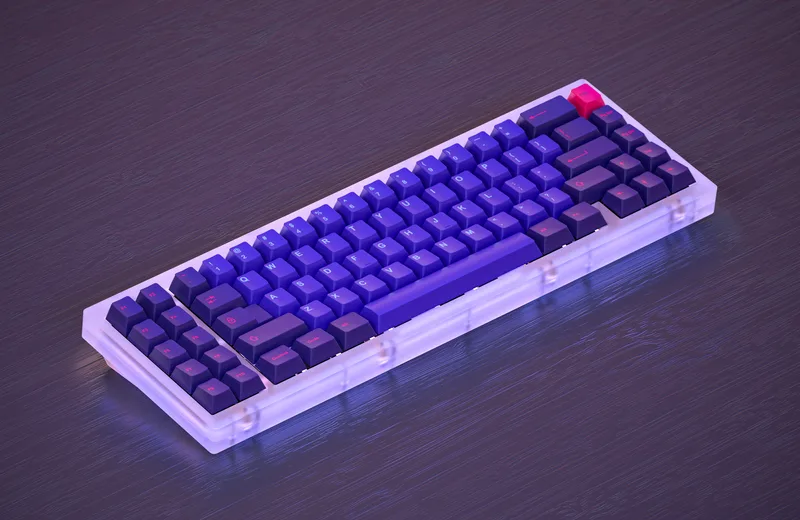

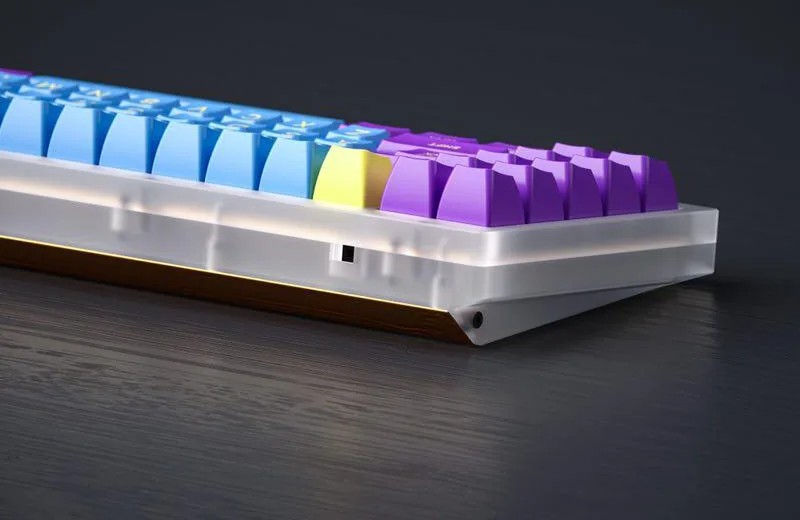

Polycarbonate Version

Limited quantity of 20 Unlimited

  • 7 Degree
  • Mitsubishi polycarbonate
  • Aluminium plate
  • PVD Brass weight
  • Sidebar weight (PVD Brass)
  • Non-hot swappable Backlit RGB PCB, QMK compatible (ISO supported)
  • USB-C Port
  • Double Lock Mechanism

Special Edition - BOCC SE

Total of 7, 2 available for public (1 Piano Black, 1 Rose Gold)

  • 7 Degree
  • PVD Brass - Mirror Finished
  • PVD Brass weight - Mirror Finished
  • PVD Brass plate - Mirror Finished
  • Sidebar weight (PVD Brass) - Mirror Finished
  • Non-hot swappable Backlit RGB PCB, QMK compatible (ISO supported)
  • USB-C Port
  • Double Lock Mechanism
  • Serialized
