Dolphin 60

Raffle

• Dolphin 60% & Dolphin Pad
• Sales Type : Raffle
• Total QTY : 100 units (Dolphin 100 units / Pad 100 units)
• Time Line (Time Zone : KST, GMT+9)
  • Raffle form open : March 10th 00:00am - March 12th 11:59pm
  • Invoice to winners : March 14th 2:00pm
  • Payment Due : March 15th 2:00pm
• ETA : September 2023

Price

• Dolphin 60% Base kit : 440USD for Anodized Colors (+20USD for E-Coating)
• Dolphin pad Base kit : 220USD for Anodized Colors (+20USD for E-Coating)

---

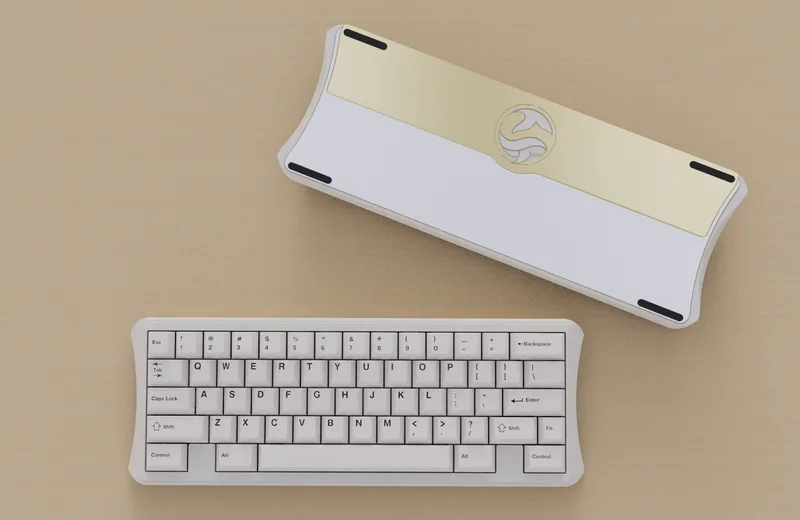

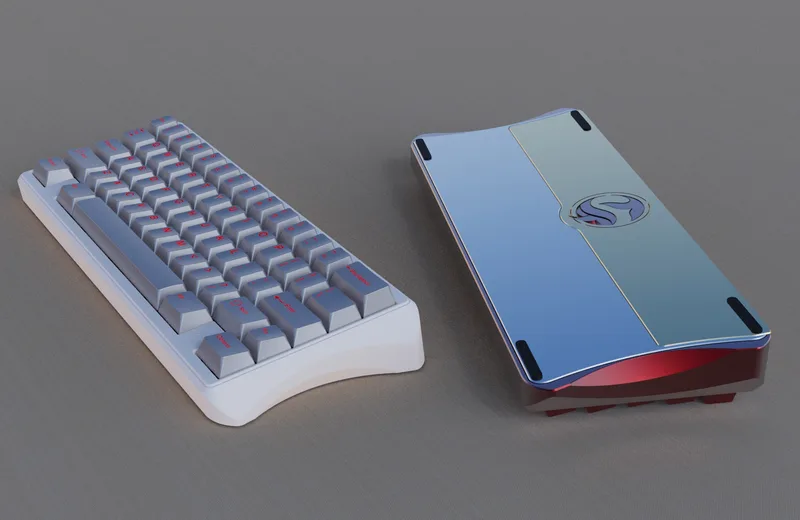

[ Dolphin 60 ]

• Instagram photos

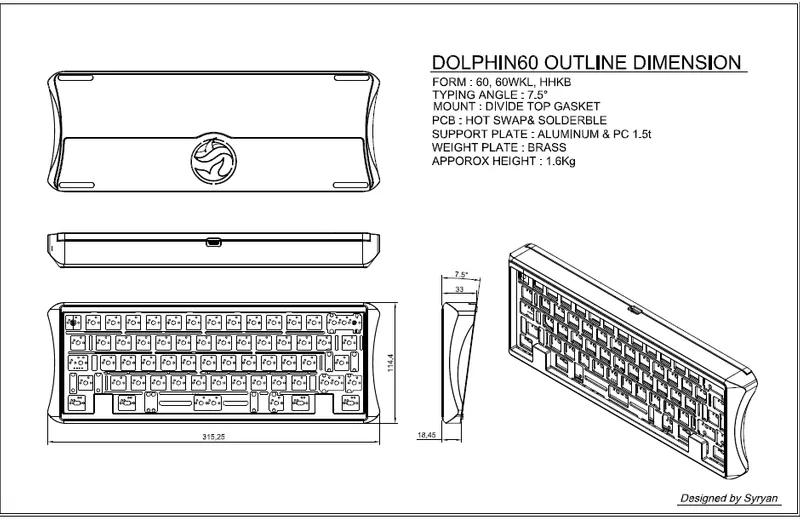

Specification

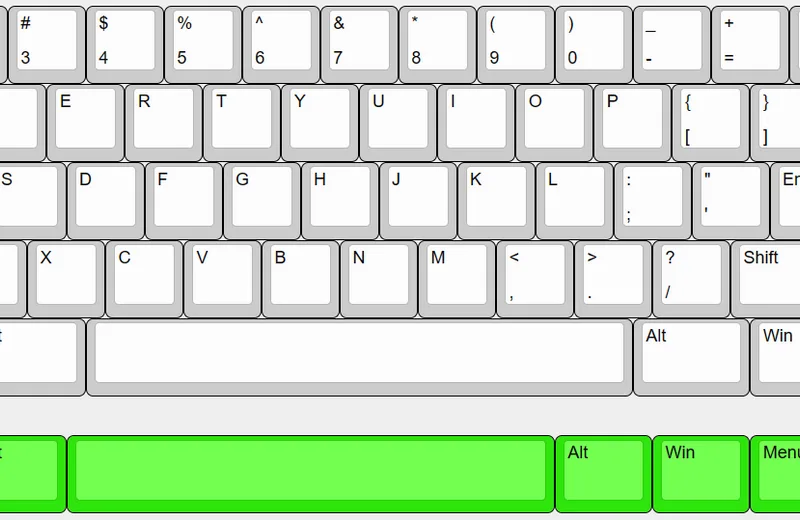

• Form Factor : 60% (3 different types of layout : HHBK, WKL, Standard)
• Mounting : Top Mount
  • Silicon part and divide gasket will be provided to support Sandwich mount for those who prefer sandwich mount
• PCB : FAve60 Series (1.2T Solder and Hot Swap / 1.6T Solder) QMK & VIA Support
• Plate : Aluminum (Silver) / PC, POM, FR4 plates will be offered as extra parts
• Weight : Brass (Sand Blast & Ceramic Coated)
• Typing Angle : 7.5 degree

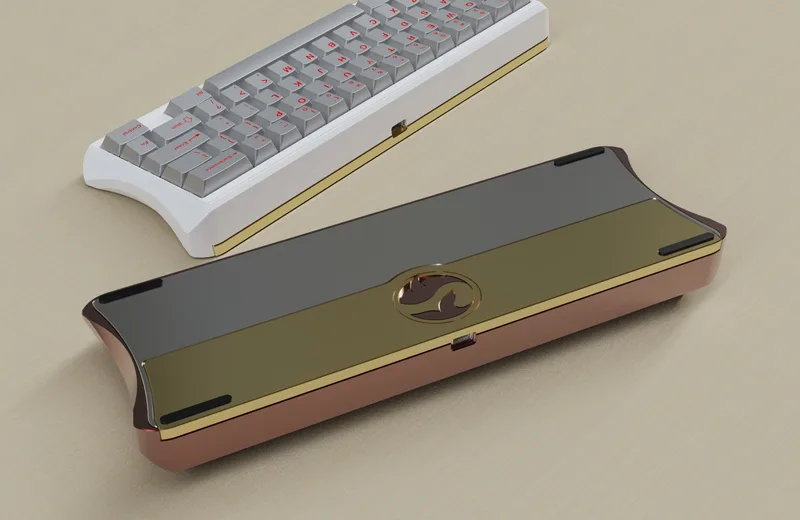

4 Colors :

• Top Case (Silver, Burgundy, Black = Anodized / Beige = E Coating) (*The burgundy color will be slightly brighter than Dolphin 2021)
• Bottom Case (Silver – Anodized)

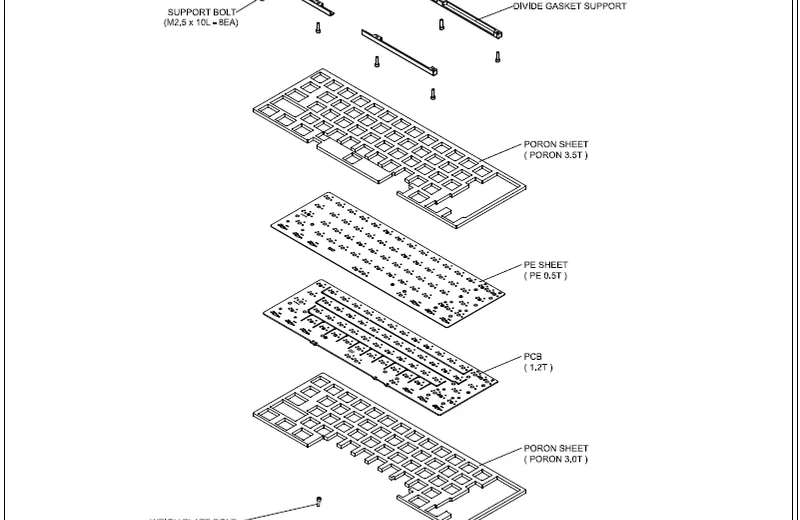

What is included in the base kit

• Top & Bottom Case (Alu, 6061-T6) *1ea
• Alu Plate (Silver) * 1ea
• Brass Weight * 1ea
• Aluminum Logo Insert Part *1ea
• Bottom Poron Sheet* 1ea
• Plate Poron Sheet *1ea
• PE Switch Pad *1ea
• Screws and Bump on
• Carrying Case

*PCB is not included in the base kit. You can choose your preferred PCB from 3 different types of PCB (1.2t solder, 1.2t HS, 1.6t solder)

PCB Specification

• Dolphin 60 PCB Spec
  • 1.2T FLX Cut PCB
  • Solder Type (USD 50)
    1. 1.2t with flx cut PCB
    2. Underglow RGB
    3. Single LED (LED is not included)
    4. Universal Daughter Board & Cable Included
    5. QMK & VIA Compatible

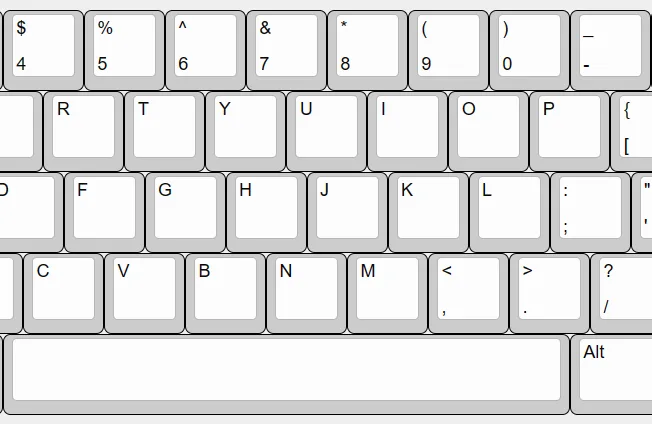

  • Hot Swap (USD 60)
    1. 1.2t with flx cut PCB (Simpler FLX cut than soldered PCB)
    2. Switch RGB
    3. No Underglow RGB
    4. Universal Daughter Board & Cable Included
    5. QMK & VIA Compatible
  • 1.6T PCB (USD 39)
    1. 1.6t pcb without FLX cut
    2. Single LED (Led is not included)
    3. No underglow
    4. Universal Daughter Board & Cable Included
    5. QMK & VIA Compatible
