Pangea Mini R2
KeyboardBowl · 2026
Details
Sales
- format: limited preorder
- Preorder Opens: February 27th 2026 10am CST
- Open while supplies last
- Estimated Shipping: Early April 2026
Pricing
| kit | price (USD) | weight |
|---|---|---|
| Citrus - wk / wkl / hhkb | 295 | stainlesss-steel |
| Classic - wk / wkl / hhkb | 300 | brass |
| Deep Ocean - wk / wkl / hhkb | 330 | Patina Brass |
| pcb - solder | 35 | |
| pcb - hotswap | 40 | |
| plate - alu | 25 | |
| plate - carbon fiber | 30 | |
| plate - polycarbonate | 25 | |
| plate - polypropylene | 25 | |
| plate - pei | 35 |
Variants

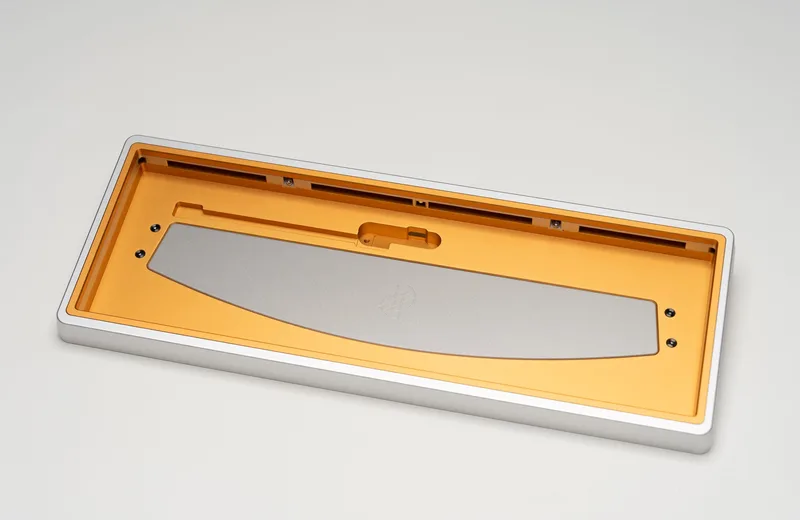

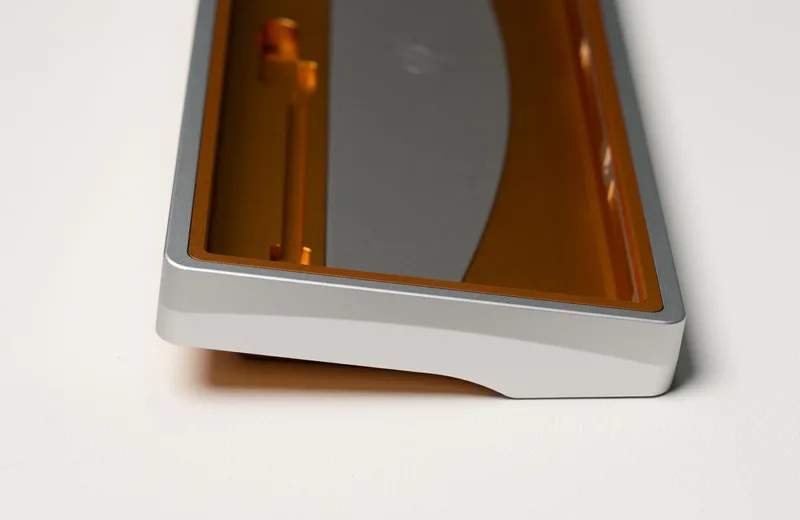

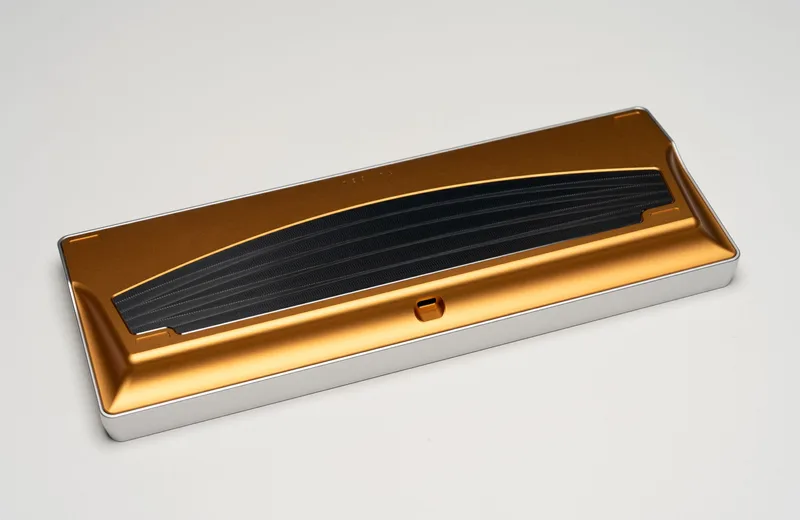

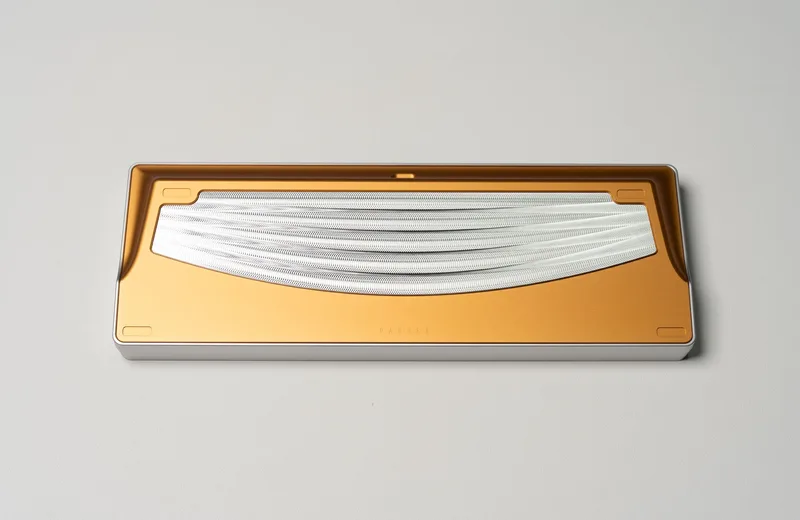

- Citrus - Silver Anodized Top, Orange Anodized Bottom, Orange Anodized Frame, Machine Path Stainless Steel Weight

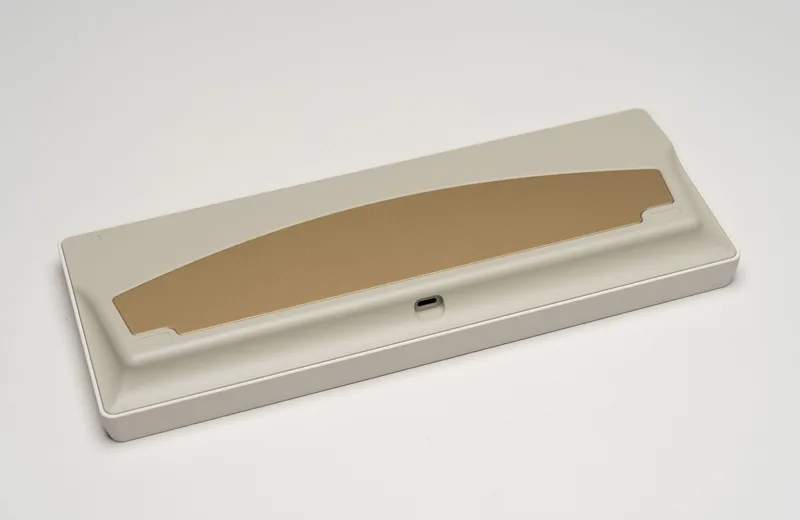

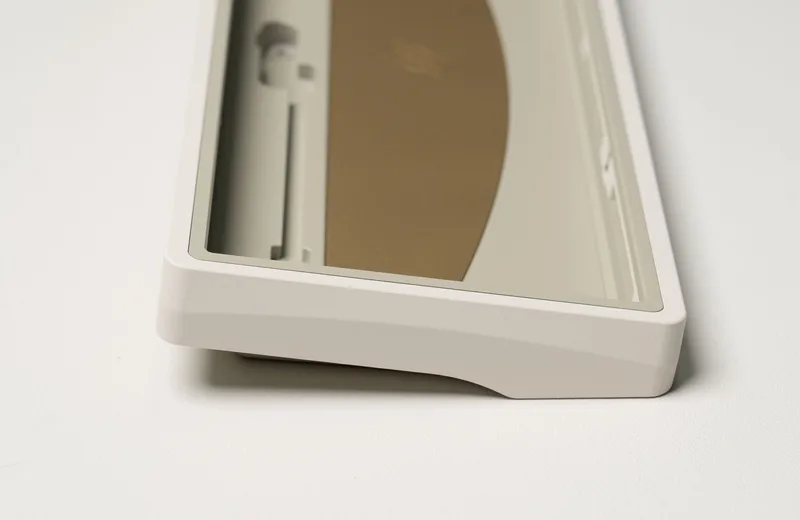

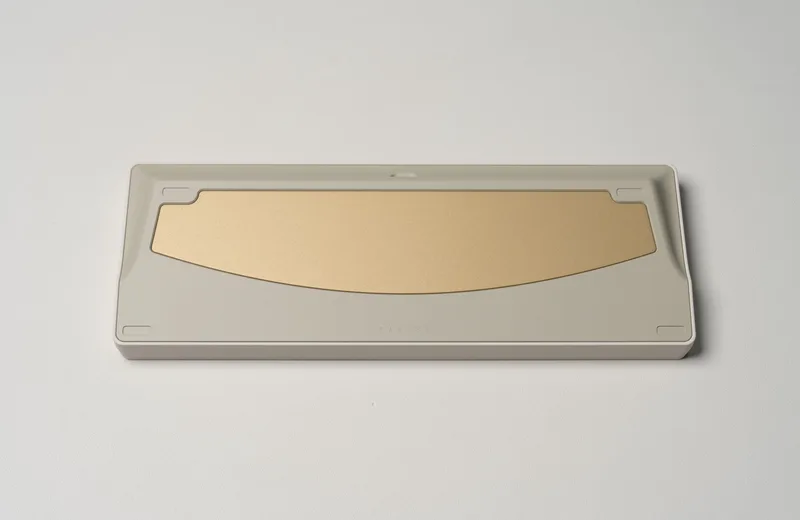

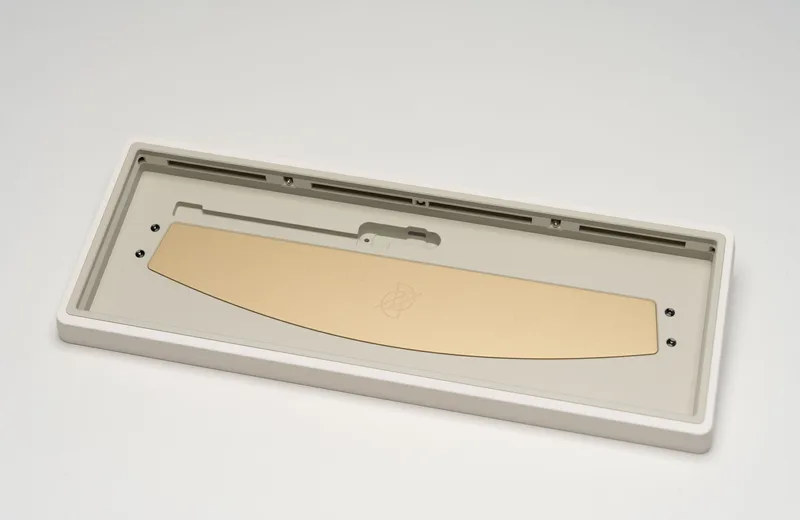

- Classic - Cream Coated Top, Beige Coated Bottom, Beige Coated Frame, Brass Weight

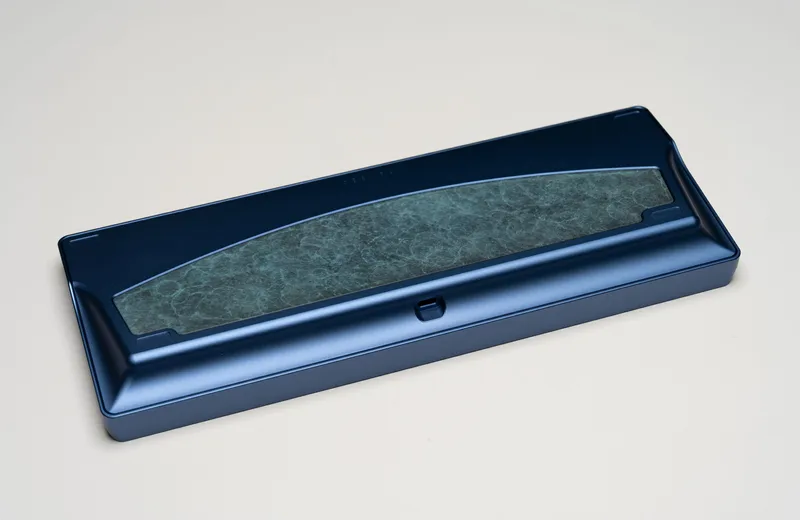

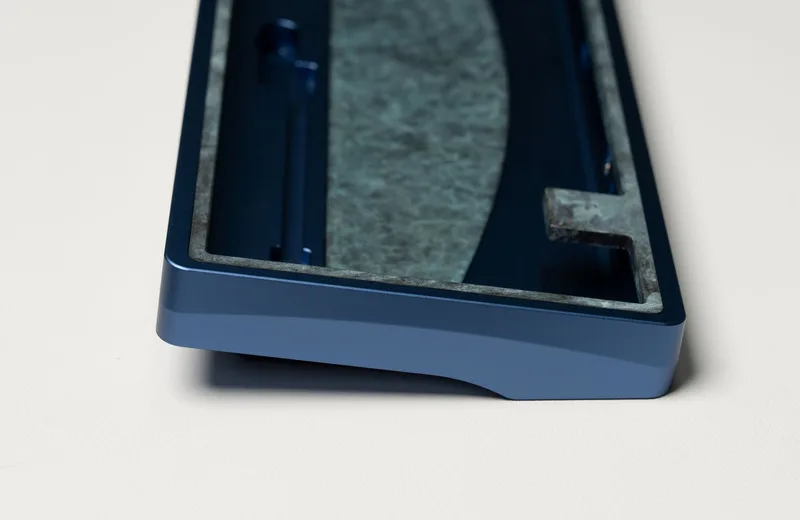

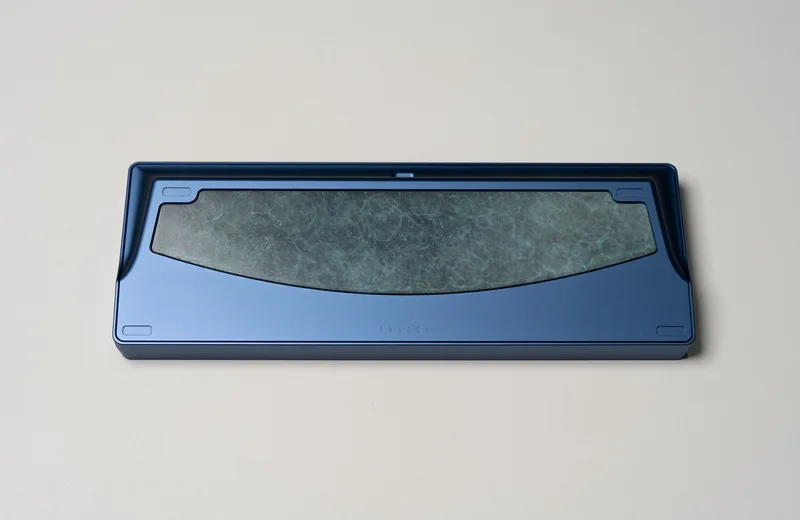

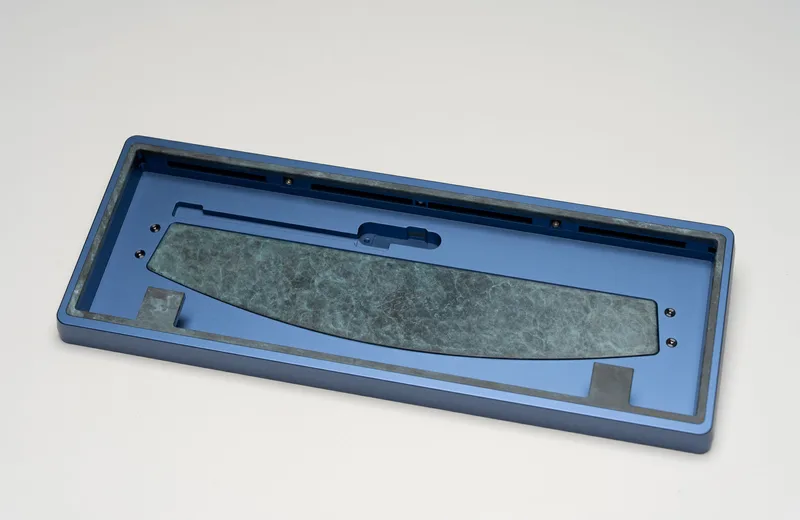

- Deep Ocean - Blue Anodized Top, Blue Anodized Bottom, Blue Patina Brass Frame and Weight
Blue Patina Surface Finish Expectations
Patina finishes are all done individually and there is a range of color, pattern, tone, and texture that each unit can fall into. For this run we took pictures of the variance to give better expectations to customers before purchasing. This is planned for any run with finishes like this in the future to better set expectations for customers!
Vendors
- US: Bowl Keyboards
- EU: Delta Key Co
- UK: Prototypist
- KR: Swagkeys
- TH: Aiglatson
- AUS: KeebznCables
- CN: NEXT
- SG: PantheonKeys
- LATAM: LatamKeys
- CA: KeyBayTech
- Japan: Yushakobo
Included Contents:
- 1x Top Case
- 1x Bottom Case
- 1x Through Weight
- 1x Top Frame
- 1x S2 Unified Daughterboard + JST to JST Cable
- 1x Carrying Case
- 16x Gaskets
- 4x Custom Molded Feet
- All Screws/Parts/Etc for assembly
- Note plate and PCB must be added to order for full keyboard kit or your order may be cancelled
- Note does not include switches, keycaps, or stabilizers

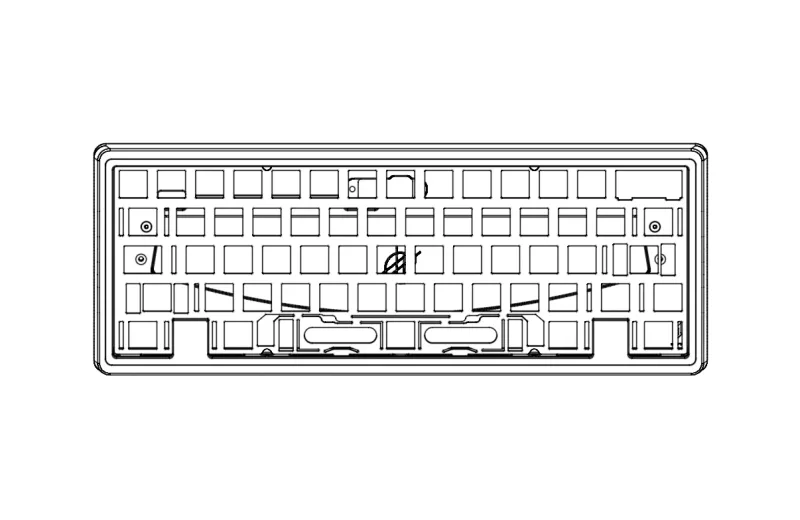

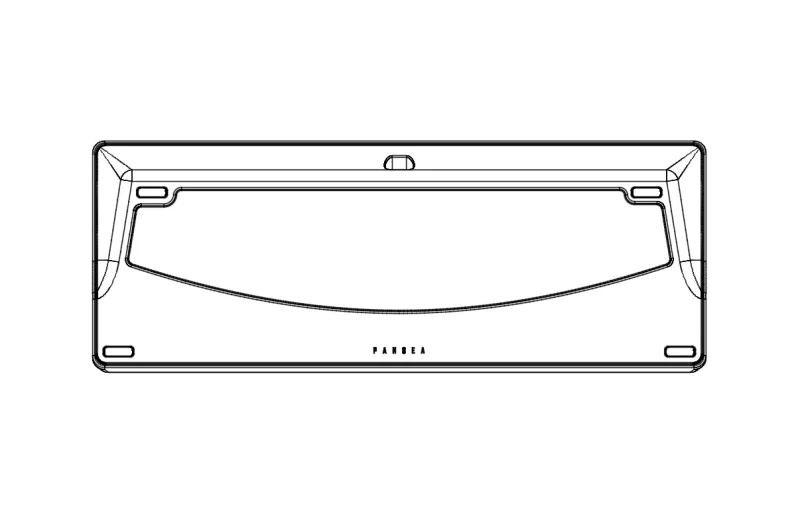

Case Specifications:
- Materials: 6063 Aluminum, Stainless Steel, Brass
- Layout: 60%

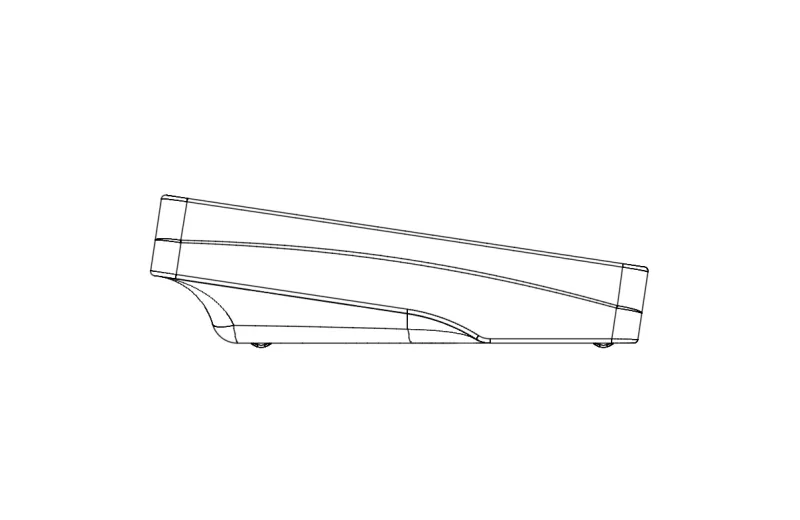

- Typing Angle: 8.5 Degrees
- Front Height: 17.5 mm
- EKH: 22.7 mm
- Weight: 1400-1600g
- Mounting: Gasket

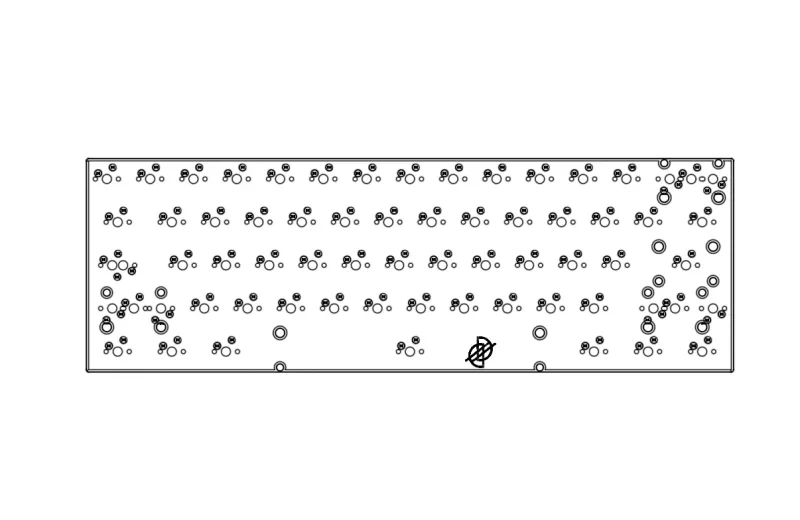

PCB SPECIFICATIONS
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA

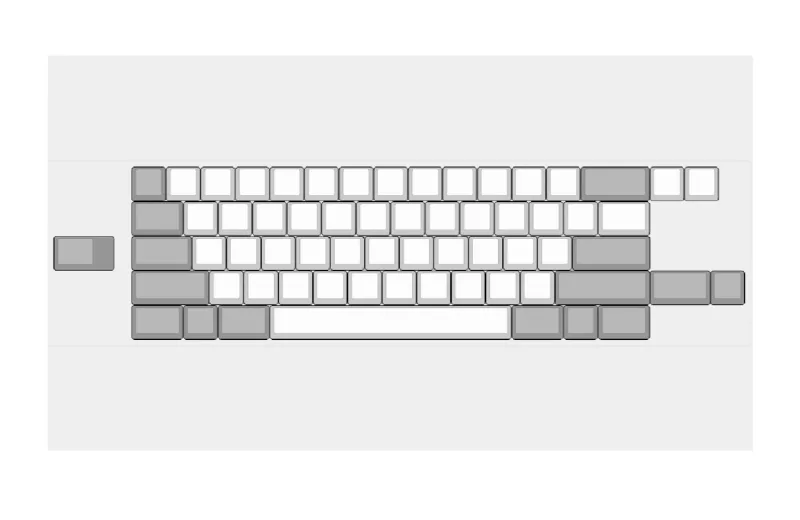

- Type: Solderable and Hotswap
Disclaimers:
- Please note that the images are example images and are for illustration purposes only. The final colours may differ slightly depending on your lightning and environment.*
- Note that the Patina finishes are random and that each unit is unique and will not match the product image. The product image is an example of colors and patterns that are expected with each colorway. Returns or exchanges are not accepted due to dissatisfaction with the finish.
