Mechlovin' GAF x TGR 910 PCB
PCBMechlovin' · 2025
Details
TECHNICAL SPECIFICATIONS
VER. 1: Aluminium GAF 910
- Programmable with QMK and VIA
- Specifically designed for the GAF x TGR 910 (with custom JST header position)
- PCB thickness: 1.6mm
- Connection: Type-C (via daughterboard)
- Powered by Atmega32u4 MCU
- Supported layout
- PCB colour: Yellow or Cold White on Black Core FR4
VER. 2: Polycarbonate GAF 910
- Programmable with QMK and VIA
- RGB Underglow
- Specifically designed for the GAF x TGR 910 (with custom JST header position)
- PCB thickness: 1.6mm
- Connection: Type-C (via daughterboard)
- Powered by APM32F103
- Supported layout
- PCB colour: Cold White on Black Core FR4
FIRMWARE FLASHING GUIDE

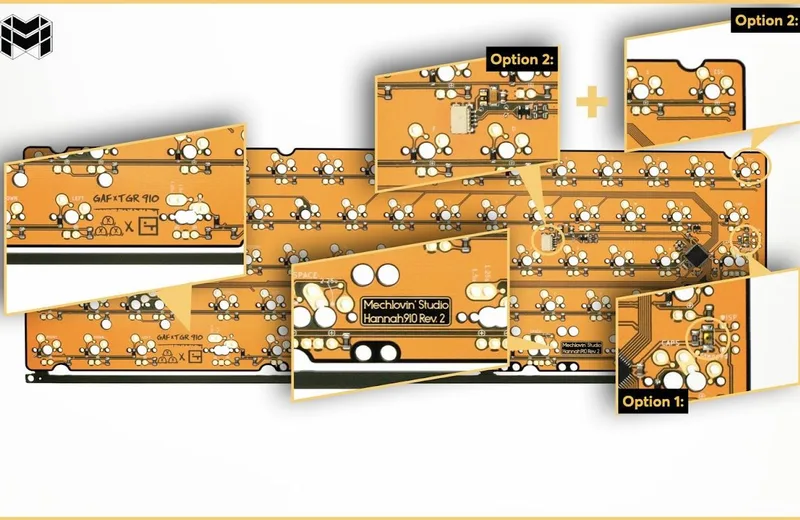

To put the PCB into DFU, hold ESC key then plug in the cable OR activate the reset button/ pads as picture
Firmware download:
- Aluminium Version (no RGB Underglow)
- Polycarbonate Version (RGB Underglow) - Solder
- Polycarbonate Version (RGB Underglow) - Hotswap
- Flashing guide
NOTES
2 versions of the GAF x TGR 910 are available. The original aluminium run uses the Hannah910-based PCB design, and the polycarbonate run uses the ZED65-based design with RGB underglow. Please make sure you use the correct firmware in case you need to reflash it.
