Pixtendo Pixel 67

Updates

• unikeys' review on Jun 23, 2026
  • add more keycap (ISO kit, Mac keys, 7u)

Sales

• format: pre-order
• period: June 16, 2026 - July 16, 2026
• Expected Shipping time: October 15, 2026

Pricing

• Pre-built includes keycaps, stabilizers, and switches; barebone includes case, PCB, and plate

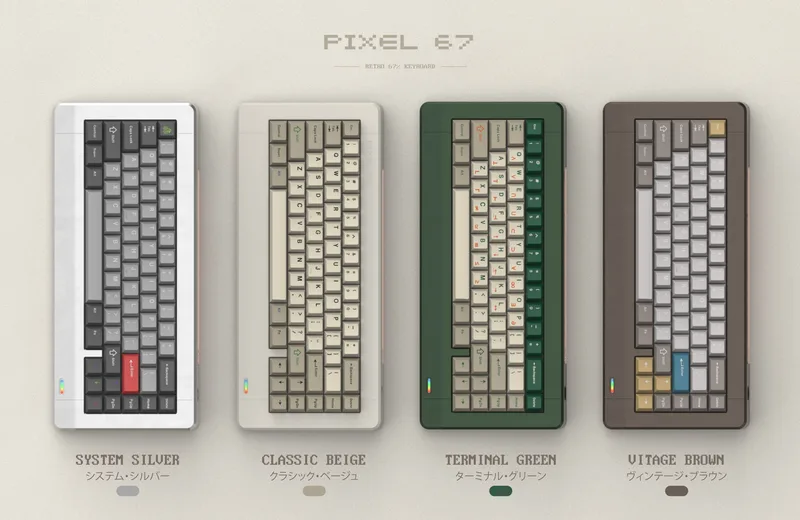

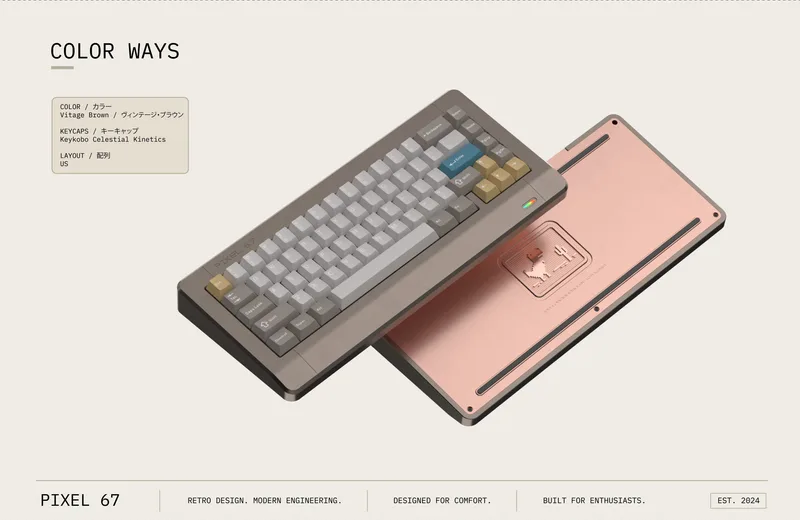

• All colorways available in pre-built and barebone variants at the same price
• Add-on switches and accessories available at checkout

Vendors

• Canada: UniKeyboards

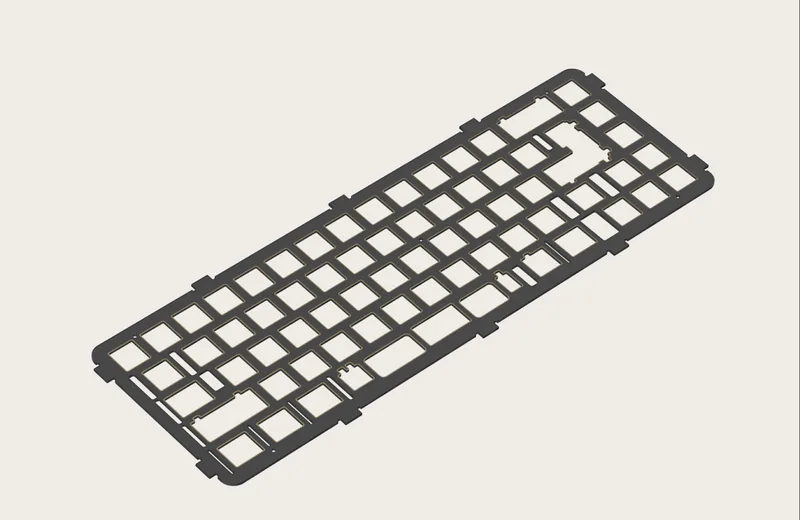

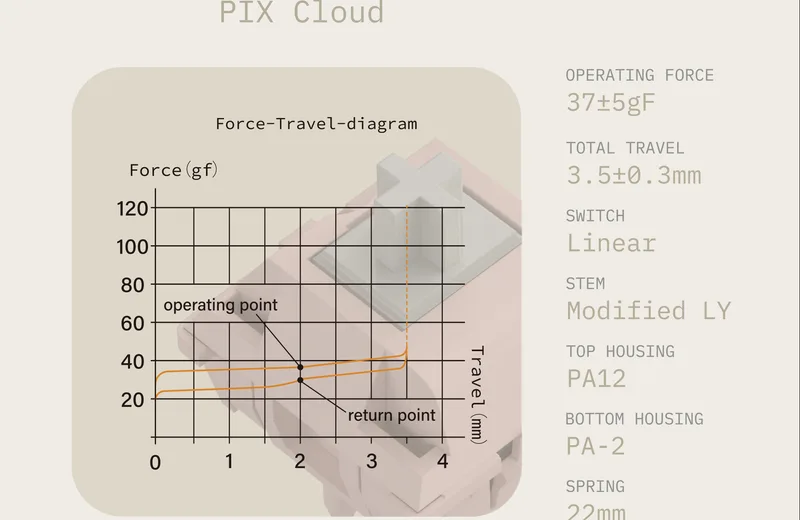

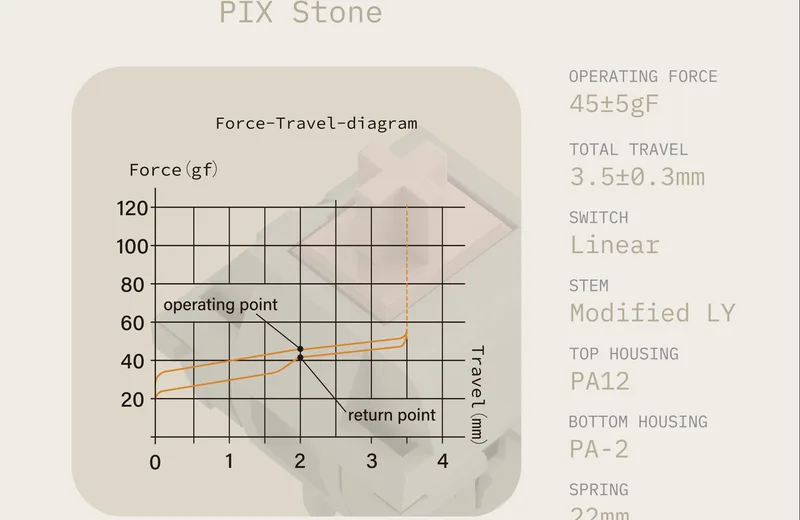

  • addons: plates (alu, FR4, PP), tri-mode PCB, foam kit, switches (cloud, moss, stone)

Pixel67 Keyboard Kit

Pixel67 is a retro-inspired 67% custom keyboard designed by a Japanese keyboard enthusiast currently based in Silicon Valley. Inspired by classic IBM and Apple keyboards, Pixel67 combines nostalgic industrial design with modern custom keyboard features, delivering a premium typing experience that feels familiar, refined, and practical for everyday use.

Developed in collaboration with Keykobo over an 8-month design cycle, Pixel67 features a unique Pogo Pin Gasket Mount system, an internal brass weight, tri-mode connectivity, and carefully tuned acoustics, creating a keyboard that is comfortable, reliable, and approachable for both newcomers and enthusiasts.

Key Features

• Designed by Pixtendo Lab
• Keykobo ABS Double-Shot Keycap Set

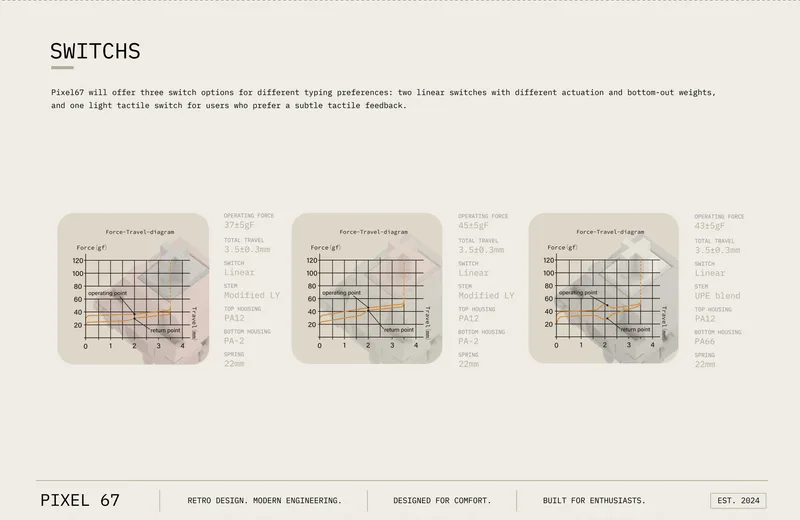

• HMX Clacky and Thocky switches for selection
• Retro-Inspired 67% Layout
• Pogo Pin Gasket Mount Structure
• Internal Brass Weight
• Tri-Mode Wireless PCB
• VIA & QMK Compatible
• CNC Aluminum Case
• Pre-built and Barebone Configurations Available
• Optimized for Comfort and Everyday Use

Specifications

Pogo Pin Gasket Mount

The Pogo Pin Gasket Mount was developed to provide a more consistent and predictable typing experience than traditional gasket or leaf spring mounting systems.

Unlike conventional leaf spring designs that may vary in stiffness across different regions of the keyboard, each pogo pin compresses with nearly identical force. This creates a more uniform typing feel throughout the board while maintaining controlled flexibility and comfortable keypresses.

The pogo pin system also offers excellent long-term durability, as it does not suffer from the material fatigue commonly associated with foam or gasket-based support structures. The result is a typing experience that remains consistent even after years of use.

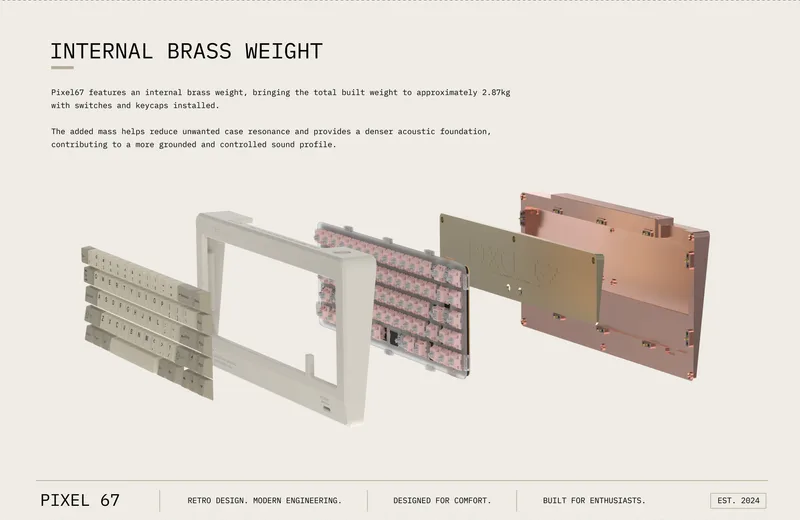

Internal Brass Weight

Pixel67 utilizes a substantial internal brass weight that serves both structural and acoustic purposes.

The additional mass gives the keyboard a more premium and stable feel on the desk while significantly reducing unwanted resonance inside the case. By filling internal space and increasing overall density, the brass weight helps eliminate hollow sounds and case ping, resulting in a cleaner, deeper, and more controlled acoustic profile—even in foamless builds.

Keyboard Content

Pre-Built Kit Includes

• Pixel 67 keyboard kit (Everything included in the barebone kit)
• HMX Switches of your choice
• Keykobo ABS Double-Shot Keycaps
• Tuned Stabilizers
• Extra Keycaps (7U Spacebar, ISO keys, Split backspace keys, Mac keys)
• Foam kit
• Keyboard Case
• User Manual

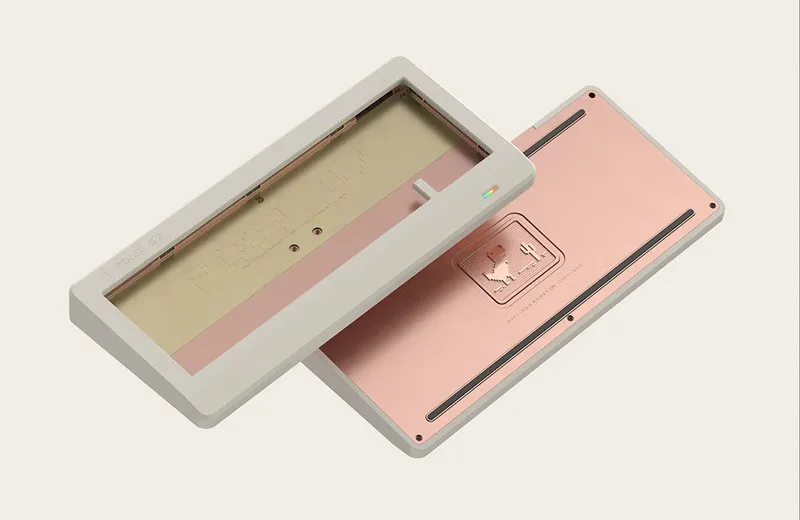

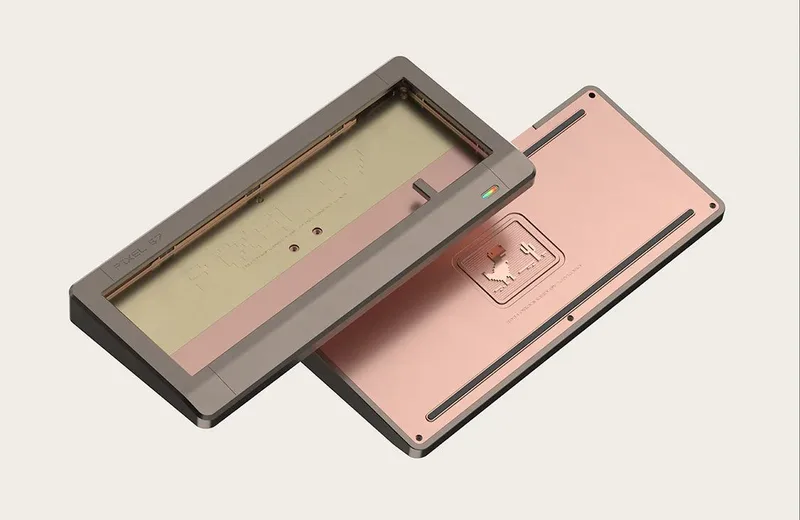

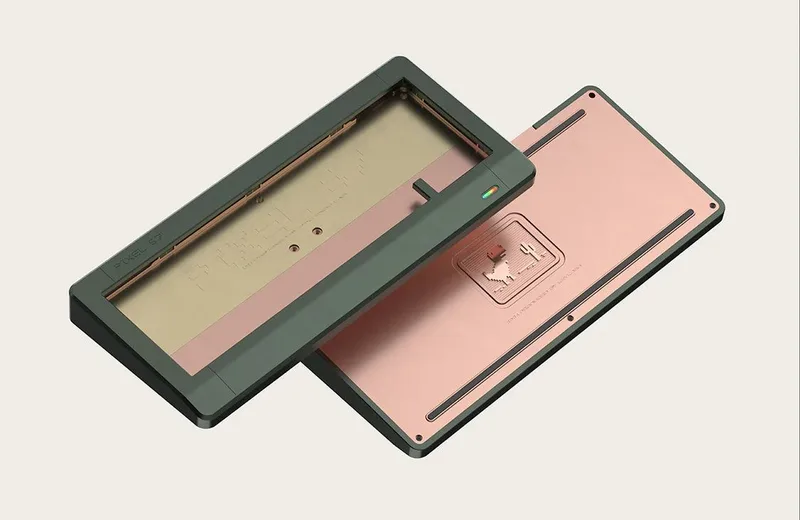

Barebone Kit Includes

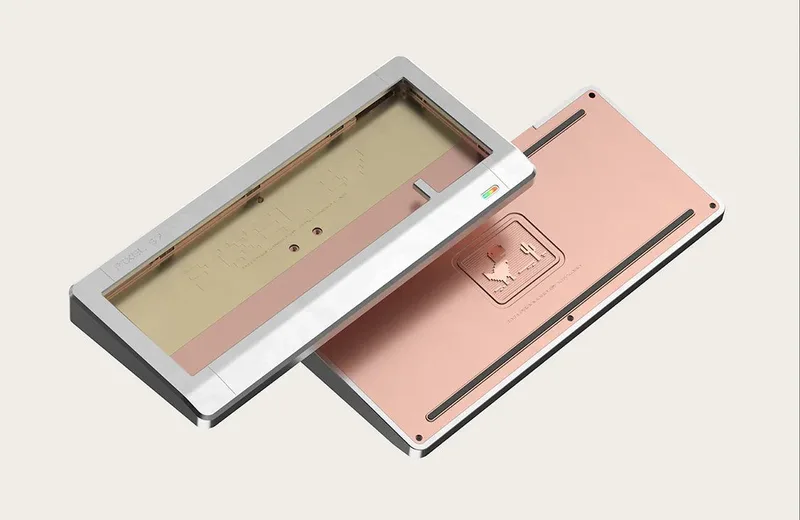

• Aluminum top case
• Aluminum bottom case

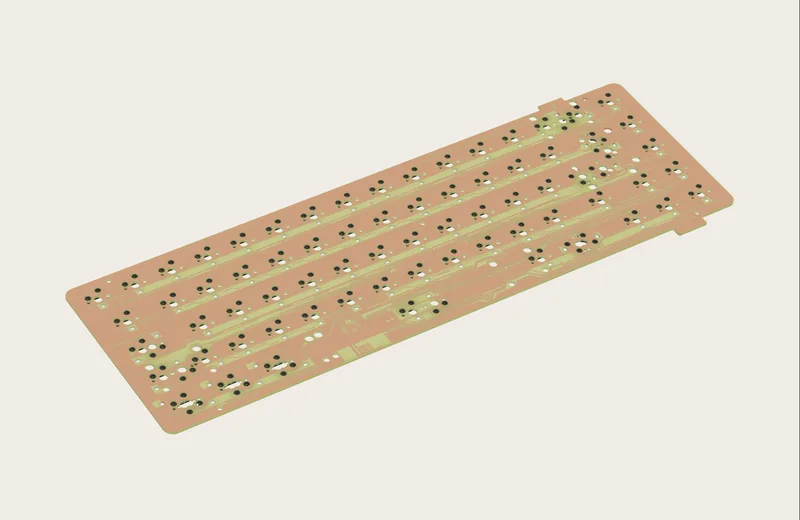

• Tri-mode hot-swap PCB

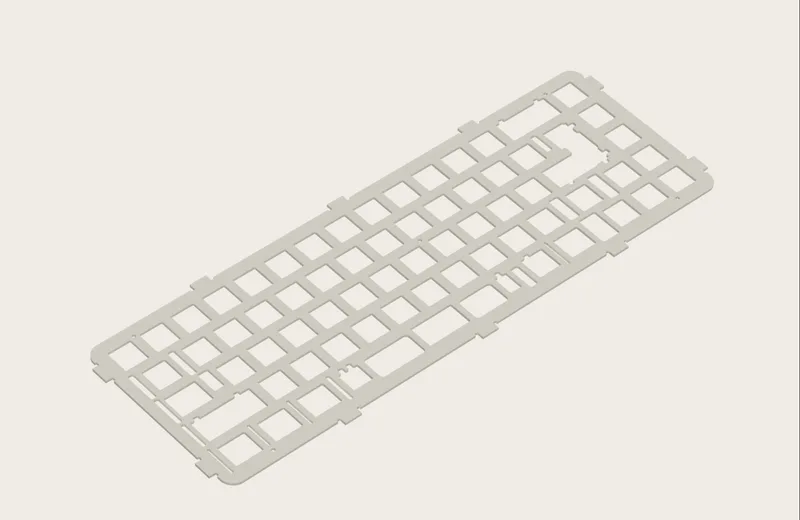

• Alu Plate
• Internal brass weight
• Pogo Pin gasket components

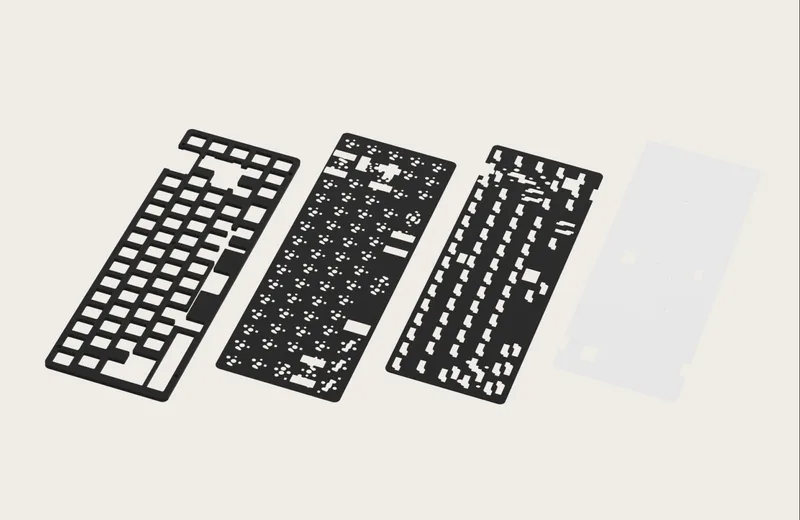

• Foam kit
• Silicone feet
• Screws and accessories
• Keyboard Case
• User Manual

Designed for Comfort

Pixel67 was engineered with long-term typing comfort as a primary goal.

The front lip features a subtle slope that naturally follows the position of the hands and wrists, reducing the need for an additional wrist rest. Combined with a balanced 6-degree typing angle, the keyboard provides a comfortable typing posture suitable for extended daily use.

VIA & QMK Support

Pixel67 fully supports both VIA and QMK firmware.

Users can easily remap keys, create custom layers, program macros, and tailor the keyboard layout to fit their personal workflow. Whether for productivity, gaming, or specialized applications, Pixel67 offers extensive customization without requiring complicated software.

Pre-Order Information

Important to note: This is a short pre-order, not an in-stock item. All units will be shipped out after the production is finished. The following timeline is our best estimation but is subject to change if affected by unexpected events. By placing an order, you acknowledge that this product is a pre-order and have read the estimated timeline below.

• GB Date: June 16 - July 16, 2026
• Estimated Shipping Date: October 15, 2026

GB/Pre-Order Cancellation/Refund/Return Policy:

Please note that all Group Buy (GB) and pre-order purchases are final.

• Cancellations or refunds are not accepted
• Returns are not accepted for any GB or pre-order items

We recommend making your purchase decision carefully before the GB/pre-order closes.

Discount Code & Shipping Restrictions:

• Affiliate codes are eligible for this purchase
• Free shipping is NOT eligible for this product
• Loyalty codes are NOT eligible for this purchase
