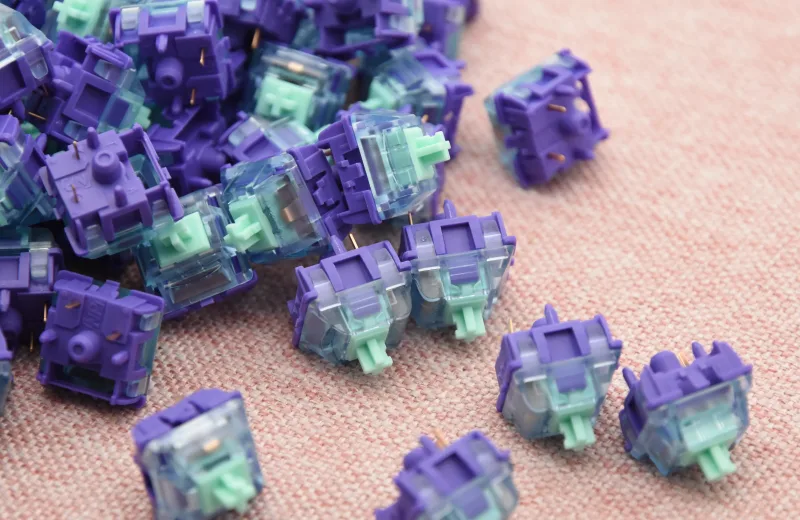

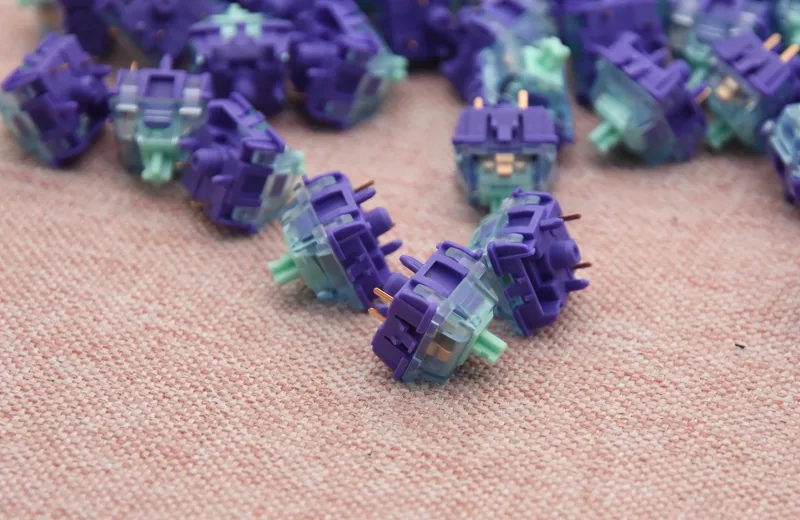

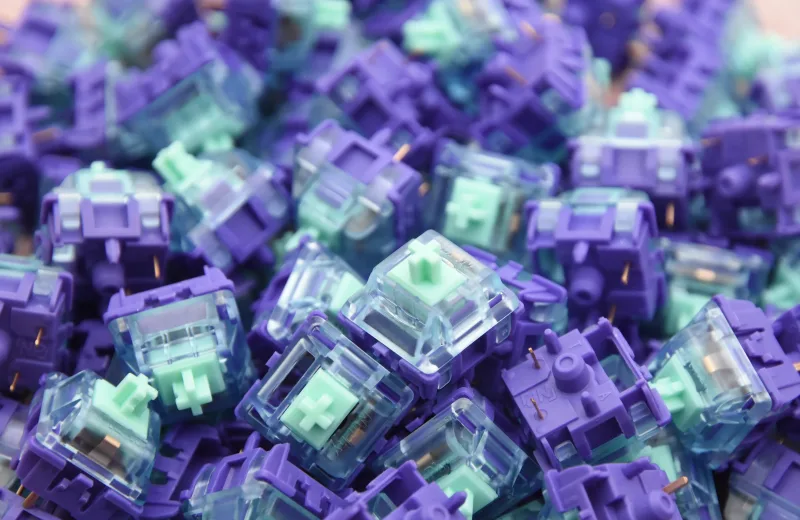

Geteron Azure Dragon V4

This is basically a Type R variant with a different housing, PC instead of Nylon.

The Gateron Azure Dragon V4 tactile switch comes with a large tactile bump and a super short pre-travel. It uses the same stem as the Gateron Type R tactile switch. That being said, Azure Dragon V4 and Type R switches have a very similar tactile feeling.

The only difference between Type R and Azure Dragon V4 is the top housing material. Azure Dragon's PC top housing makes them sound clackier than Type R.

Spec

• Switch Type: Tactile
• Manufacturer: GATERON
• Mold: New Mold
• Stem material: POM
• Top Housing: PC
• Bottom Housing: PA66
• Operating Force: 55±2g
• Bottom-out Force: 60±2g
• Pre-travel: 2.2mm
• Total Travel: 3.0±0.2mm
• Spring: 22mm KOS double-stage extended
• Factory Lubed: Yes! mixed GPL105&GPL205 on leaf spring, stem feet, and bottom housing rails.
