Ramune60

RAMUNE60 by Hato @everyone

• GEON-discord

Sales

• format: GB
  • Unlimited Groupbuy
• ETA: Q2 2026

Numbers

Price

• 225 USD (included Solderable PCB, TBD)
• 298,000 KRW (예정)

Vendors

• prototypist
• geon

Pricing

Inspirations

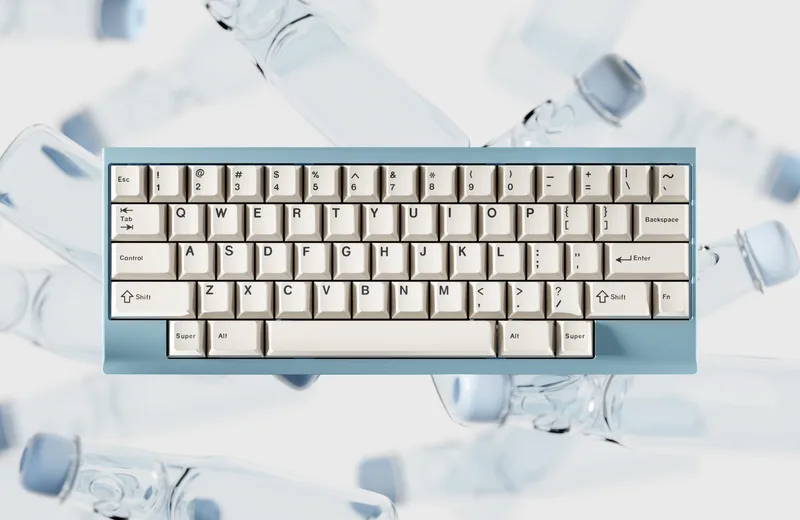

The design of this keyboard was inspired by Ramune, the iconic Japanese soda known for its playful charm and distinctive glass bottle. With its clear lower half filled with fizzy soda, opaque top cap, and signature glass marble sealed inside, the Ramune bottle serves as a direct motif for the keyboard’s form and color palette. This keyboard captures the refreshing character of Ramune through both its aesthetics and sound. The low-profile case enhances usability while perfectly matching the light and breezy concept. Additionally, a carefully tested and tuned Poron gasket delivers a crisp and clear typing sound that complements the overall design.

Specifications

• Layouts: HHKB, WK, WKL
• Mount: Gasket PORON® LE-20
• Typing Angle: 9°
• Front Height: 16.65 mm
• Weight: 1.1kg (Built)

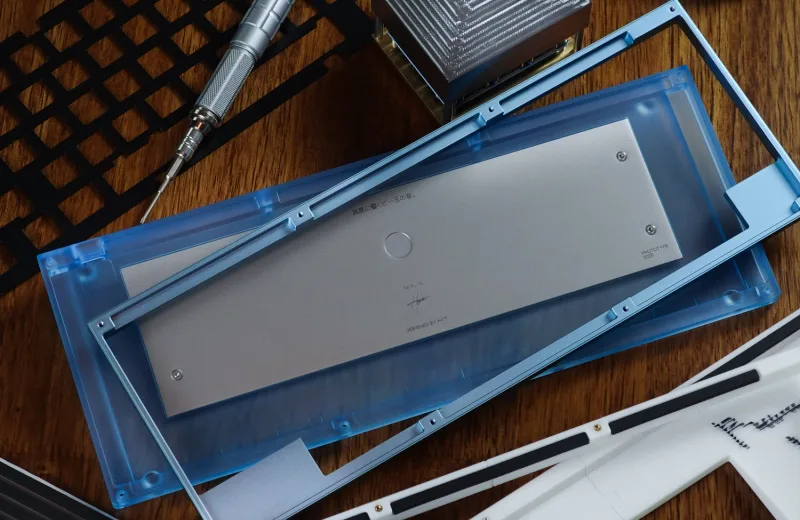

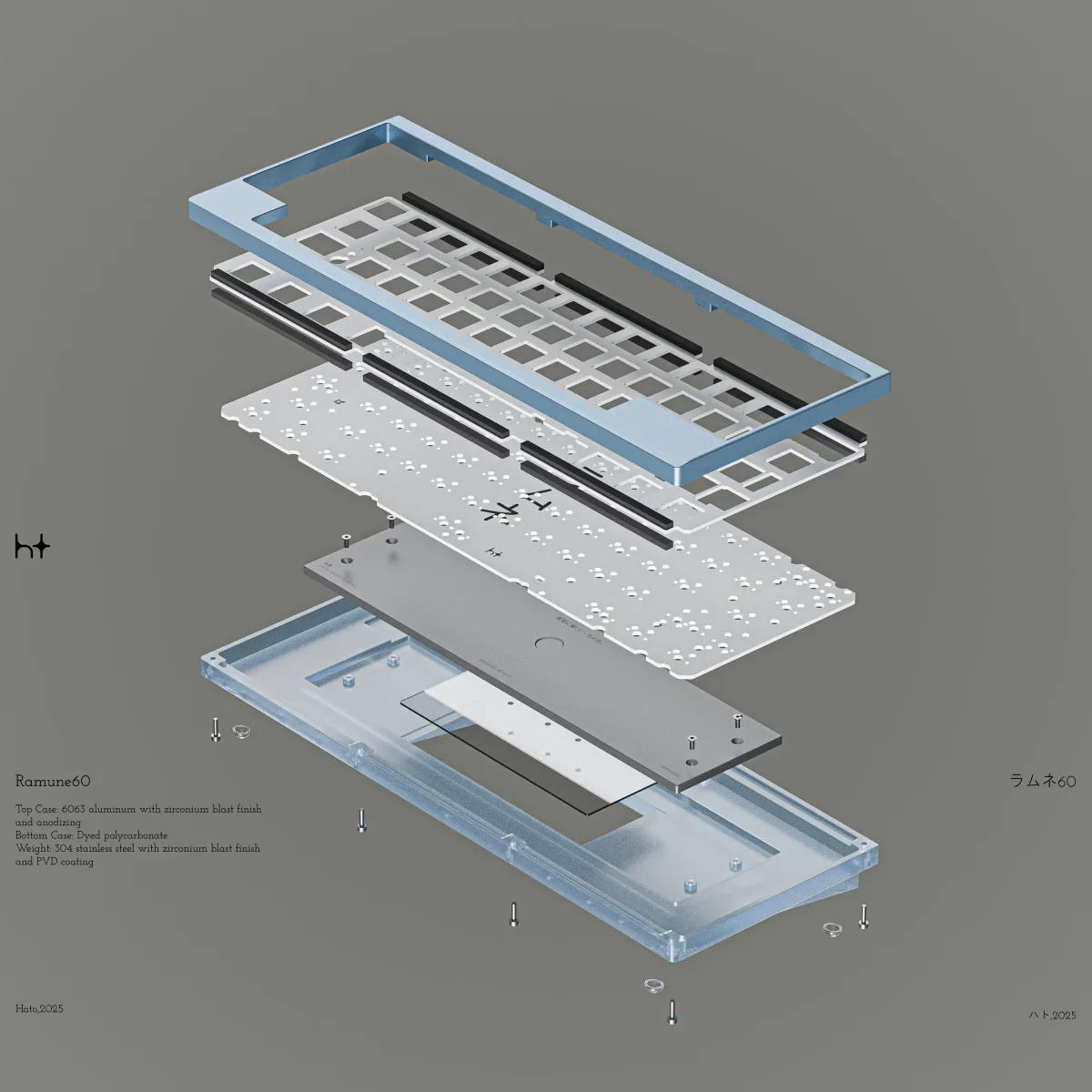

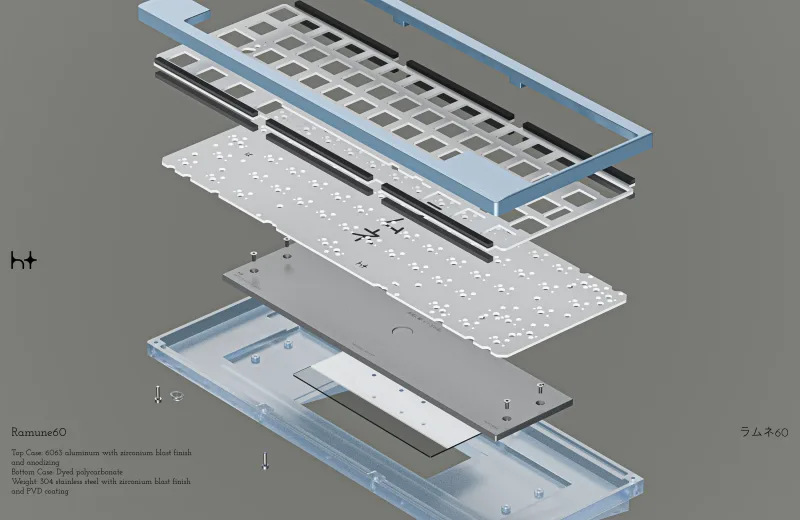

Materials:

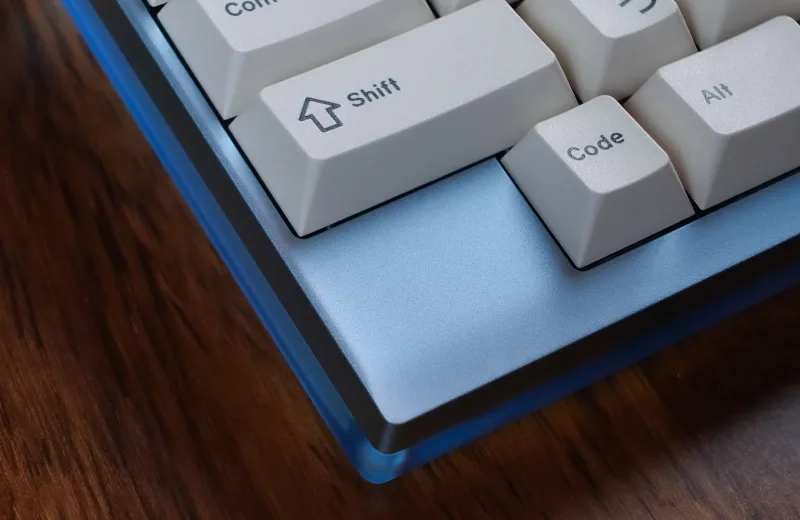

• Top Case: Anodized A6063-T5 with Zirconia Blasted
• Bottom Case: PC with Dyed, Acrylic and PEI with Zirconia Blasted

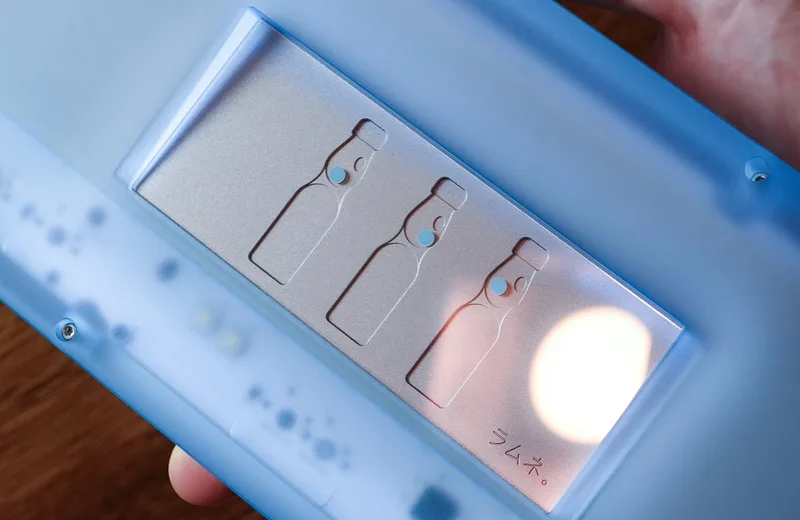

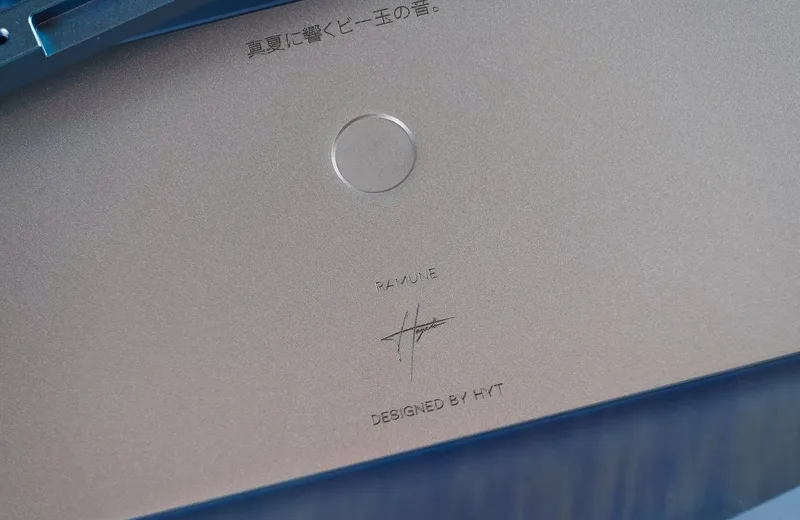

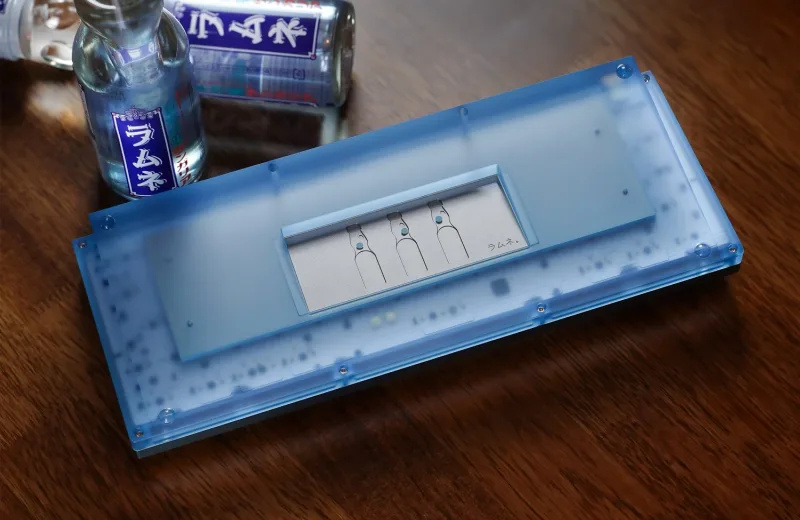

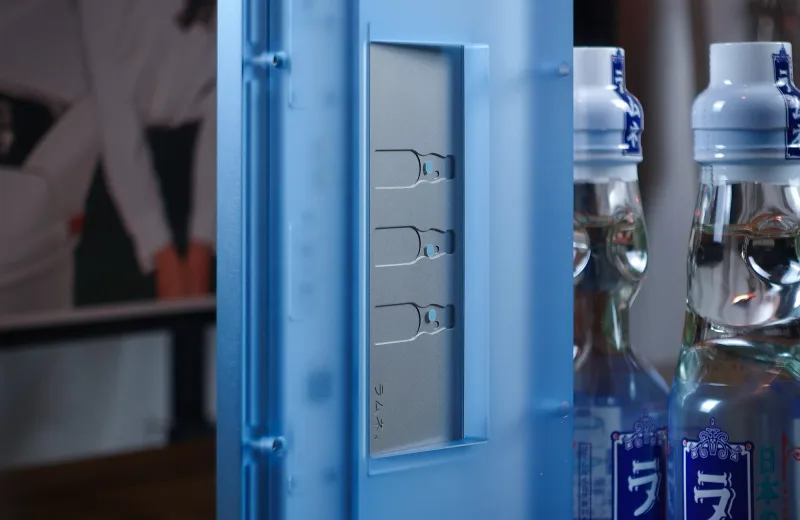

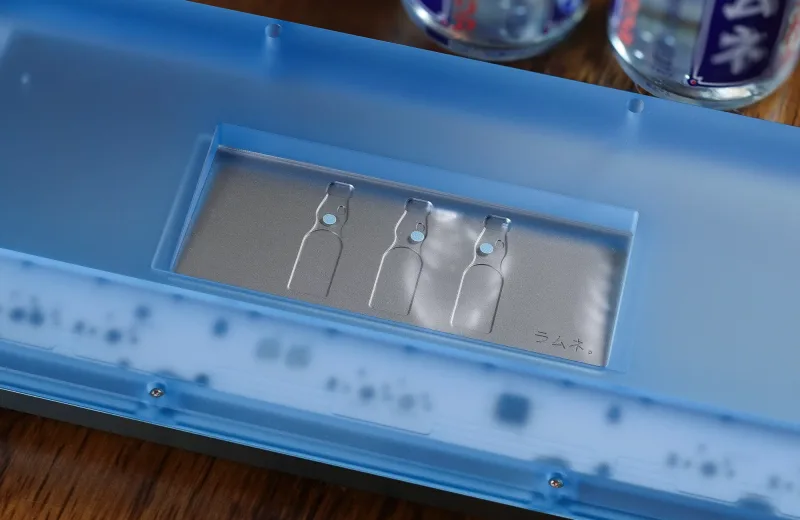

• Weights: Stainless Steel 304 with Zirconia Blasted, PVD Coated
• Plates: PP (Standard), Acrylic, PEI, Aluminium (Blue, Pink and Black)
• PCB: FR-4

Support Layouts

• 6u and 7u Spacebars
• Spilt Backspace and Right Shift
• Stepped Caps Lock

Support PCBs

• Solderable, QMK/VIA support, Under Glow RGB, 1KHz Polling
• Hotswappable, QMK/VIA support, Under Glow RGB, 1KHz Polling
• Hall Effect, VENOM60HE6.25U / VENOM60HE7U, Under Glow / Per Key RGB, 8KHz Polling
• A dedicated plate must be purchased separately
• Hotswappable Gaming, VENOM60MX 7U, 8KHz Polling

Included

• Cases (Top, Bottom)
• Weights
• PP Plate
• Bumpon & Gasket Set
• Screw & ID Card Set
• Screwdriver
• Carrying Bag

Excluded

• PCB

Colors

• Ramune Blue
• Momo Pink

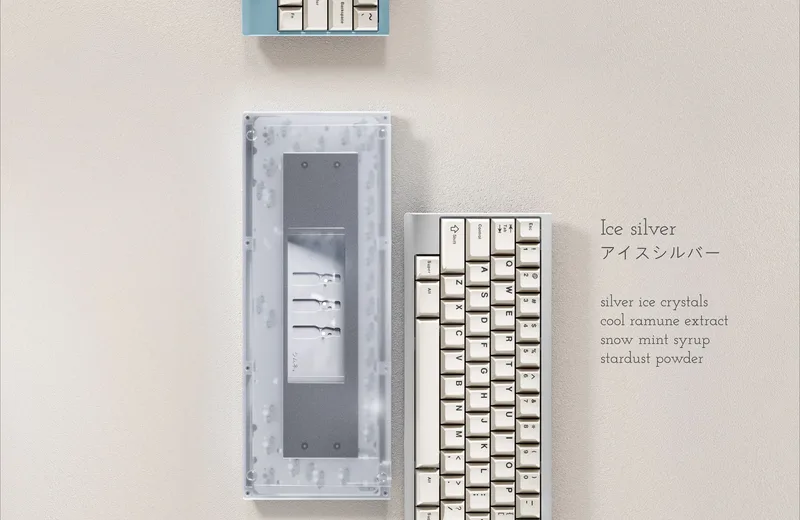

• Ice Silver
• Kuro Edition (Black)

Designed by Hato in Seoul, Managed by Geonworks
