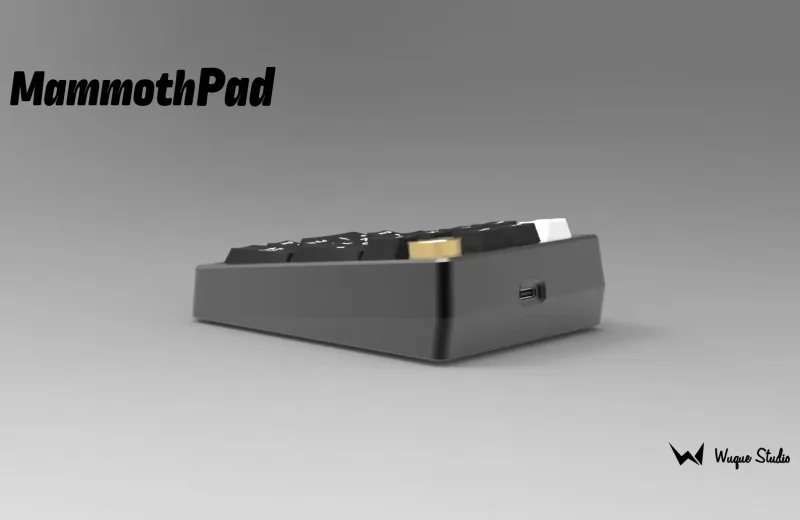

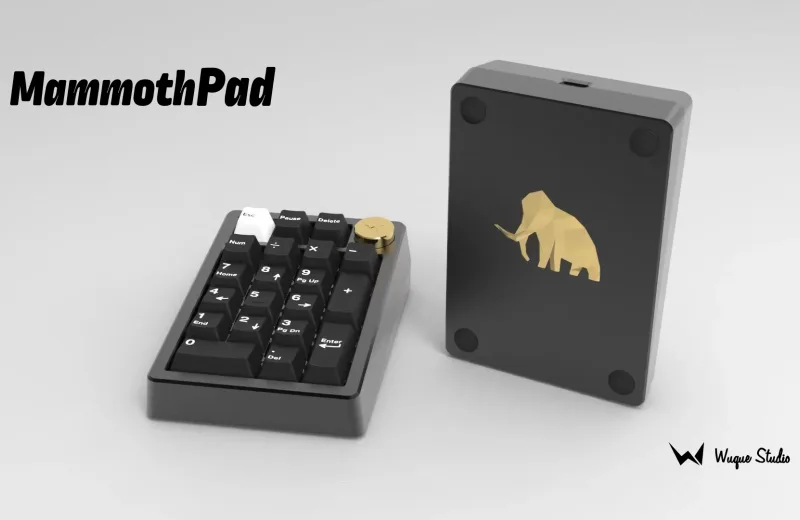

Mammoth20 Pad
KeyboardWuque Studio · 2022
Details
GB Time
- January 14th, 2022 - Feb 7th, 2022
- Estimated Delivery: July 2022 to Vendors
- Actual delivery: Nov 2022
Features
- Sandblasted Diamond Cut Mammoth Weight
- Special Gasket Structure

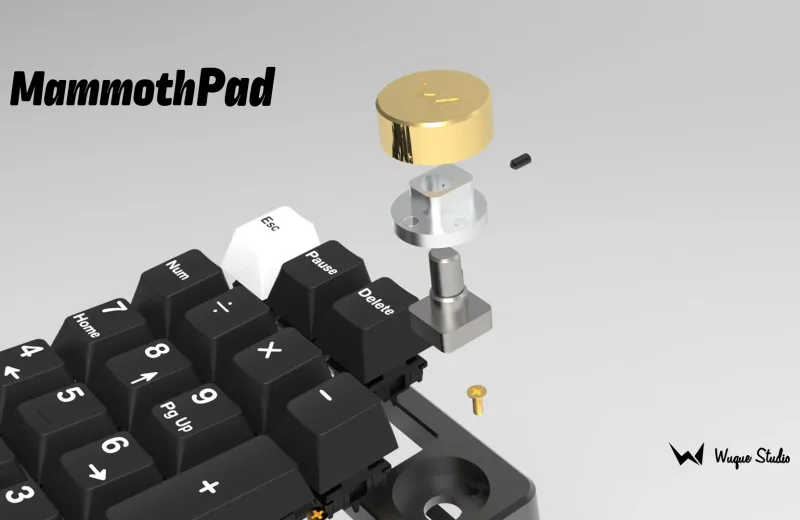

- Aluminum, Magnet Knob
- Bluetooth PCB supports VIA
- Mammoth20 is using the same Bluetooth PCB solution with Mammoth75, it supports VIA, and works in wired and wireless mode.
- Build guide
Spec
- Typing angle: 6.5 degrees.
- Front Height: 19.5 mm
- Weight (unbuilt): 520 g
- Case Material: Aluminum
- Mounting Method: Gasket Mount
- Package Weight: 1 kg

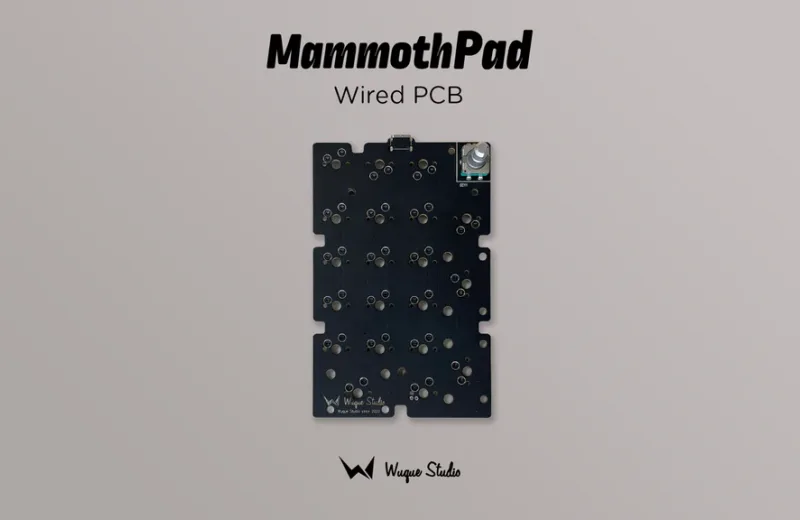

PCB Specifications:
- Wired/Wireless Hot-swap PCB: 1.2mm thick
- QMK / VIA support: Yes
- In-switch LEDs: No
- Underglow: No
- ESD Protection: Yes
Battery
A standard sized, widely available LiPo battery is required for Bluetooth editions but it's not included with the kit. You can source it on your own.
Specifications:
- Mammoth75: 3543114
- Mammoth20: 303450
- JST1.25
Kit Contents:
- Top Case, Bottom Case (Anodized Aluminum)
- PC Plate
- WS Stabs 3×2U
- Hotswap PCB, wired/wireless
- PORON gaskets
- PORON dampener between plate and PCB
- PORON foam between PCB and switches
- PORON foam under PCB
- Aluminum knob
- Magnet base
- Encoder holder
- Screws and rubber feet

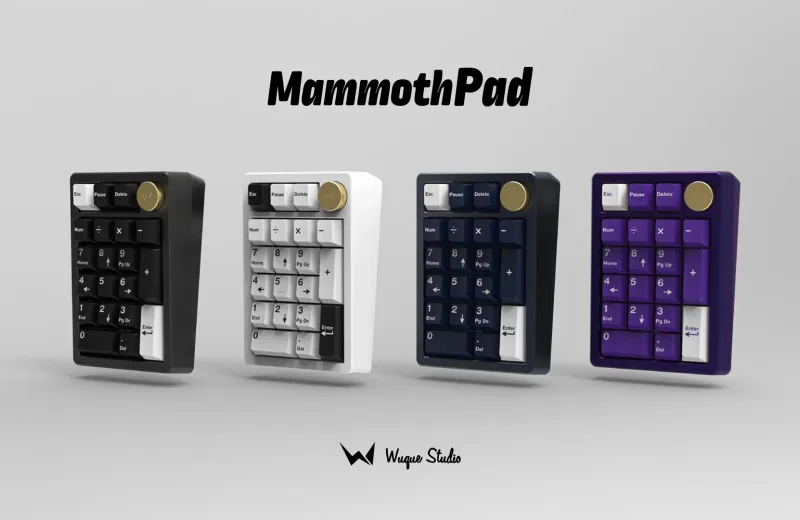

Colors
E-white, Black, Navy, Violet
