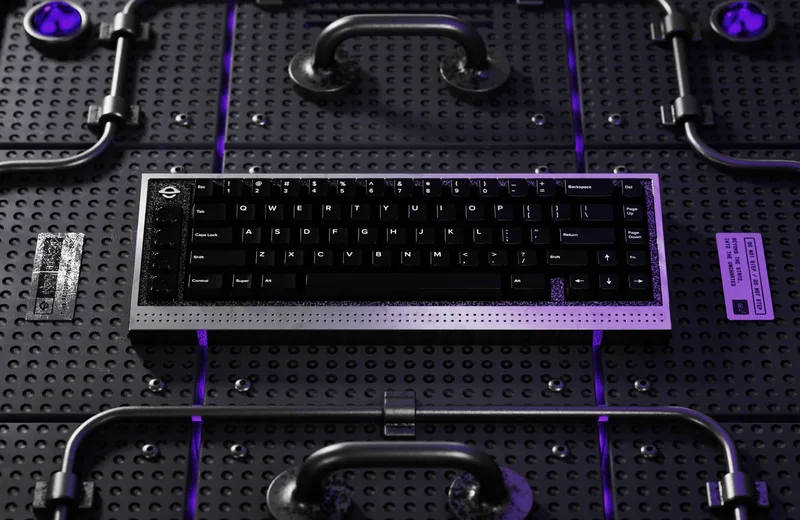

Event Horizon

KeyboardMVKB · Salvun · 2023

Details

Sales

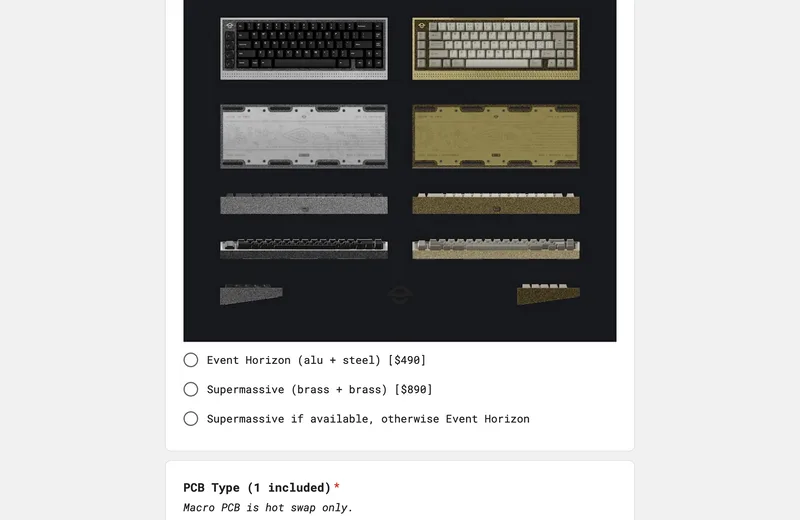

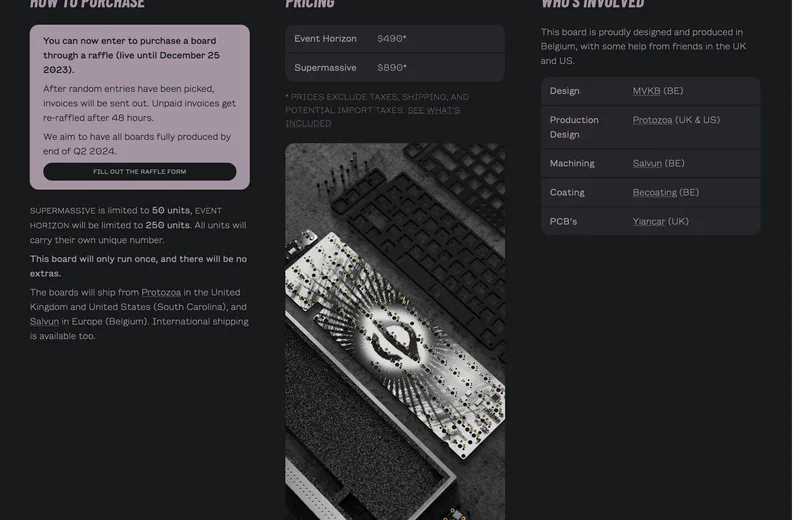

  • format: raffle
    • qty: 250
  • period: December 22 2023
  • ETA: Q4 2024 Q3 2025

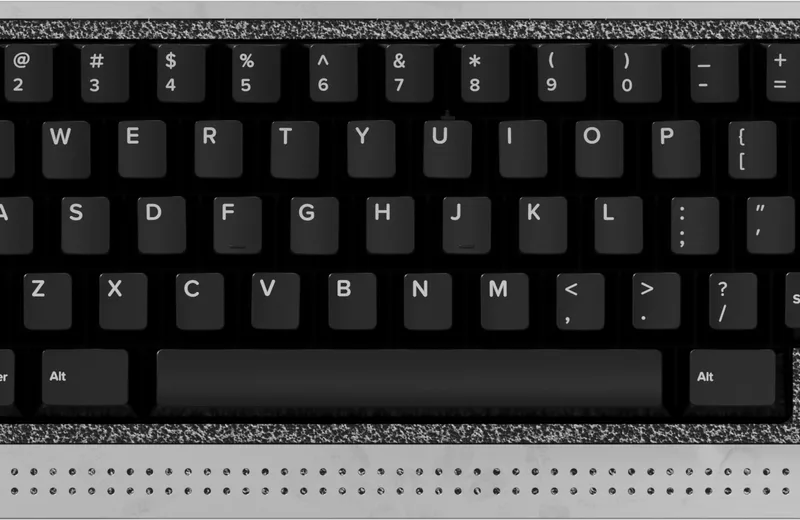

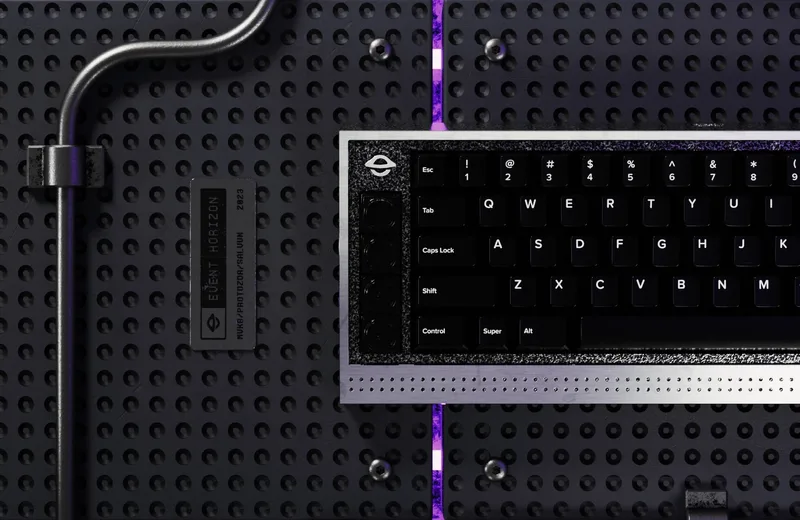

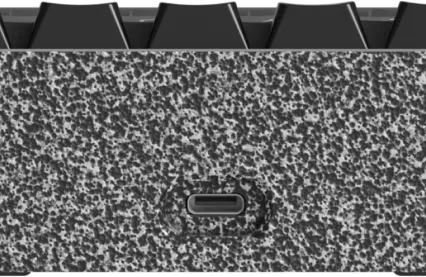

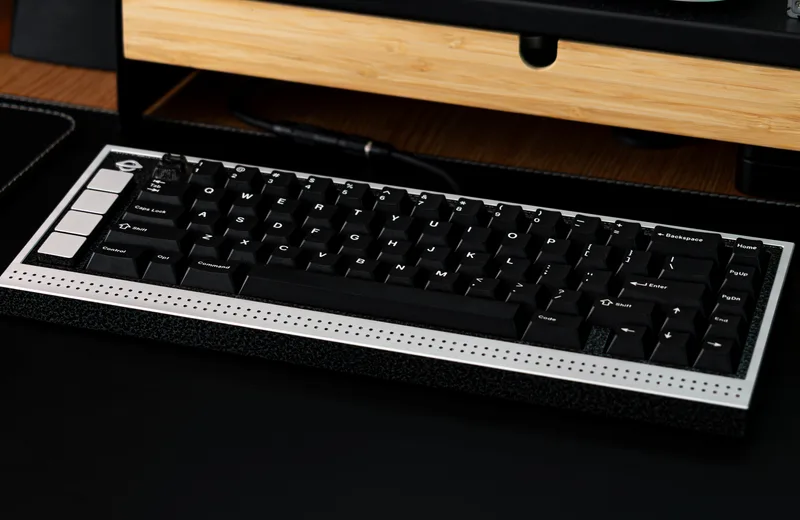

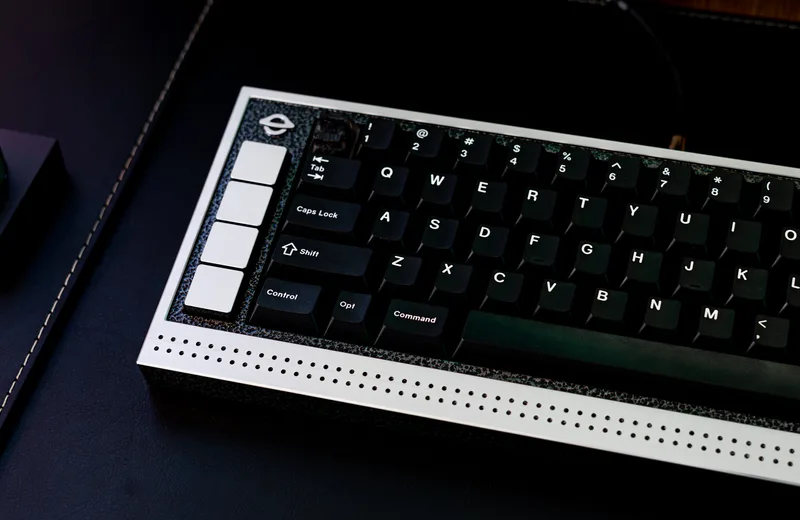

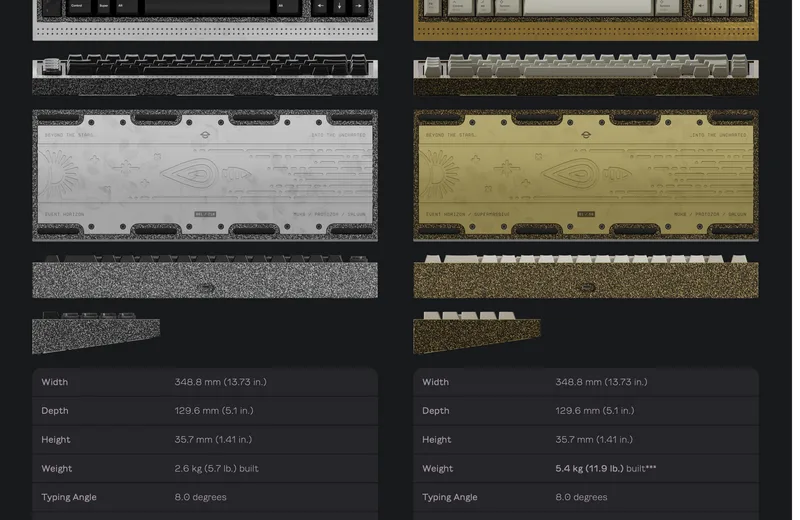

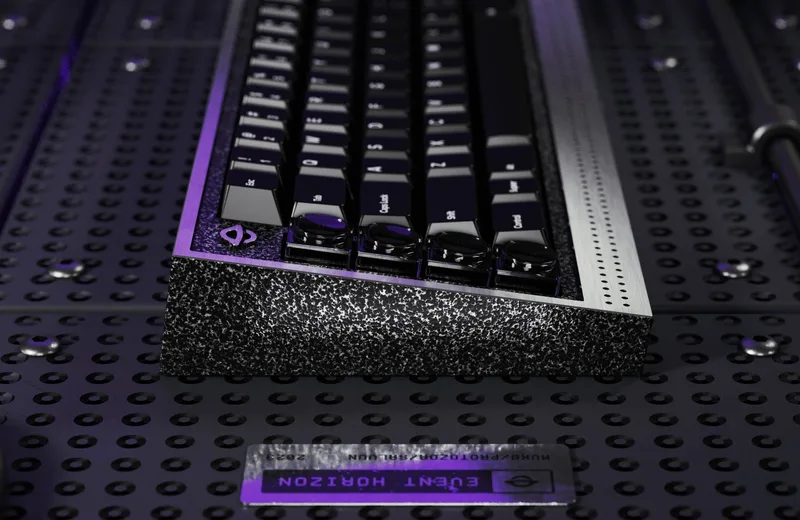

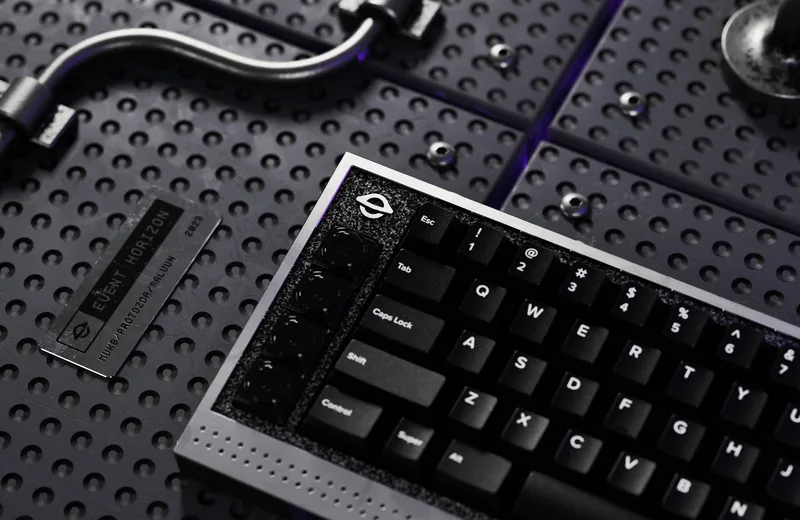

Event Horizon

  • Width: 348.8 mm (13.73 in.)
  • Depth: 129.6 mm (5.1 in.)
  • Height: 35.7 mm (1.41 in.)
  • Weight: 2.6 kg (5.7 lb.) built
  • Typing Angle: 8.0 degrees
  • Front Height: 17.5 mm (sans feet)

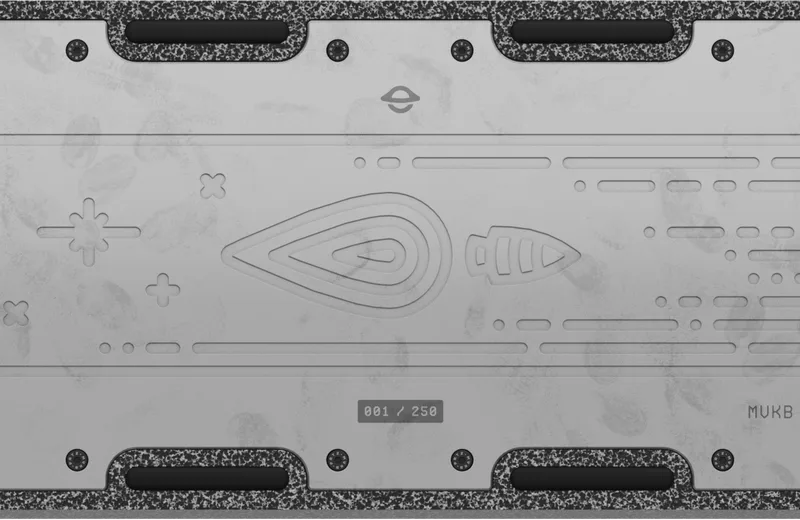

  • Materials: Aluminum top, stainless steel bottom

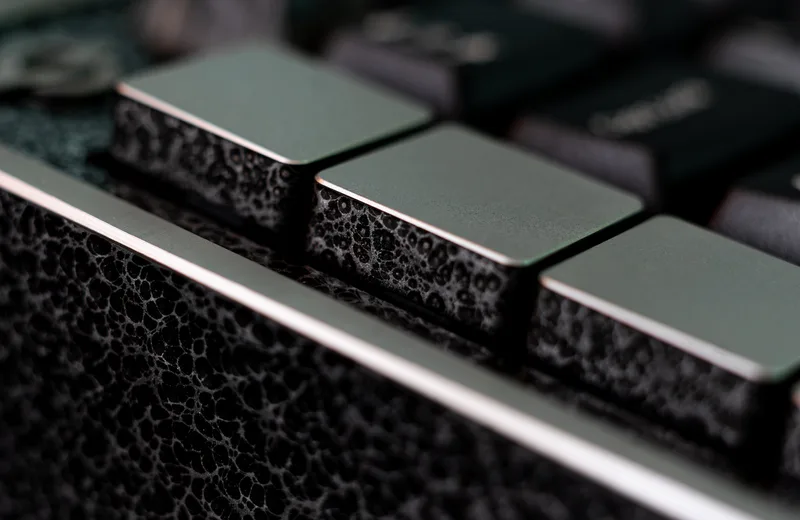

  • Finish: Black wrinkle coat, brushed top, bead blasted bottom, clear coat

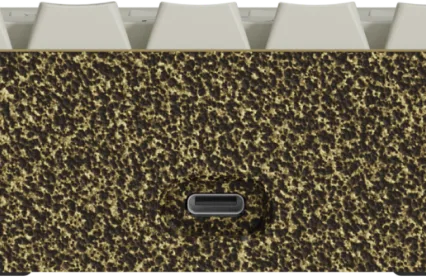

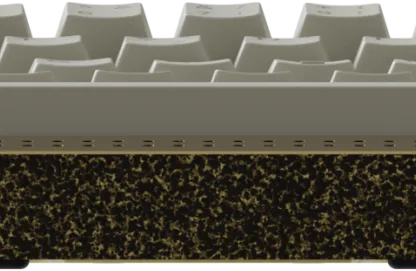

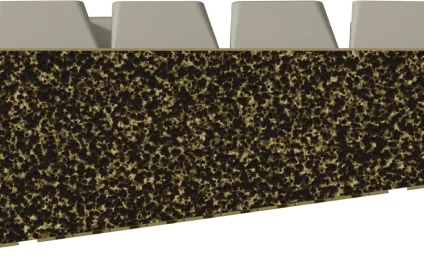

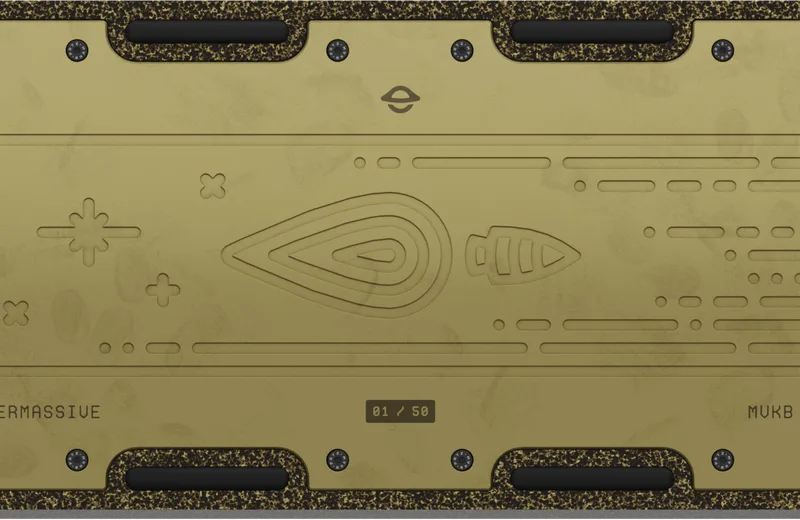

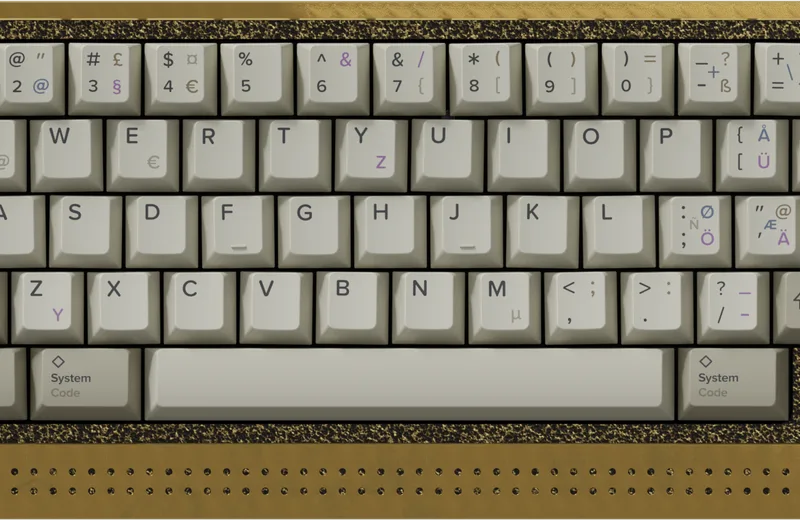

Supermassive

  • Width: 348.8 mm (13.73 in.)
  • Depth: 129.6 mm (5.1 in.)
  • Height: 35.7 mm (1.41 in.)
  • Weight: 5.4 kg (11.9 lb.) built***
  • Typing Angle: 8.0 degrees
  • Front Height: 17.5 mm (sans feet)
  • Materials: Brass top, brass bottom
  • Finish: Dark gold wrinkle coat, perlage top, bead blasted bottom, clear coat

*** Due to the weight, Supermassive might be more expensive to ship. It is legit heavy.

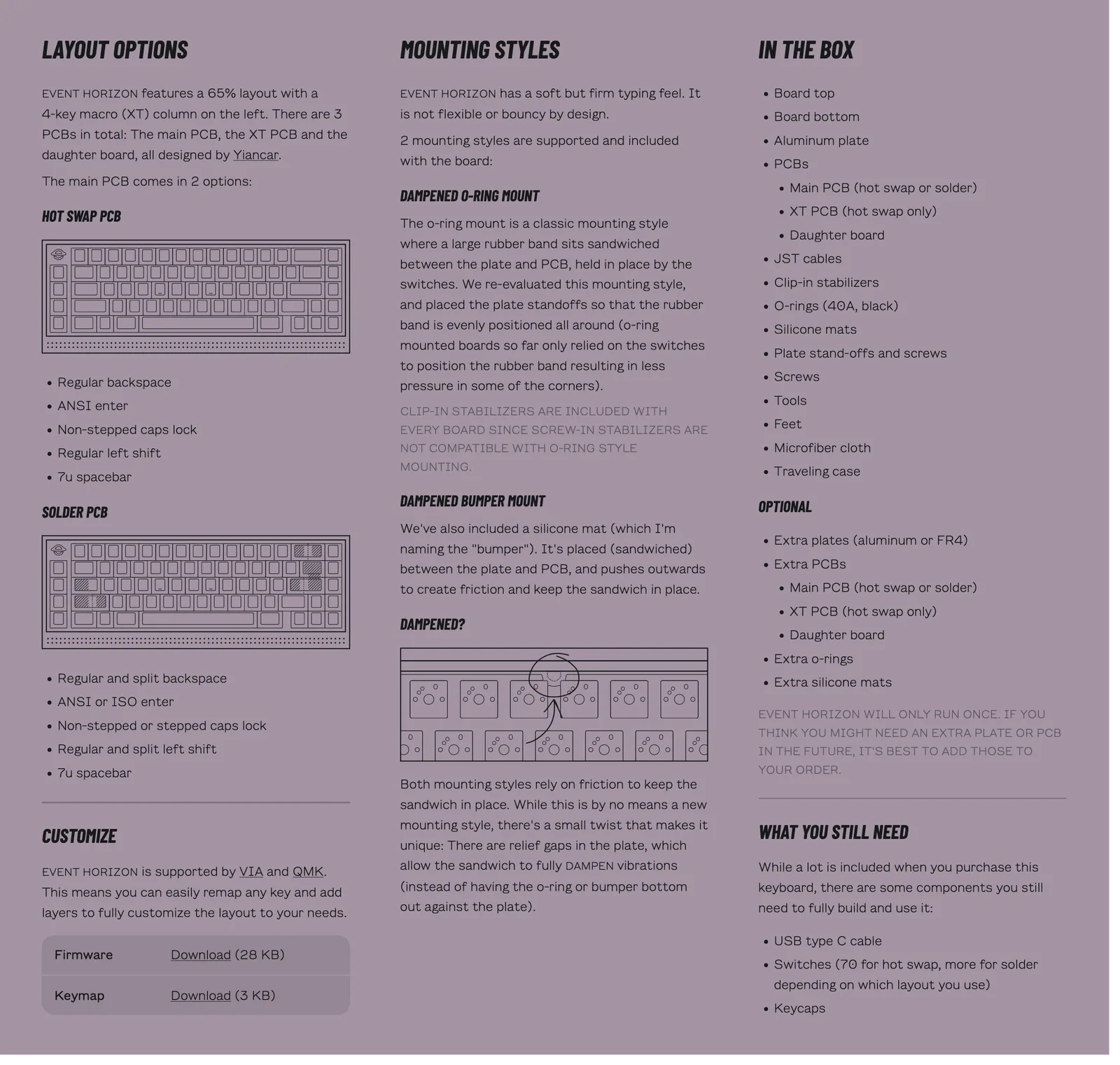

Download

Event Horizon spec

Mounting Styles

Event Horizon has a soft but firm typing feel. It is not flexible or bouncy by design.

2 mounting styles are supported and included with the board:

Dampened O-ring Mount

The o-ring mount is a classic mounting style where a large rubber band sits sandwiched between the plate and PCB, held in place by the switches. We re-evaluated this mounting style, and placed the plate standoffs so that the rubber band is evenly positioned all around (o-ring mounted boards so far only relied on the switches to position the rubber band resulting in less pressure in some of the corners).

Clip-in stabilizers are included with every board since screw-in stabilizers are not compatible with o-ring style mounting.

Dampened Bumper Mount

We've also included a silicone mat (which I'm naming the "bumper"). It's placed (sandwiched) between the plate and PCB, and pushes outwards to create friction and keep the sandwich in place.

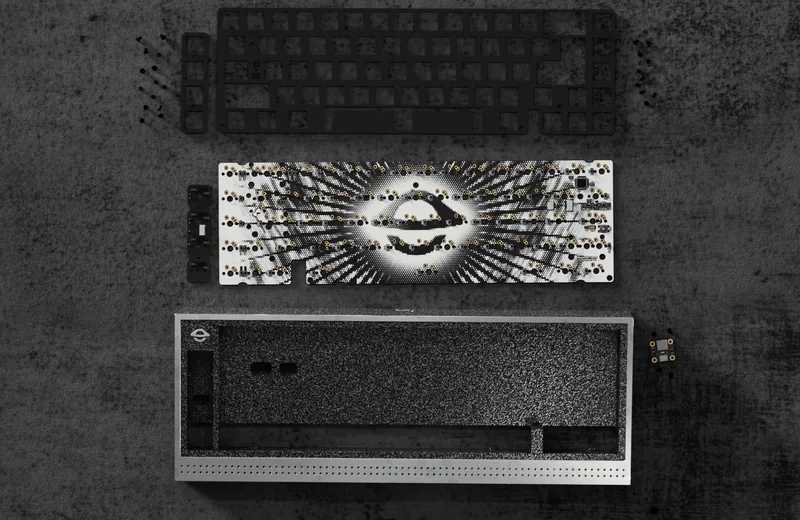

In The Box

  • Board top
  • Board bottom
  • Aluminum plate
  • PCBs
    • Main PCB (hot swap or solder)
    • XT PCB (hot swap only)
    • Daughter board
  • JST cables
  • Clip-in stabilizers
  • O-rings (40A, black)
  • Silicone mats
  • Plate stand-offs and screws
  • Screws
  • Tools
  • Feet
  • Microfiber cloth
  • Traveling case

Optional

  • Extra plates (aluminum or FR4)
  • Extra PCBs
    • Main PCB (hot swap or solder)
    • XT PCB (hot swap only)
    • Daughter board
  • Extra o-rings
  • Extra silicone mats
