Matrix Navi

Vendor:

• US: Novelkeys
• OCE: Daily Clack
• China HongKong/ Macao/ Taiwan: Matrix Lab
• KR: Swagkeys
• EU: Oblotzky Industries
• GB: Prototypist

(If you order from Novelkeys, all items inlucded in your order will be shipped directy to you from Matrix lab.)

Price:

$520 (The price of each vendor may vary slightly)

GB time:

• Period: June 9 to 17;
• ETA: Fulfilment starts from 2023 Q4.

GENERAL INFORMATION

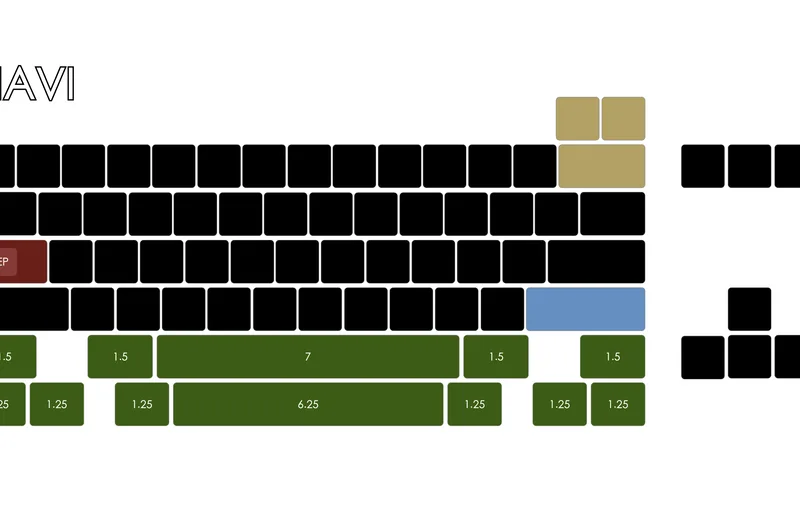

• LAYOUT: WKL & CWKL
• PCB: HOT-SWAP ONLY
• MOUNTING METHOD: TOP MOUNT
• SCREEN: 0.85 INCH LCD SCREEN (SAME AS CORSA)
• BADGE: COMPATIBLE WITH PREVIOUS BADGES

Angle:

• 8 degrees.

Front height:

• 20mm;
• 24.9mm (with switch);

PCB:

• Designed and supported by Astro;
• Hot-Swap PCB only;
• VIAL supported;
• Flex cut on the base area;

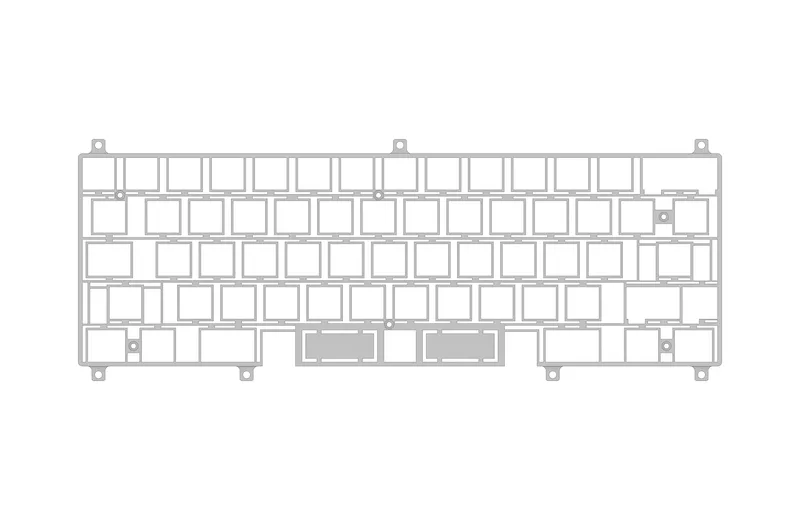

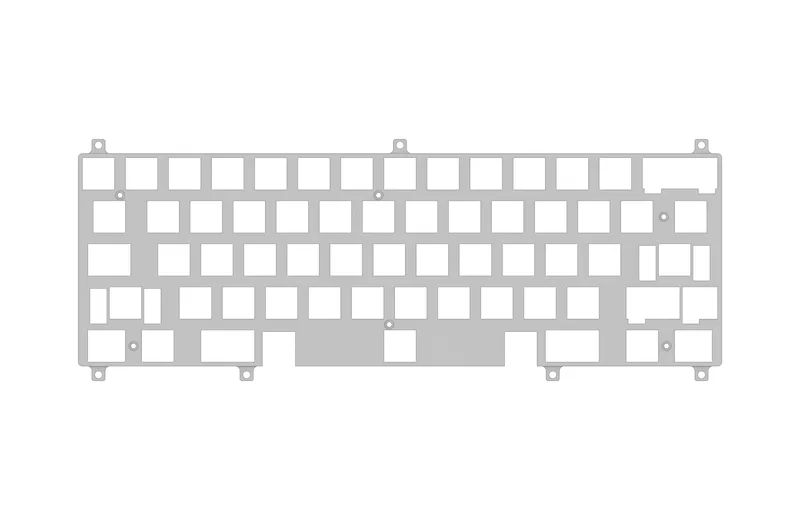

Plate:

• Splite plate for base area and function area;
• We will be sending two plates for the base area for Navi. One with the flex cut and the other one without

---

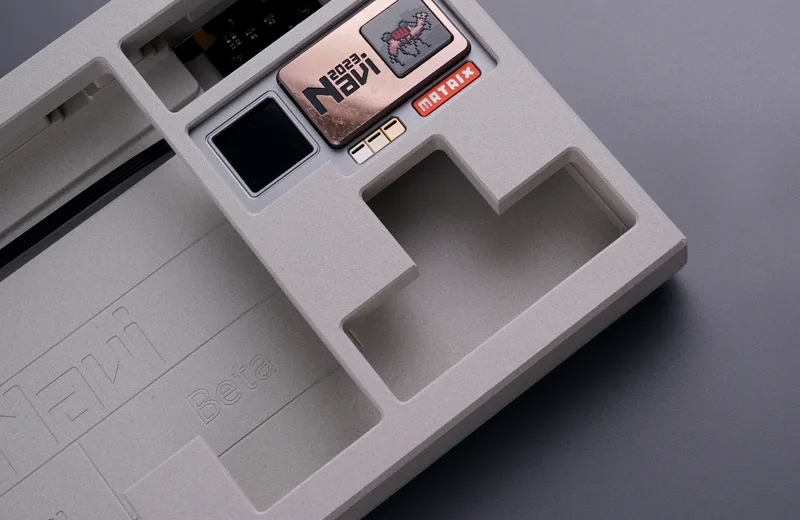

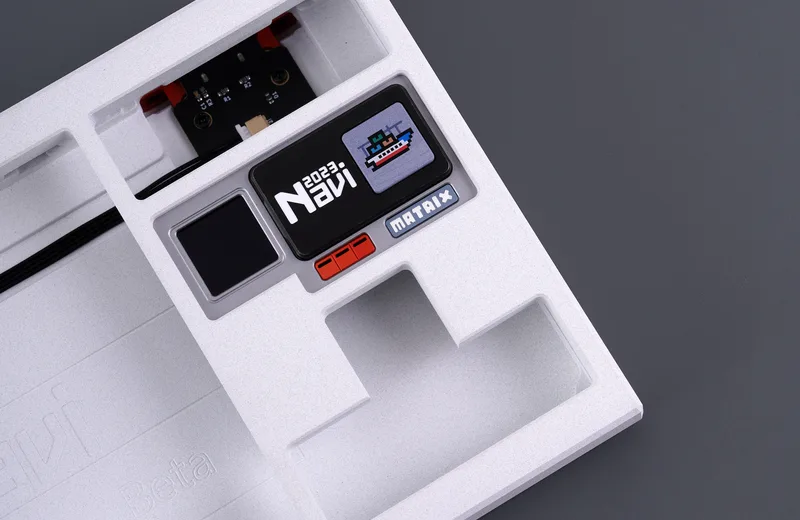

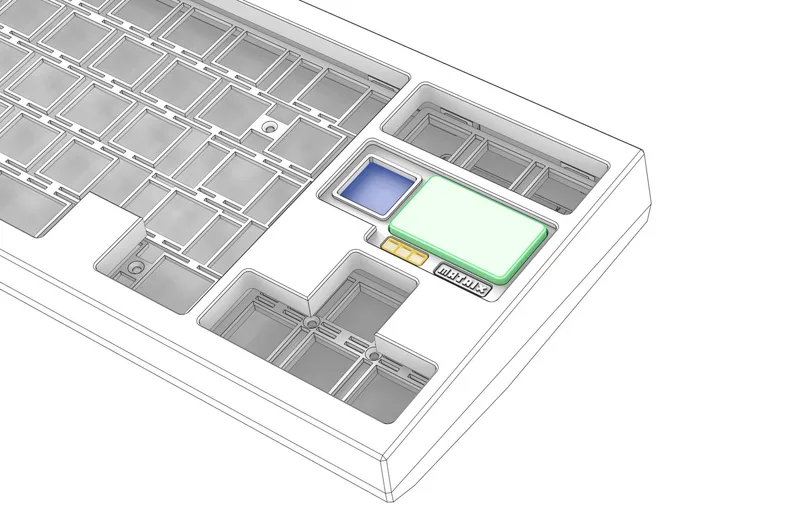

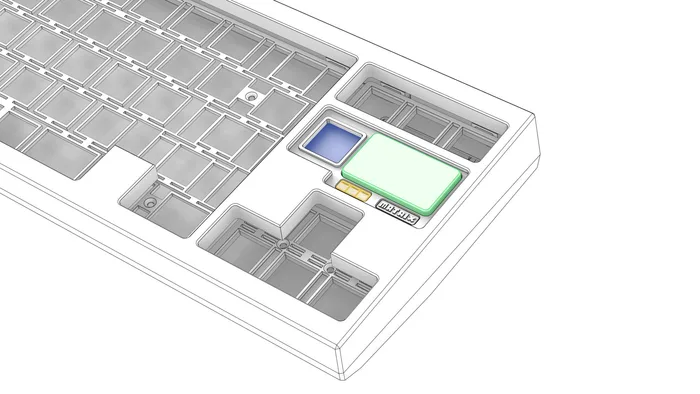

Blue part:

• 0.85 inch LCD screen (Same as Corsa);
• The resolution is 128 * 128; Can display gif image (need to convert to a specific format);

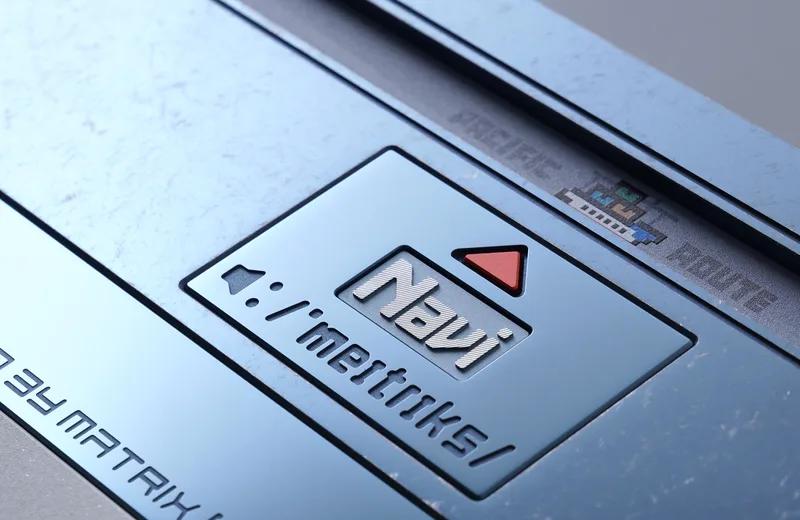

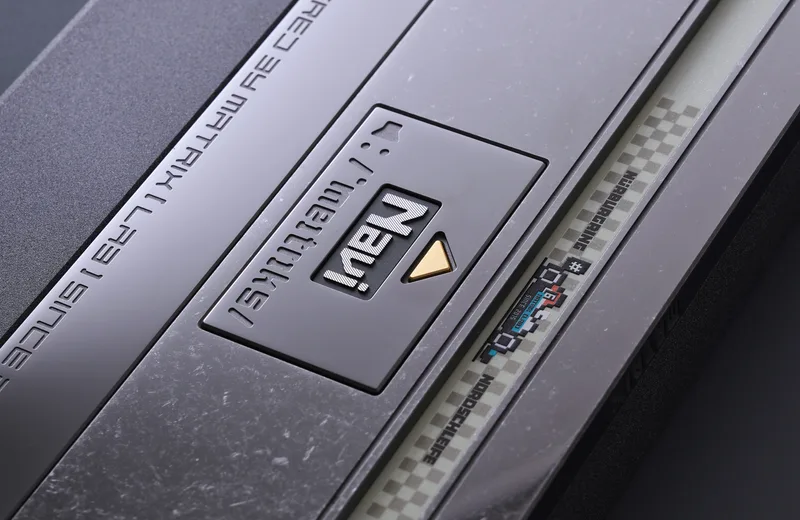

Green part:

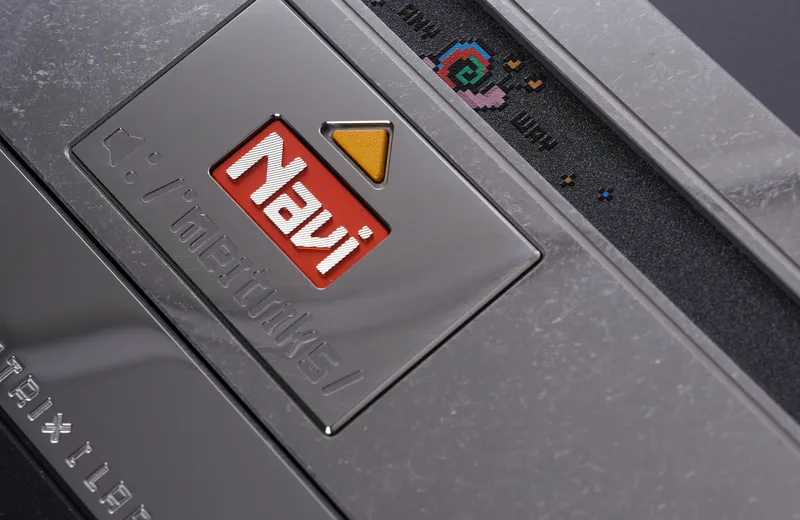

• 4mm stainless badge with stone washing and PVD mirror finish;
• Compatible with previous badge;
• Magnetic assembly

Yellow part:

• LED.
