Bullet Train
Details
Sales
- format: unlimited gb
- period: Feb 5, 2026 - Mar 8, 2026
- ETA: Q3, 2026
Vendor
Pricing
| kit | GB (USD) | |
|---|---|---|
| kit - wired hotswap | 170 | |
| kit - wireless hotswap | 200 | |
| pcb - wired hotswap | 30 | |
| pcb - wireless hotswap | 60 | |
| pcb - wired solder | 25 | |
| pcb - fly db w/cable | 6 | |
| stab (1x 6.25u + 2x 2u) | 4.5 | |
| battery | 5 | |
| sleeve | 14 | |
| plate - alu / big bar | 20 | |
| plate - alu / split bars | 20 | |
| feet - akb (12) | 3 | |
| plate form | 6 | |
| gasket (8) | 5 | |
| feet - Angling (2) | 8 | |
| switch - KS33 Reds (55) | 15.4 | |
| switch - KS33 Silent Reds (55) | 20.9 | |
| switch - KS33 Brown (55) | 15.4 | |
| switch - KS33 Silent Brown (55) | 20.9 | |
| keycap - PFF Verdant Retro | 28 | |
| keycap - PFF WoB | 30 |
Color
- Black
- Dark Green
- Lilac
- Pink
- Silver
Layout

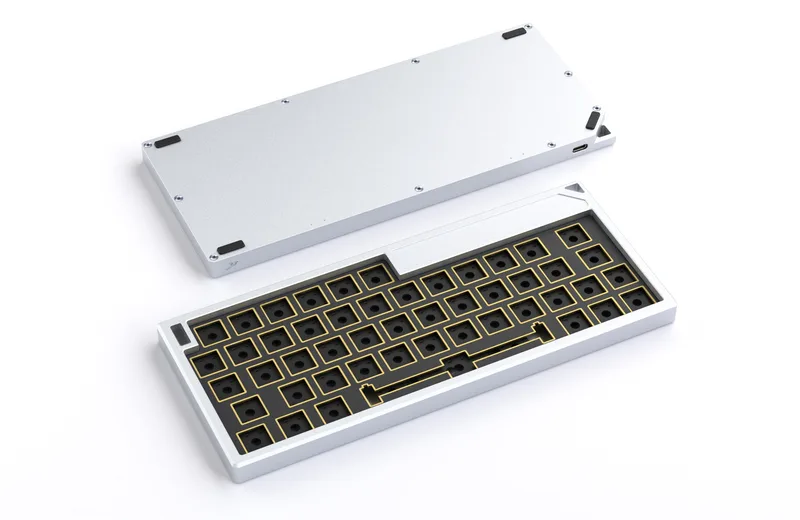

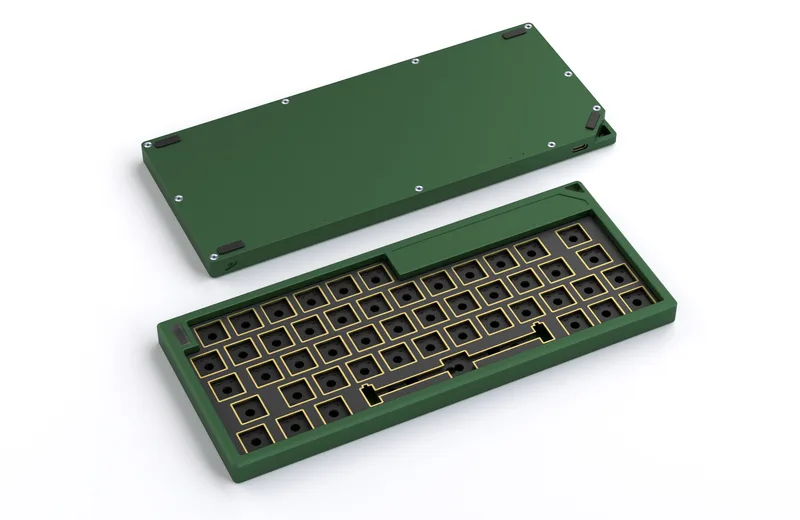

- Big bar

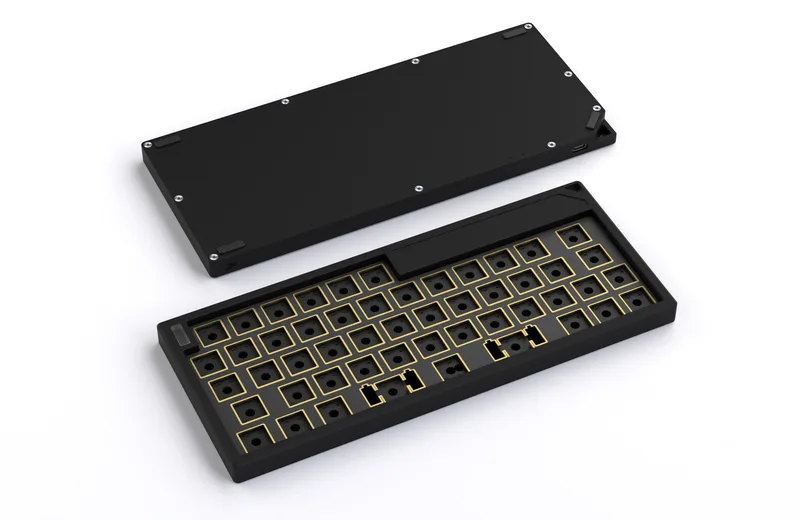

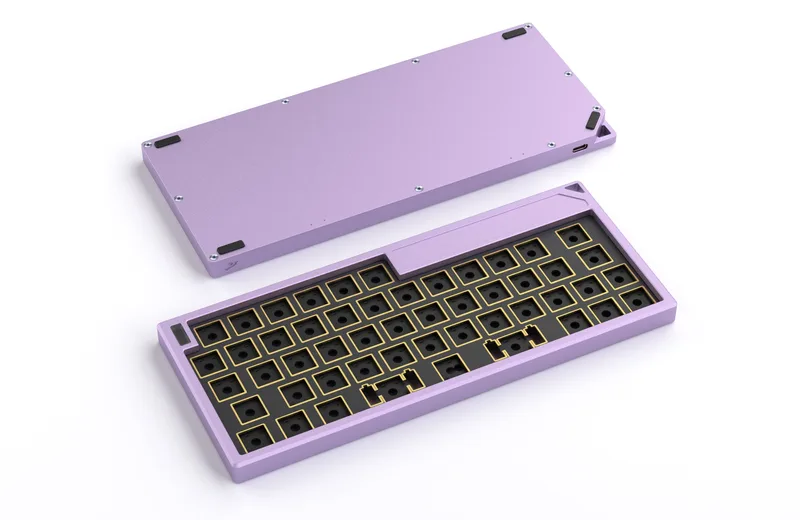

- split bars
Layouts

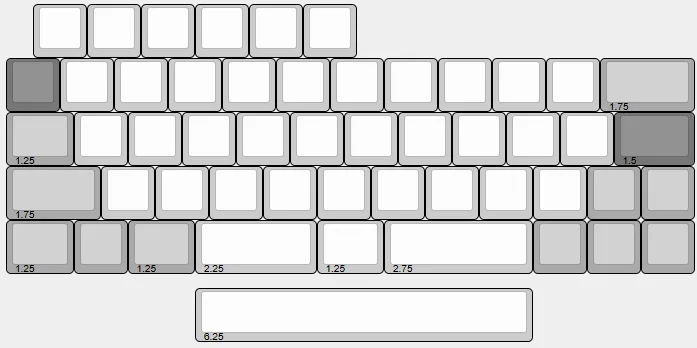

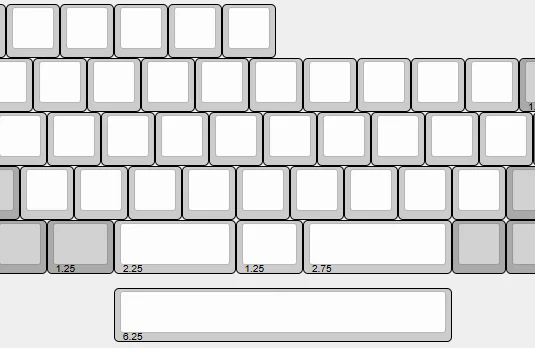

Starting from a 6.25U bar gaming layout (big spacebar is quite useful for gaming) - we went with the traditional V4N4G0N layout.

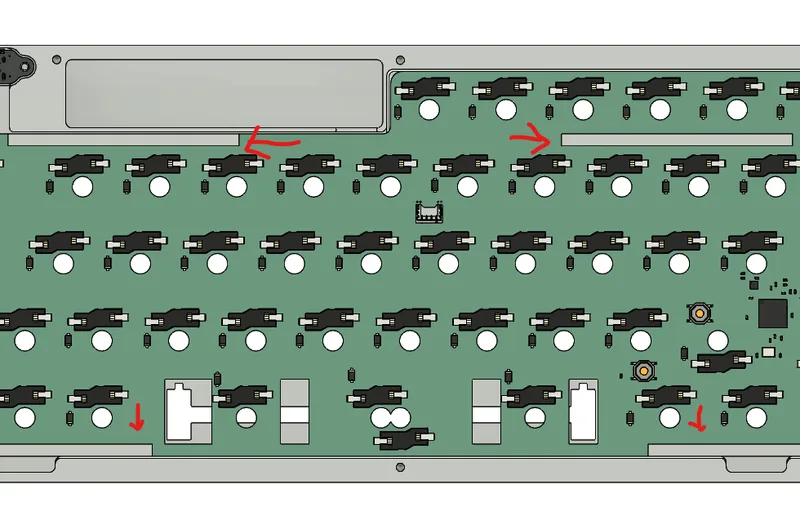

With low profile switches, stabilizer clearance needs cutouts on the PCB, limiting the potential split space options - but we were able to allow for a 2.25/1.25/2.75 split spacebar. While not as optimal as a 2.75/2.25/1.25 split, there is a split space option.
Each of the layout options will need a different plate, since low profile stabilizers are plate mounted.
In the box
- Keyboard top and bottom case
- LED window

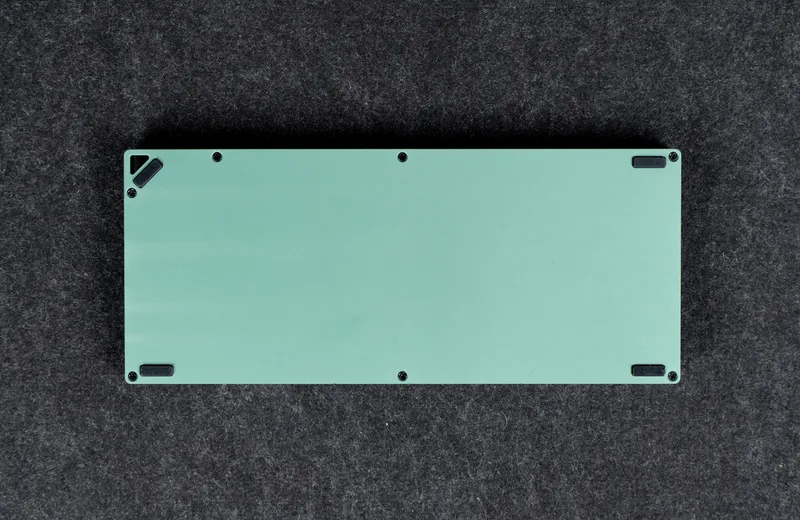

- FR4 plate
- PCB of your choice
- Battery (if wireless)
- Fly DB
- Gateron low profile stabilizers
- 2x Angling feet

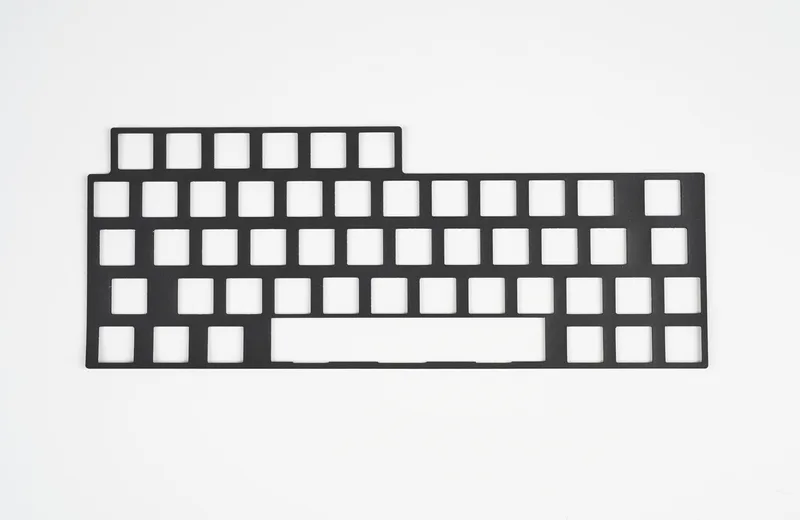

- Plate foam

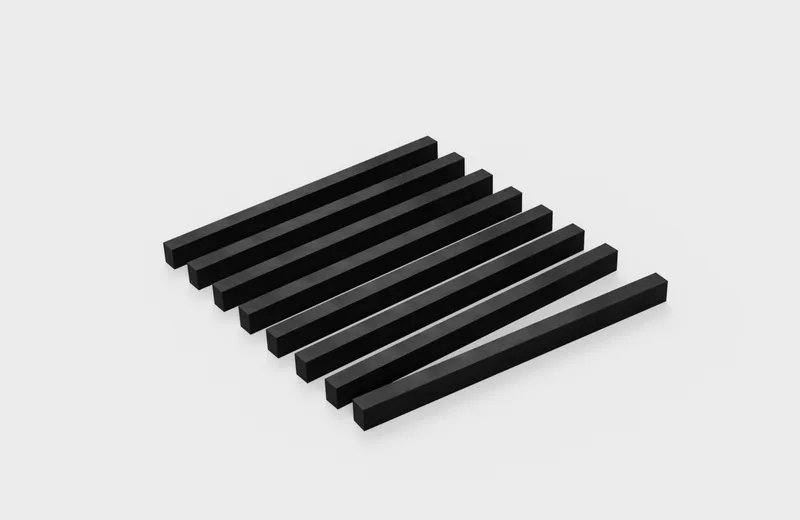

- Gaskets
- Sticker
- Hardware
- Sleeve
Dimension
255.8mm x 108.2mm x 13.6mm
Bullet Train
Designed by Upas.

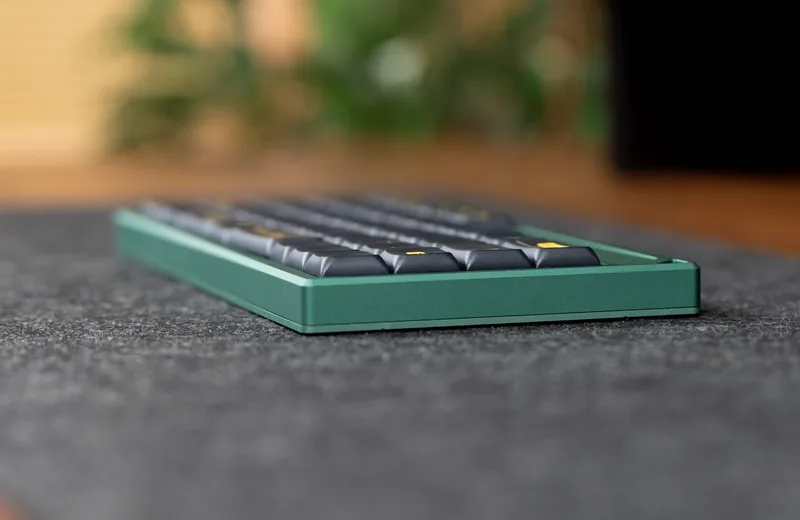

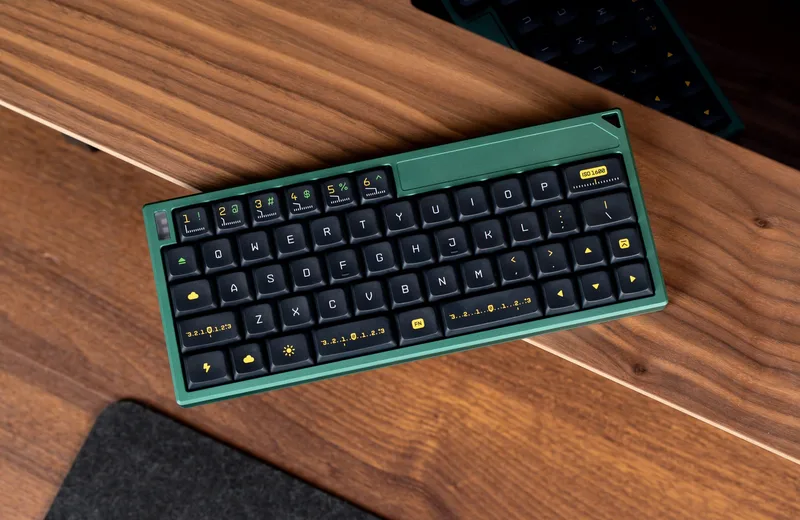

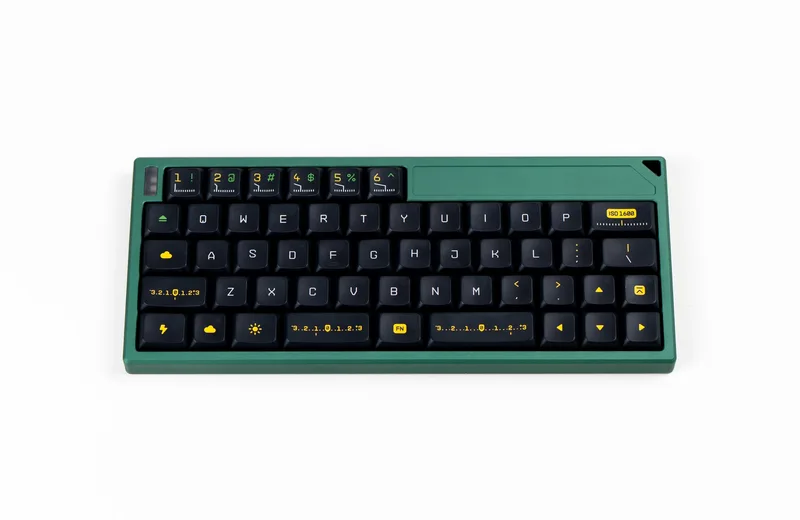

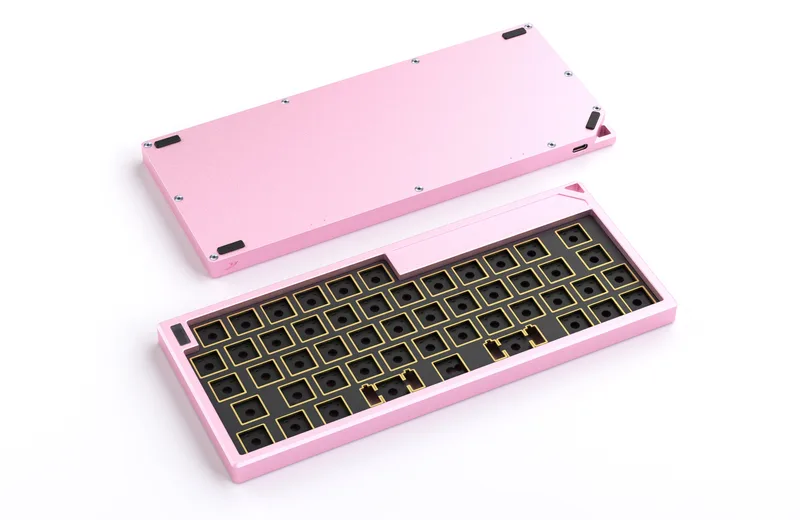

A 40-ish% wireless custom aluminum keyboard featuring low profile switches and a 12.75U wide V4N4G0N layout

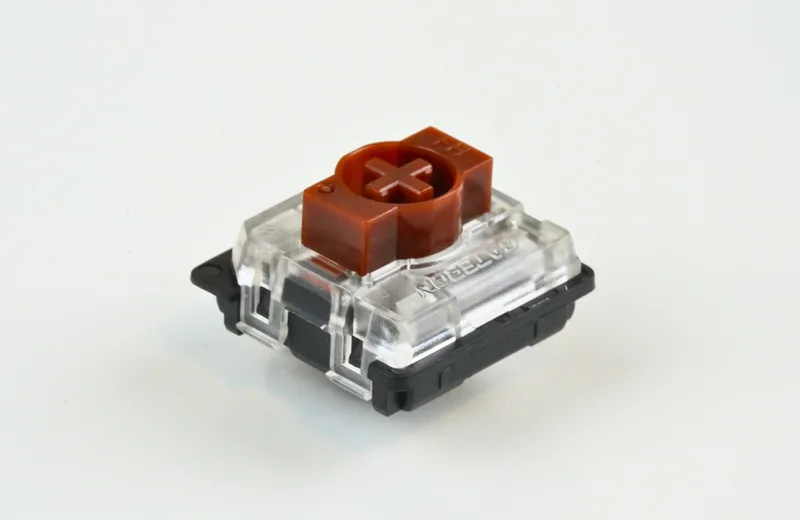

Works with KS33 Switches
Bullet Train is designed to work with Gateron KS33 Low Profile Switches- available in our addons listing!
Bullet Train Addons
Odds and ends to customize your Bullet Train! Available addons include extra plates, gaskets, PFF keycaps, switches, and more!
Switches

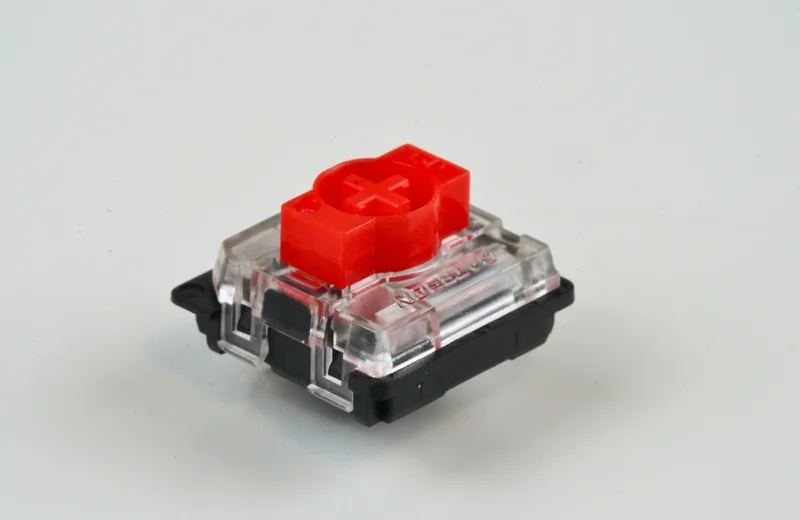

- KS33 Red Linears
- KS33 Red Silent Linears

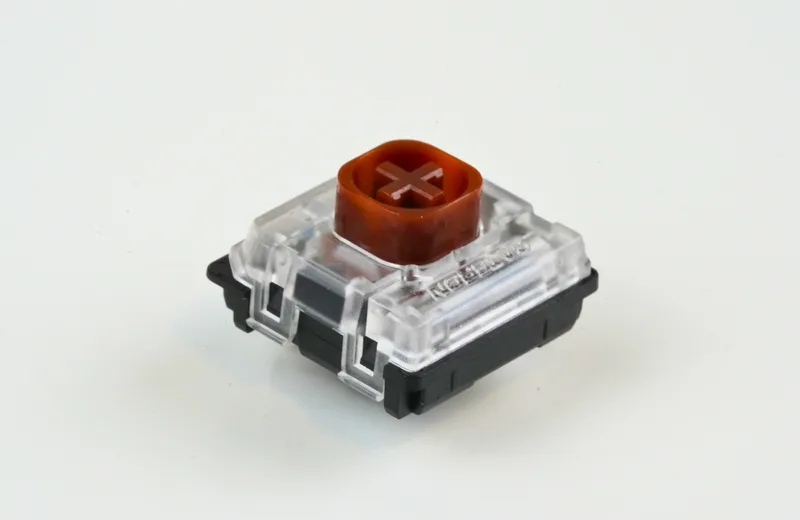

- KS33 Brown Tactiles
- KS33 Brown Silent Tactiles

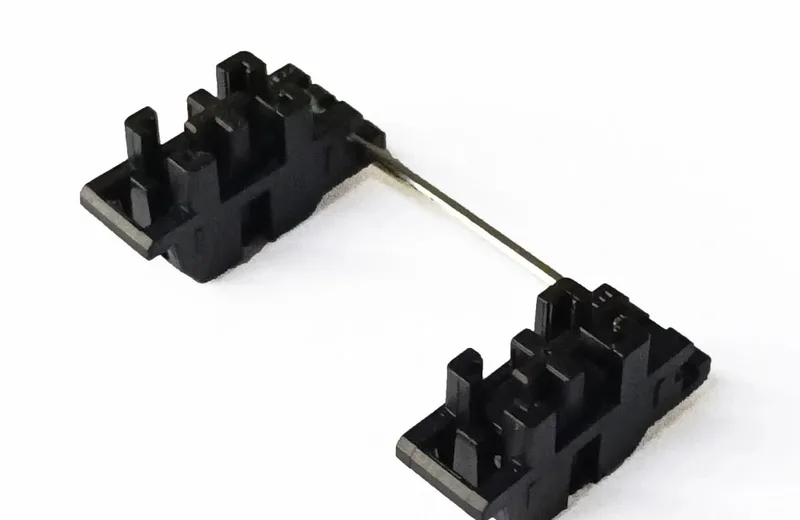

Stabilizer
- Gateron low profile plate mount stabilizers
- set of 1x 6.25u + 2x 2u

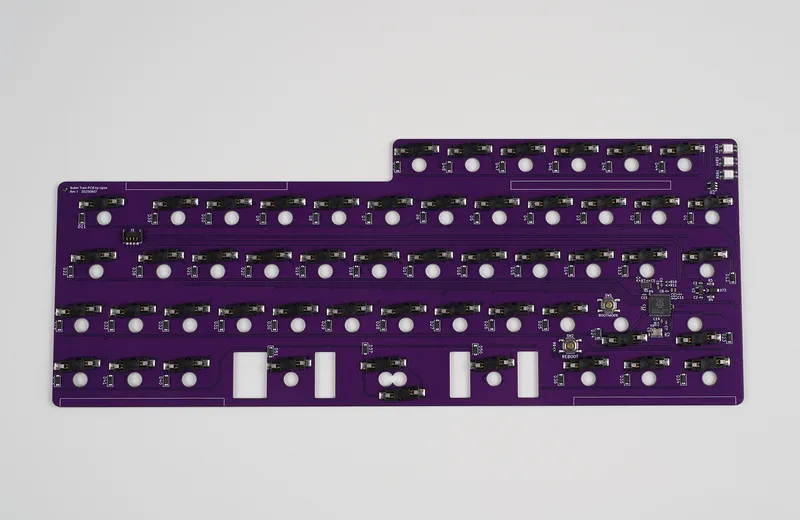

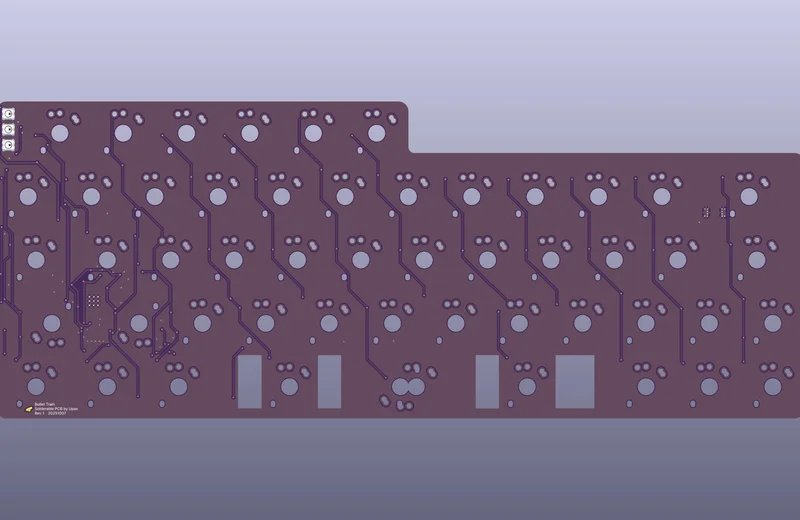

PCBs
- Available in wired hotswap (QMK), or wireless hotswap with battery (ZMK)
- Black soldermask

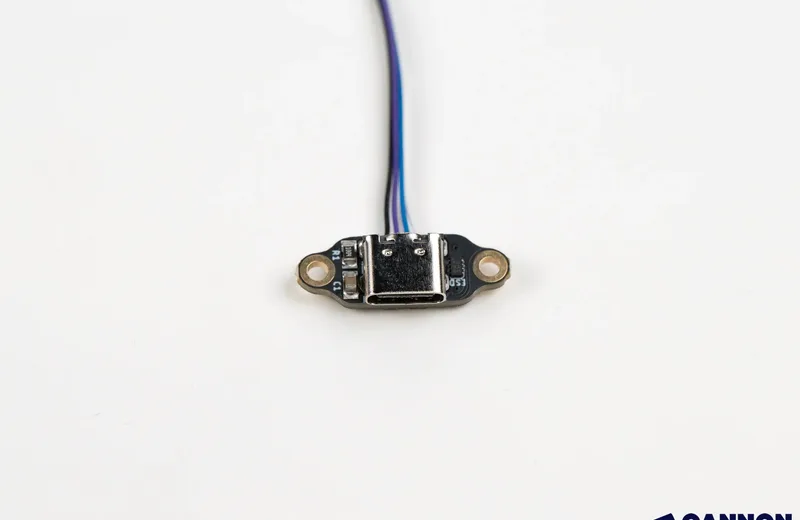

- Fly daughterboard available separately
- Hotswap PCBs work with KS33 Gateron Low Profile Switches only!
- Solder PCB works with KS33 Gateron Low Profile Switches or Kailh Choc 2.0 Pom specifically
- Example of compatible Kailh switches here

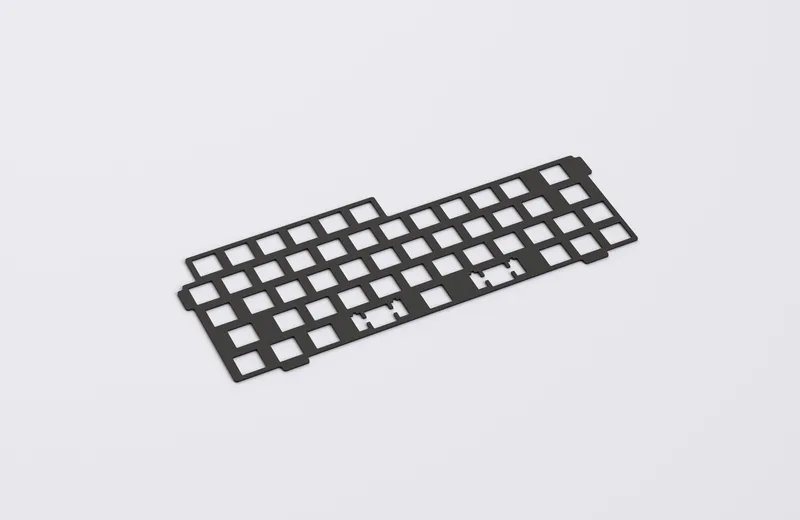

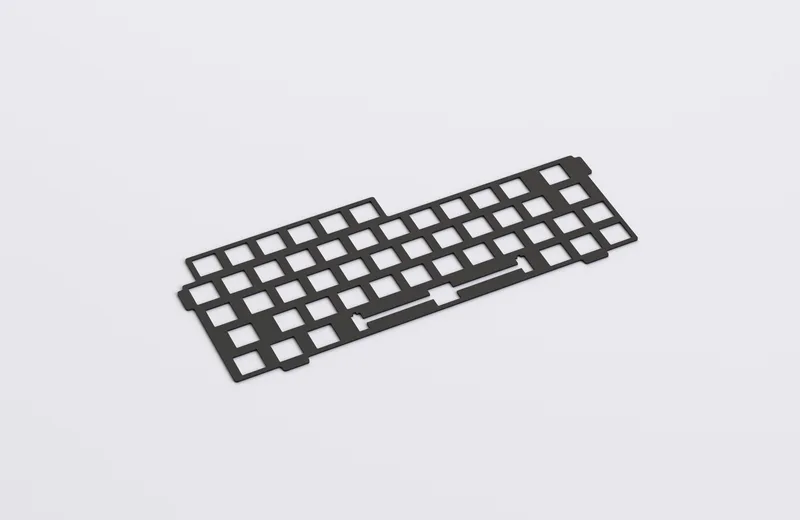

Plate
- Black aluminum
- Big bar or split bar fixed layout

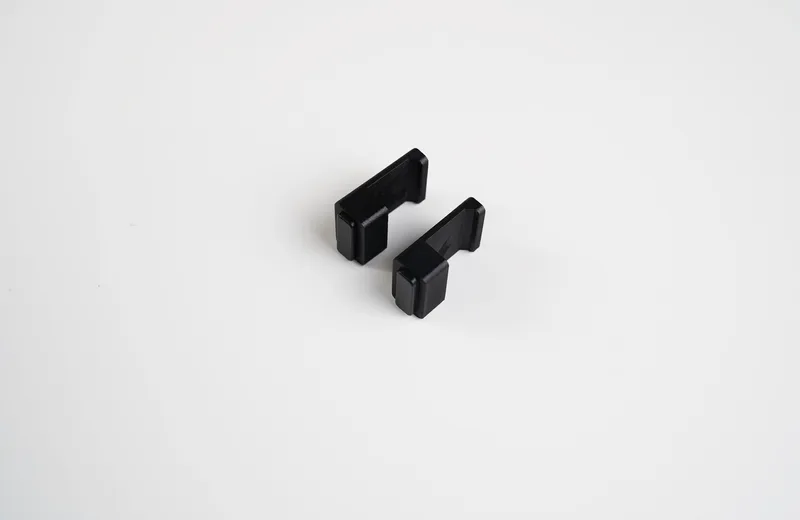

Angling Feet
- Set of 2
- 3D printed
Sleeve
- Our soft small sleeve with pocket

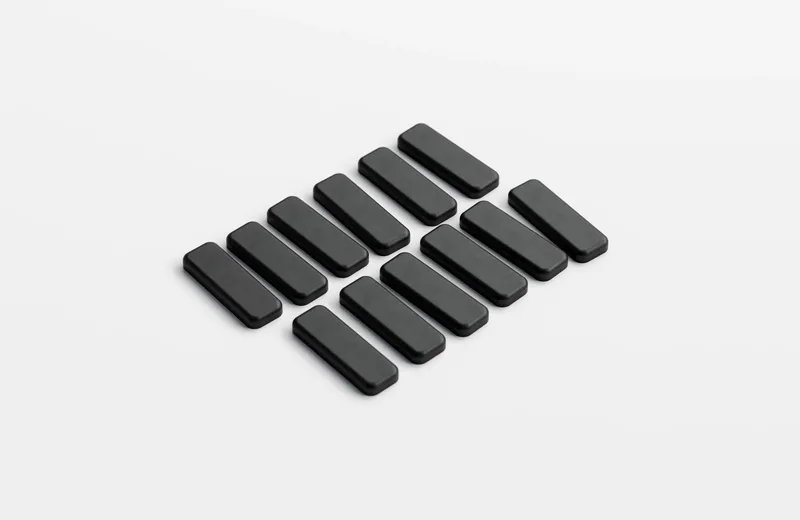

AKB Feet
- Set of 12
Battery
- Works with wireless PCBs only
- Only available to be shipped to certain regions

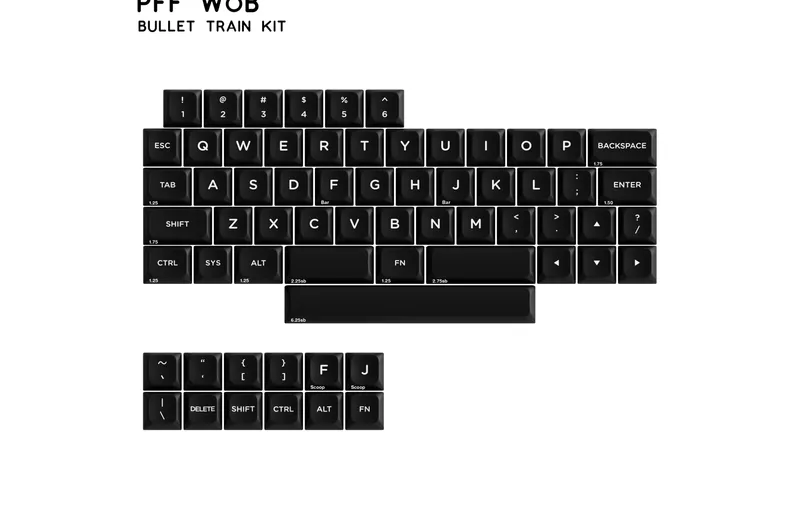

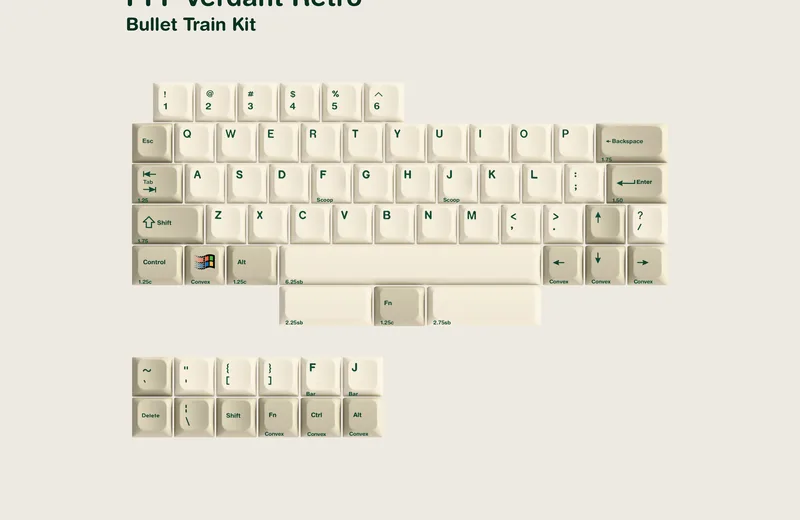

PFF Keysets
- Available in Verdant Retro and WoB
