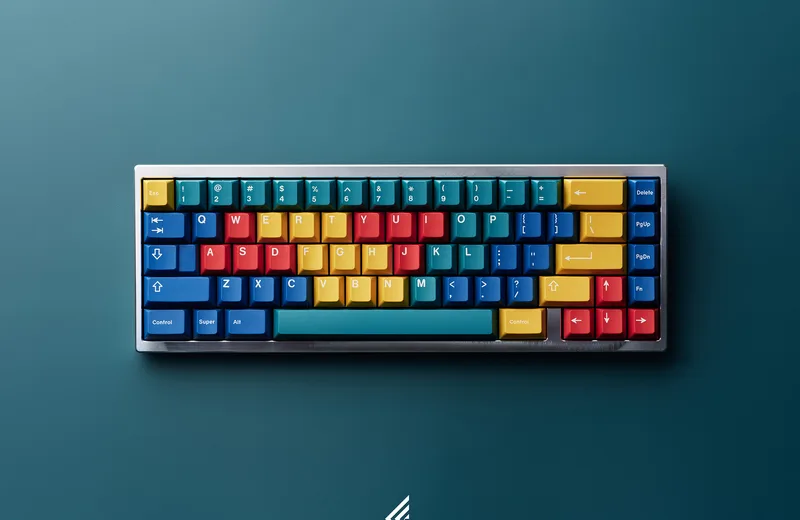

Glare 65
KeyboardGlare · Geon · 2023
Details
GB
Glare65's group buy purchase will be open for 12 hours.
- Group Buy Schedule - July 16, 11am to July 16, 11pm GMT+9, KST
- Shipping schedule
- 200-300 orders, January 2024
- 300-500 orders, March 2024
- 500+ orders, April/May 2024
- shipping starts around the end of Apr, 2024

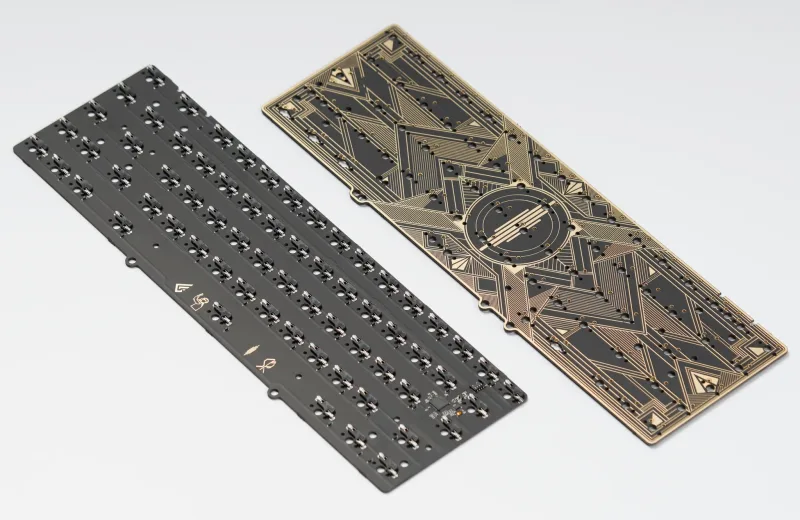

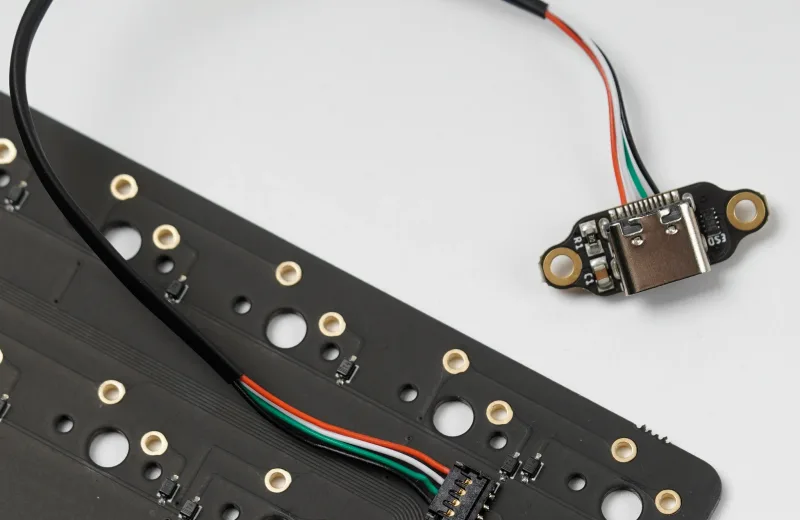

PCB
- RaspberryPi MCU
- update firmware by hold "ESC" then plug the cable
- copy .uf2 to R-PI root
SPECIFICATIONS
- Top Mount

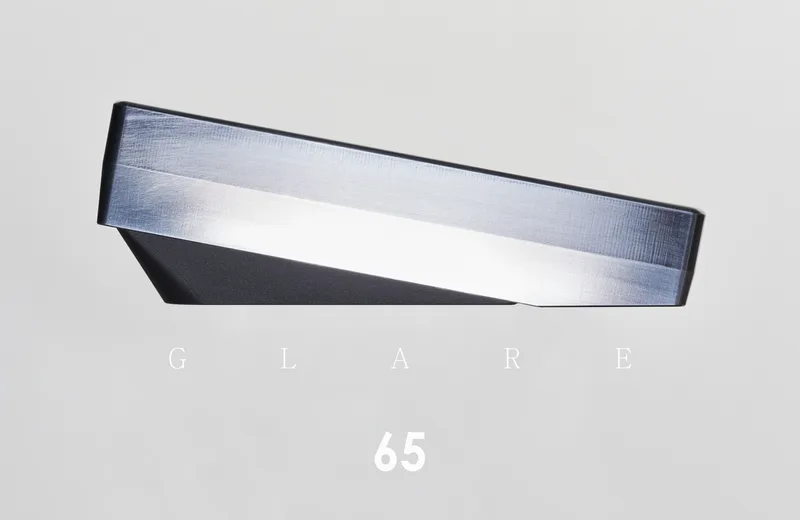

- 11˚ Typing Angle
- 18.3mm Front Height
- Weight(Unbuilt): 3293g

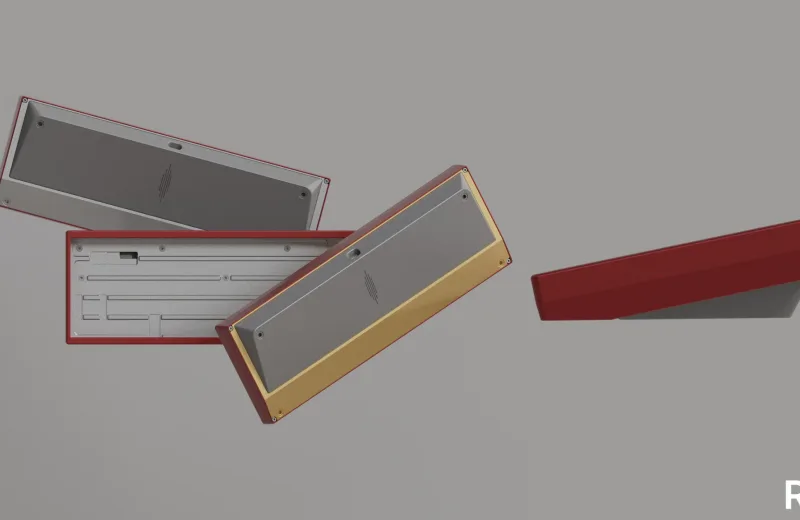

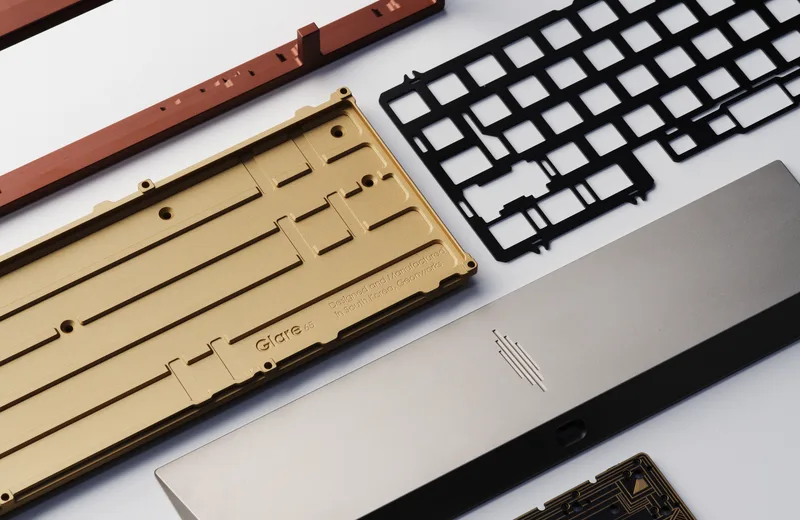

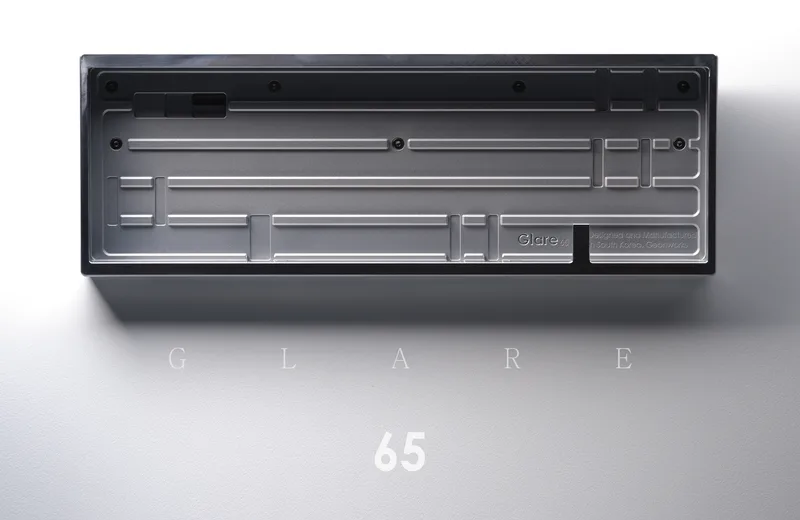

Materials

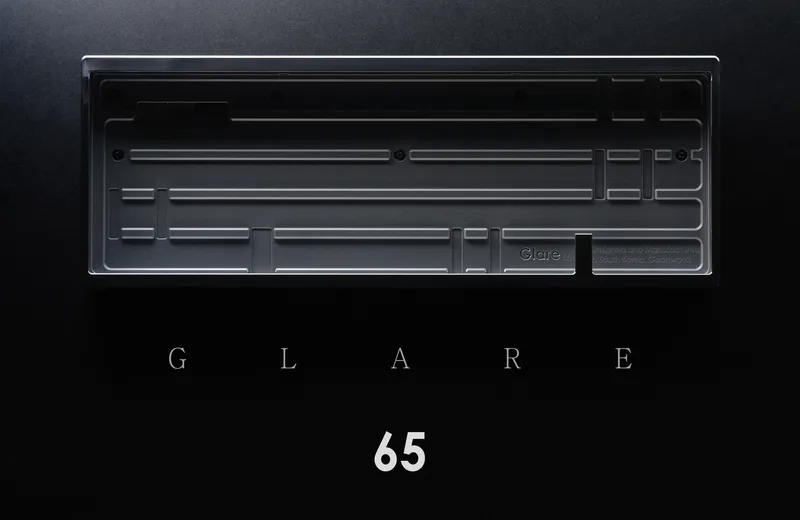

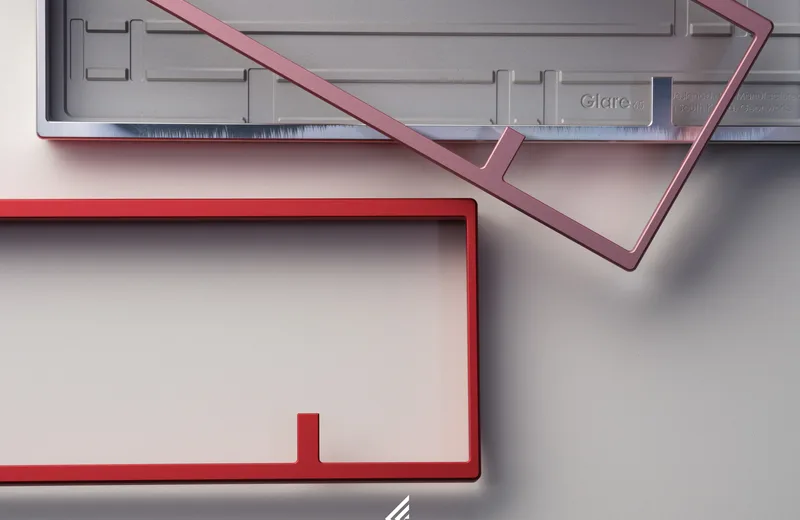

- Top Cases - A6063-T5

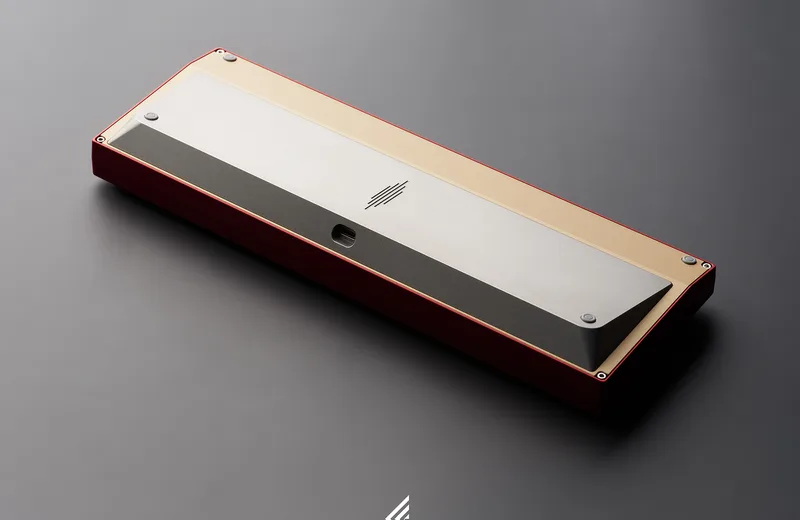

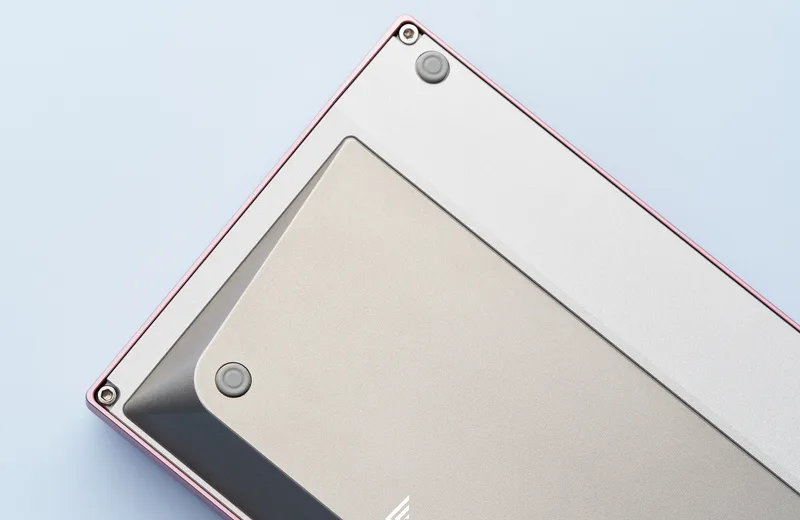

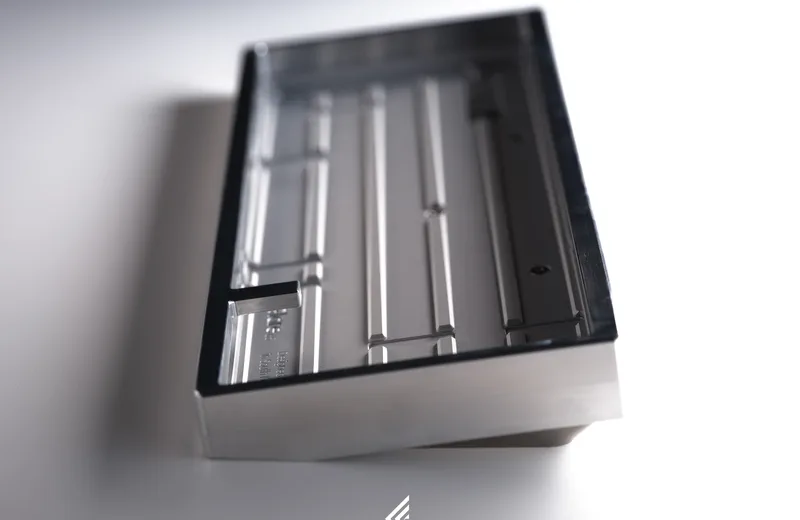

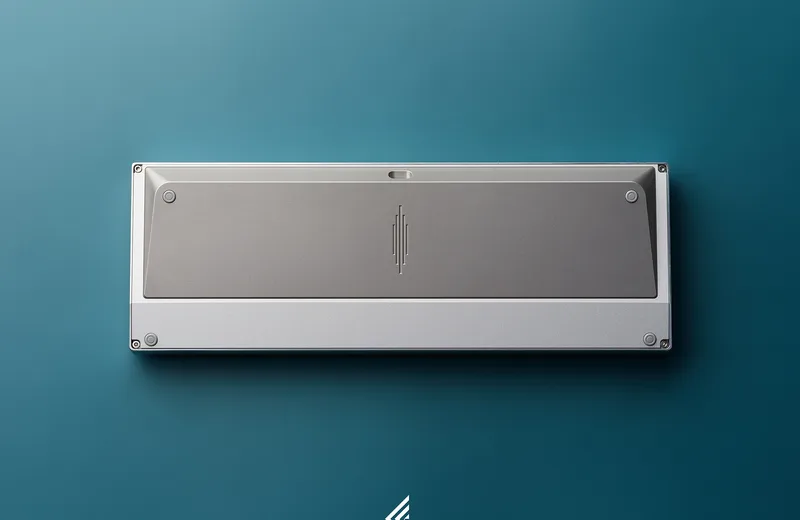

- Bottom Cases - Brass

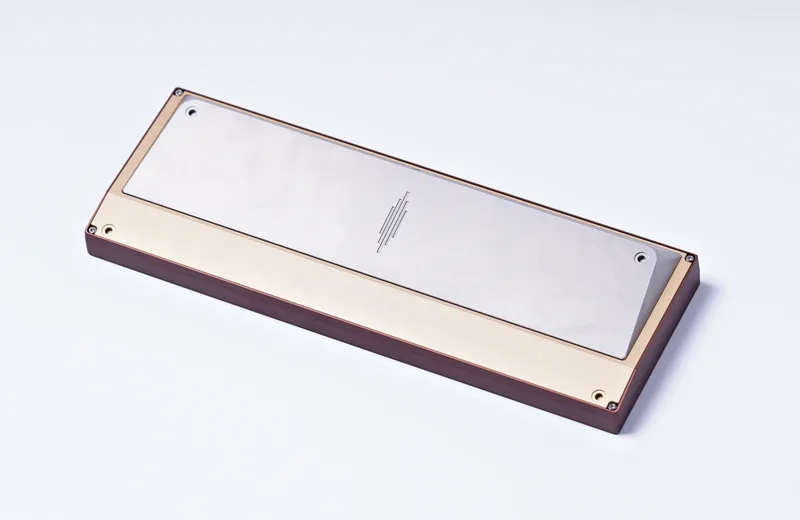

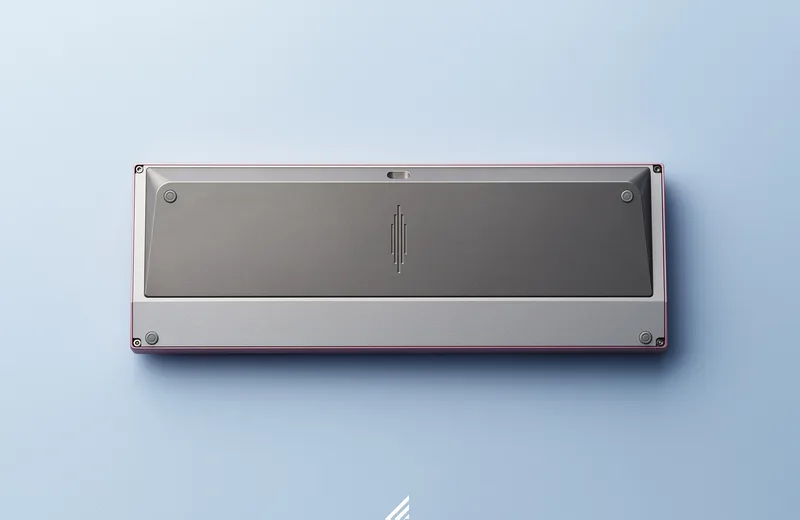

- Weight - Stainless Steel 316L
- Plate - A5052-H32

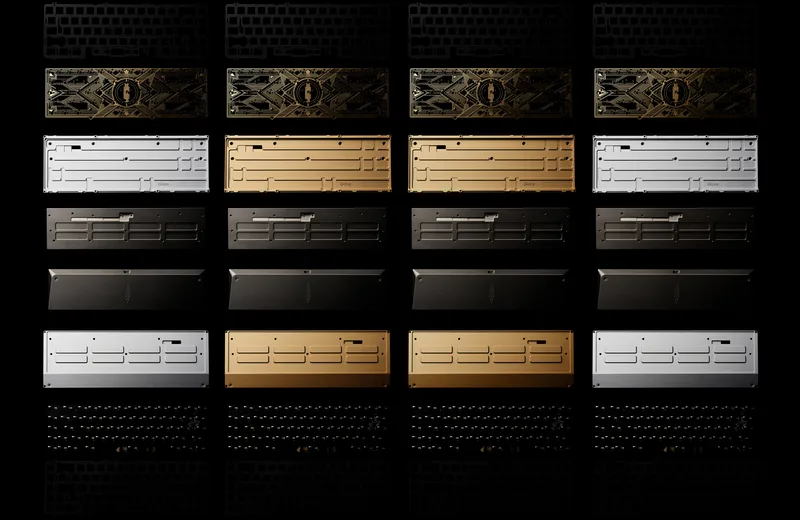

INCLUDED

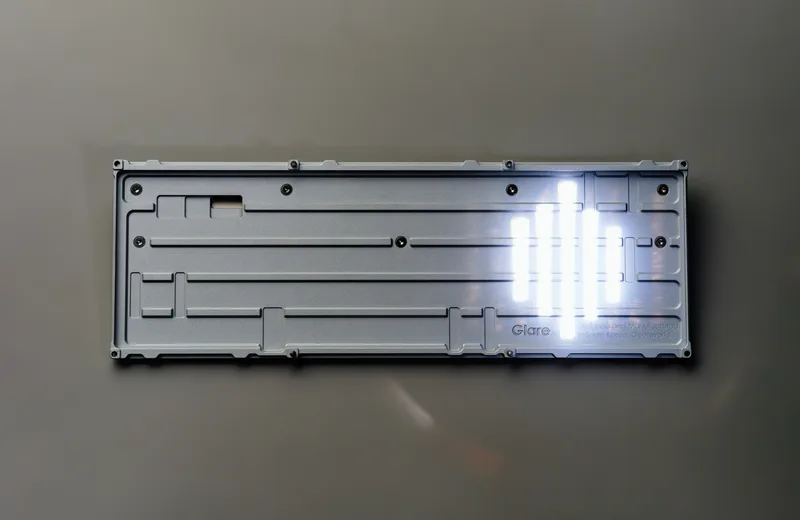

- Top Cases (A6063-T5)

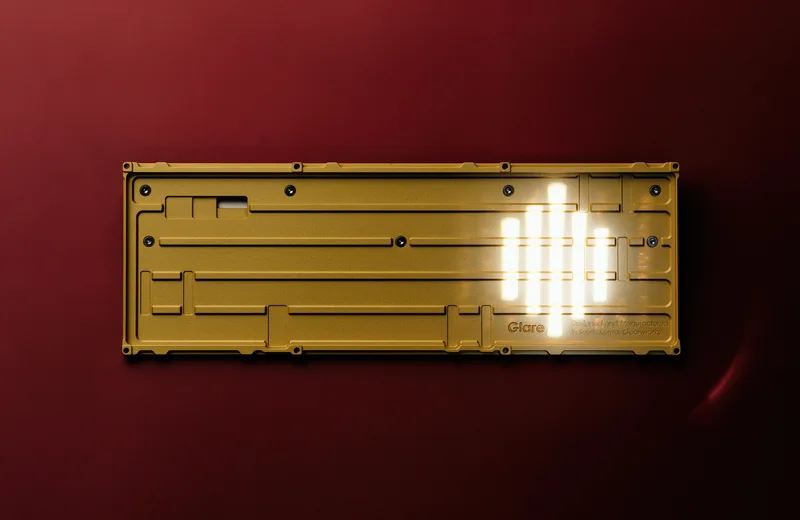

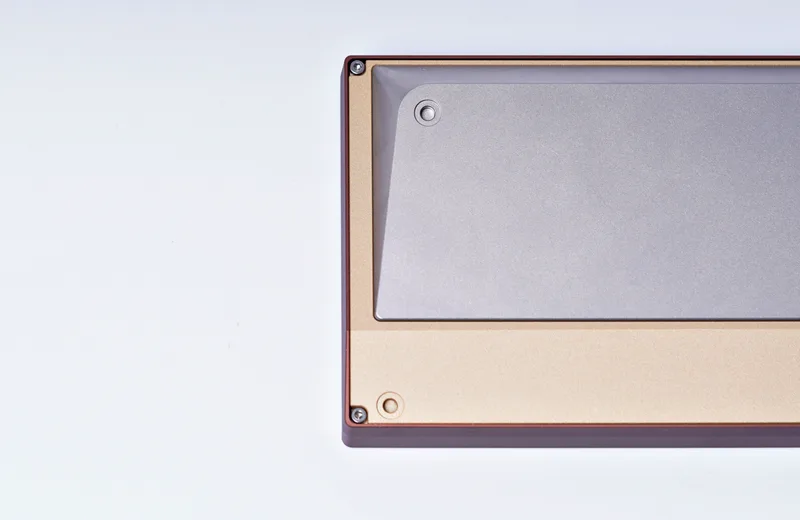

- Bottom Cases (Brass, Sandblasted, Ceramic Coat)
- Weights - Stainless Steel, Sandblasted, Electro Polish (Not A Mirror Finish)
- Aluminium Plate
- 1680d Carrying Case
- Non-slip Feet (Black, Silver)
- Spare Screws
- Force Brake Pad
- Cleaning Waffle Towel
EXCLUDED

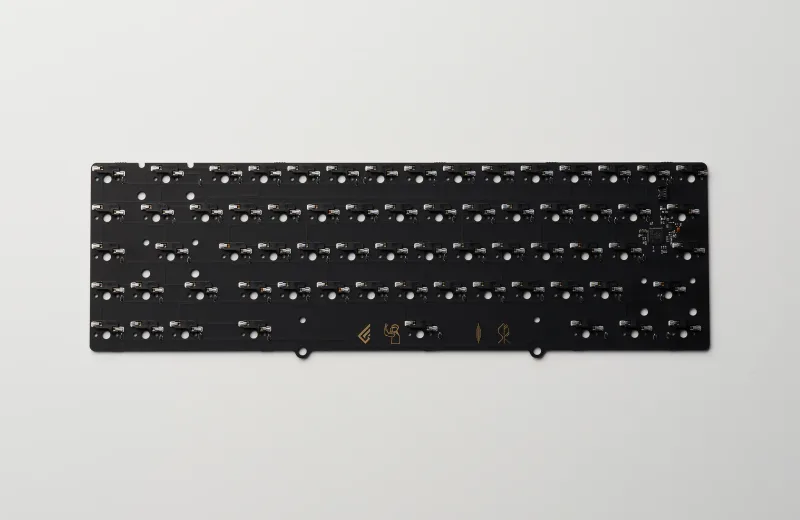

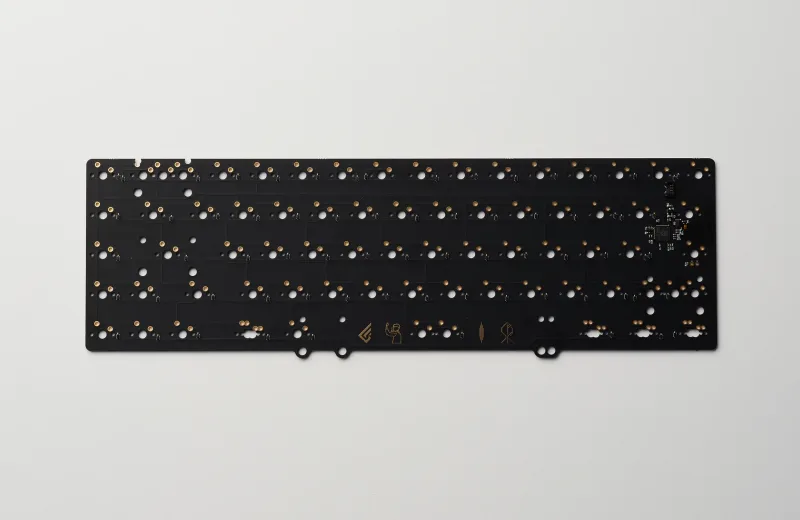

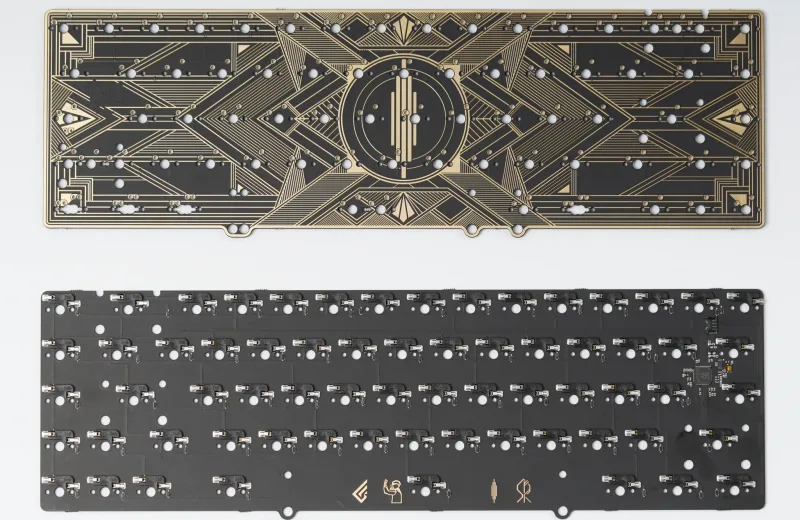

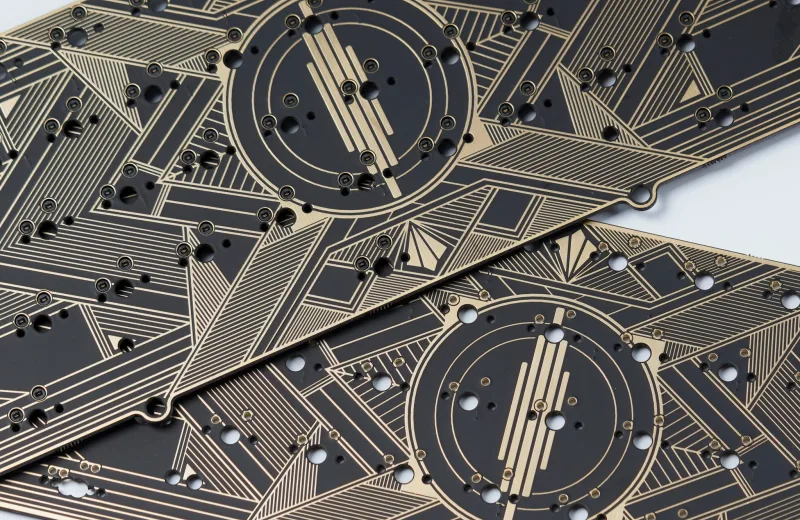

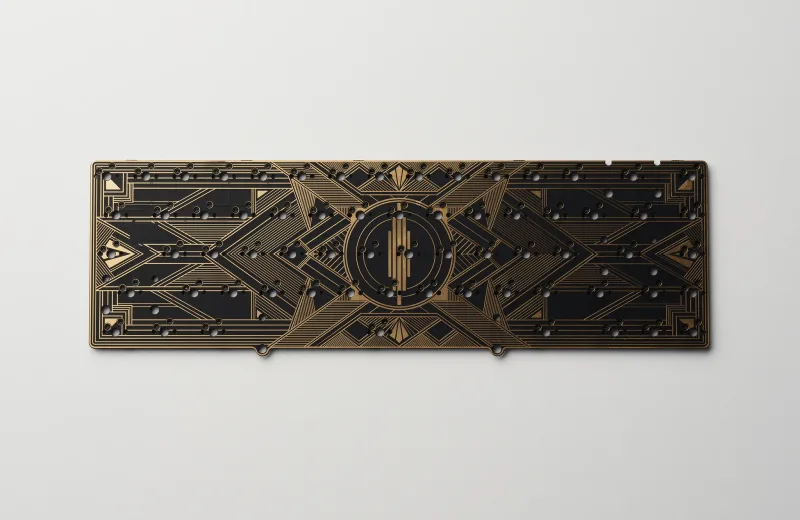

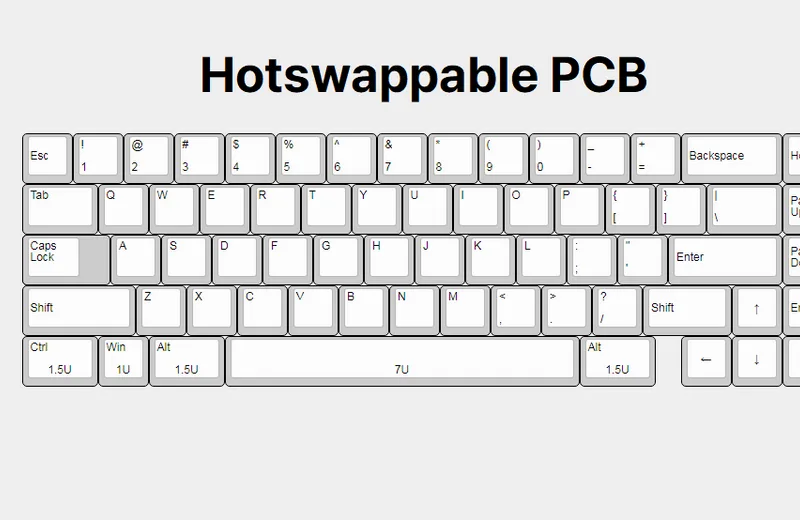

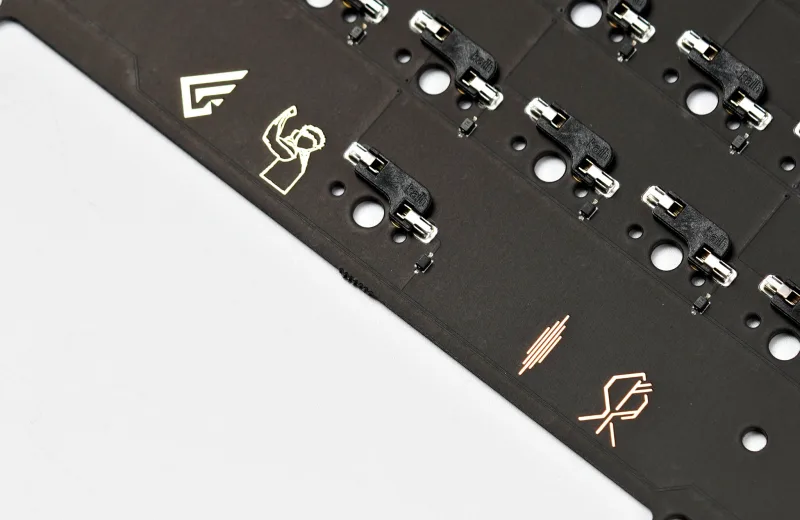

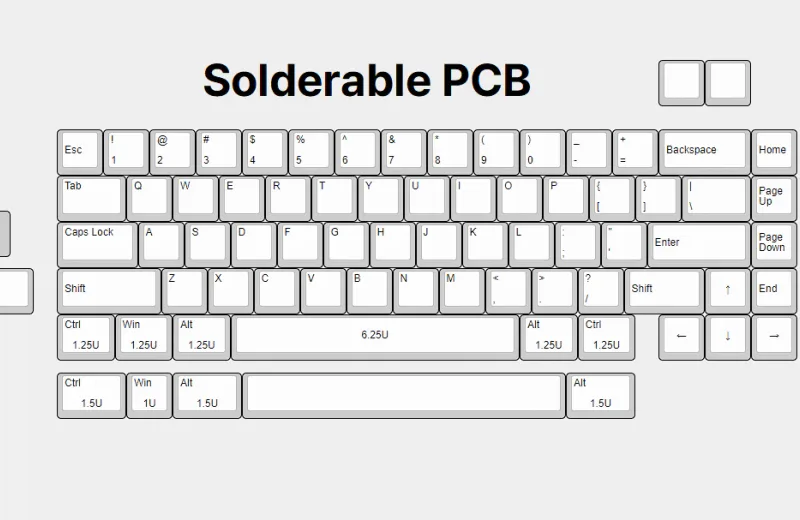

- PCB - Glare 65 (FR-4, 1.6mm, Solderable, Hotswappable)
- $45 solderable
- $55 hotwap

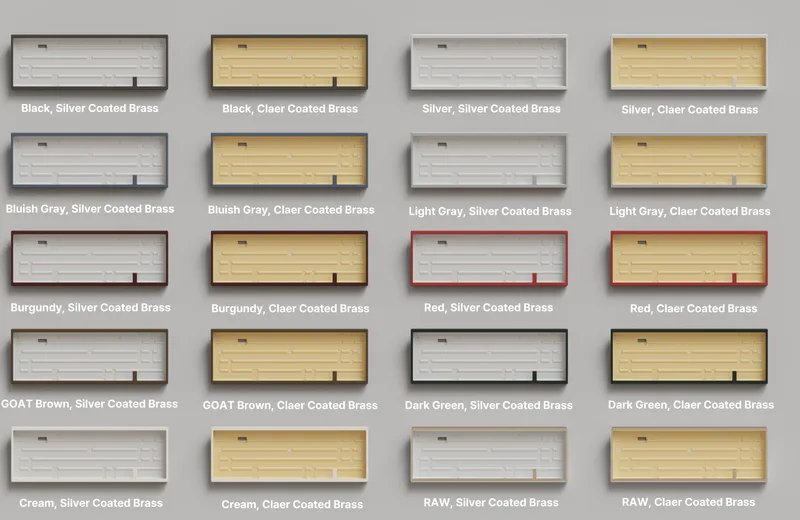

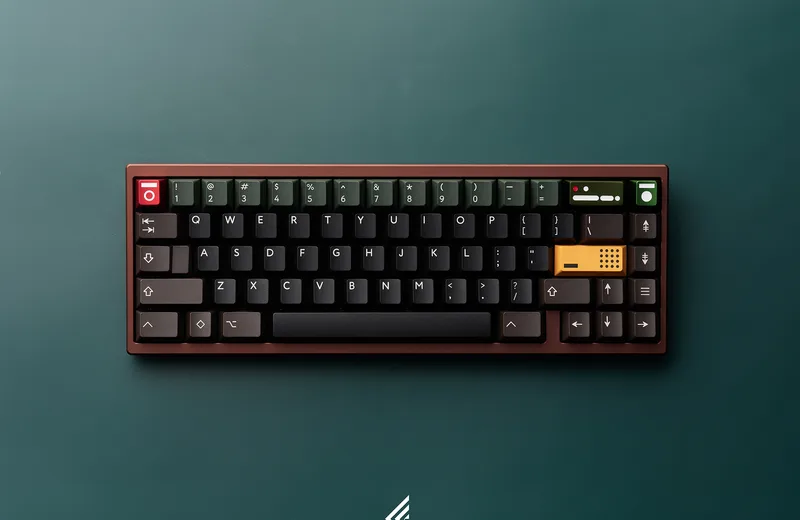

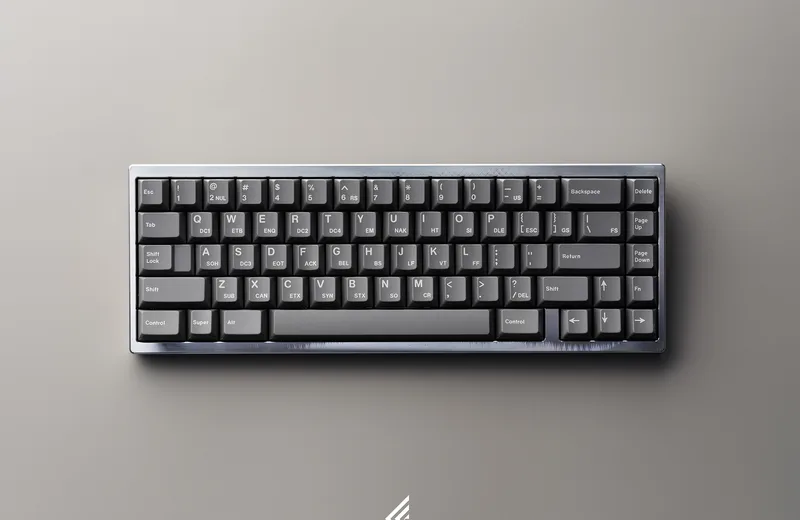

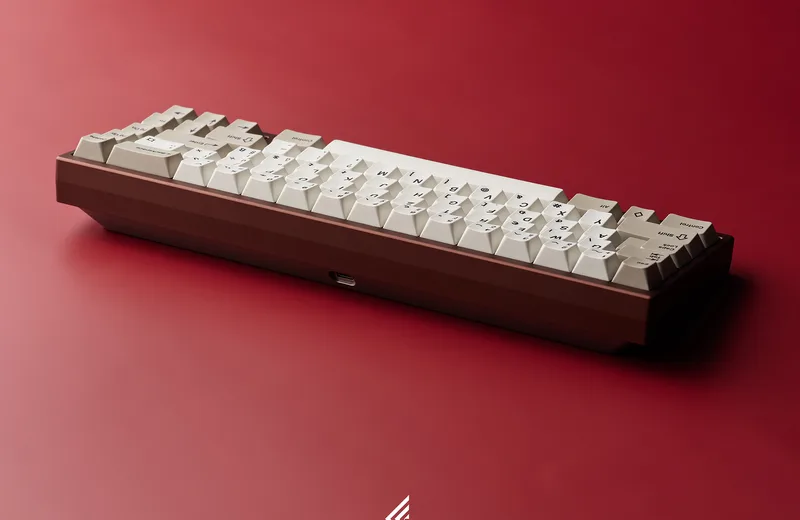

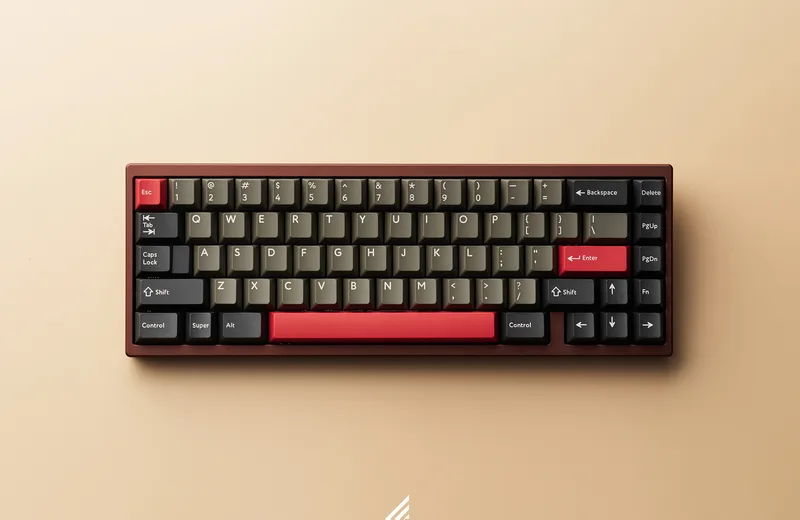

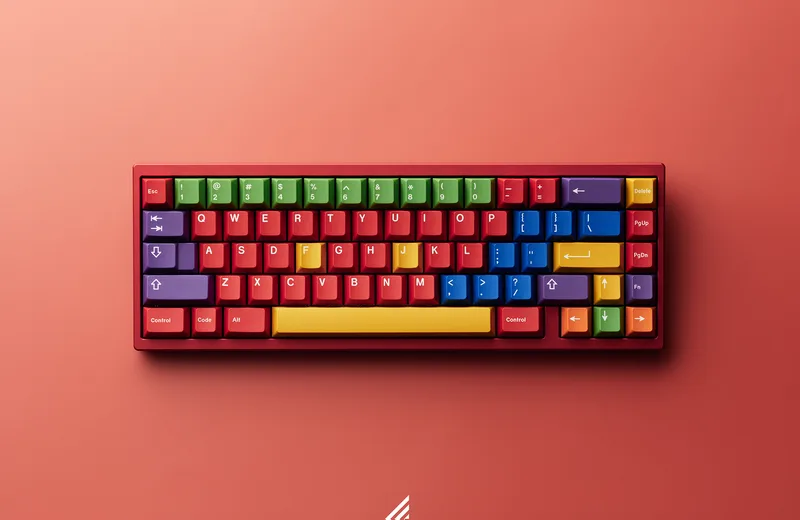

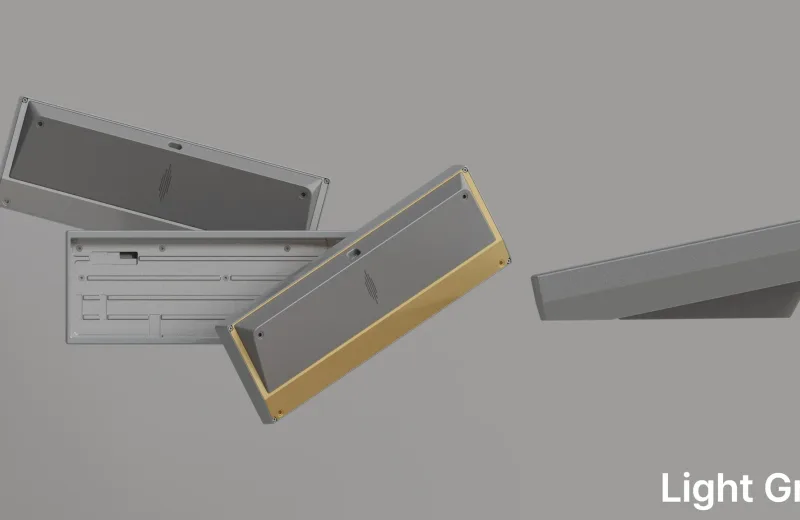

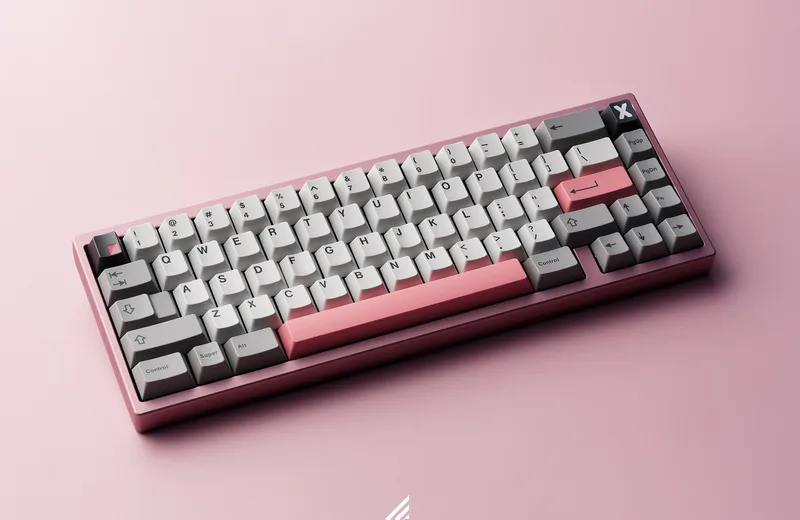

Color
TOP COLOR
- Raw - No finished

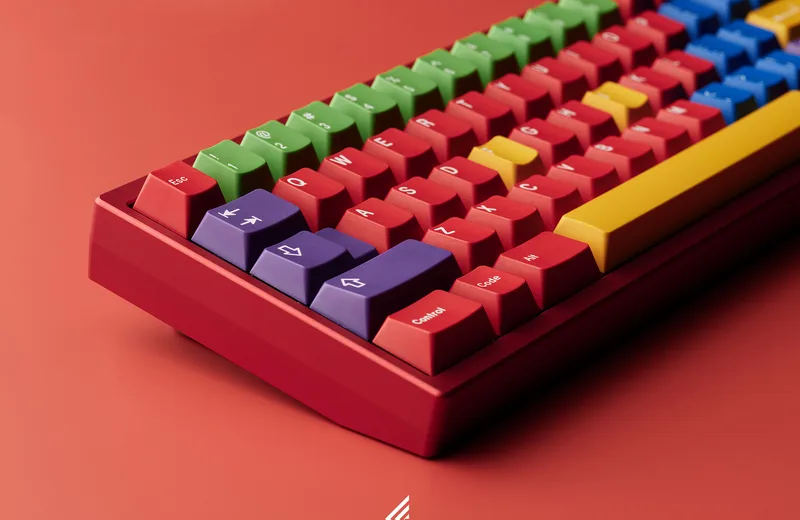

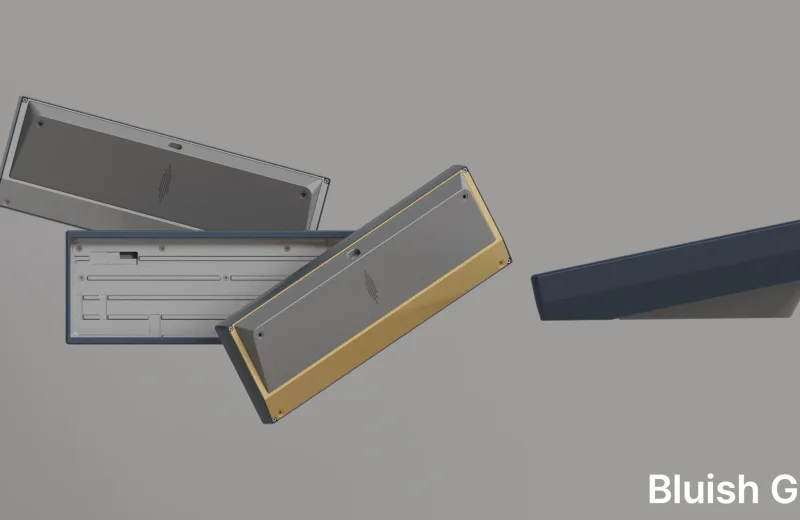

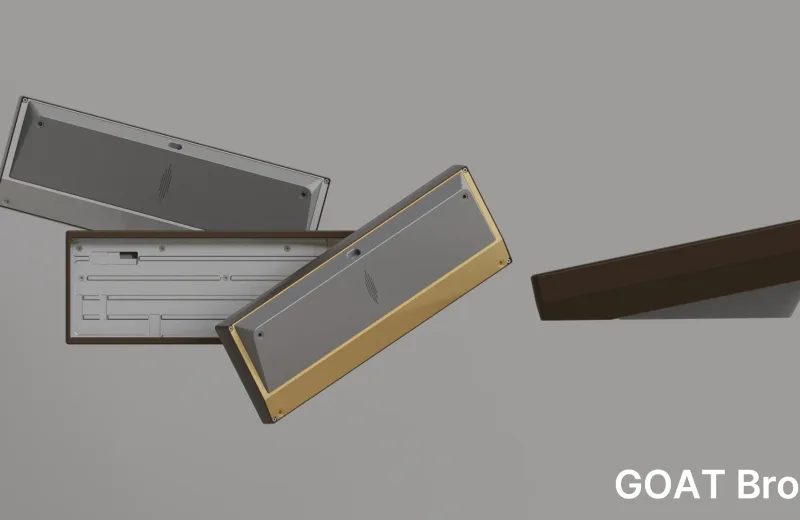

- Anodized - Black, Silver, Bluish Gray, GOAT Brown, Red, Dark Green, Light Gray, Burgundy
- E-coat + Spray Coat - Cream

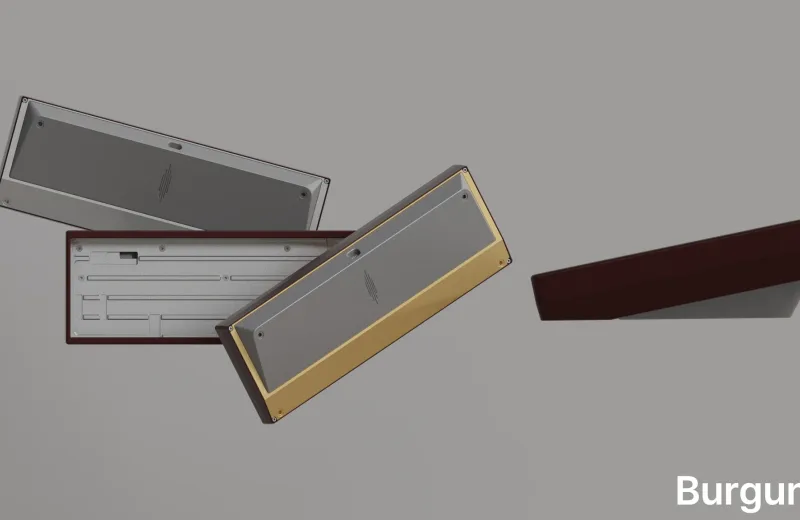

BOTTOM COLOR
- Clear Ceramic Coat Brass / Silver Ceramic Coat Brass
INFORMATION

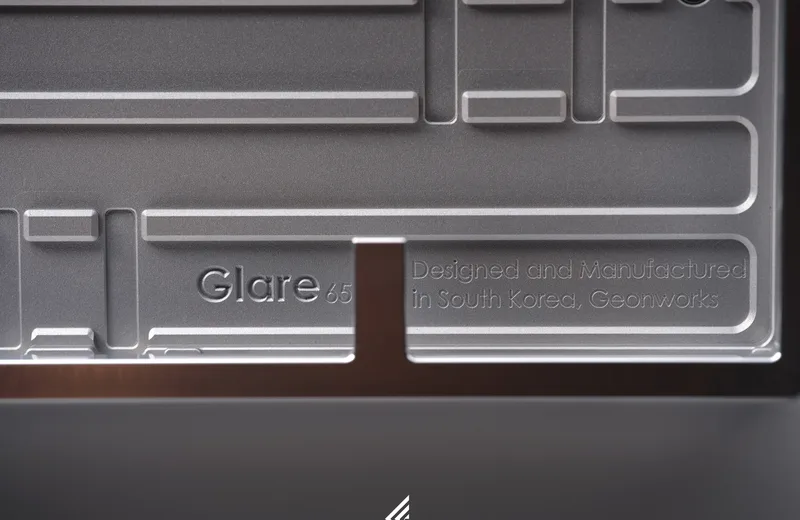

- Designed by Geonworks
- Manufactured in South Korea

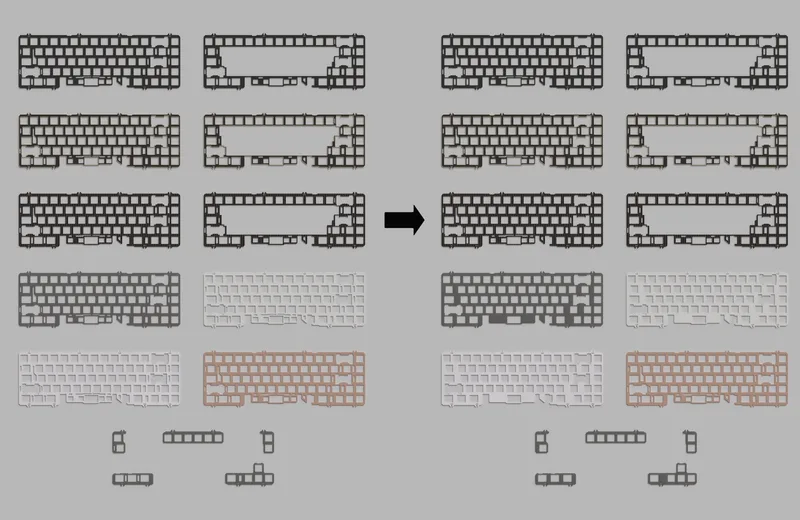

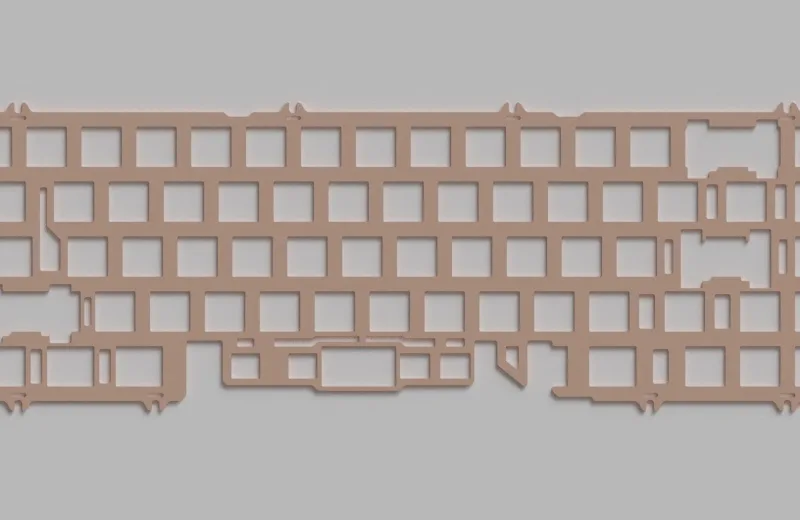

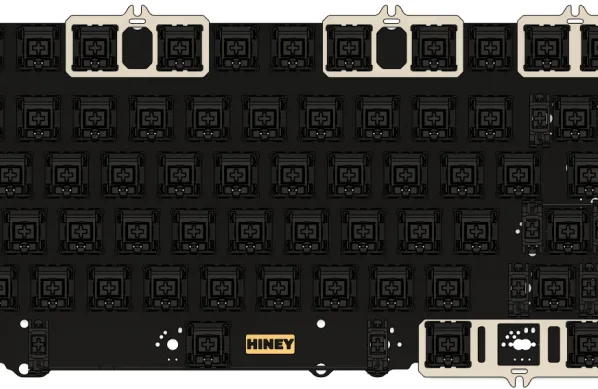

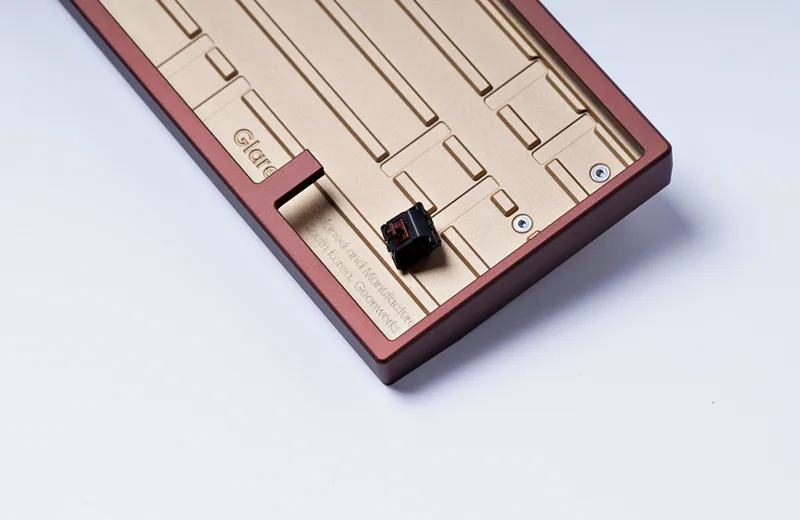

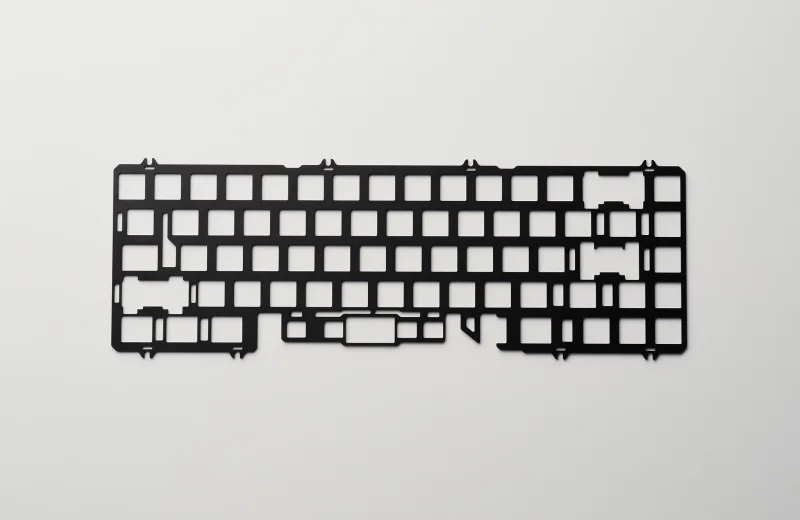

Plate

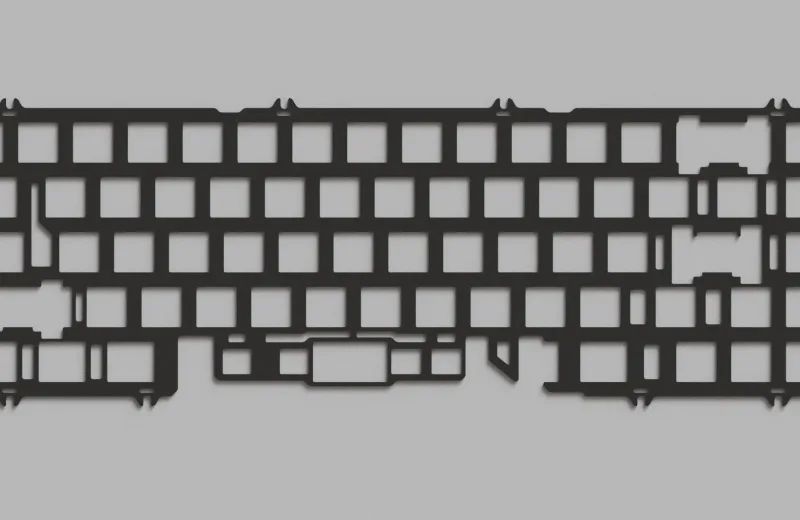

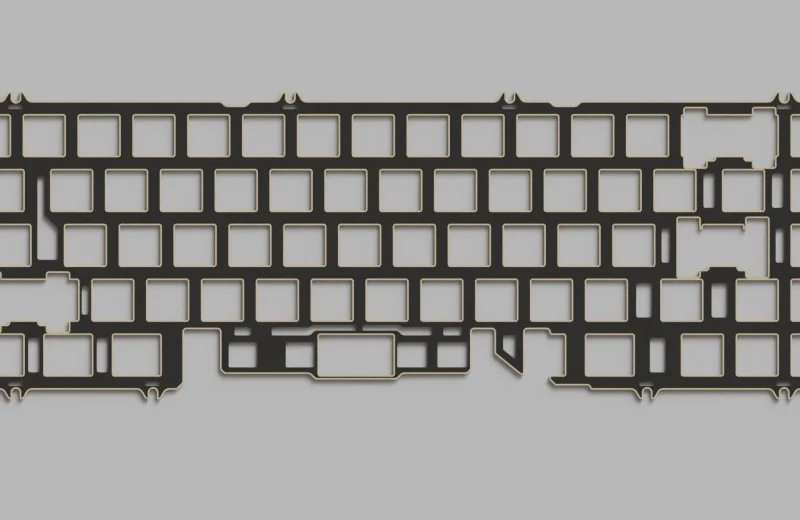

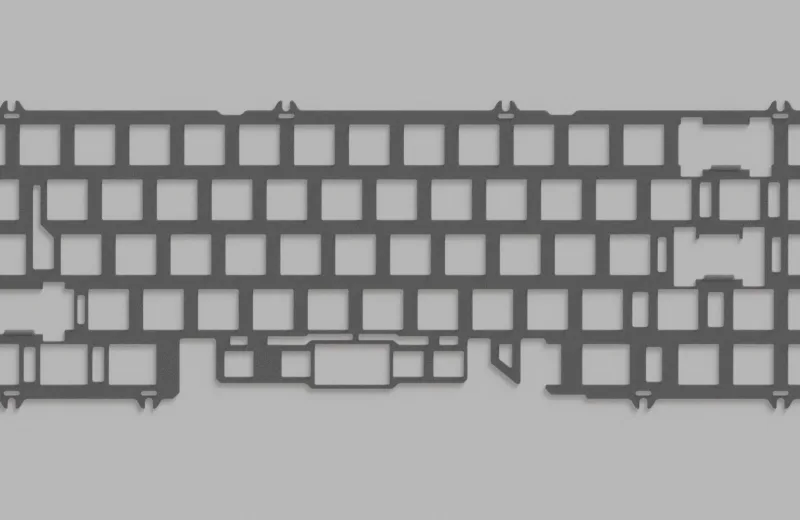

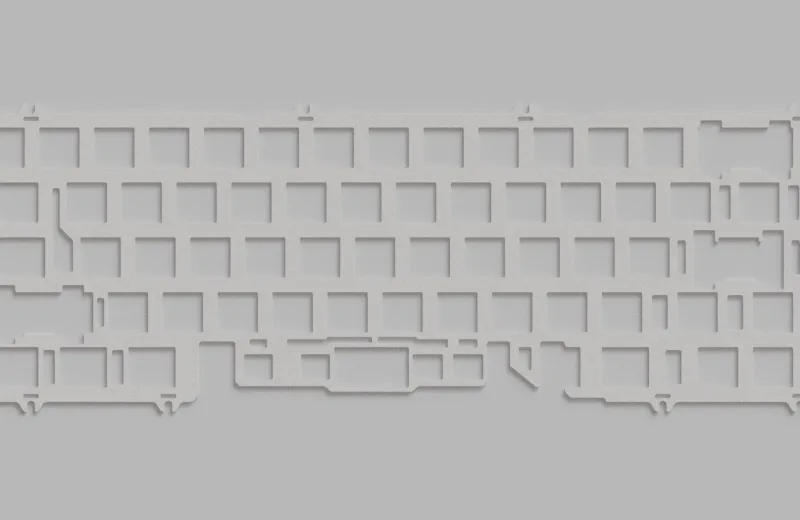

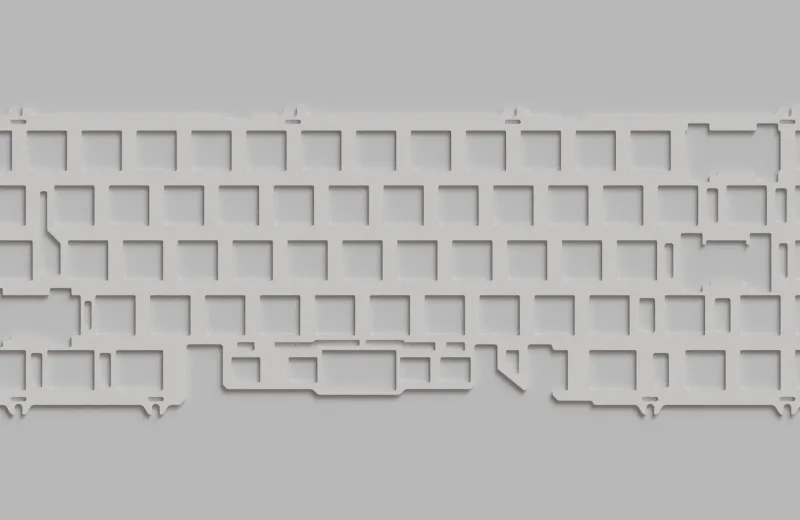

- Glare 65 Standard Plate
- Material : Aluminium, POM, PC, FR-4, PP, Copper, Carbon Fiber
- Thickness : 1.5mm (FR-4, 1.2mm)
- Layout : 65%

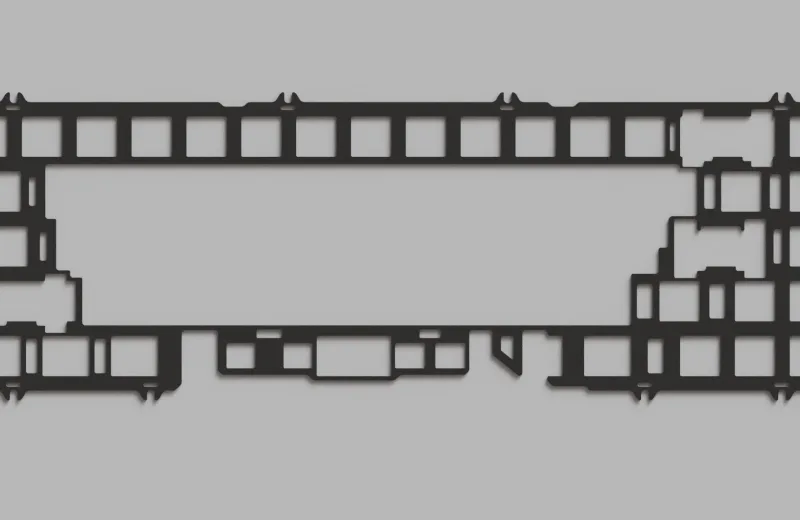

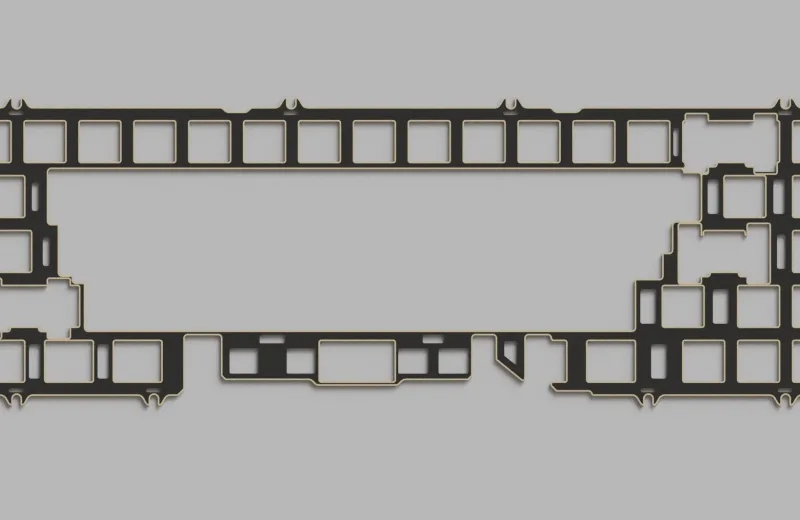

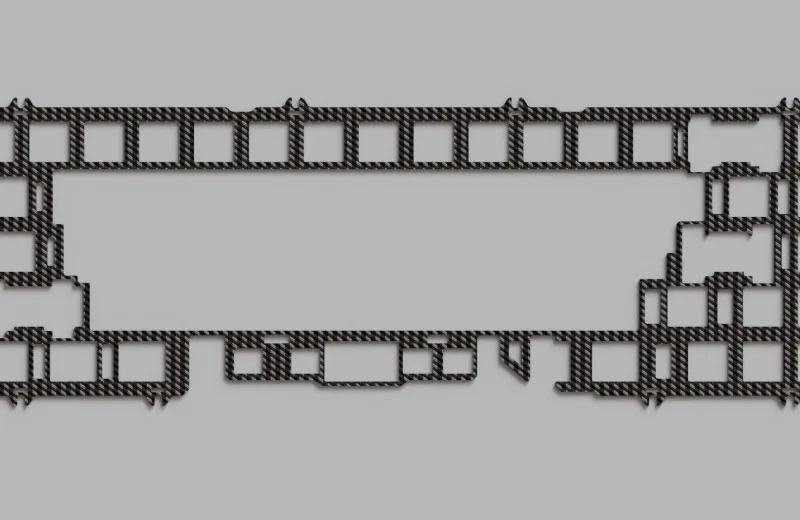

- Glare 65 Half Plate
- Material : Aluminium, FR-4, Carbon Fiber
- Thickness : 1.5mm (FR-4, 1.2mm)
- Layout : 65%

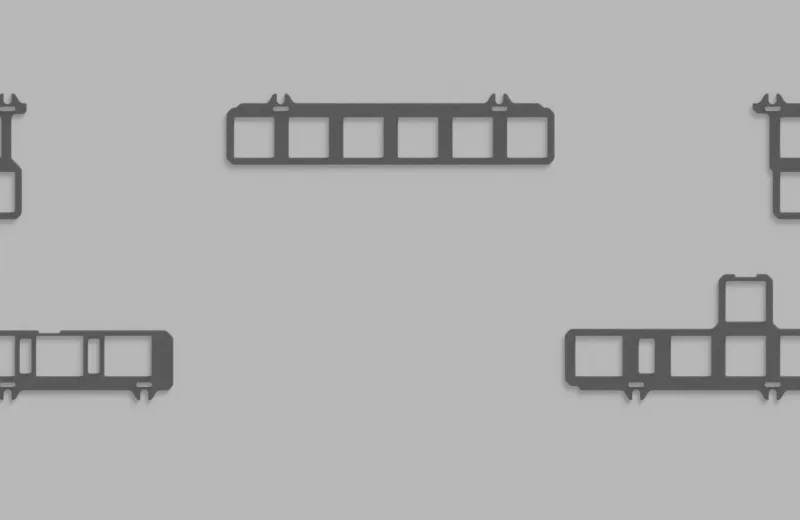

- Glare 65 Island Plate
- Material : PC
- Thickness : 1.5mm
- Layout : 65%
