HIBIKI

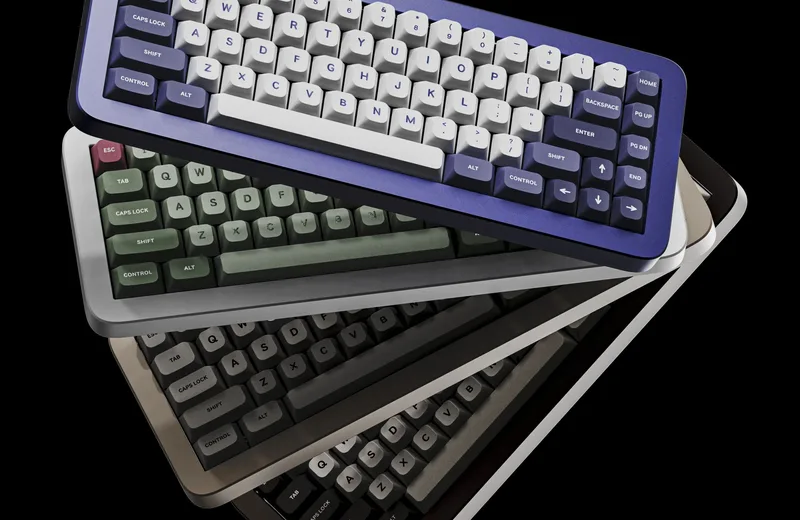

Meet HIBIKI, our 65% keyboard.

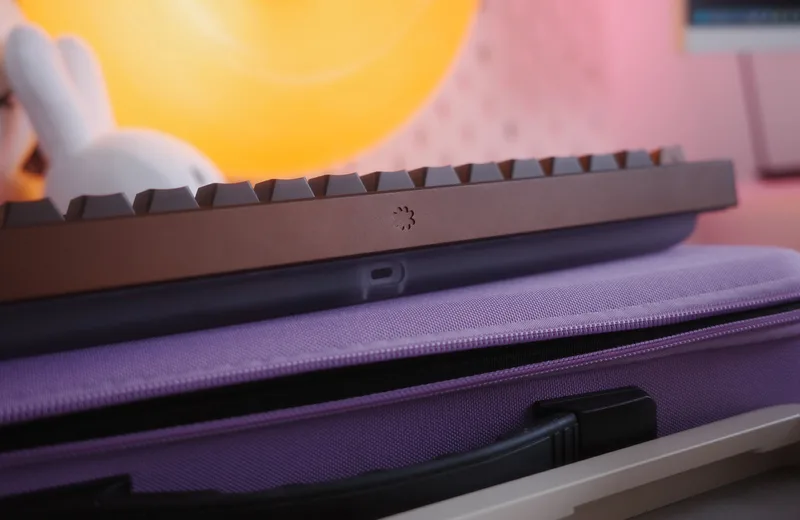

HIBIKI is a 65% keyboard with a strikingly curved profile and a visually stunning injection-moulded polycarbonate base.

Important details:

• 65% layout
• 6-degree typing angle
• Isolation mount using 1.6mm PORON foam pads with a leaf spring plate
• Aluminium Top
  • Machined, bead blasted, and then either anodised/e-coated

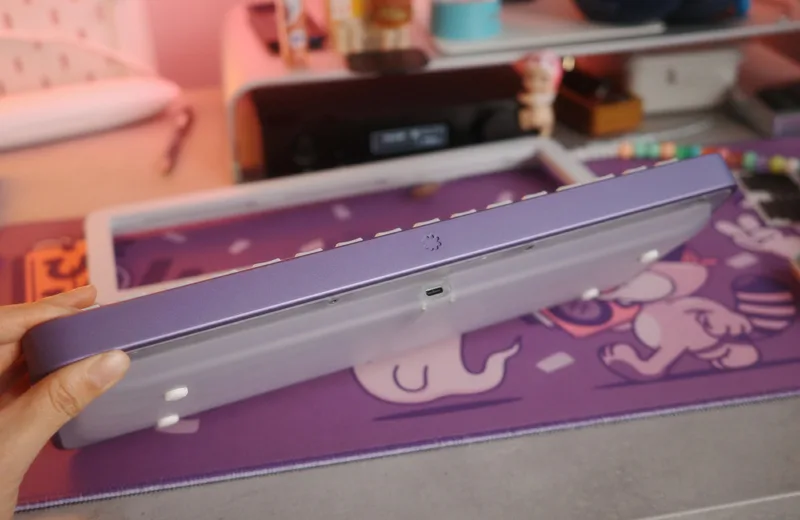

• Polycarbonate Base
  • Thick injection-moulded Polycarbonate, post-machined.

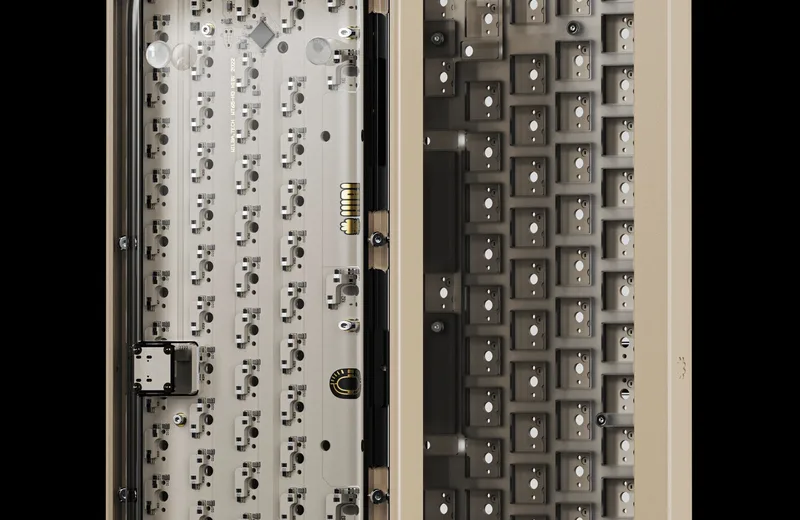

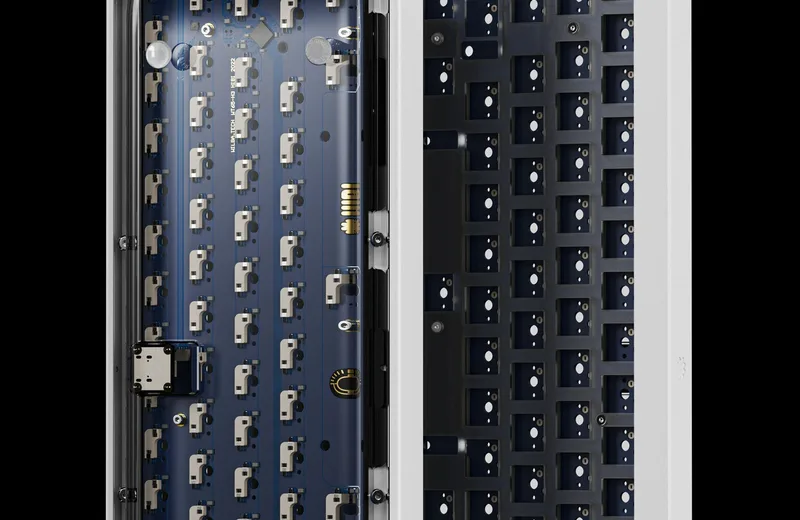

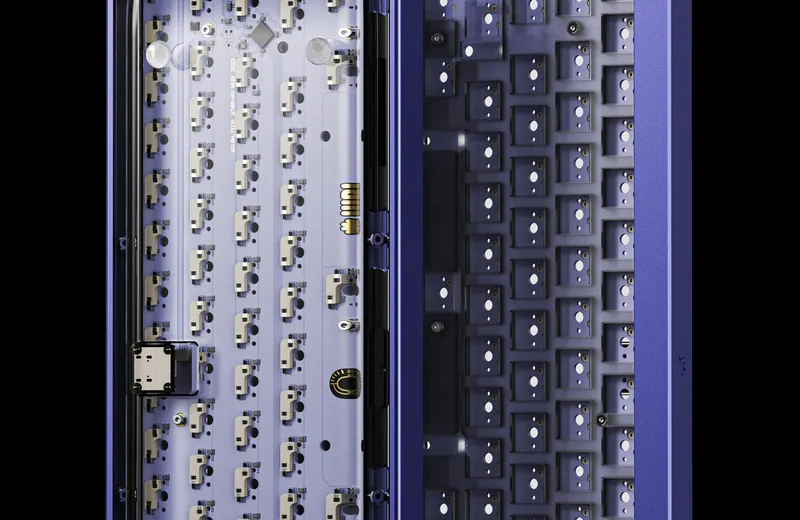

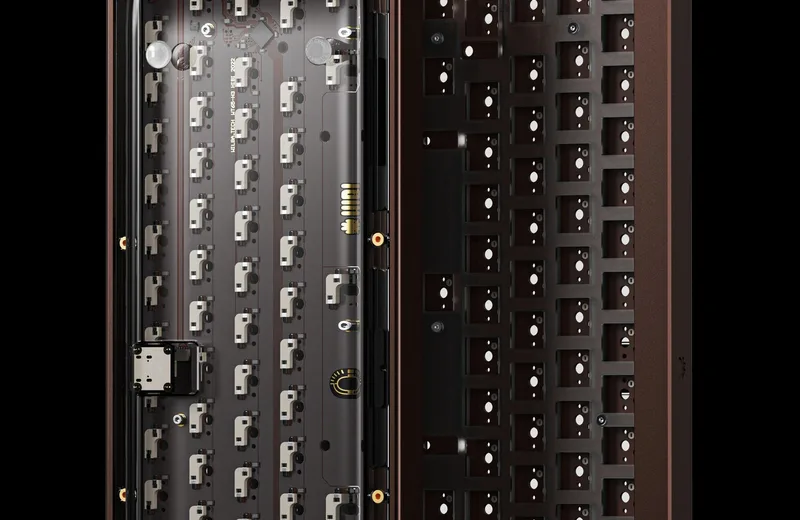

• wilba.tech WT65-H3-HIBI PCB

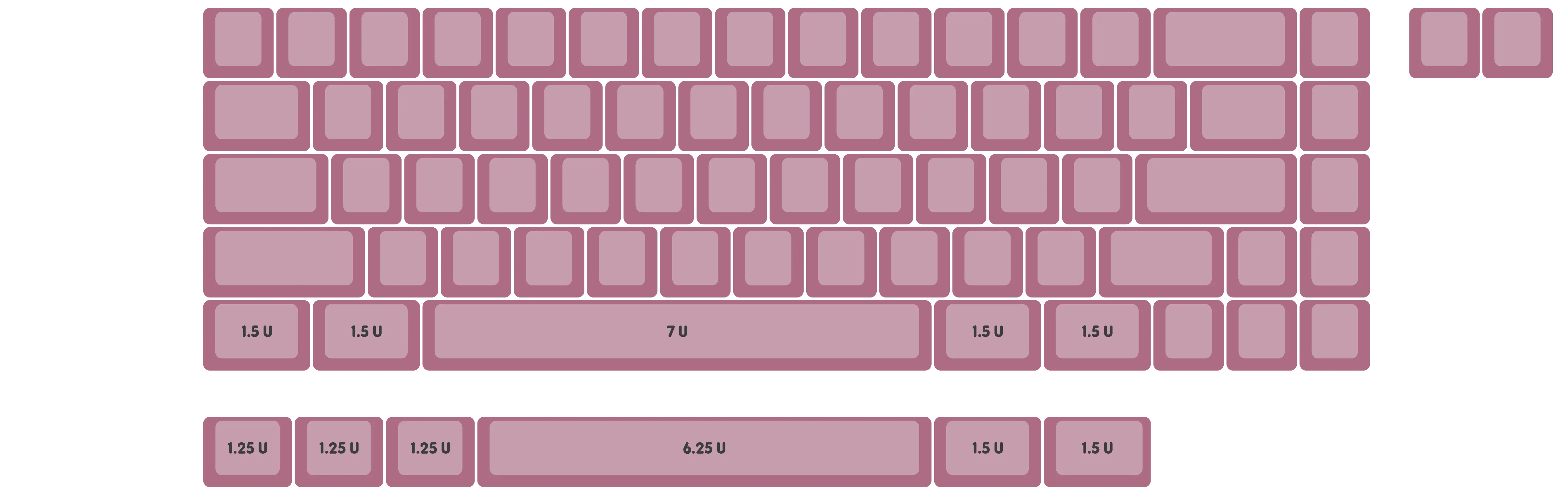

  • Supports full and split backspace, 7U and 6.25U spacebar
  • Over-current and ESD protection
  • Kailh hot-swap sockets rated at 5,000 cycles
  • QMK and VIA support
• 4.0mm PORON foam sheet compressed between PCB and plate to optionally change the sound profile by filtering out higher frequencies to create a warmer tone
• OPTIONAL: additional solderable PCB to support ISO, 6.25U+5 mods, stepped capslock

CONTENTS

• 1 x Aluminium top

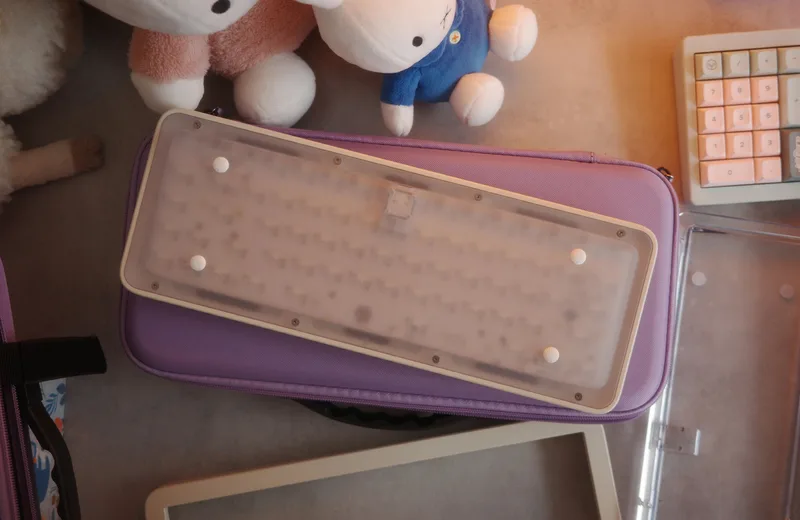

• 1 x Polycarbonate base (frosted)
• 1 x wilba.tech WT65-H3-HIBI PCB (hotswap)
• 1 x 1.5mm polycarbonate plate
• 1 x PORON sheet (Gaskets)
• 1 x PORON sheet - Plate foam
• 4 x HIBI rubber feet
• 8 x M2.5*12 mm Anodised Aluminium Hex Socket Head Screw
• 4 x M2 X 4 mm Stainless Steel Torx Socket Head Screw
• 6 x M2 X 3 mm Stainless Steel Torx Countersunk Screw
• 6 x M2 X 3 mm Stainless Steel Torx Socket Head Screw
• 6 x M2 X 3.5 mm Stainless Steel Spacer
• HIBI travel case (purple)

This product is sold without switches, stabilisers, keycaps or USB cables.
