HG [Haimu x Geon] Switches
Switch
Details
Geon x Haimu Switches
- Switch Type – Linear, Tactile, Silent Linear, Silent Tactile, RGB Linear
- Pack in Plastic bag
Items

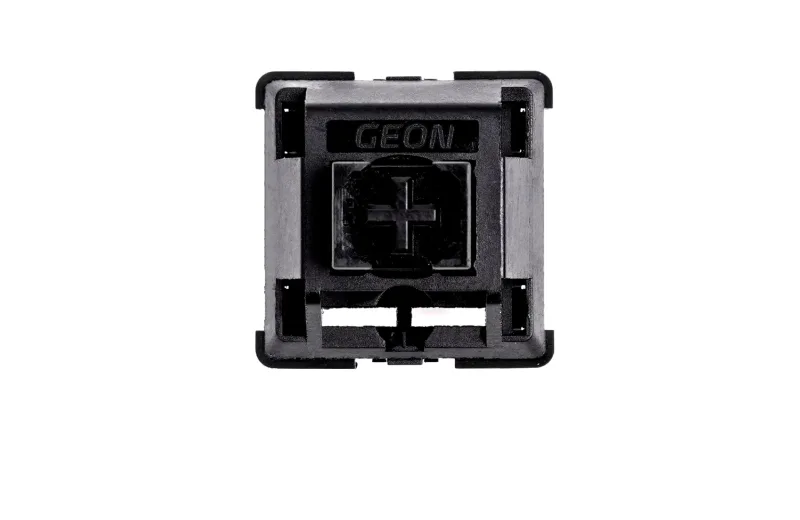

- Linear - Black

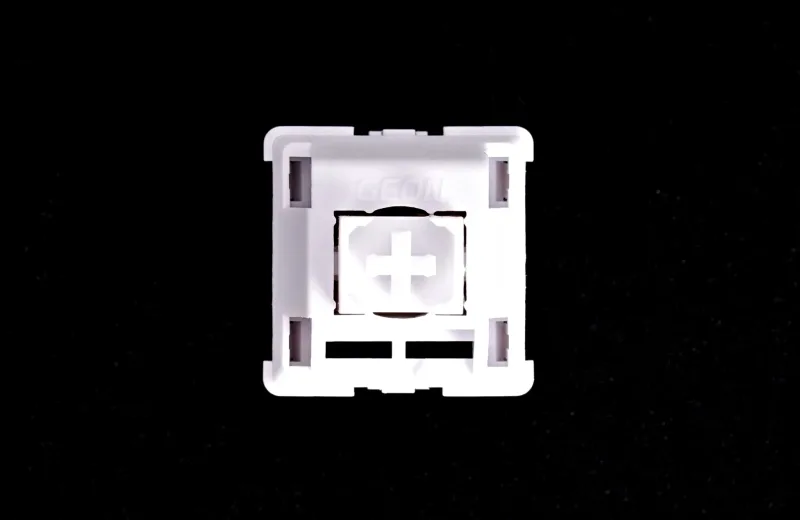

- Tactile - White

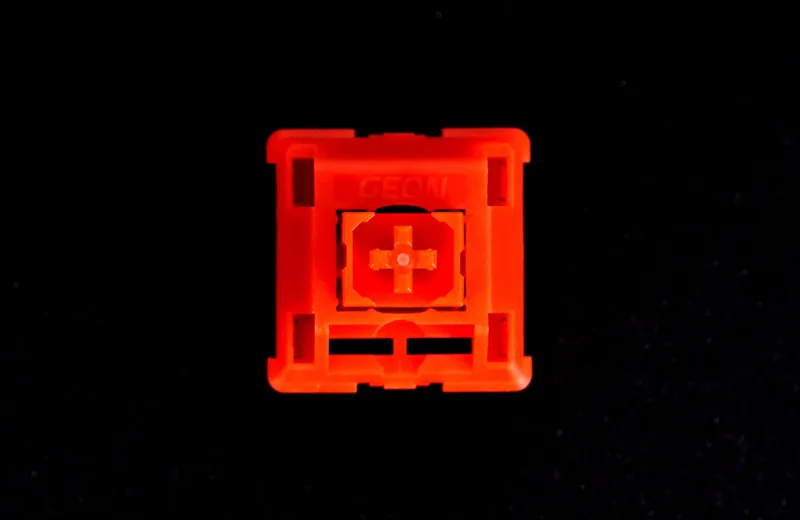

- Silent Linear - Red
- Silent Tactile - Yellow
- Transparent Linear - Clear 3.5mm
- Transparent Linear - Clear 4.0mm
Specifications
- Spring Weight – 65.0g
- Spring Type - Single-Stage , 20.0mm
- Top Housing Material - Nylon, PC(Transparent)
- Bottom Housing Material - Nylon, PC(Transparent)
- Stem Material - POM+PTFE, PA12(Transparent)
- Travel - 3.5mm ~ 4.0mm

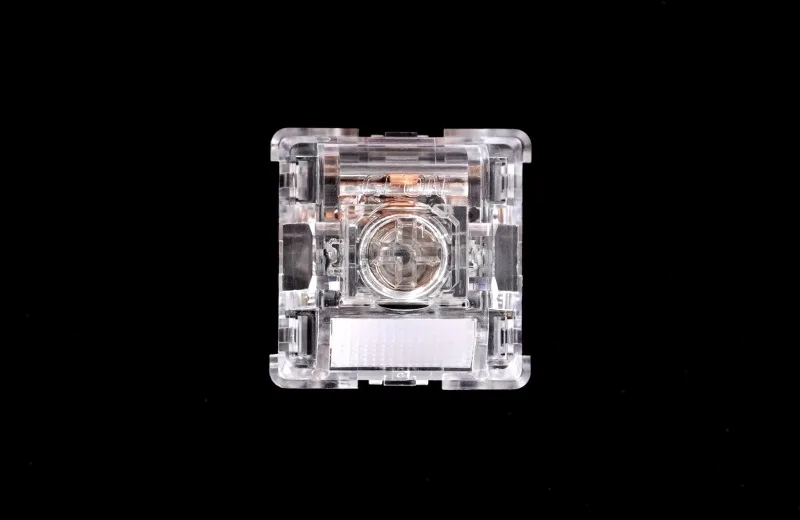

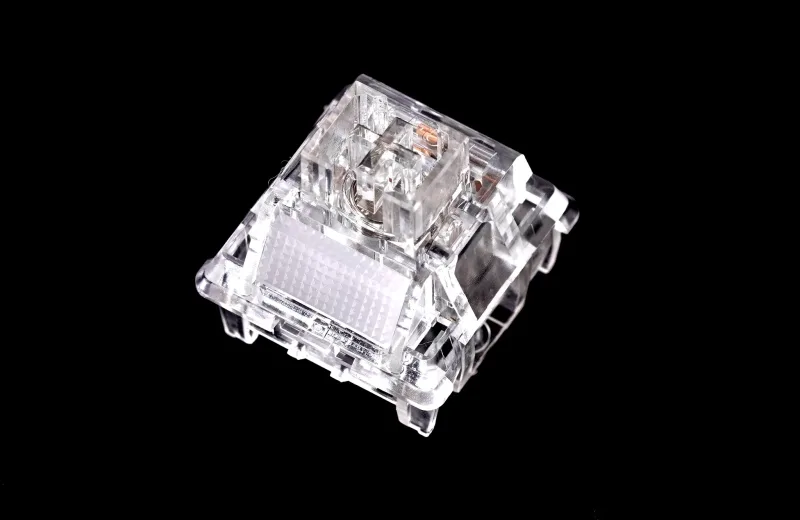

Clear Switch Additional Description
There are two types of 3.5mm and 4.0mm full travel. 3.5mm has fine lubrication, 4.0mm is not lubricated. The PC material switch generates a fine bump during the manufacturing process of the material.
Manufactured by Haimu, China
