DN SEVEN
DN SEVEN’s dual o-ring mount:
Where o-rings sit above and below the PCB assembly providing several benefits:
- Vibration isolation: The o-rings act as dampeners, reducing vibrations between the plate/PCB and the keyboard case.
- Sound tuning: The isolation helps control the acoustics, reducing unwanted resonance or case ping, resulting in a cleaner sound profile.
- Compliance and flex: The dual o-rings allows controlled vertical movement during keypress, contributing to a softer bottom-out (not flexy).
- Consistent feel: Since the PCB assembly is suspended between two o-rings, it maintains a balanced, consistent typing feel across the entire board, not overly stiff or overly bouncy.
Releases
- raffle: Jun 27, 2025 - July 7, 2025
- This release is limited to 40 units.
- Kit price: $519 USD
- The expected delivery of this product is late Q4 2025/Early Q1 2026
shipping option *
- USA ($27)
- Canada ($60)
- International ($75)
- AUS/NZ/OCE ($80)
- Local Pick Up (Orange County, California) ($5)
Kit
Kit includes:

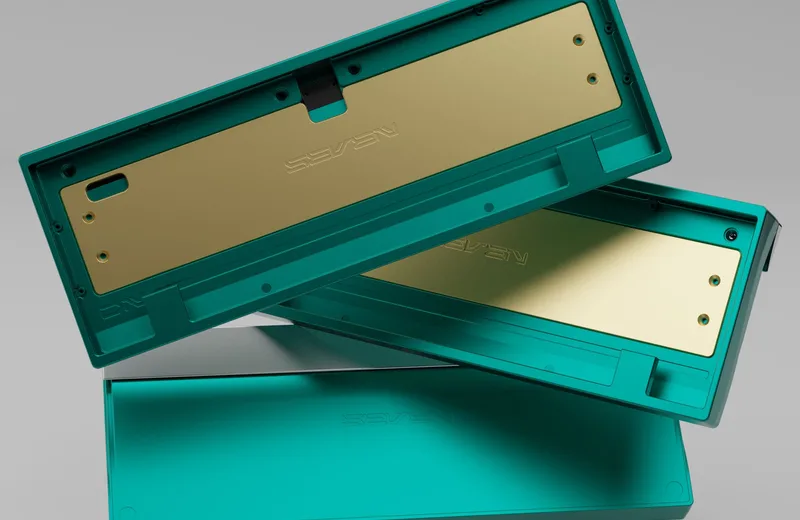

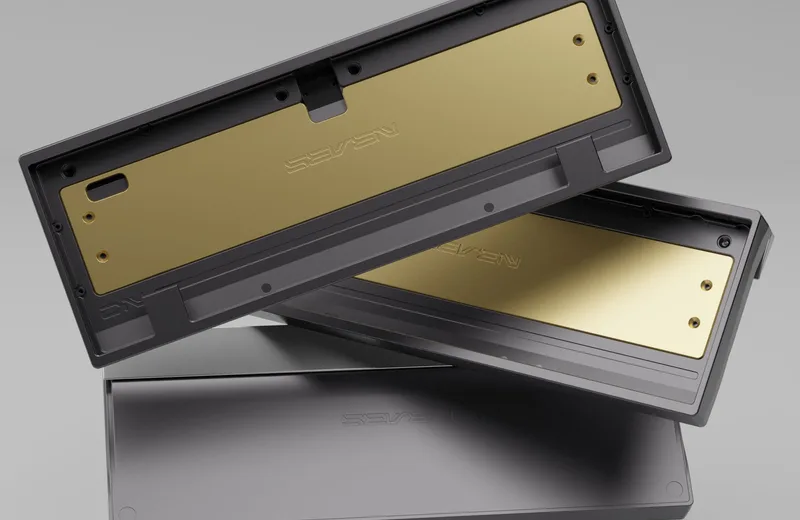

- 1x Aluminum Top
- 1x Aluminum Base
- 1x Aluminum Plate
- 1x Brass Internal Weight
- 1x Stainless Steel Accent Bar
- 1x Custom 60% PCB for internal fastening (proprietary)
- 1x DB/JST
- 1x Custom Carrying Case
- 1x set of necessary hardware and bump ons
- 1x Top Oring
- 1x Bottom Oring
Board options ($519)

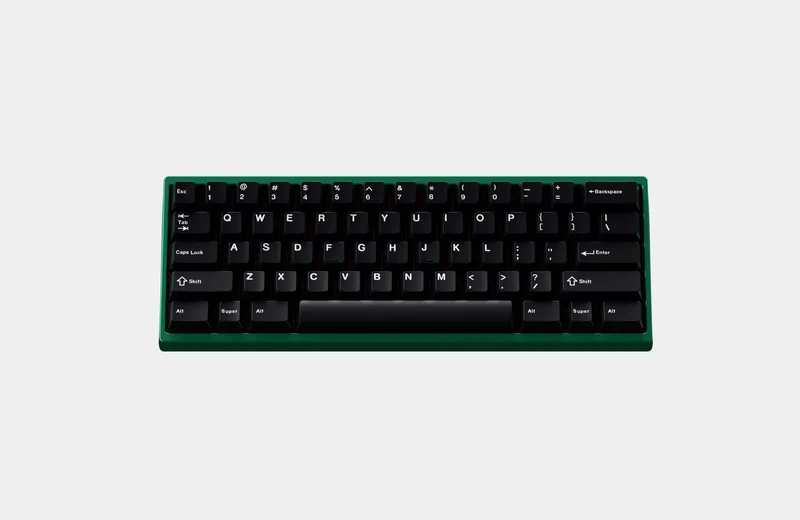

- Peacock WKL
- Peacock WK

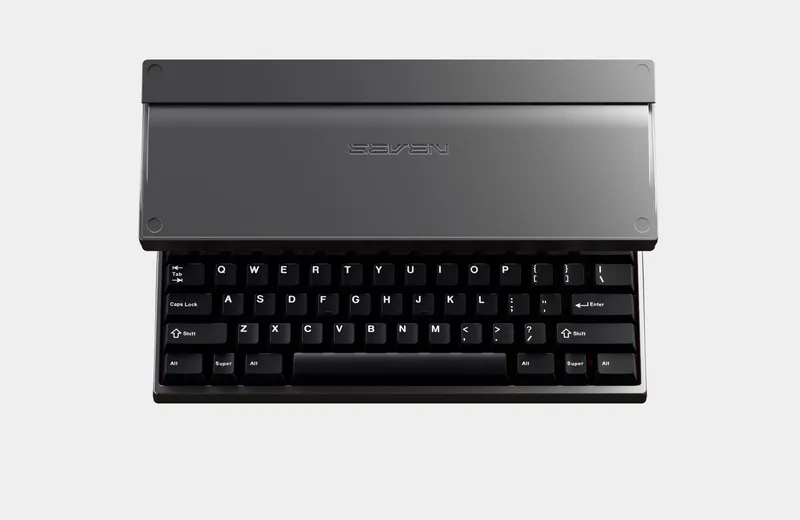

- Gray WKL
- Gray WK

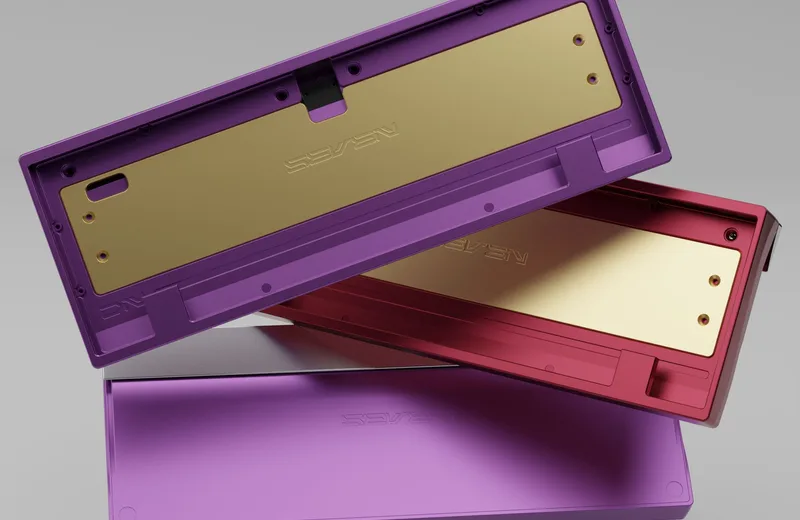

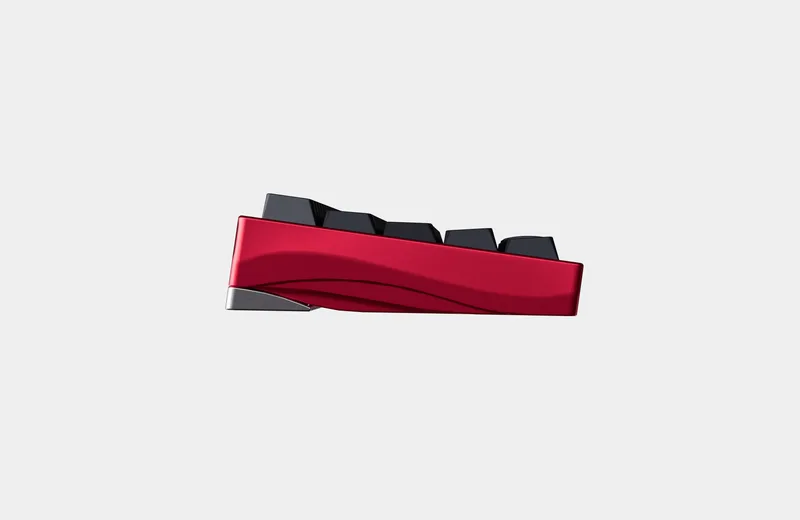

- Wine WKL
- Wine WK

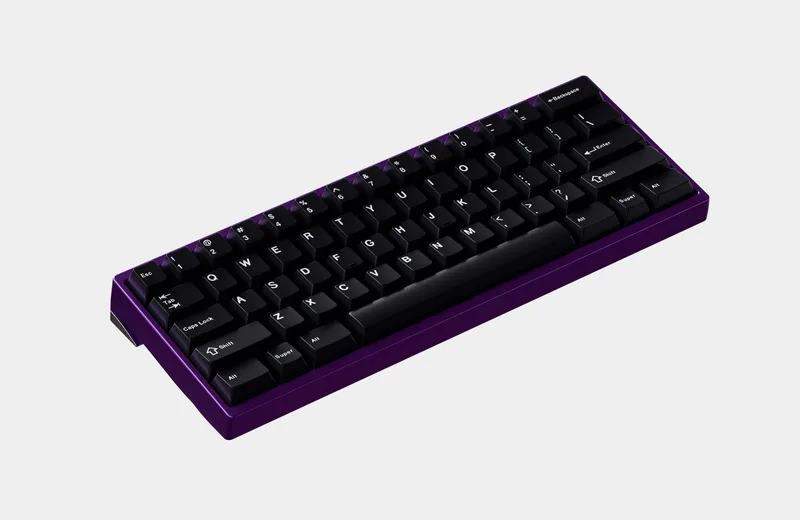

- Violet WKL
Add Ons Available:
- Custom 60% PCB ($55) PROPRIETARY
- DB/JST Connector ($12)
- Aluminum Plate ($39)
- Carbon Fiber Plate ($39)
- Polycarbonate Plate ($39)
Specifications:
- 60% Dual O-Ring Gasket Mount (oring sits above and below PCB/Plate assembly)
- Seamless Aluminum Case
- Screwless Exterior/Internally Fastened
- Sandblasted Stainless Accent Bar
- Sandblasted Internal Brass Weight

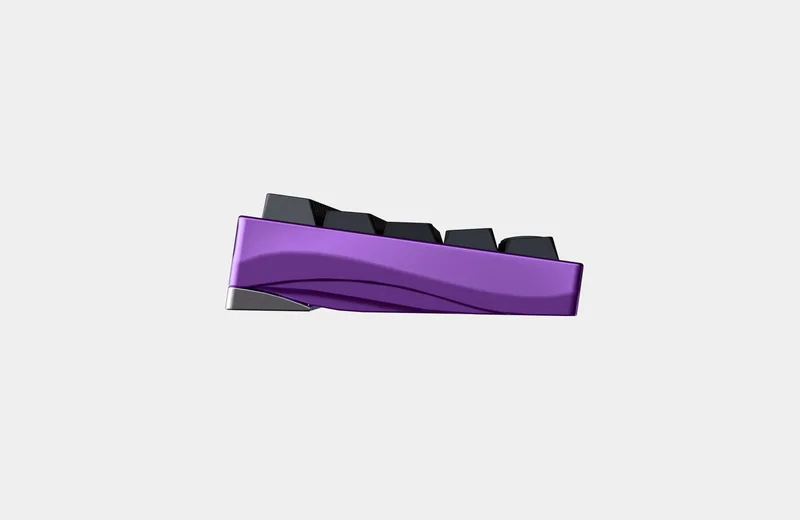

- 7 Degree Typing Angle
- 16.5 mm Front Height
Notes:
- PCB is fully proprietary
- Clip in stabs are a must
