VS06

Sales

• format: unlimited gb
• period: opened June 8, 2026 - (end date TBD)
• Expected Shipping time: TBD (addons page says Q4 2026)
• Designer: Fusion Lab (Fusion Studio)

Pricing

• no USD vendor scraped yet; GBP from ProtoTypist, USD converted @ 1 GBP = 1.3565 USD (2026-06-12)
• kit already includes PCB kit, SS plate, buzzer, solenoid and the display — addons are extras
• colorways (all powder coated, same price): Classic Grey, McFlurry, Linen, Sparkle Black, Cream White, Cool White, Soft Pink, Black

Vendors

• United Kingdom: ProtoTypist
  • gb kit: 498.33 GBP (any colorway, solder or hotswap)
  • addons: pcb kit 53.33, ss plate 34.17, fingerprint 37.50, touchpad 37.50, buzzer 34.17, solenoid 34.17, keycap set 75 GBP

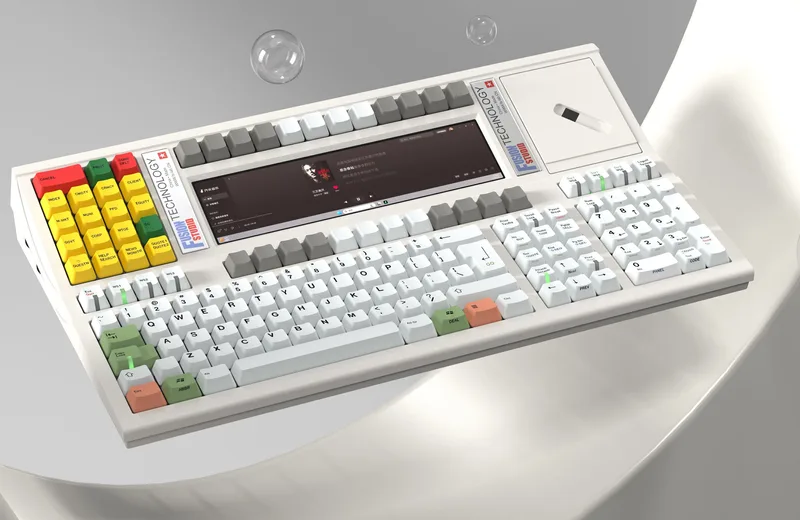

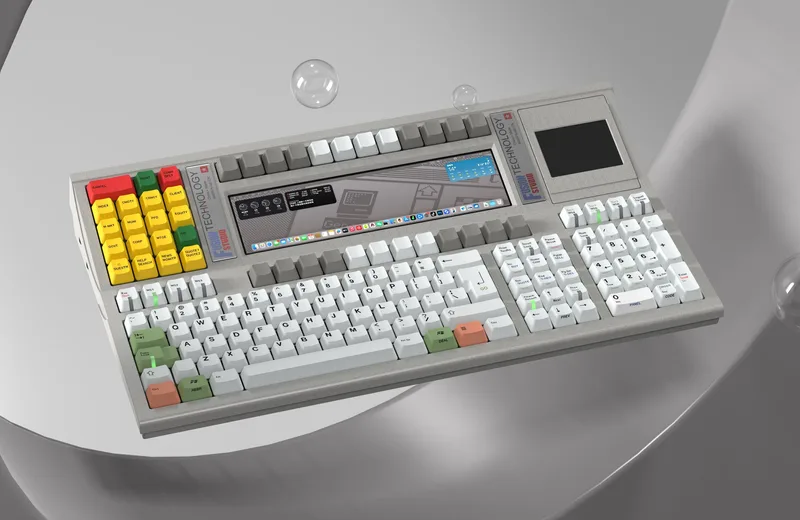

VS06 by Fusion Lab (Fusion Studio)

Addons Available Here

About VS06

VS06 is not just a restoration of an old keyboard. We want to give this classic model a new life, so that enthusiasts can own a brand-new, modernized MK06-inspired keyboard at a reasonable price.

Fusion Lab is also bringing a full technical upgrade:

• Aluminium alloy precision CNC case for improved durability and rigidity
• Newly developed PCB and optimized internal structure

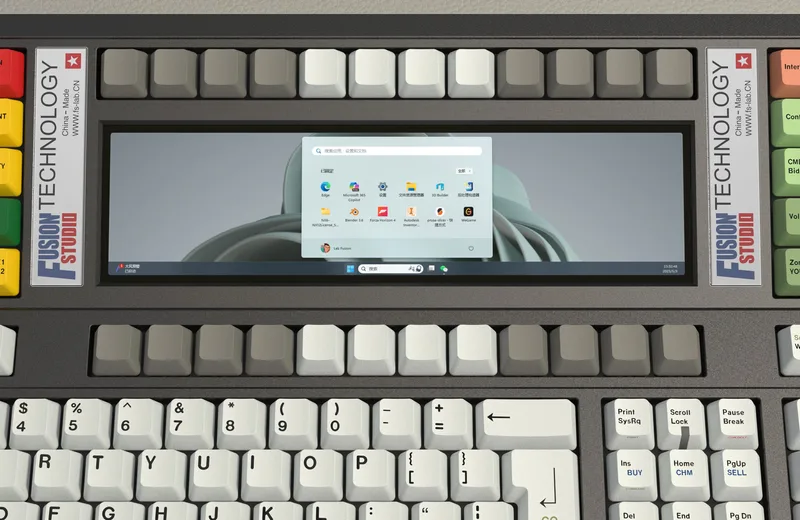

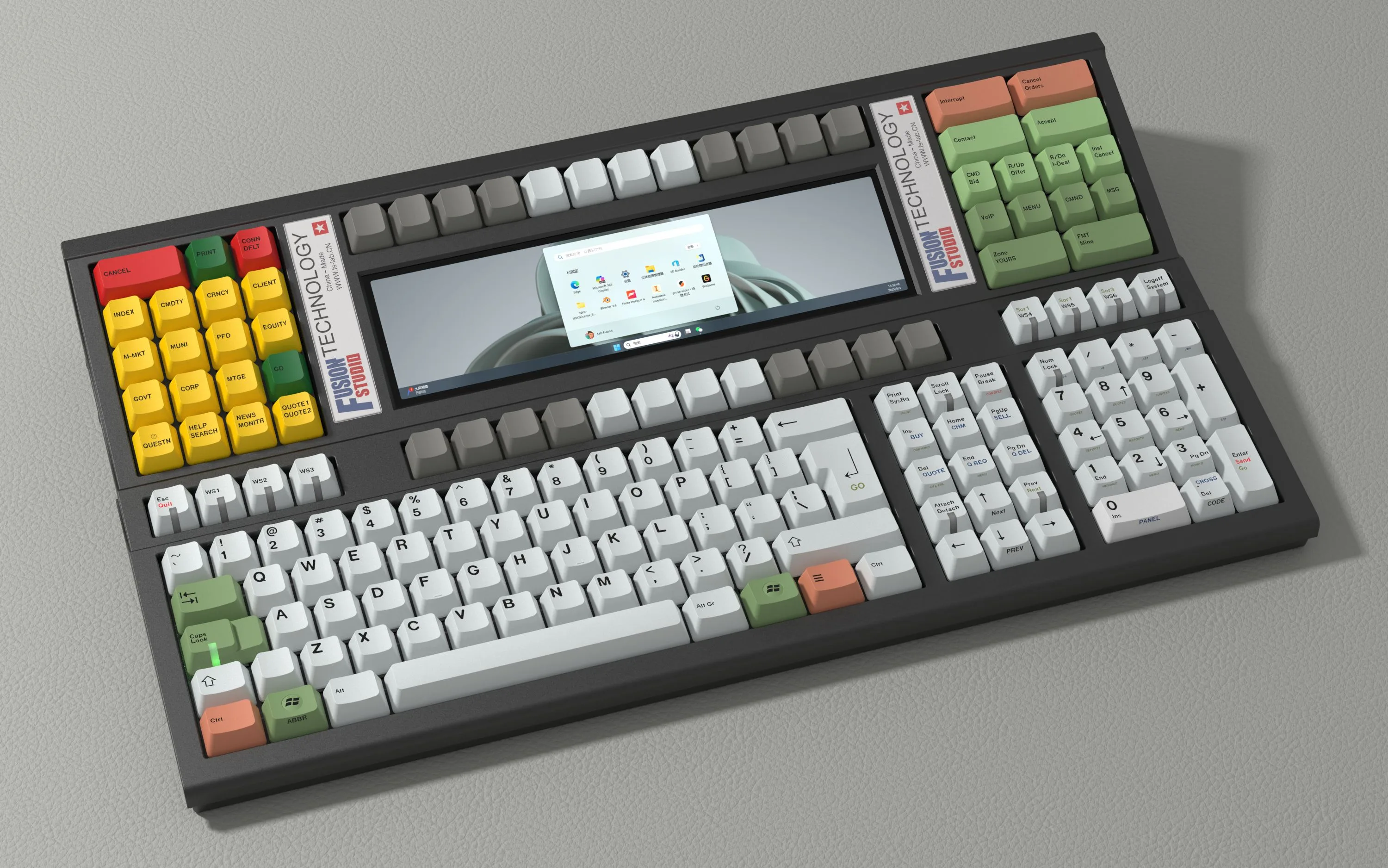

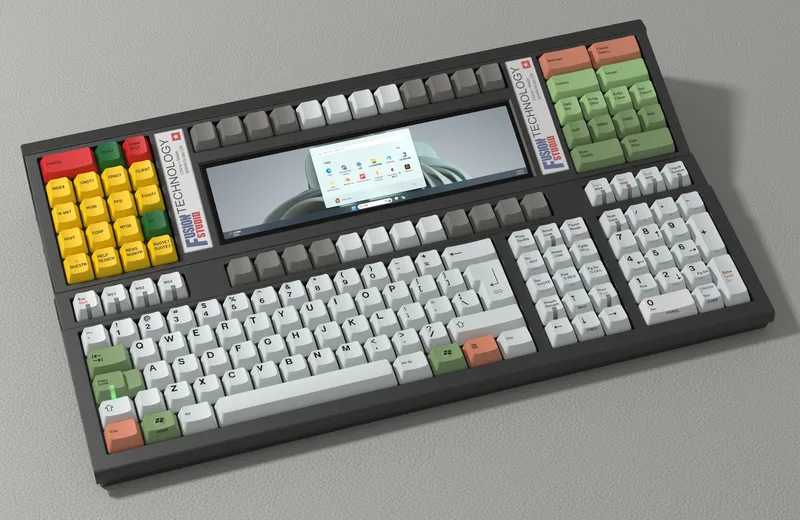

• The original "display-only" screen becomes a fully usable computer secondary display

No extra video cable.

No extra power cable.

No Thunderbolt required.

With only USB 2.0, the computer can recognize the device directly and enable:

• Secondary-display extension
• Parameter adjustment
• Touch interaction

Two Mounting Structures

• Plate Top (hot-swap / soldered)
  • Plate is fixed to the top case with screws
  • Solid, classic typing feel
• PCB Top (plateless soldered)
  • PCB is fixed directly to the top case with screws and gaskets
  • Plateless soldered build like the original, with flex and stable input

PCB & Layout

• Hot-swap PCB: 1.6 mm
  • Single-color SMD LEDs
• Solder PCB: 1.6 mm

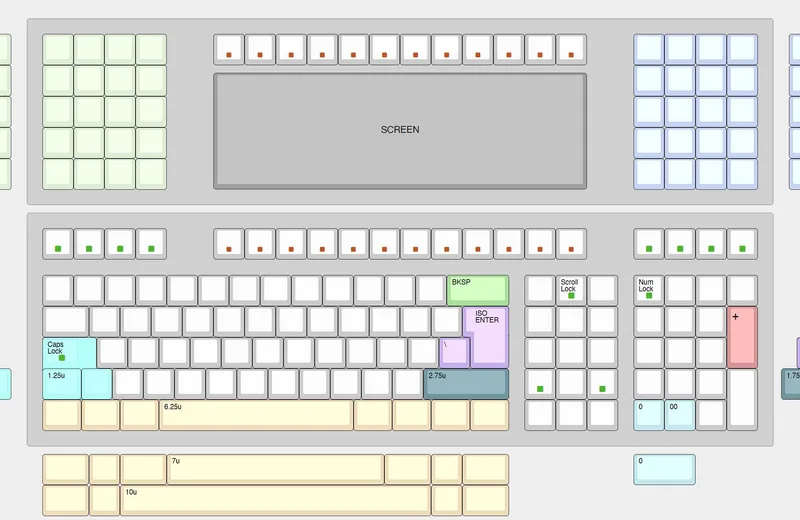

  • Multiple layout support
  • 2-pin through-hole LEDs (included in kit)

Specification:

• Case: 6063 aluminum
• Layout: WK + multi-layout compatibility
• Front height: 18.7 mm
• Typing angle: 5.73°
• Dimensions: 460 × 270 × 69.3 mm (highest point)

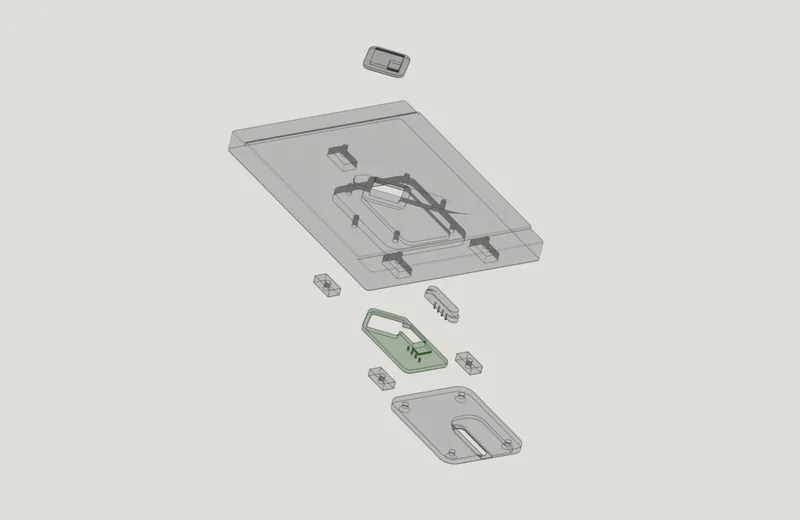

• Assembly: screws (case) + pogo magnetic connector (modules)
• PCB: Wired 1.6 mm (QMK + VIAL), hotswap & solder options
• Mounting: Plate Top / Plateless Top
• Plate: Stainless steel

Highlights:

• One USB 2.0 cable to drive everything (secondary display: 1920×480 @ 60 Hz), cross-OS support

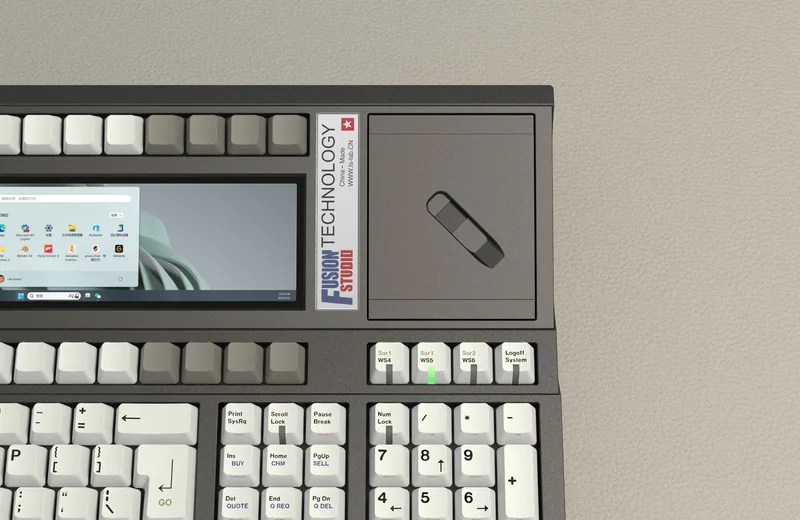

• Magnetic modules: keys (default), fingerprint / touchpad (optional addons)
• Solenoid + buzzer (homage to the classic)

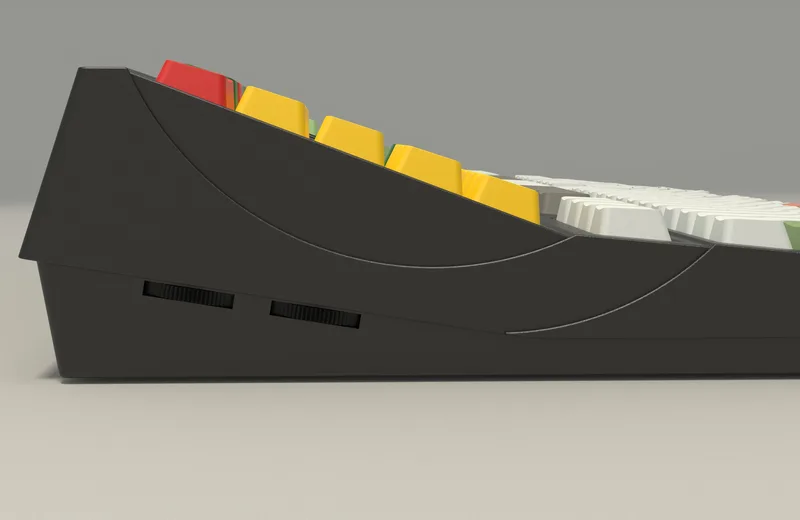

• Dual dials for screen brightness and volume

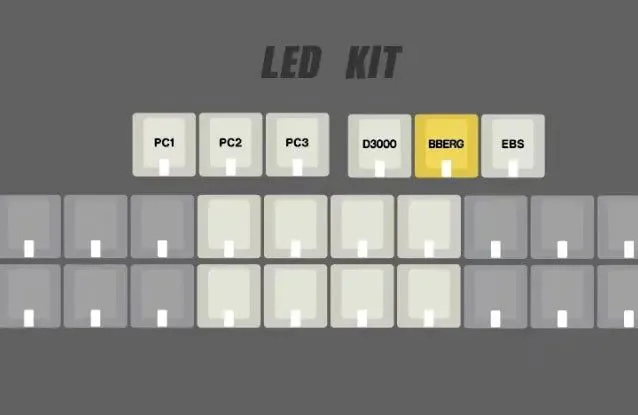

• Indicators: 3+8 lock indicators + 12+12 F-row RGB

Case Colour Options:

All are powder coated finishes

• Classic Grey
• McFlurry
• Linen Black
• Sparkle Black
• Cream White
• Cool White
• Soft Pink

Kit Contents:

• 1x Case (6063 aluminum top & bottom)
• 1x PCB Kit (4 pieces) Solder/ Hotswap
• 1x Brushed Stainless Steel Plate
• 1x Buzzer
• 1x Solenoid
• 1x Multi-touch Capacity Display

Addons Available:

• PCB Kit (4 pieces) Solder or Hotswap
• Buzzer
• Solenoid
• SS Plate
• Finger Print Module
• Touchpad Module

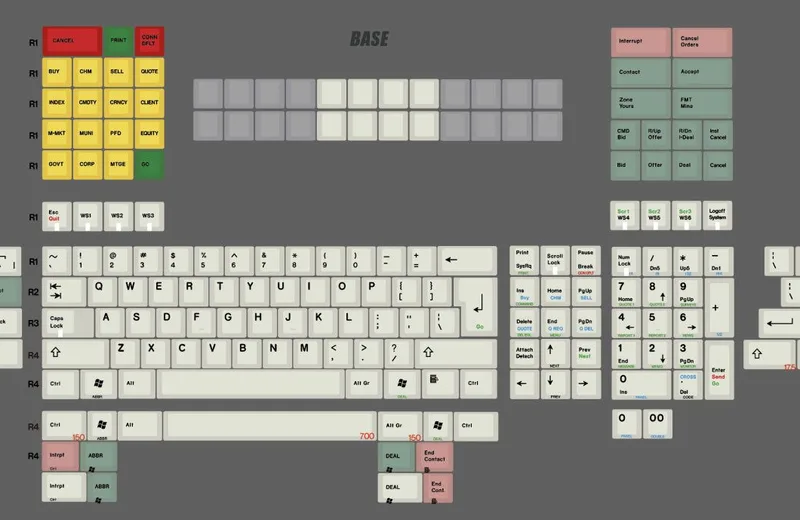

• Keycap Set (PBT single-side dye-sub. All three kits included)
