Seal 80

Sales

• format: gb (closed)
• period: March 23, 2026 – April 24, 2026
• Expected Shipping time: Q3–Q4 2026 (vendor-dependent)

Pricing

• Base kit rows (Aluminum / PC / PC+Copper Buffer) are Unikeys (Canada) native USD prices.
• PCB / plate / strip / badge rows are Proto Typist (UK) GBP prices converted @ 1 GBP = 1.3229 USD (2026-06-30).
• Pricing was not published in the Geekhack thread. The OP explicitly states: "Due to the large number of options in this GB, there may be slight differences in the actual retail price and options among various vendors. Therefore, please visit the relevant purchase page of your chosen vendor to view the options and prices."
• Case options: Anodizing (Silver, Red, Orange, Green, Ching, Blue, Purple, Brown), E-coating (Vintage Grey, Sparkle Black), PC
• Weight options: Brass AF, Brass Patina, Stainless Steel Raw/Black/Gold, Copper Raw
• Plate options: 1.5mm Alu Silver/Black, 4mm PCABS, 4mm PEI
• PCB options: Cherry MX+Alps SKCM/SKCL+SMK (solder), Alps SKCP+Omron B3G+NMB Hi-Tek 725 (solder), Topre EC, Cherry MX (solder & hotswap)

Vendors

• North America: Divinikey
• Australia: Toro Studio
• Canada: Unikeys
  • Aluminum Case: $300.00
  • PC Case: $300.00
  • PC Case With Copper Buffer: $320.00
• Europe: MonacoKeys
• Japan: NEKOYUI
• South Korea: Geon Works
• Singapore: iLumkb
• Thailand: Aiglatson Studio
• United Kingdom: Proto Typist
  • Base kit: £270.00
  • addons: PCBs £21.67–£33.33 | Plates £27.50–£50.00 | Strips £10.00–£30.00 | Badges £11.67–£33.33
• Vietnam: MOKB
• International: Zfrontier

Geekhack GB Thread

---

篆Seal TKL

Designer: SENSY (Website: https://sensy.click/ | Instagram: https://www.instagram.com/sensy.lab/ | Discord: https://discord.gg/hsbpRf6PS2)

Hello world, this is SENSY.

Here we go. Seal 80, the sequel to 100% is coming. Thanks to your affirmation previously, and all your thoughts and feedback too, they've all been heard, loud and clear. After several rounds of sampling, this current version has been shown and shared during meetups in Shanghai and Tokyo. With these little improvements, its domestic GB was done and now it's time for its global tour.

Some features we meant to deliver:

Versatility

We always recall the joy this hobby brought to us since the beginning. From Cherry MX, Alps, Micro Switch, Beamspring, Fujitsu leaf spring to EC Topre and so forth, those little surprises has delighted us for years.

The pity is we don't have plenty options of Alps supporting keeb. That's why we previously employed a relatively common PCB design on Seal100 that is compatible with both MX and Alps SKCM/SKCL switches. But this is far from sufficient, especially for those who favour vintage keyboards.

Therefore, when Seal comes to the Gud&Old 80%, it's determined to adopt the A87 standard, which is compatible for MX, Alps, SMK, Omron B3G, EC and even Hi-Tek (AKA Space Invaders, respect to 4ppleT who made it open source for us). This might be the PCBs with the most cheese holes you've ever seen lmaooo.

Structure

Top mount + the 'Smoke' buffer

We introduced PEI plate with silicone block (70A/90A) to Smoke65's top mount. Although this plan had caused high cost and complex assembly, it provided most superior typing feel we ever had so far. Smoke 65's PEI plate plan is designed to reproduce the force break effect which results in expanded thickness and excessive screws.

In order to lower the front height (2mm reduced) and simplify its assembling, we brought the separated buffer bar & PVC bottom cushion to improve the smoke 65's plate plan.

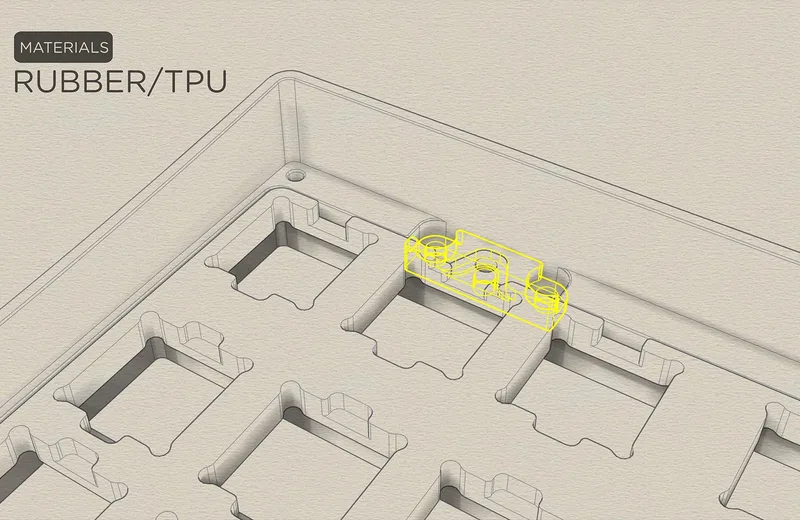

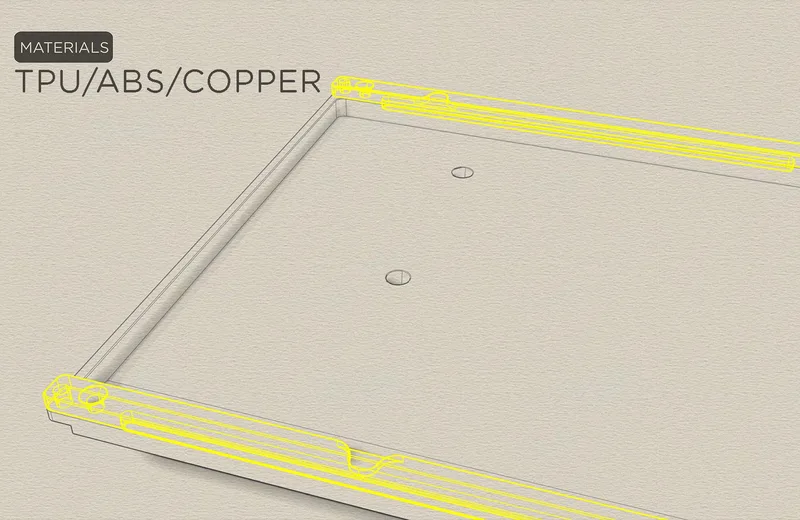

ISO mounts: Rubber/TPU. Mid layer gaskets: TPU/ABS/Copper.

Outlook

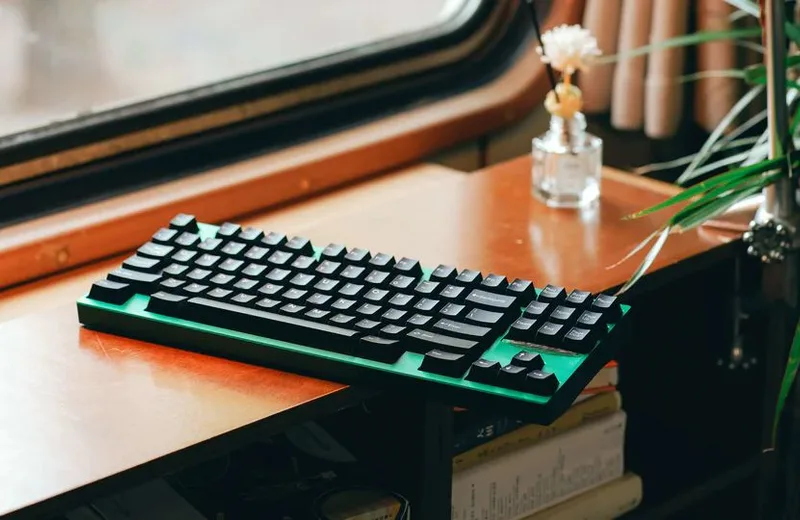

• Layout: 80% TK/TKL
• Dimension: 356.2 x 137.2 x 38.5 mm
• Full weight: 2.5 kg – 2.8 kg
• Typing angle: 9°
• Front height: FH=16.5mm / EKH=21.80mm (bumper excluded)
• Front side profile: 7.9mm (with chamfer)

Anodizing & Coating

• Case: Aluminium anodized 6063 / E-coating / PC

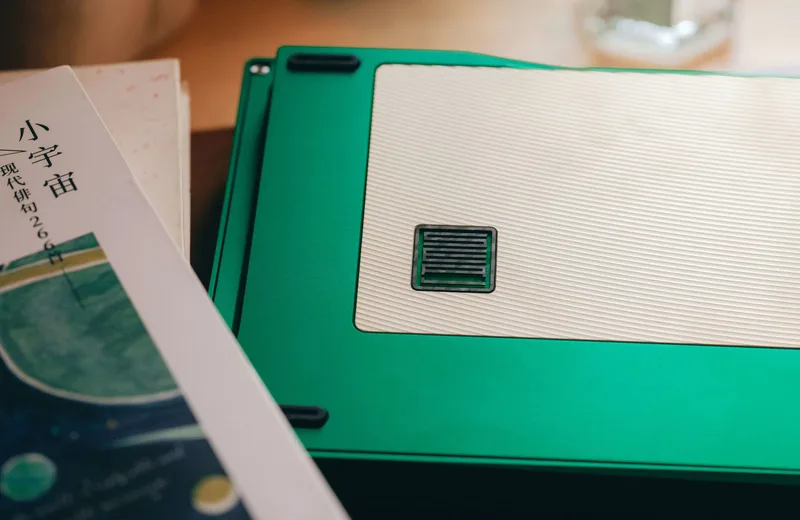

• Weight: Brass AF / Brass patina / Copper AF / SS Milled PVD
• Buffer bar: TPU / PCABS / Copper AF
• Plate: Alu / PEI / PCABS
• Strip & Badge: Refer to product images

PCB

VIAL supported, matches A87 standard. Compatible with Hiney87.

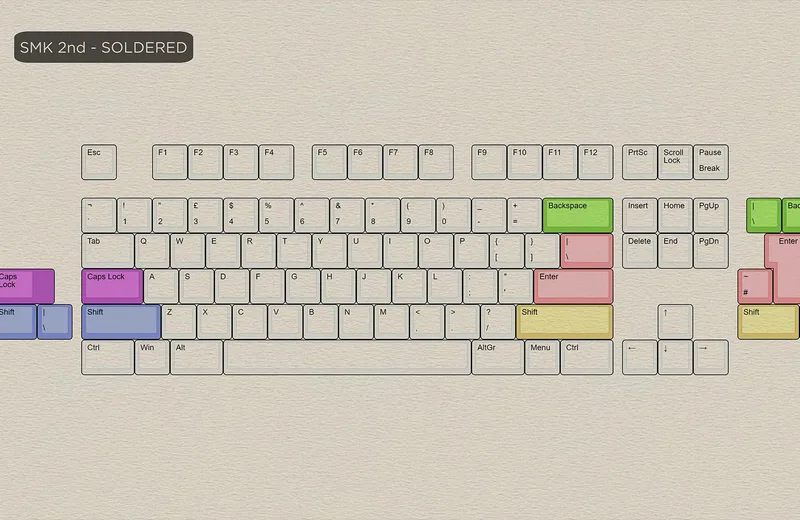

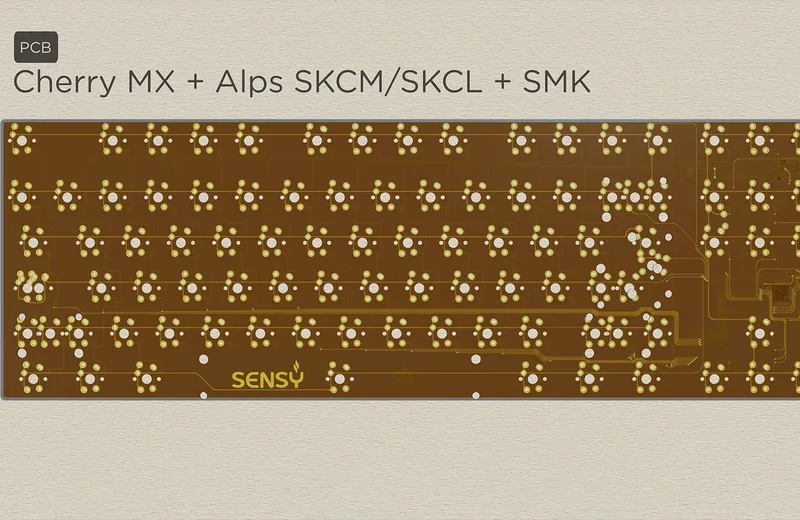

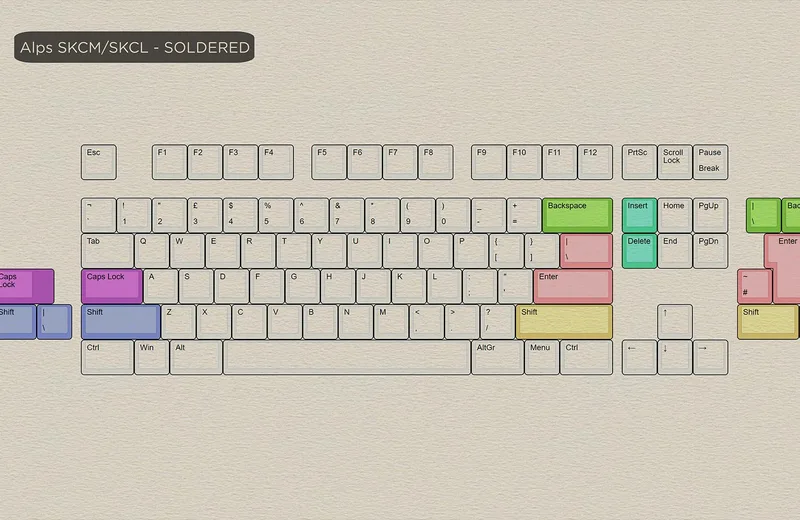

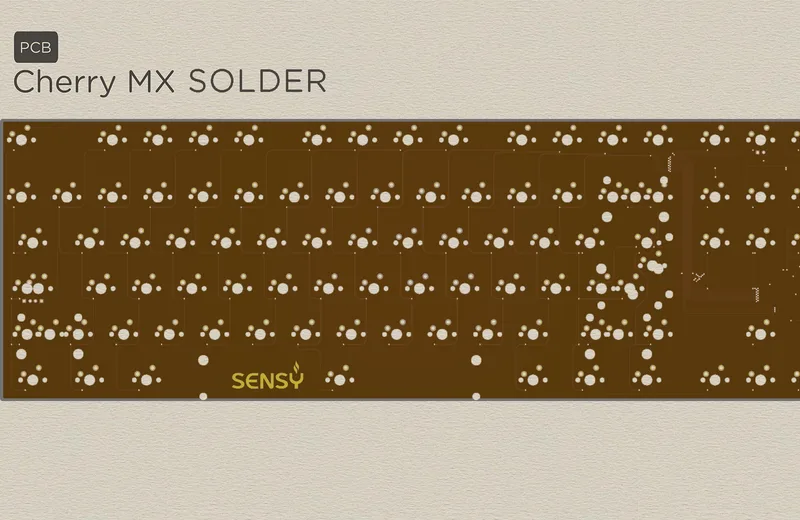

Cherry MX + Alps SKCM/SKCL + SMK — Soldering Only

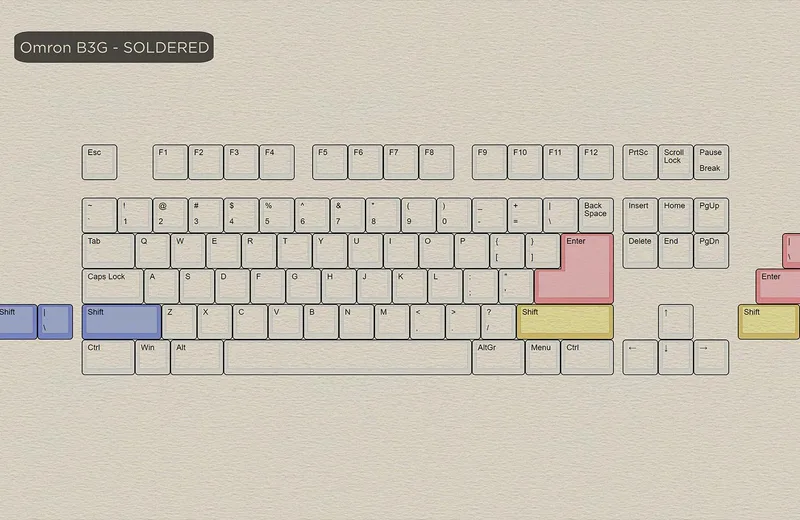

Alps SKCP + Omron B3G + NMB Hi-Tek 725 — Soldering Only

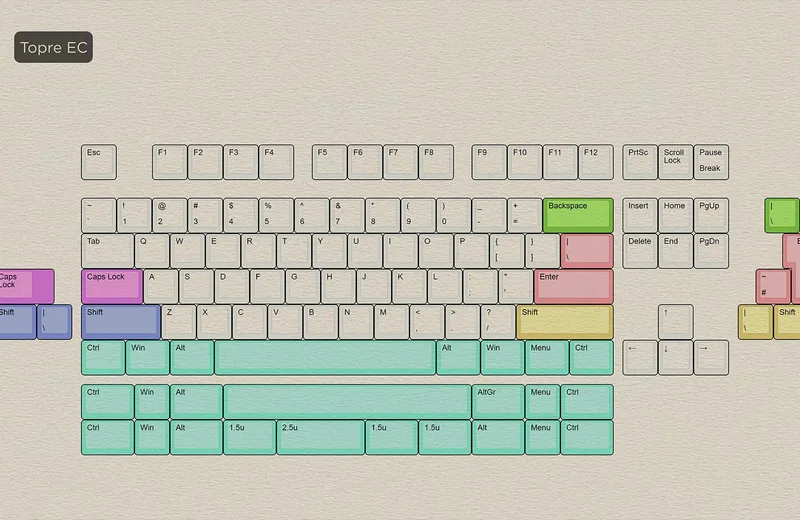

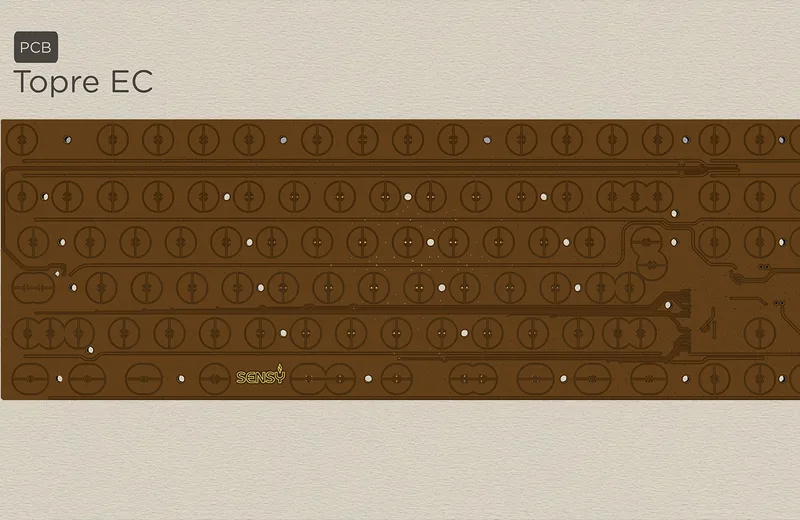

Topre EC

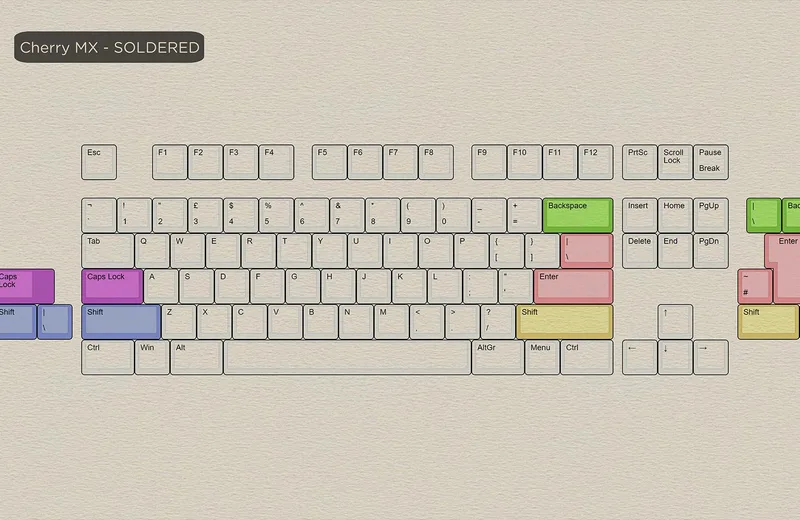

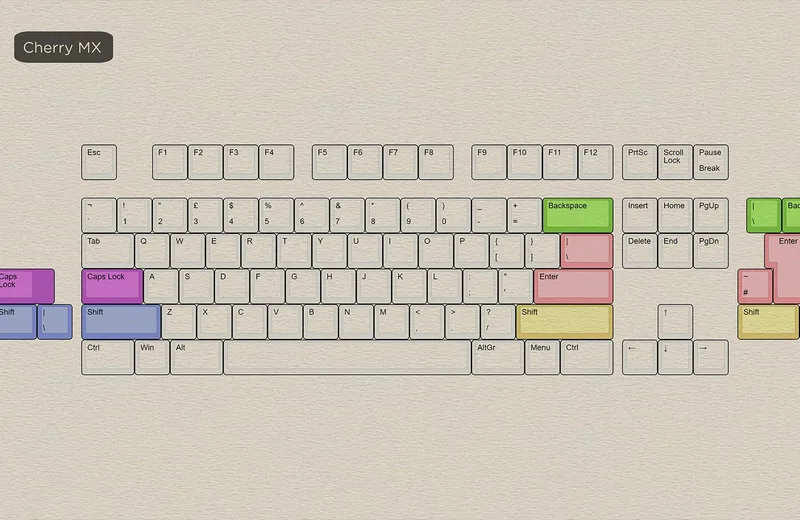

Cherry MX — Soldering & Hotswap

NOTE: If you select an ALPS or Topre PCB no plate is included but plate files will be made available for you to produce a compatible plate at a later stage.

Color Options

Case

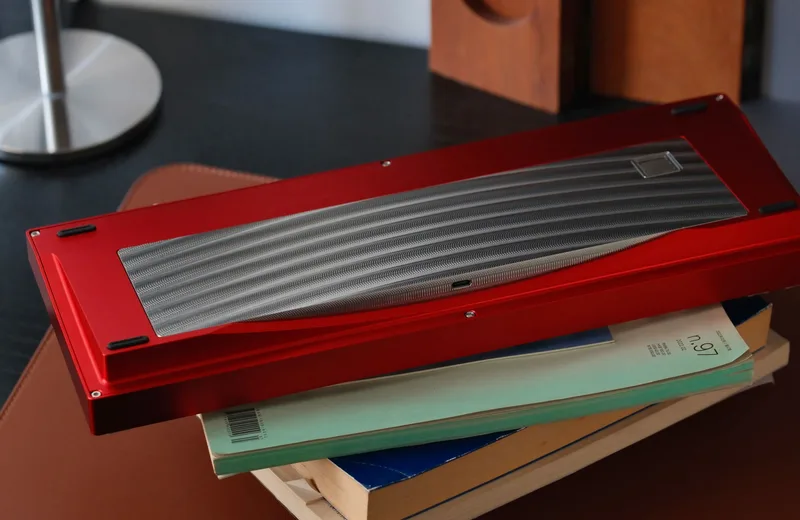

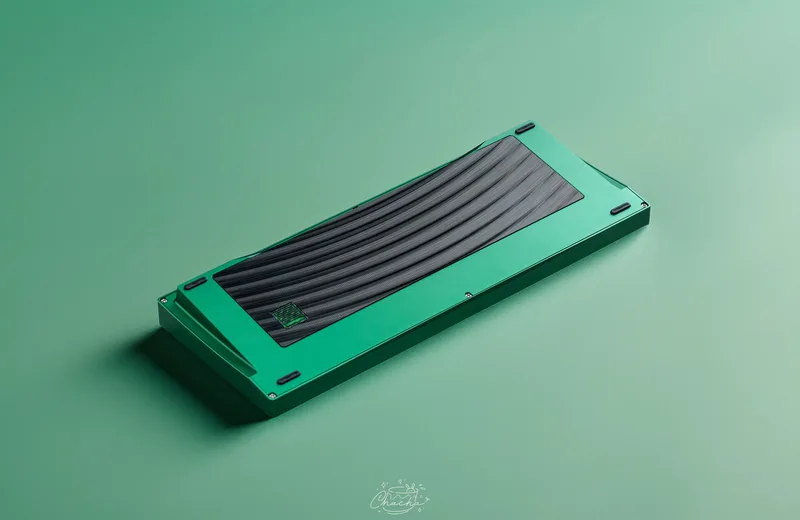

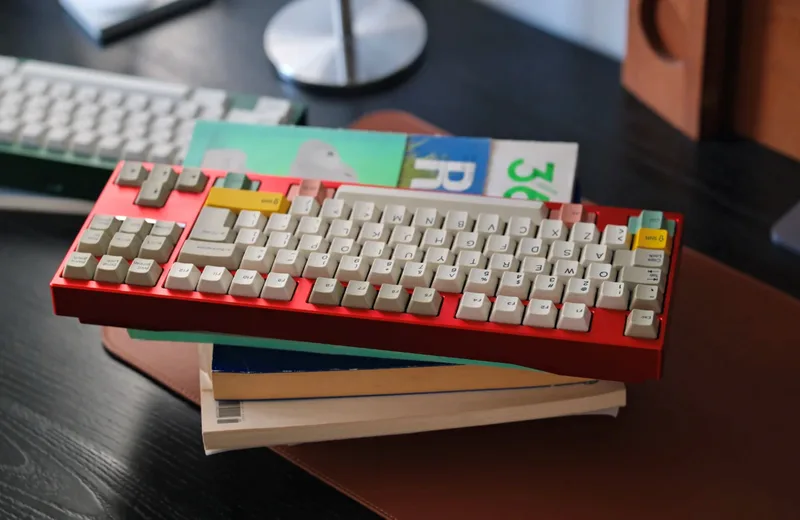

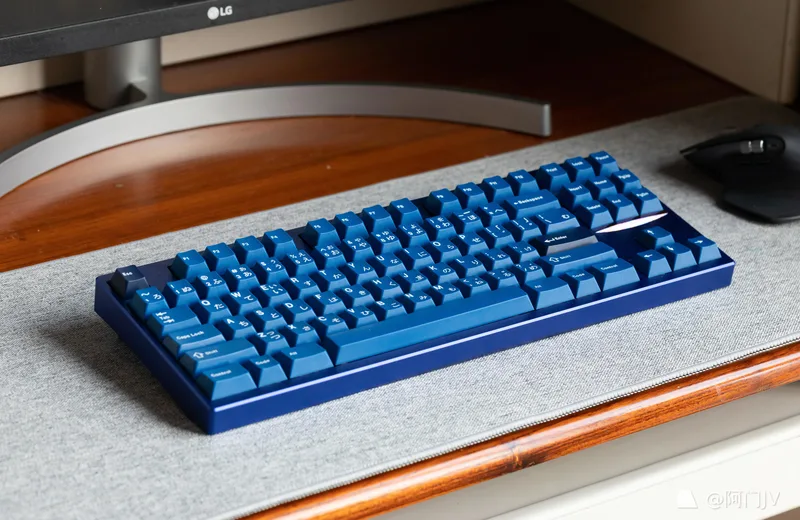

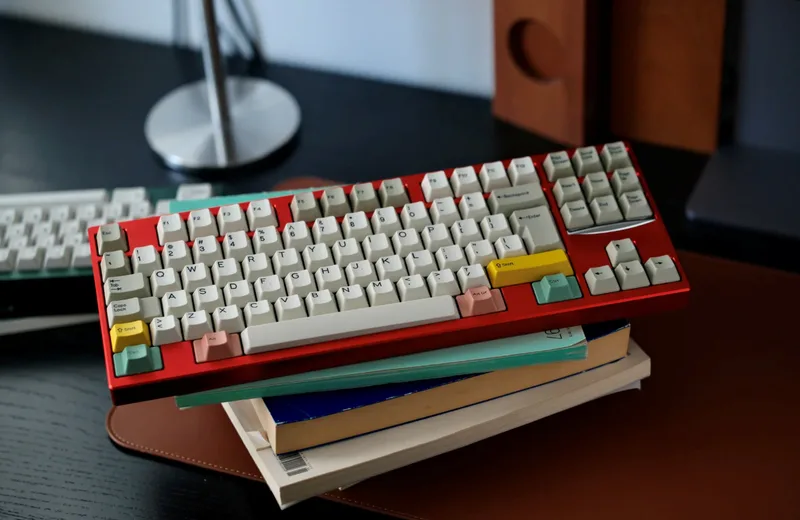

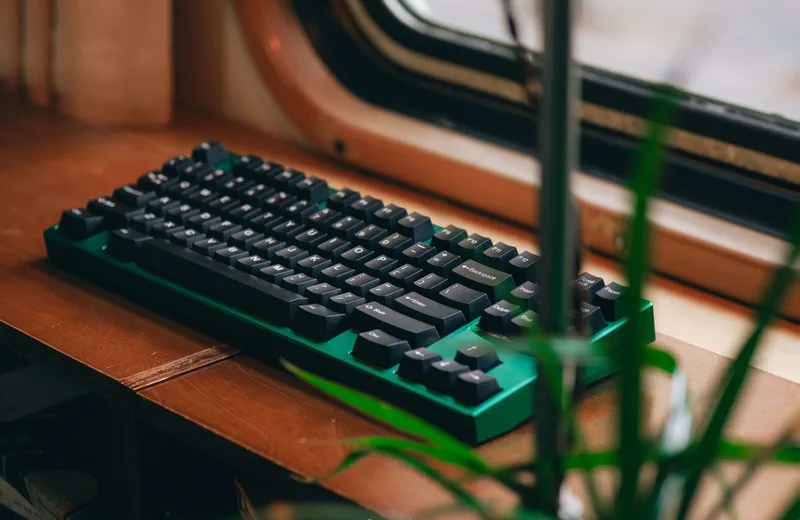

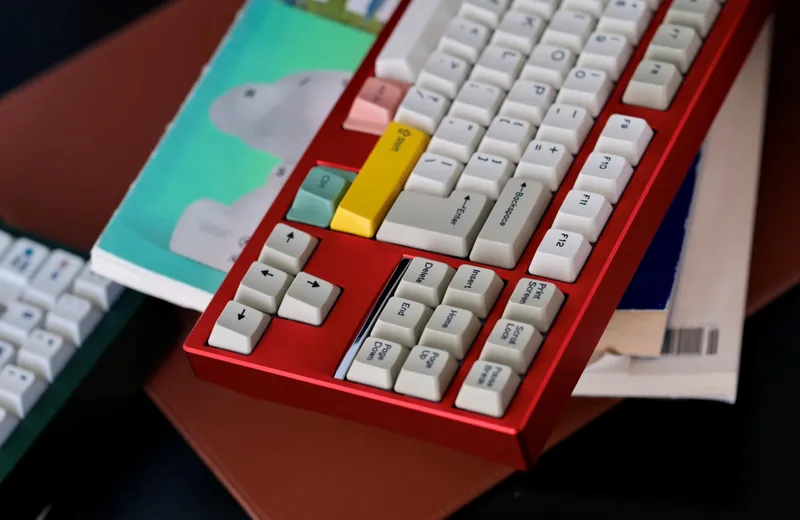

Anodizing x 8: Silver, Red, Orange, Green, Ching, Blue, Purple, Brown

E-coating x 2: Vintage Grey, Sparkle Black

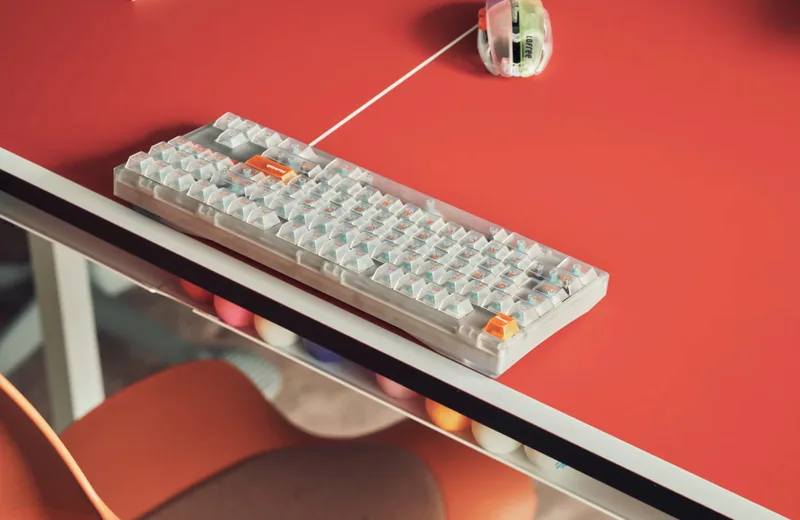

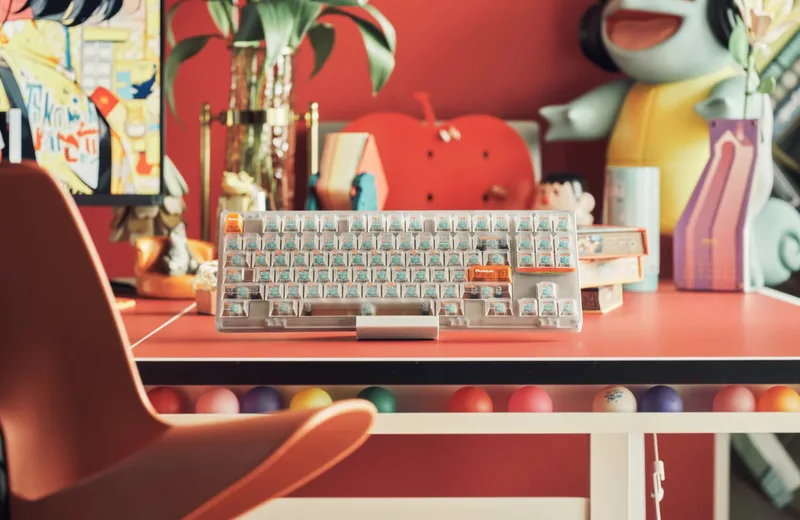

PC (polycarbonate)

Weight

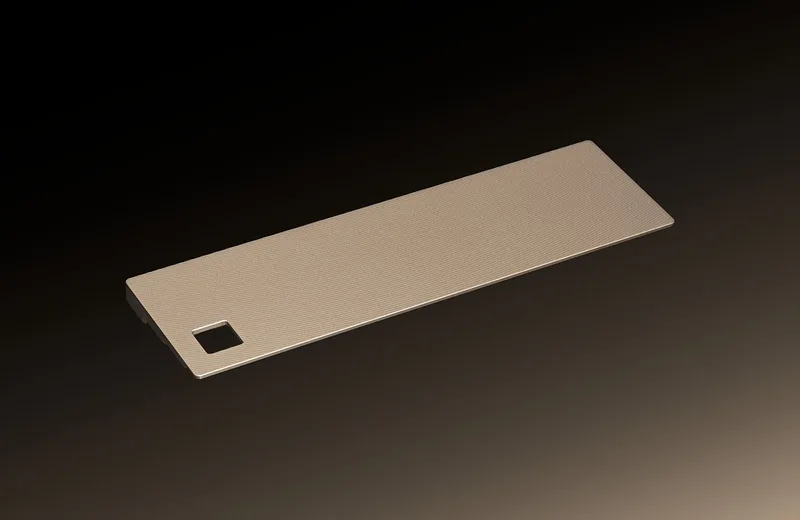

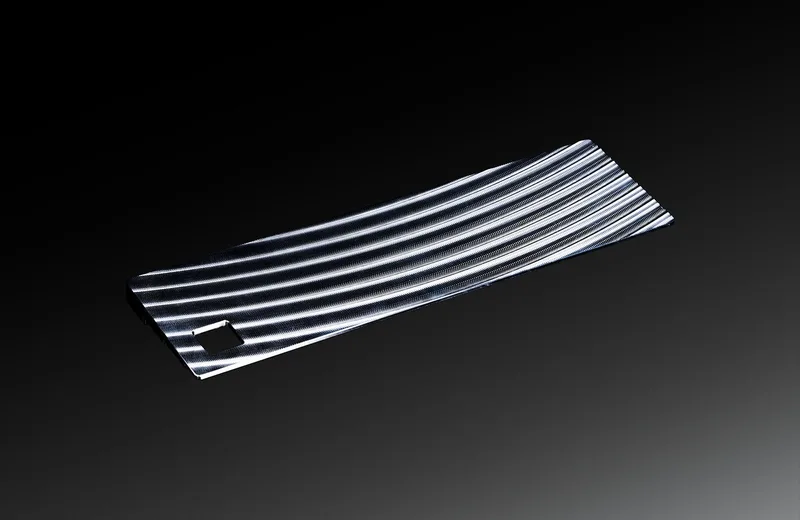

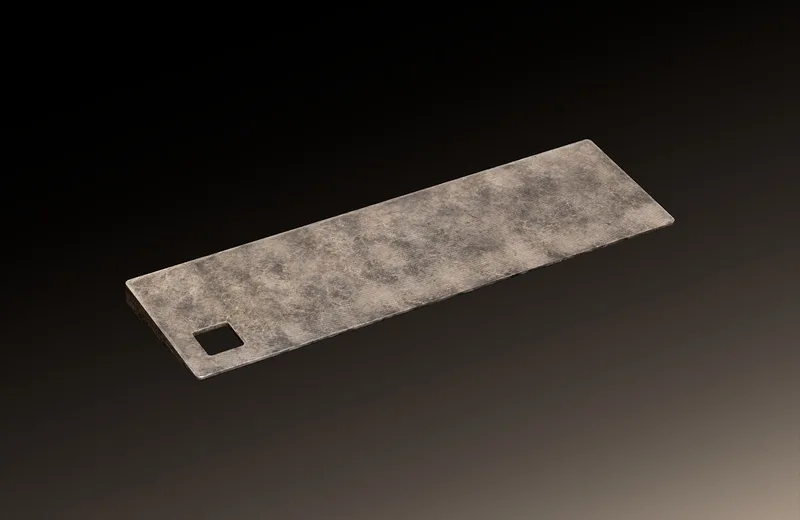

Brass AF, Brass Patina, Stainless Steel Raw / Black / Gold, Copper Raw

Considering copper is quite easily oxidized, it's normally used for patina. So we provide it RAW. Please think twice before you choose this option.

Plate

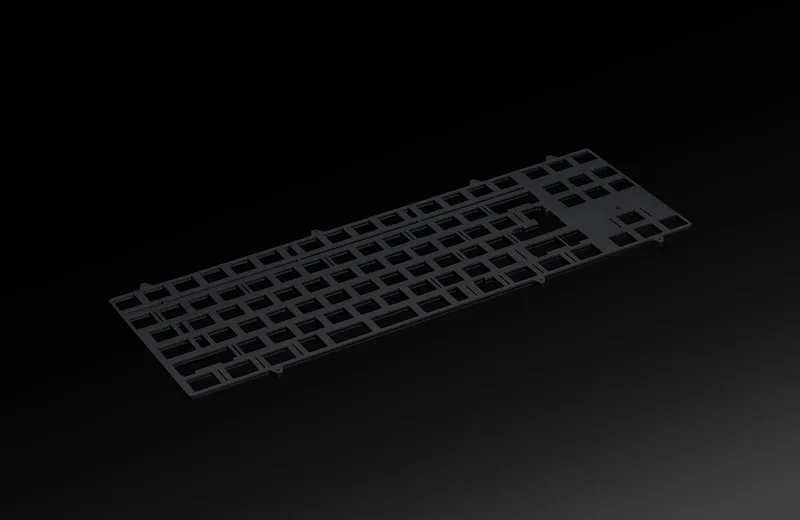

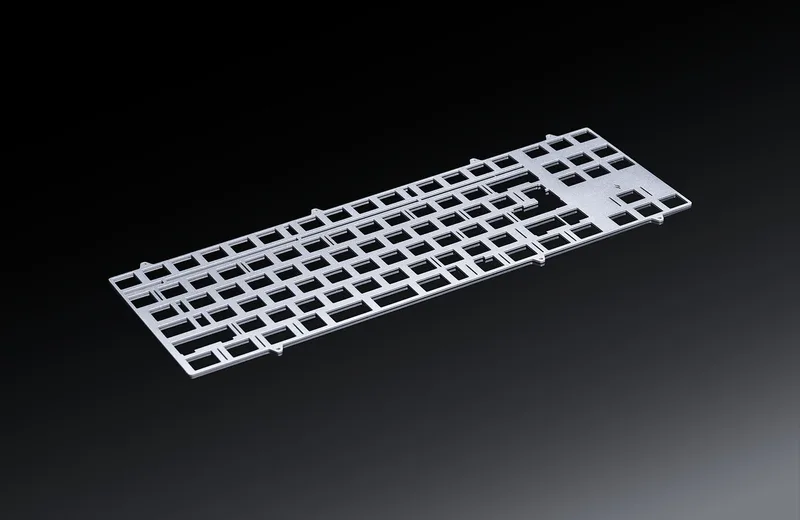

1.5mm Alu Silver/Black, 4mm PCABS, 4mm PEI

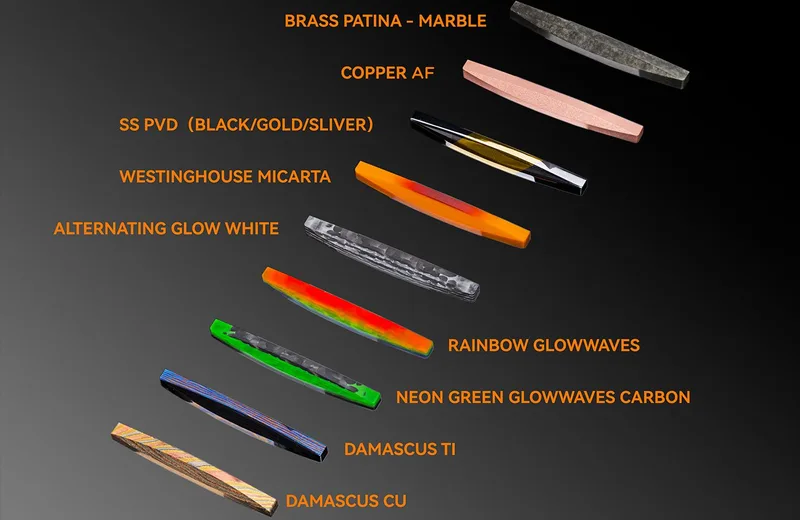

Strip

Black/Silver/Gold for Stainless steel, others as in picture.

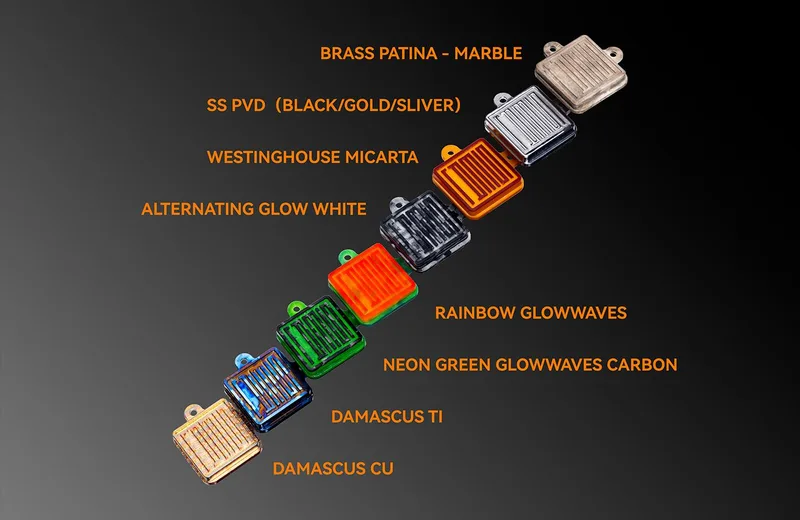

Badge

Black/Silver/Gold for Stainless steel, others as in picture.

Other bits & pieces

In accordance to Seal's successive design language, the bridge arch look remains plus the trim added above arrow keys, some kind of meaning like 'Front to Back, Call and Response'.

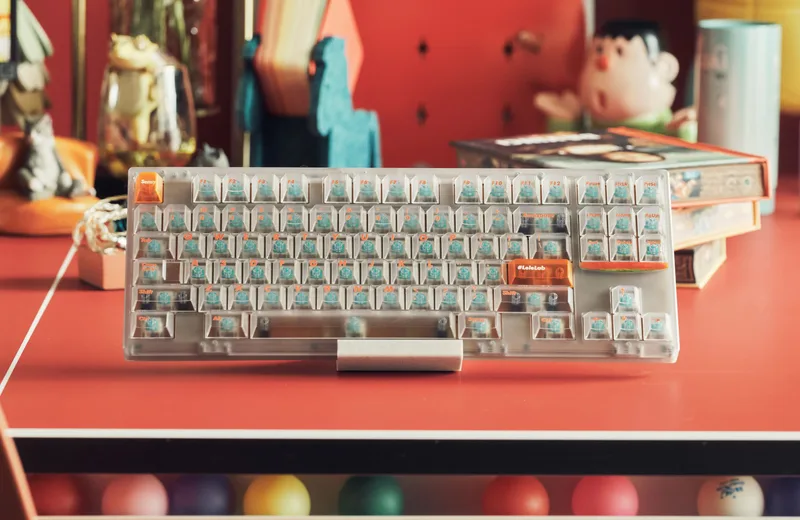

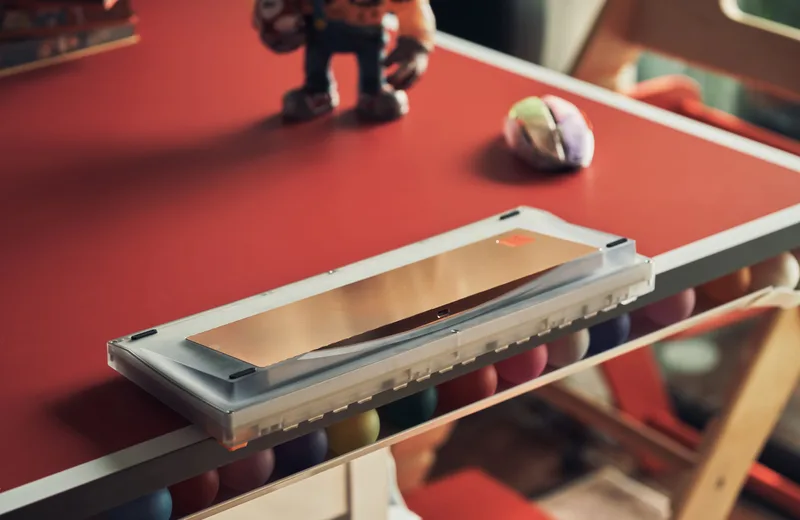

Regarding to the PC option, it's pointless to hang on to the 'force break', so we replaced the buffer with two copper AF bars. You may find its beauty of decoration beneath PC case, either seamless or screwless or whatever you call it.

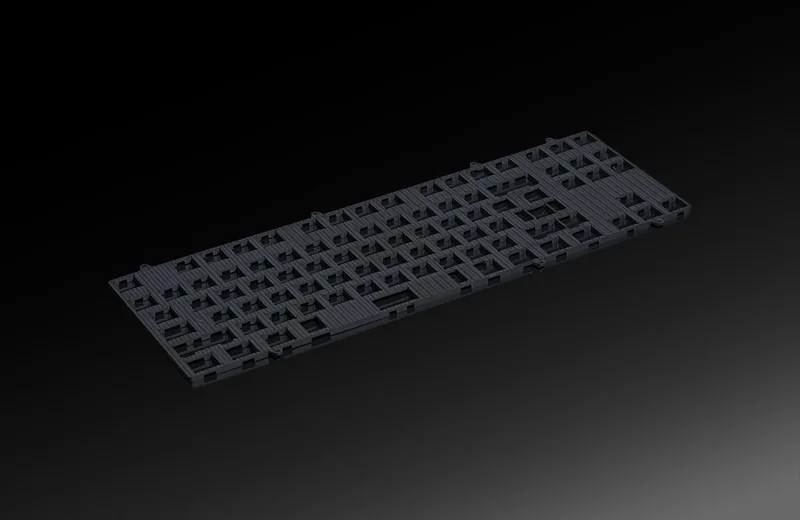

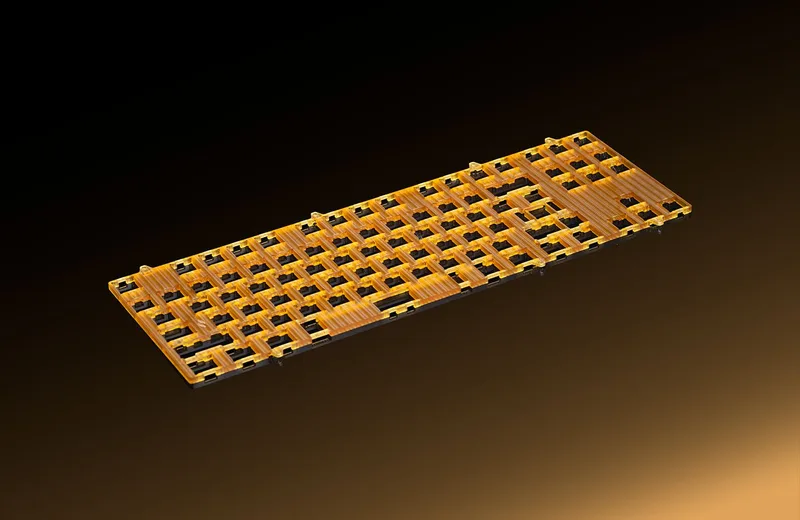

PEI 4mm from Smoke65 is provided. Furthermore, after careful testing, PCABS plate (also 4mm) is ready for GB too. Comparing with PEI's crispy sound, you may find ABS much more bouncy and thooooocker.

We found uncomfortable hollow feel generated from Smoke65's space bar area due to too much layouts options. So we canceled 6.25U option in Seal 80. Meanwhile, we divide ANSI and ISO into two separate plate options to maximize the filled FEEL.

Regarding to the silicone block, not only 70A & 90A, we found an interesting material called TPU with hardness of 98A. It's 3D printed, tested, and will be available for GB.

Package Contents

• Case top & bottom x 1 set
• Weight x 1 pc
• Strip x 1 pc
• Badge x 1 pc
• Internal aluminium badge x 1 pc
• Buffer bar x 1 pair
• PCB x 1 pc
• JST x 2 pcs
• PVC cushion x 1 pc
• 70a silicone block x 7 pcs
• 90a silicone block x 7 pcs
• 98a TPU printed block x 7 pcs
• Bumper x 1 set
• Carry bag x 1 pc
• Packing box x 1 pc
• T6/T8 screw driver x 1 set
• Manual x 1 pc
